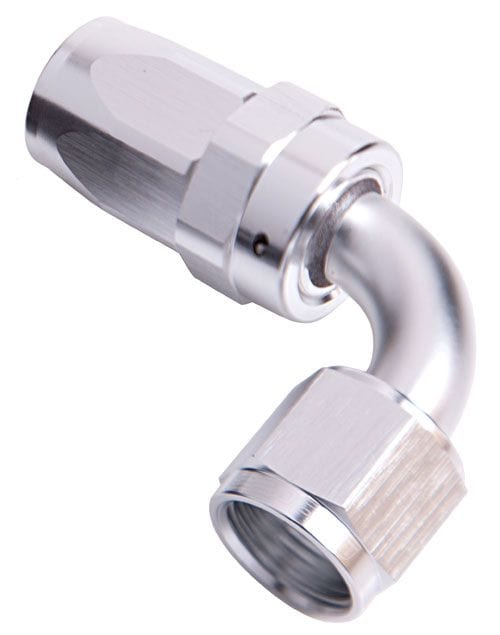

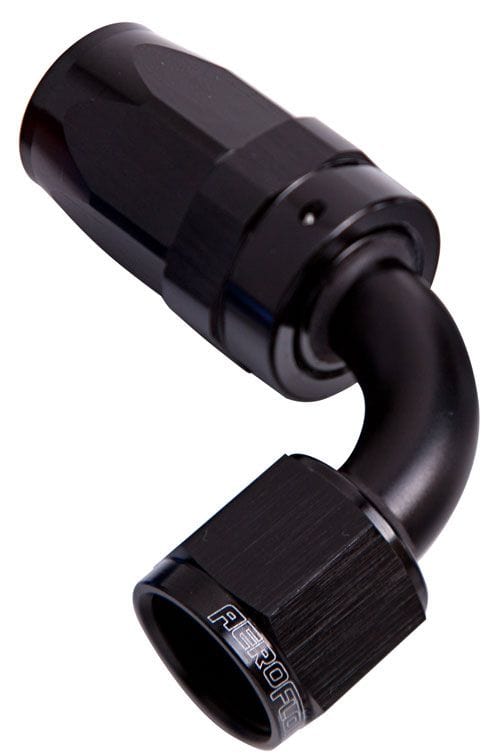

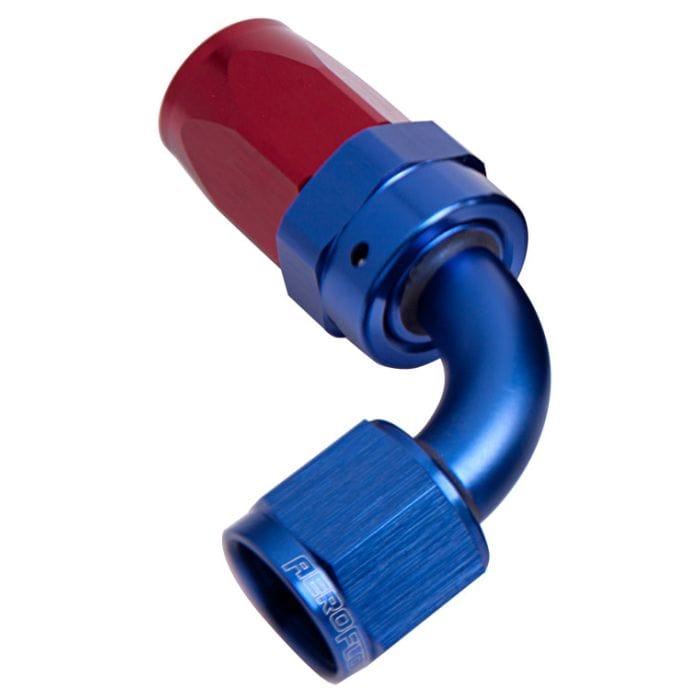

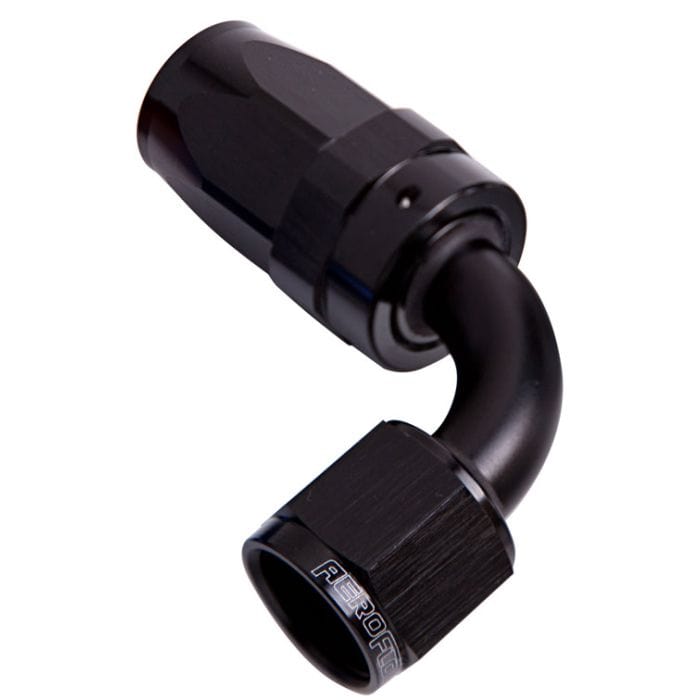

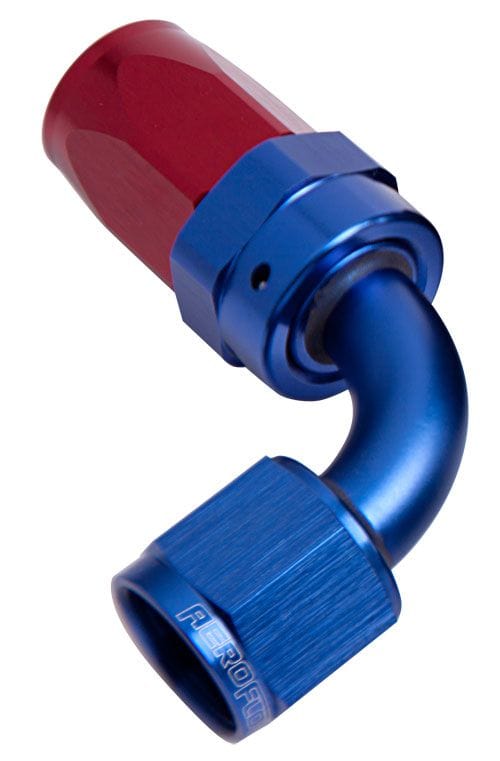

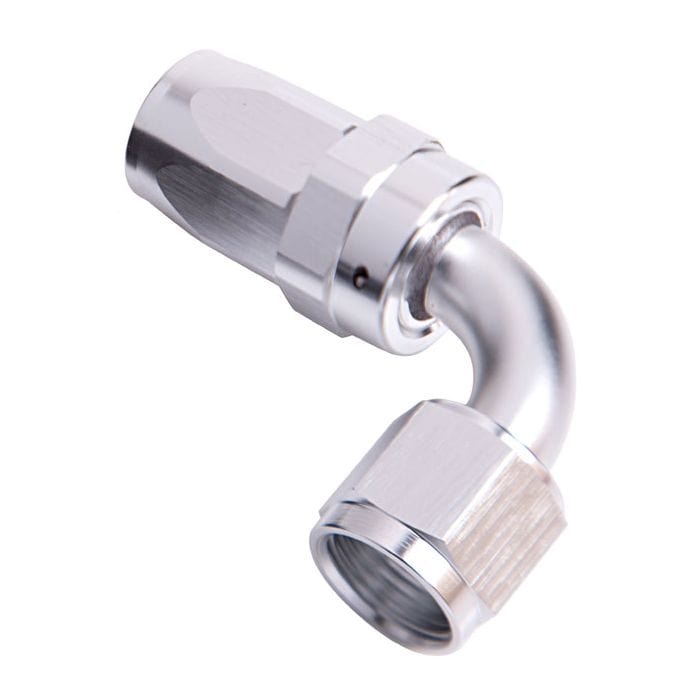

Aeroflow 100 Series Taper 90° Swivel Hose End
Available in -4AN to -20AN, Black, Red/Blue or Silver Finish
Brand: Aeroflow
Part Number: AF103 series
Description:
100 Series Taper 90° Swivel Hose End AF103 . Suit 100 & 450 Series Hose
Aeroflow's 100 Series Taper fittings are a braised full flow fitting with a taper design that provides straight through connection with easy alignment. Upon assembly, a tube end compresses the hose into a purpose designed socket allowing for a leak free fitting. All angles are mandrel bent, eliminating sharp changes in direction for optimum flow. Our 100 Series fittings allows 360° rotation to allow for easy adjustment making them and an excellent choice for the automotive enthusiast for use in fuel systems, cooling systems, vacuum applications and oil systems. Compatible hose: 100 Series Stainless Steel braid and 450 Series Lightweight Nylon braid.
Note: Not compatible for power steering and automatic transmission line applications. Hose ends are hard anodised (excluding Silver finish).
Available Options
| AN Size |
Colour |
Part Number |
| -4AN |
Black |
AF103-04BLK |
| -4AN |
Red/Blue |
AF103-04 |
| -4AN |
Silver |
AF103-04S |
| -6AN |
Black |
AF103-06BLK |
| -6AN |
Red/Blue |
AF103-06 |
| -6AN |
Silver |
AF103-06S |
| -8AN |
Black |
AF103-08BLK |
| -8AN |
Red/Blue |
AF103-08 |
| -8AN |
Silver |
AF103-08S |
| -10AN |
Black |
AF103-10BLK |
| -10AN |
Red/Blue |
AF103-10 |
| -10AN |
Silver |
AF103-10S |
| -12AN |
Black |
AF103-12BLK |
| -12AN |
Red/Blue |
AF103-12 |
| -12AN |
Silver |
AF103-12S |
| -16AN |
Black |
AF103-16BLK |
| -16AN |
Red/Blue |
AF103-16 |
| -16AN |
Silver |
AF103-16S |
| -20AN |
Black |
AF103-20BLK |
| -20AN |
Red/Blue |
AF103-20 |
| -20AN |
Silver |
AF103-20S |
