Link ECU 4 Bar MAP Sensor MAP4
MAP Sensor 4 bar absolute, 3 bar of boost measurement.
Brand: Link ECU
Part Number: 101-0165
Description:

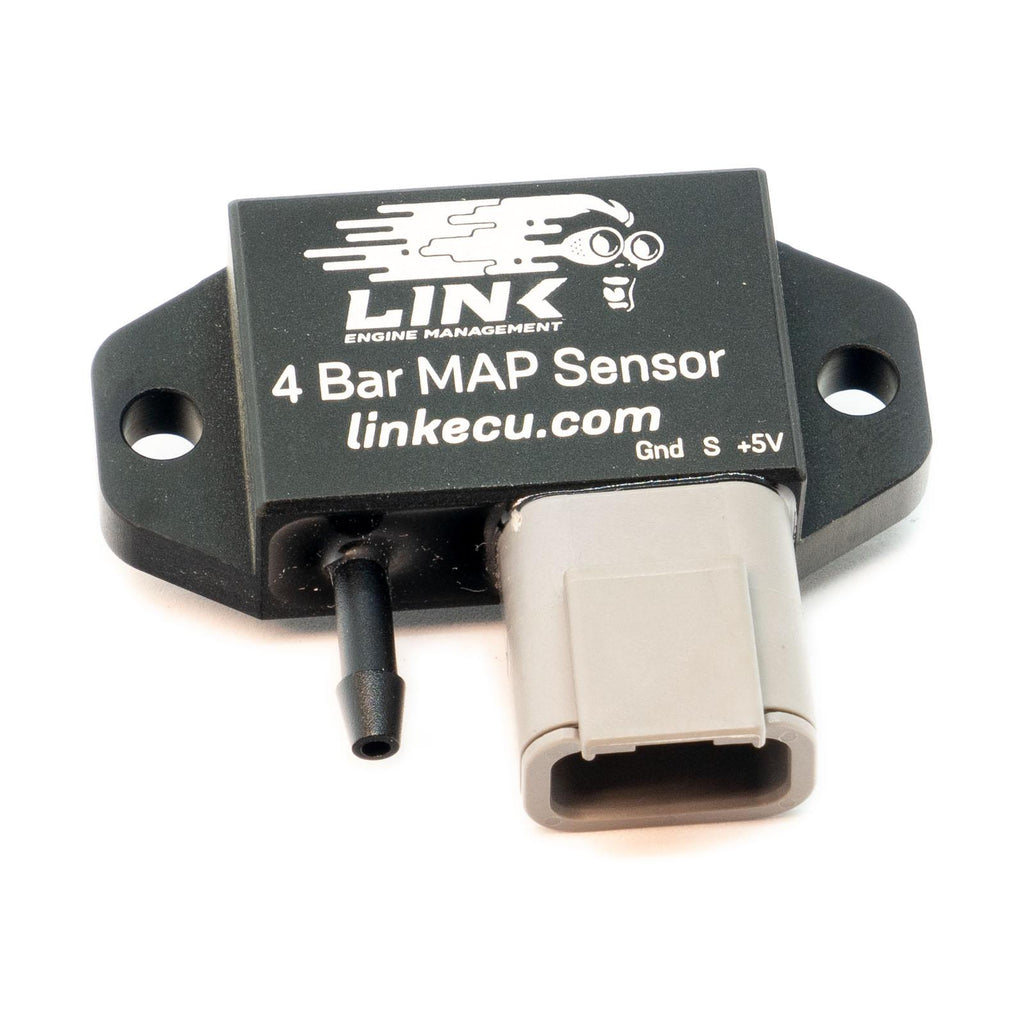

The Link 4 Bar MAP Sensor is a high-accuracy manifold absolute pressure (MAP) sensor designed for turbocharged and supercharged engines. It can measure manifold pressures from full vacuum to 44 psi (3.0 bar) of boost, delivering accurate and reliable pressure measurement for precise engine tuning.
Suits
- All Link ECUs.
- Other aftermarket ECUs with analogue MAP sensor inputs.
- Turbocharged and supercharged engines running up to 44 psi (3.0 bar) of boost.
What's in the Box
- 4 Bar MAP Sensor

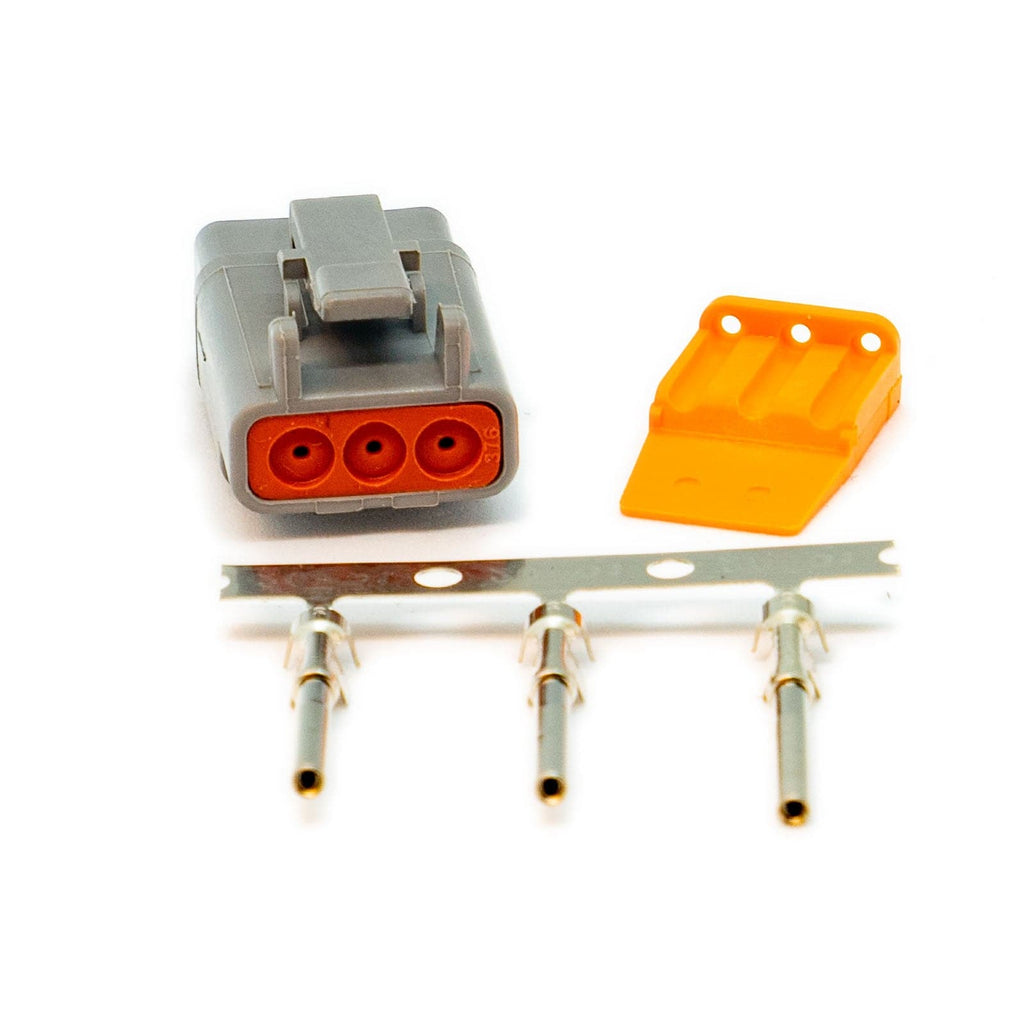

- Deutsch 3 Way Plug Kit
Specifications
-
Highlights: Pressure range: 0-4 bar absolute.; High-resolution pressure measurement.; Compact aluminium enclosure.; 4mm (3/16") hose barb connection.; Two-bolt mounting design.; Includes 3-pin Deutsch DTM connector kit.; Wiring pinout marked on the sensor housing.; Designed and manufactured by LinkECU.
-
Product Dimensions: 60mm(L)x50mm(W)x20mm(H); 2.36in(L)x1.97in(W)x0.79in(H)
-
Product Weight: 40 grams (1.41 ounces)
-
Electrical: Operating Voltage Range: 4.75-5.25V; Maximum Input Voltage: 5.25V; Maximum Continuous Current Draw: 10mA
-
PCLink Calibration Name: "Link 4 Bar"
-
Raw Calibration Specs: 0.5V = 45kPa, 4.5V = 375kPa
-
Connector: Deutsch 3 Way Plug Kit (PN 101-0128)
Notes
- Mount the sensor higher than the intake manifold connection point.
- In PCLink, select "Link 4 Bar" as the MAP sensor type.
- Not recommended for naturally aspired (NA) engines or boost levels exceeding 3 bar / 44psi.
