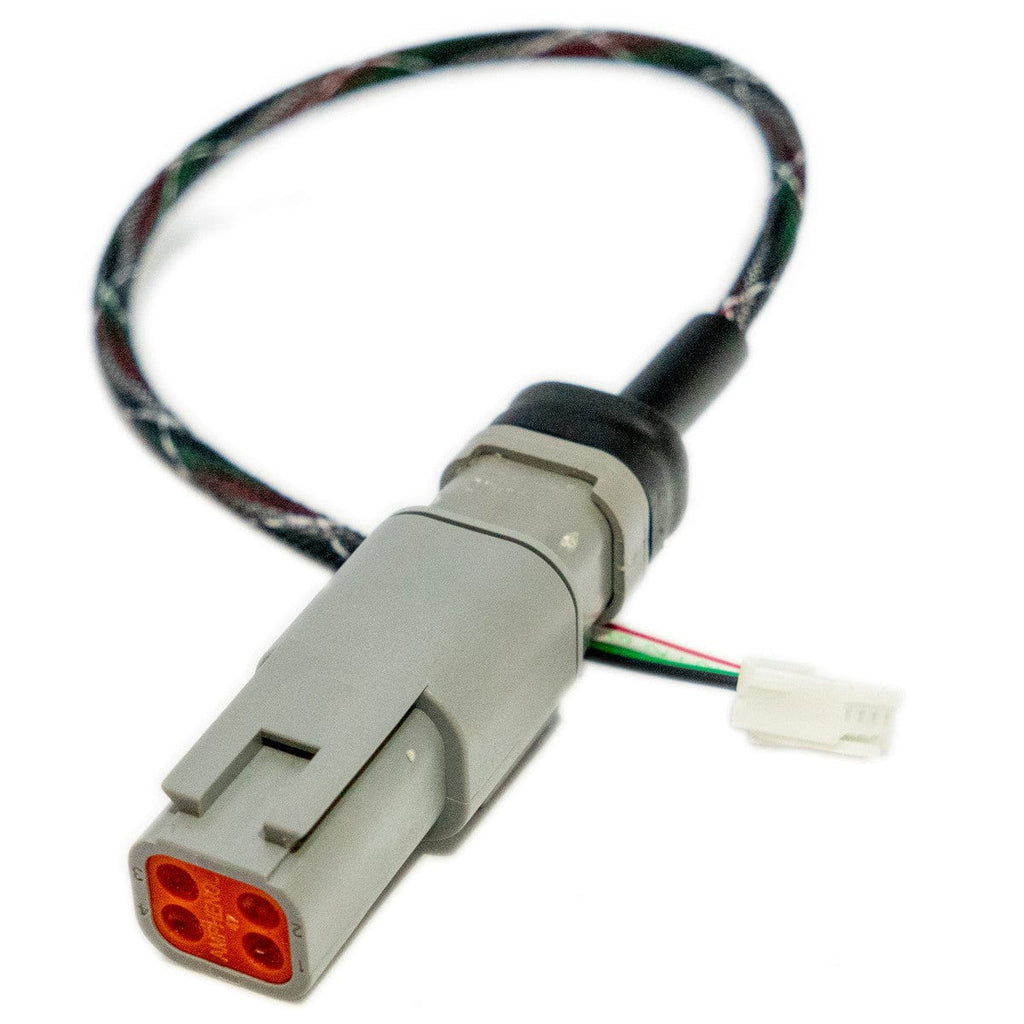

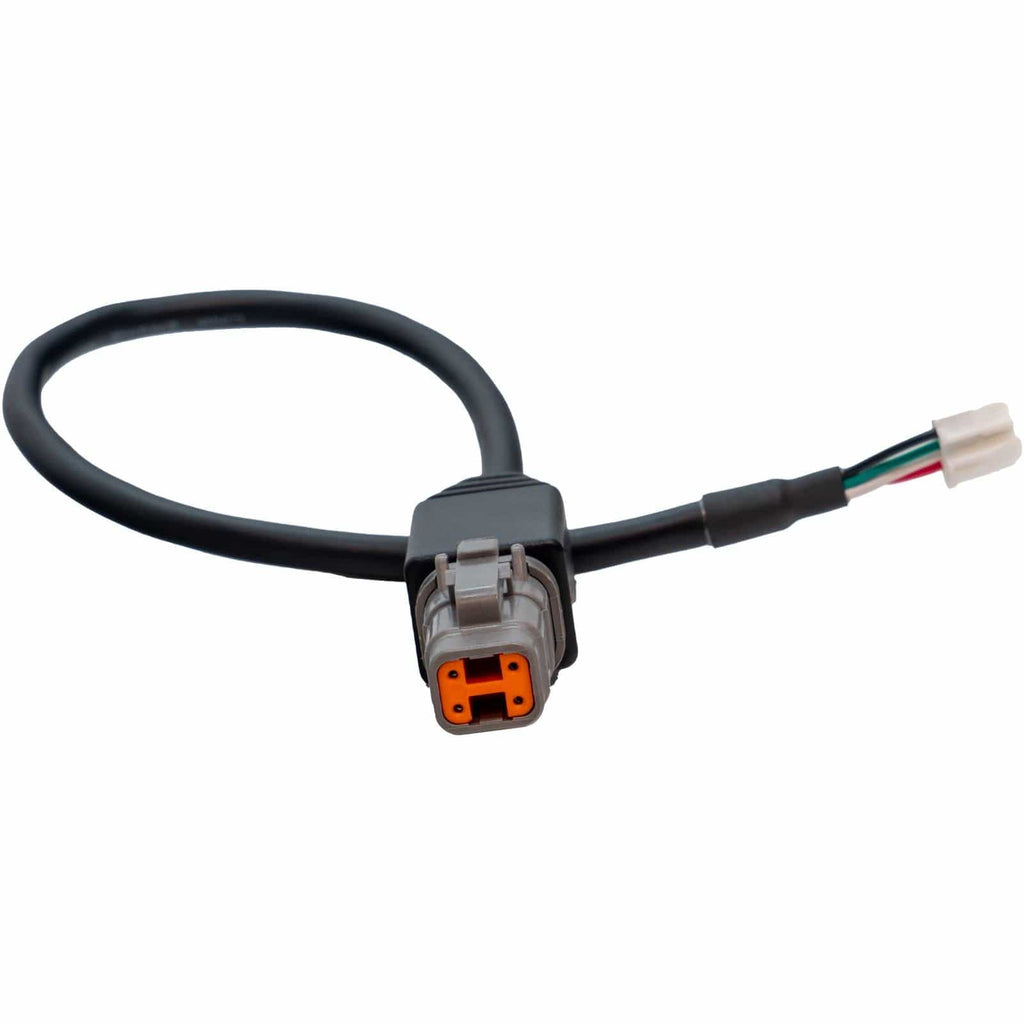

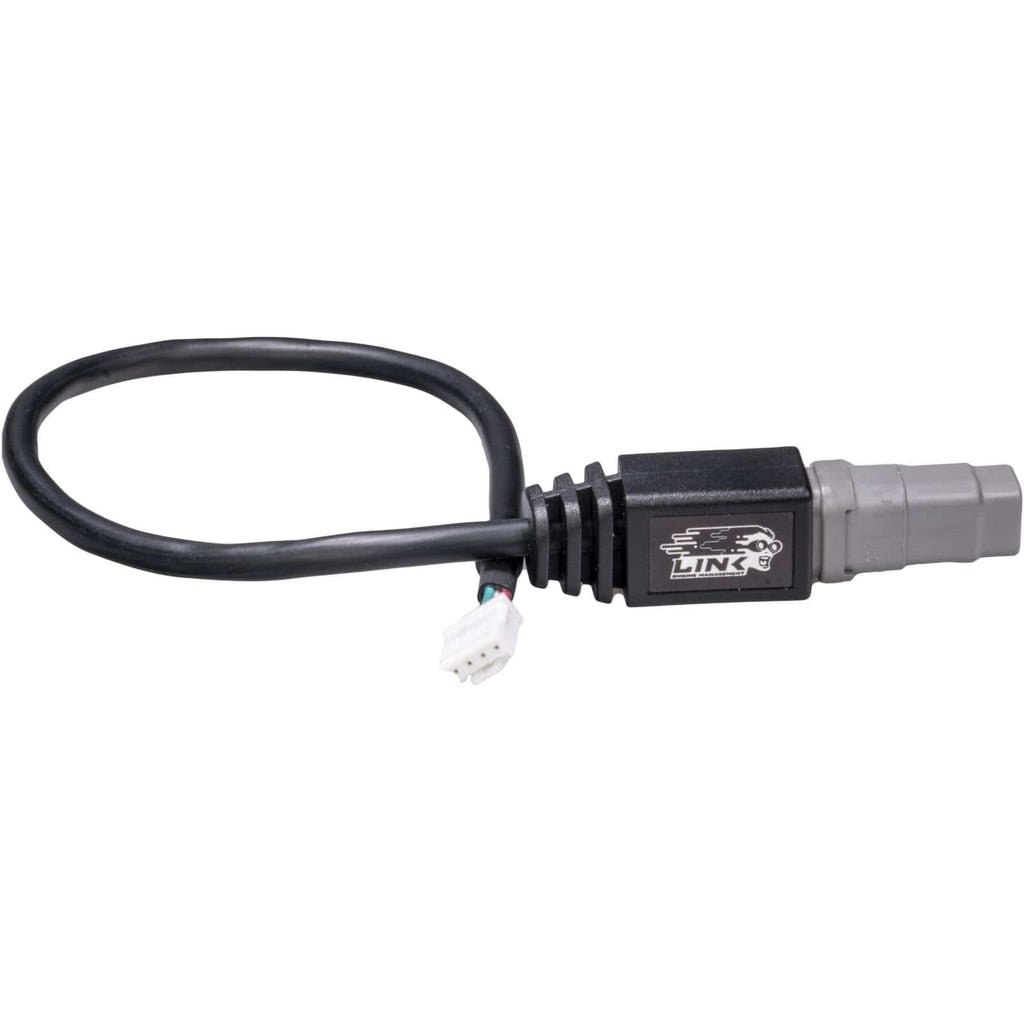

Link ECU CANJST4 - CAN Connection Cable for Plugin ECU's 4pin
Supplies CAN and Power on G4X PlugIns with 4 Pin CAN Connector
Brand: Link ECU
Part Number: 101-0198
Description:
The Link 300mm CANJST4 is required to add CAN communications & power to recently released G4X Plug-in ECU's which have the new 4 Pin powered CAN connector (not the older 5 pin CAN connector). Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories. Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.
Suits
- 214-4100 - Plug-in ECU G4X Nissan GTR with E-Throttle
- 217-4100 - Plug-in ECU G4X Nissan S15 with E-Throttle
- 233-4000 - Plug-in ECU G4X Honda S2000 AP1
- 228-4000 - Plug-in ECU G4X Subaru WRX V5-6
- 237-4000 - Plug-in ECU G4X Honda HC20X Type-R DC5/RSX
- 238-4000 - Plug-in ECU G4X Subaru WRX11
- 239-4000 - Plug-in ECU G4X MX5NB2X
- 240-4000 - Plug-in ECU G4X MX5NB1X
- 243-4000 - Plug-in ECU G4X WRX11 USDM
- 241-4200 - G5 ECU Plug-in - Toyota GT86/Subaru BRZ LHD
- 241-4000 - G5 ECU Plug-in - Toyota GT86/Subaru BRZ RHD
What's in the Box
- CANJST4 - Link CAN Connection Cable for Plug-in ECUs
Specifications
-
Product Dimensions: 400mm(L)x20mm(W)x20mm(H); 15.75in(L)x0.79in(W)x0.79in(H)
-
Product Weight: 35 grams (1.23 ounces)
-
Material: 300mm
-
Electrical: Maximum Input Voltage: 300V; Maximum Continuous Current Draw: 3A; Gauges of wire: 20AWG/0.5mm2
-
Raw Calibration Specs: Pin 1: 12V; Pin 2: Ground; Pin 3: CAN Low; Pin 4: CAN High
-
Connector: DTM4 Male to JST4.; 12V and GND Terminated to JST4.
