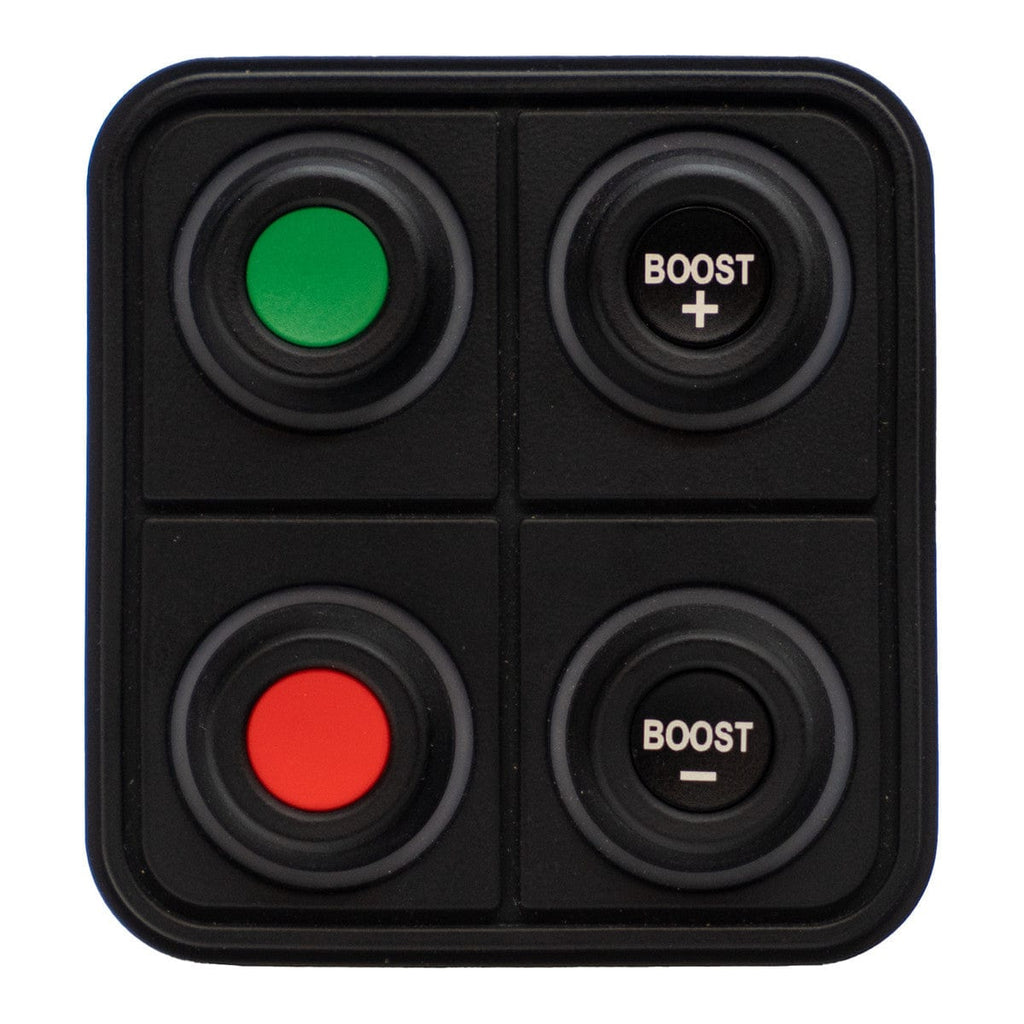

Link ECU Link CAN Keypad 4 button

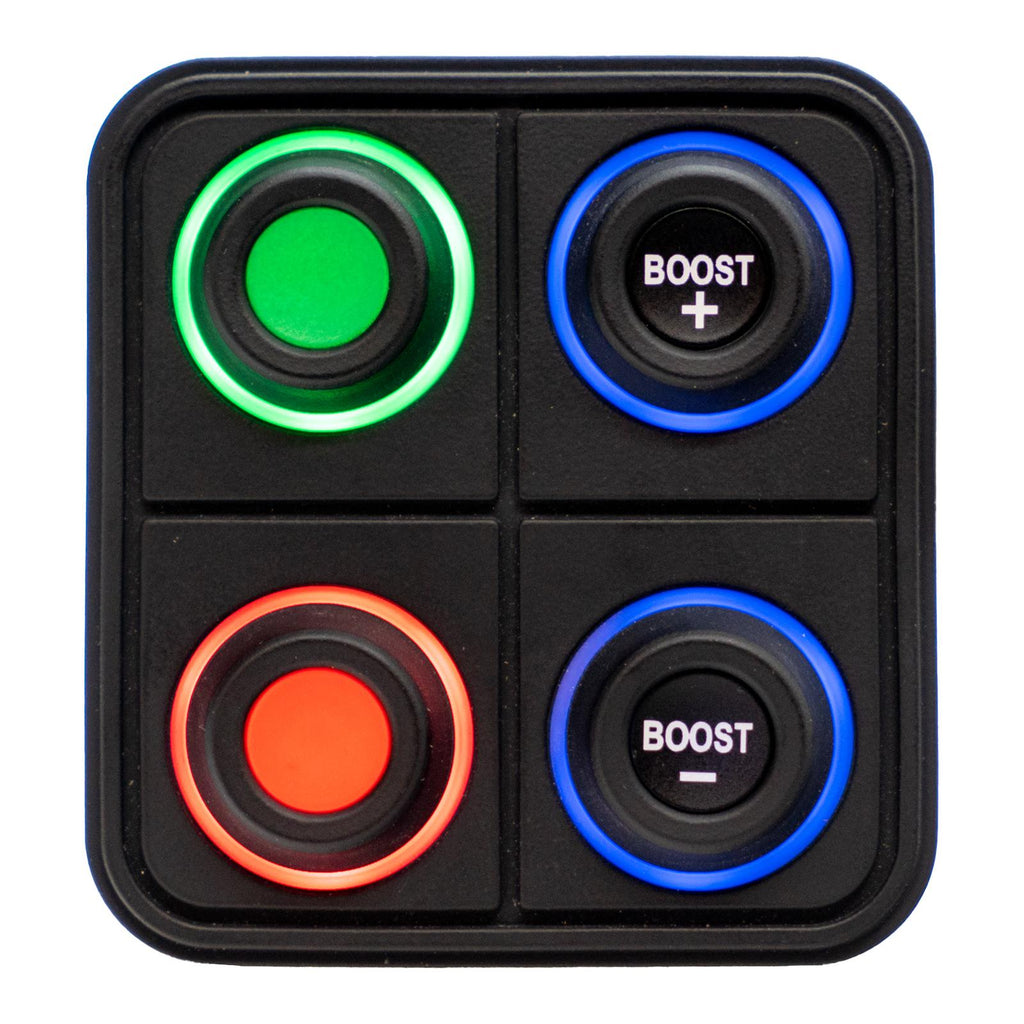

Rugged 4 key CAN Keypad with interchangeable 15mm inserts (sold separately). Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups. The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations. Can be installed both inside and outside, perfect for street, track and off-road use. Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose. Features: •CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle. •Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical. •IP67/IP69K Waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs. •Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards Box Contents: 1 x 4 Button CAN Keypad 1 x DTM4 Mating Connector Kit 1 x Link Sticker 1 x Keypad Button Insert – Link Logo
Specifications: Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) Switch Life - 3 million operations CANopen Node ID – 0x15 (21) Default Baud Rate - 1000kbit/s Ingress protection Rating – IP67/IP69K Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid UV Protection - UVB 400 hours Salt Spray Per - ASTMB117 Dimensions – 65mm (W) x 70mm (H) Mounting Specs: Mounting Stud Gap (Centre to Centre) 28.8mm Nuts thread: #10-32 Maximum torque: 0.8Nm
