Link CAN Keypad 8 button (2x4)
Brand: Link ECU
Part Number: 101-0237
Description:

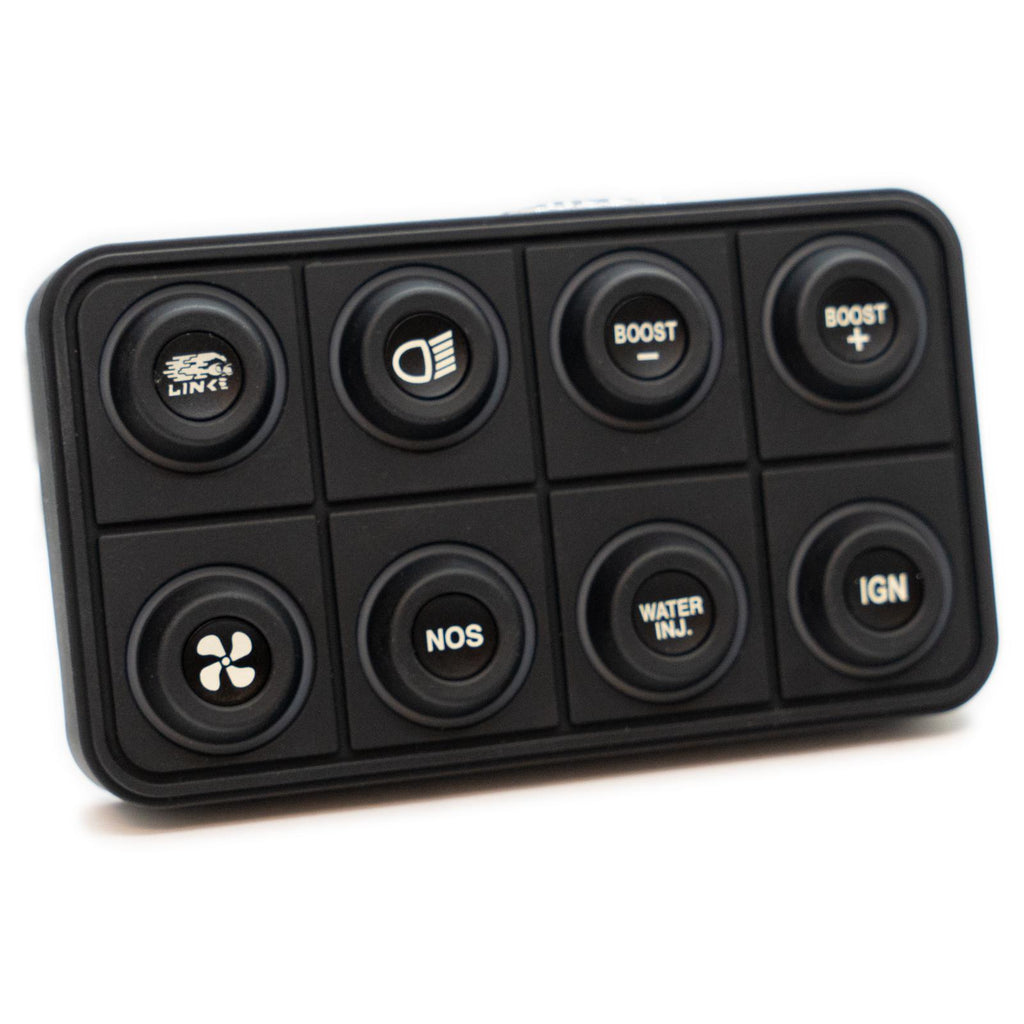

Link CAN 8 button keypad with interchangeable 15 mm inserts (sold separately).

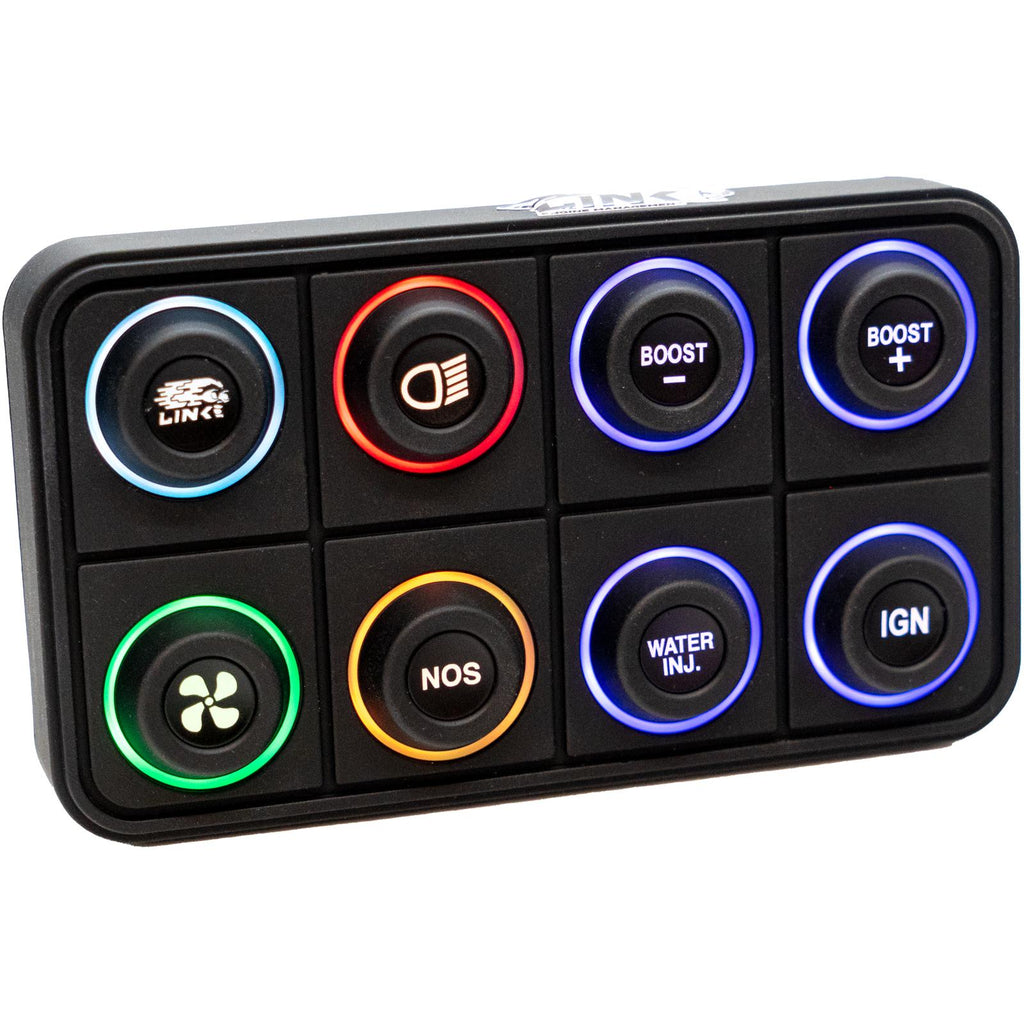

Customisable button inserts and configurable RGB indicator rings for each button provide exceptional flexibility across a wide range of applications.
Designed for maximum durability and reliability, the keypad features IP67/IP69K-rated water and dust resistance, an operating temperature range of -40°C to +70°C, 400 hours of UV resistance, salt spray protection, and switches rated for up to 3 million operations.
Suitable for both interior and exterior installation, making it ideal for street, track, and off-road use.
Features
- CAN Configurable with G4X / G5 PC-Link
- Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
- Customizable Button Inserts
- The replacement system for individual inserts makes modifying the keypad layout simple and economical.
- IP67/IP69K Waterproof rating
- Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.
Suits
- Compatible with all G4X & G5 ECU's. Built-in support from G4X PC Link vers 6.22 onwards.
What's in the Box
- 1 x 8 Button CAN Keypad
- 1 x DTM4 Mating Connector Kit
- 1 x Link Sticker
- 1 x Keypad Button Insert - Link Logo
Specifications
-

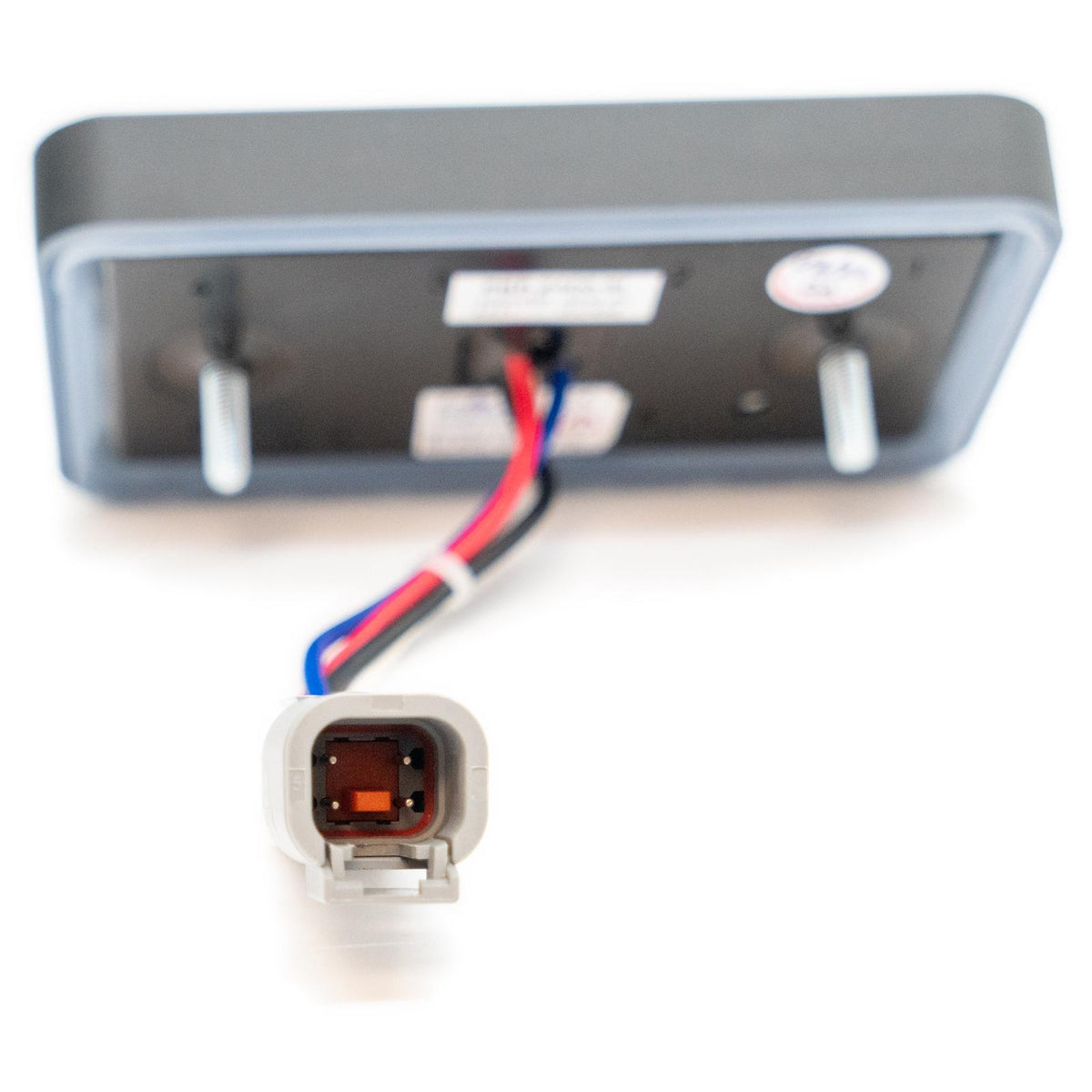

Highlights: Connector: DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low); Switch Life: 3 million operations; CANopen Node ID: 0x15 (21); Default Baud Rate: 1000kbit/s; Ingress protection Rating: IP67/IP69K; Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid; UV Protection: UVB 400 hours; Mounting Specs: Mounting Stud Gap (Centre to Centre) 78mm, Nuts thread: #10-32, Maximum torque: 0.8Nm
-
Product Dimensions: 123.5mm (W) x 70mm (H)
-
Product Weight: 155g
-
Electrical: Operating Voltage Range: 8-32V; Maximum Input Voltage: 32V; Maximum Continuous Current Draw: <50mA
-
Connector: TE Connectivity Deutsch DTM 4-pin 101-0156
Notes
- Keypad ships with empty button inserts, inserts need to be selected and purchased individually.
- 1 x Link ECU Logo Button Insert included in the box which can be fitted.
