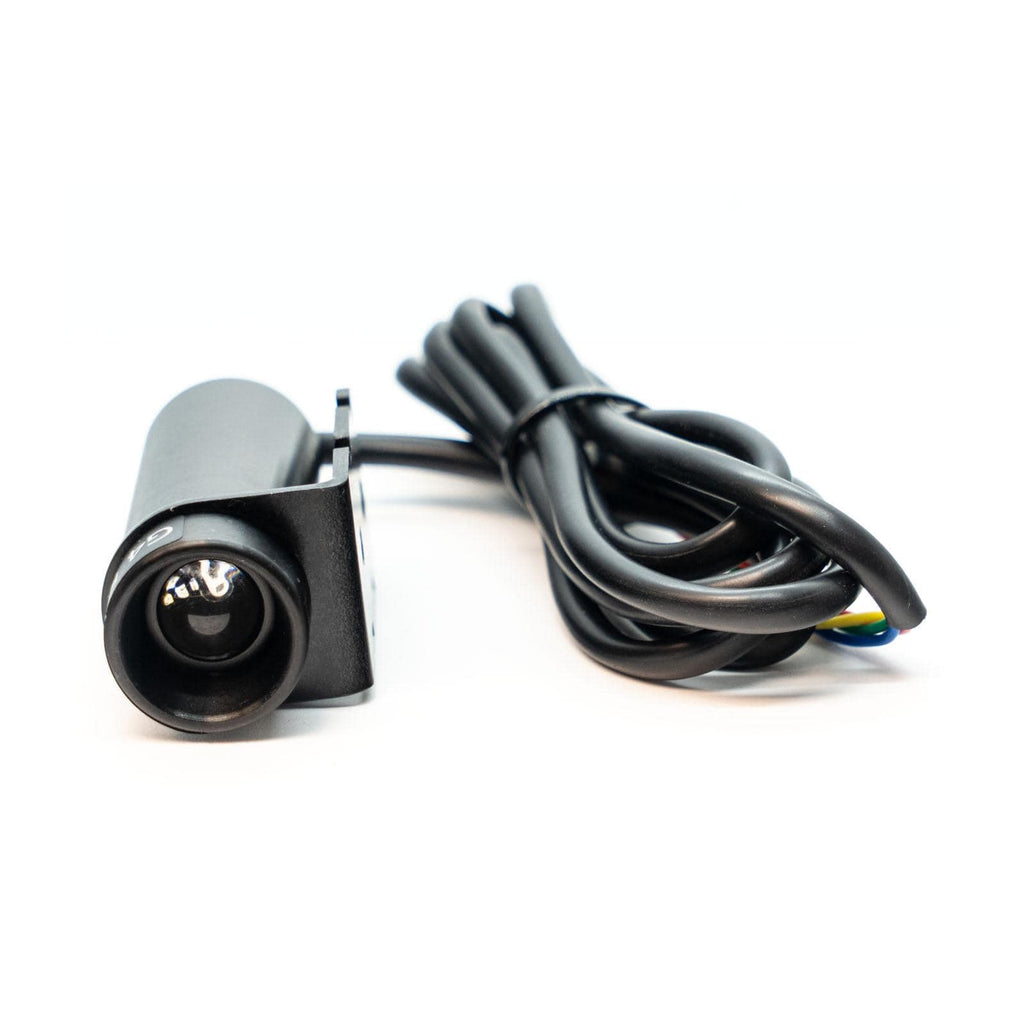

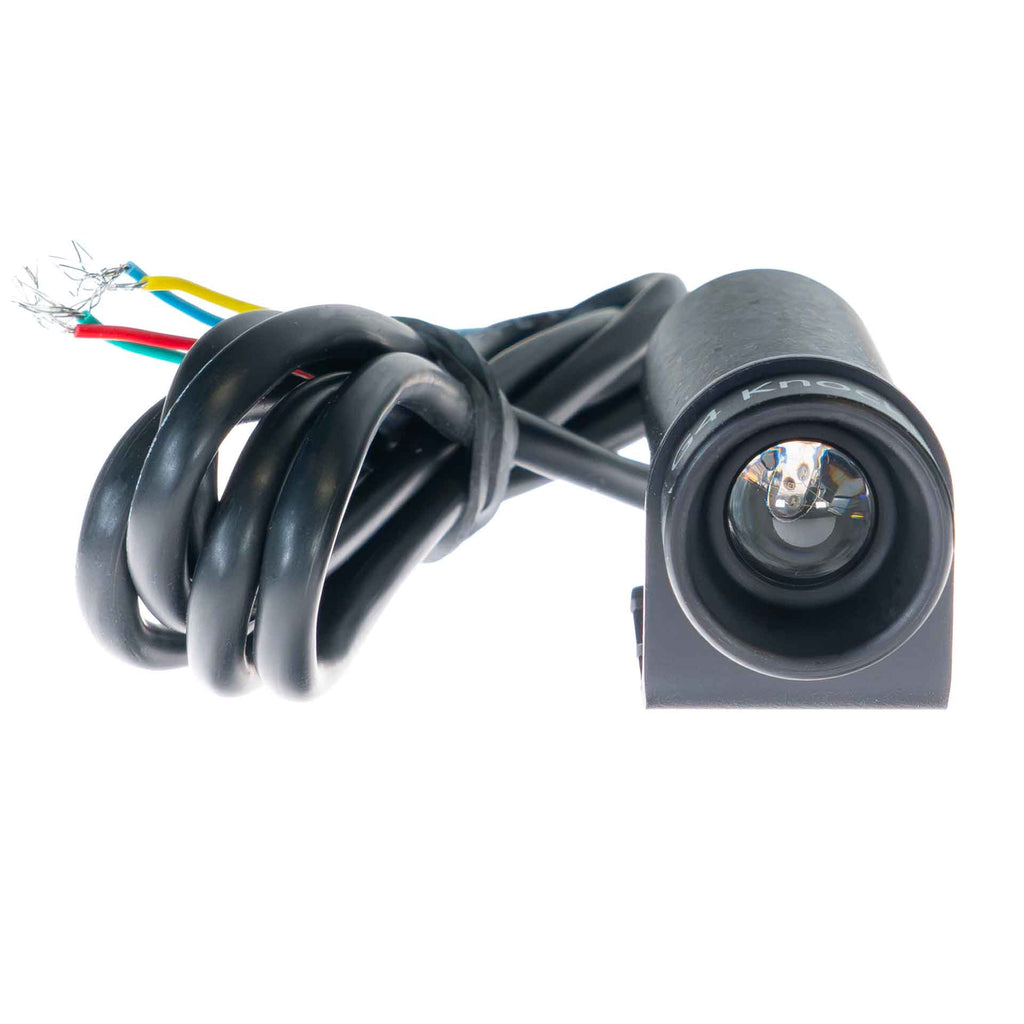

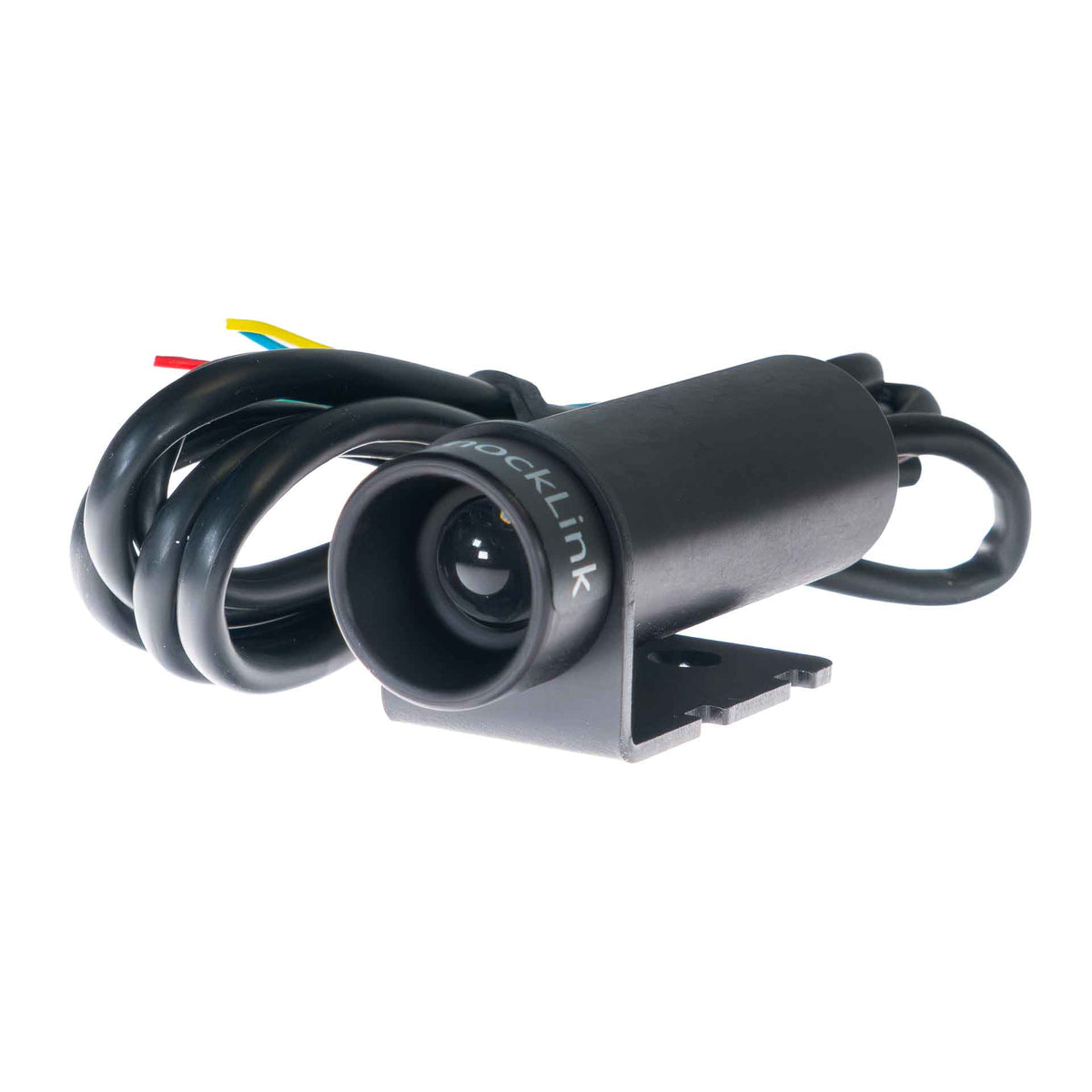

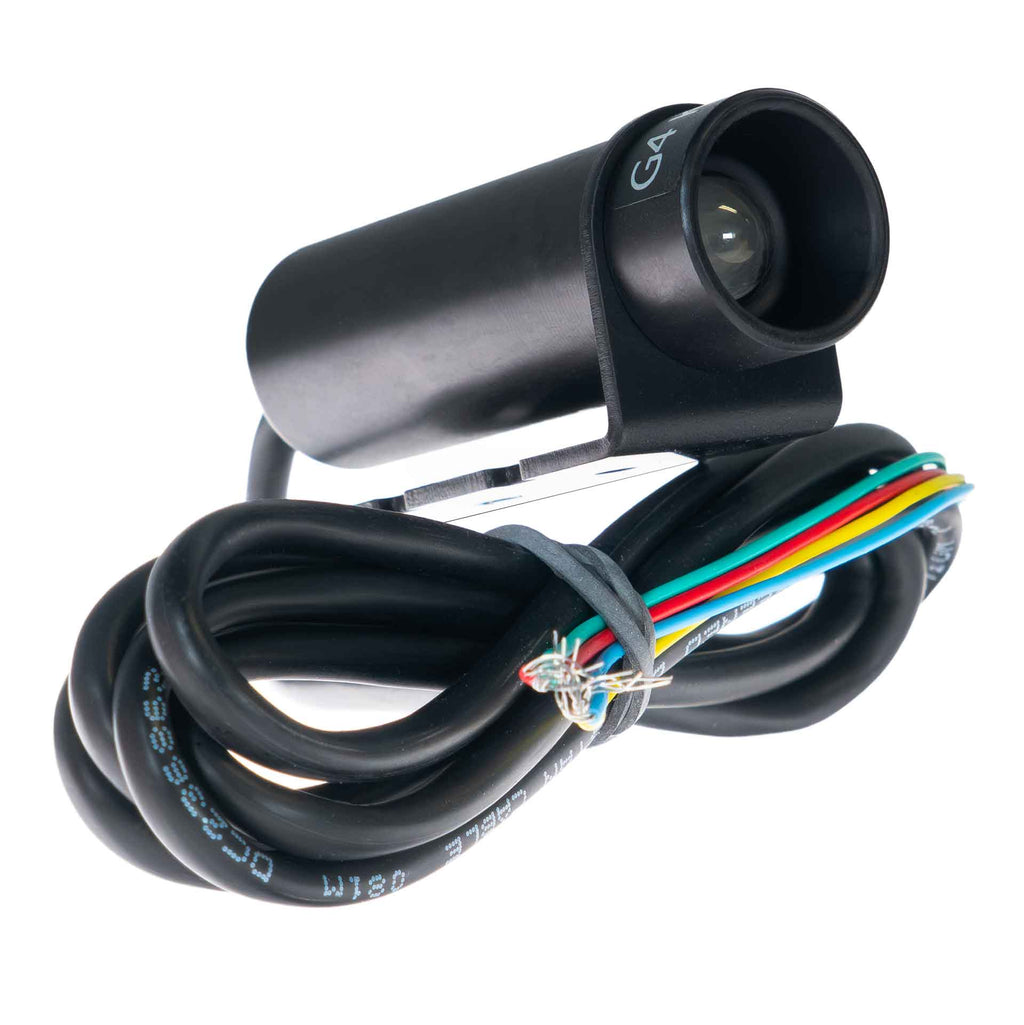

Link ECU KnockLink G4 Knock Sensor Interface G4KNL
Knocklink G4 Visual Detonation Warning
Brand: Link ECU
Part Number: 114-1000
Description:
The Link KnockLink is a self-calibrating visual knock warning device designed to detect engine knock (detonation) and instantly alert the driver with a high-intensity LED warning.
Using intelligent digital signal processing, the KnockLink continuously monitors the knock sensor signal, automatically learning the engine's normal noise profile to accurately identify knock without requiring complex setup or calibration.
Suits
- Link Knock Sensors.
- OEM knock sensors.
Specifications
-
Highlights: Standalone knock detection device.; Intelligent self-learning knock detection.; Self-calibrating operation.; No gain or frequency setup required.; High detection accuracy.; Visual LED knock warning.; Monitors one knock sensor.; Operates independently of the ECU.; Compact CNC aluminium enclosure.; Includes Knock Sensor with 2.6 m Loom.; Includes wiring loom and mounting bracket.; Knock sensor sold separately (PN 101-0053).
-
Electrical: Operating Voltage Range: 6-26V; Maximum Input Voltage: 26V; Maximum Continuous Current Draw: 100mA
Notes
- The Link KnockLink is a self-calibrating visual knock warning device designed to detect engine knock (detonation) and instantly alert the driver with a high-intensity LED warning.
- Not suitable for mechanically noisy engines, including engines with high-clearance pistons and two-stroke engines.
- Visual LED knock warning.
- Requires a compatible knock sensor.
- Do not connect the KnockLink and ECU to the same knock sensor.
