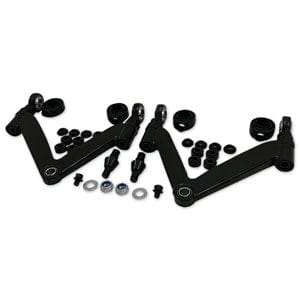

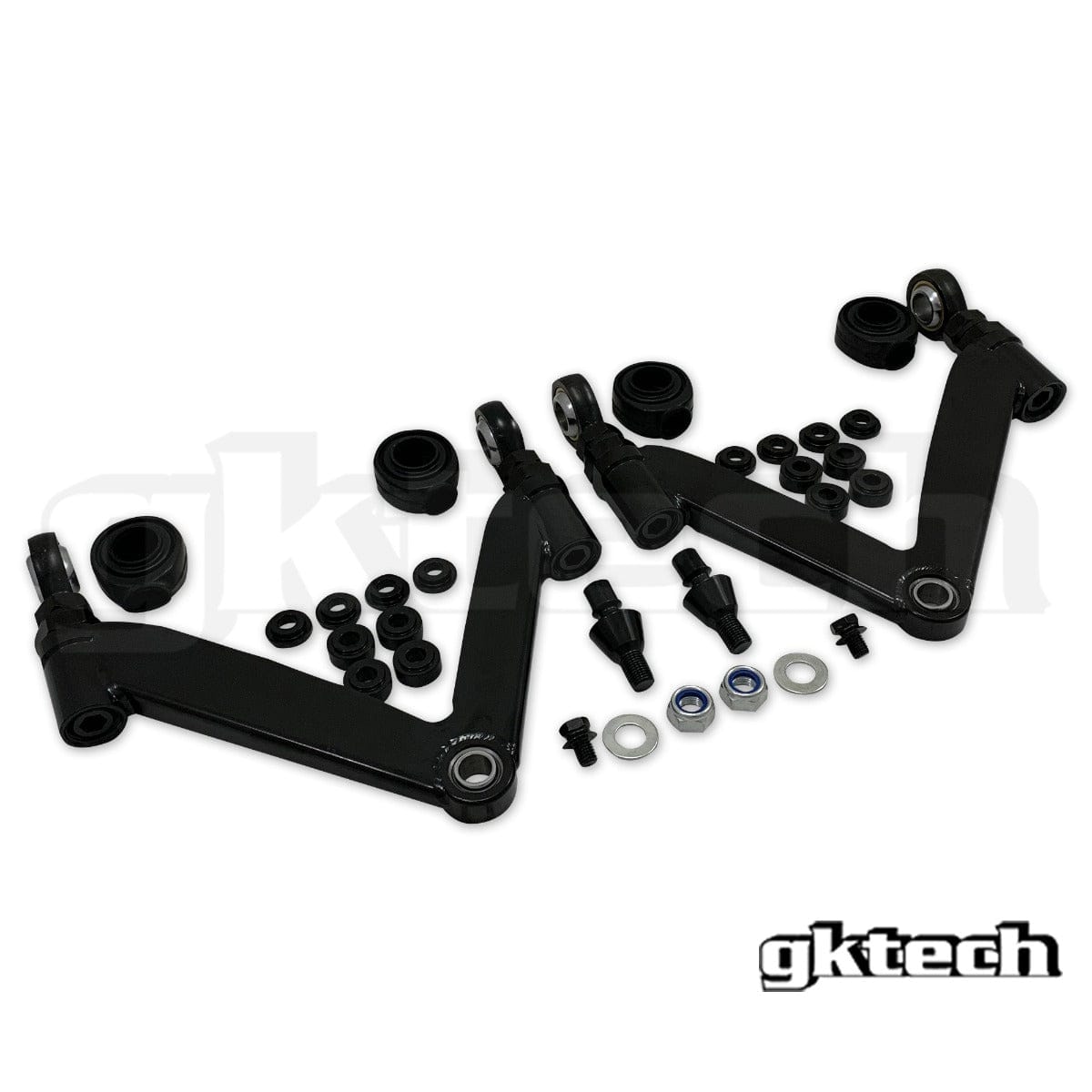

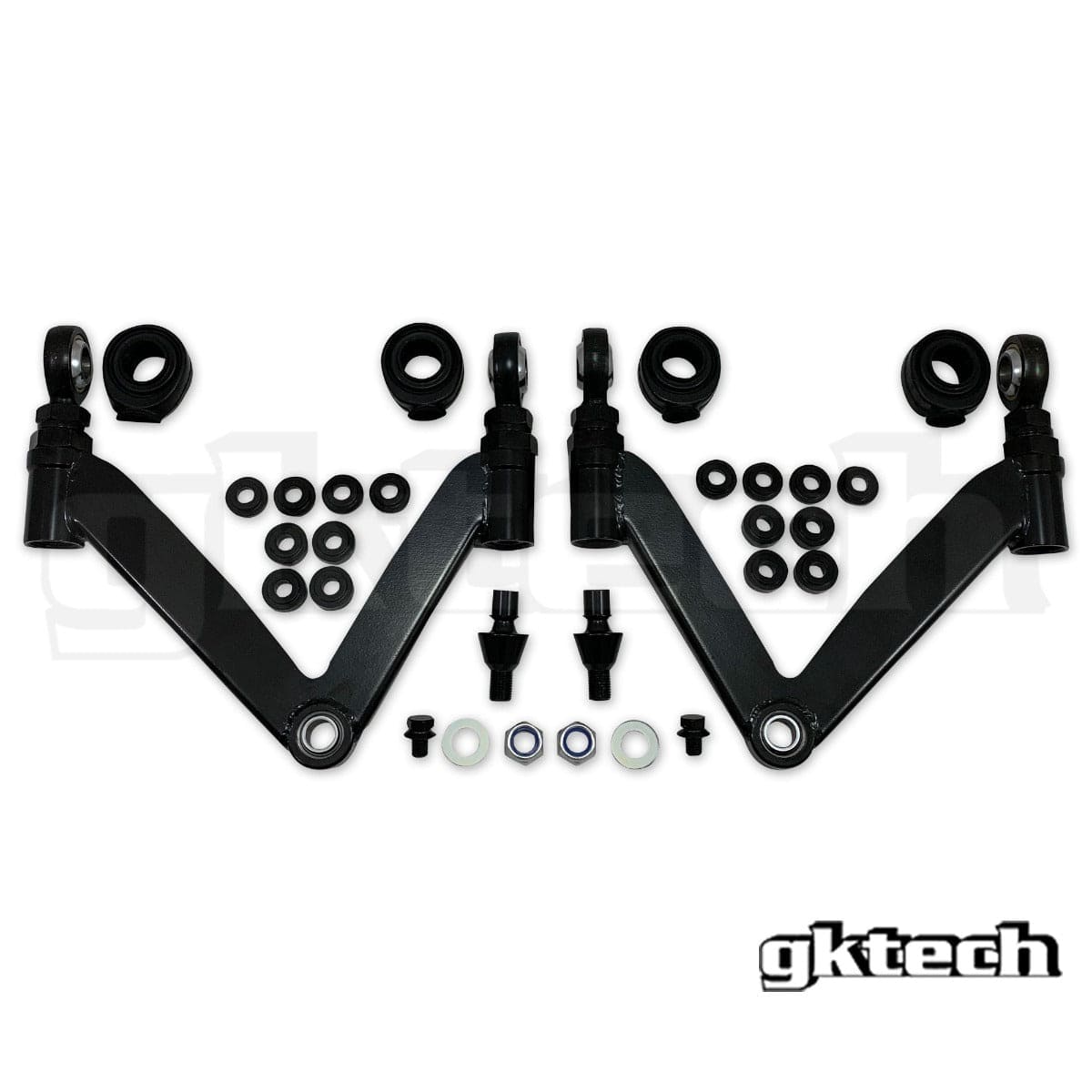

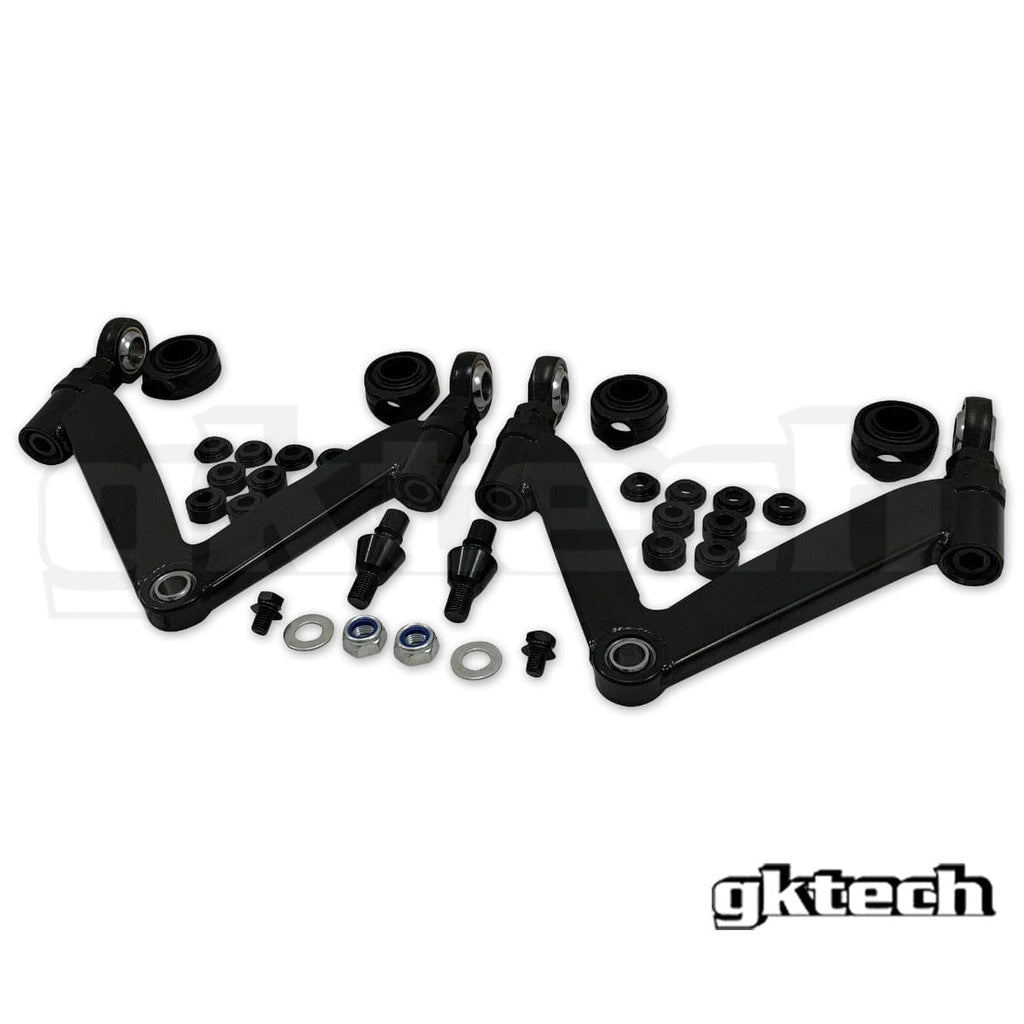

GKTech V2 Z33 350Z, V35 Front Upper Camber Arms (FUCA'S) (Z33X-FUCA)
Suits Nissan Z33, V35
Brand: GKTech
Part Number: Z33X-FUCA
Description:
GKTech V2 Z33 350Z, V35 Front Upper Camber Arms (FUCA'S), part number Z33X-FUCA. Suits Nissan 350Z Z33, Nissan Skyline V35. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTECH V2 Z33 350z/ V35 Front Upper Camber Arms (FUCA's) are used to adjust the front camber as when you lower your car negative camber is introduced. This then reduces the contact patch of your tyres and thus available traction. GKTech's front upper camber arms will get this issue sorted!
When designing these arms they were able to incorporate more clearance in the balljoint area from the inner wheel well by 10mm, so that the arm doesn't make contact with the body when extended. These arms are a direct replacement of the standard arms and allow for -25mm through to +15mm of adjustment compared to the OEM arm.
On a stock lower arm they have seen camber as low as -5.5 degrees of camber and as high as +1.0 degrees! With their adjustable lower control arms they have seen as low as -11 degrees of camber for those who want complete adjustment.
As a completely unique design they have now made it possible to adjust caster, by using stackable shims it allows you to further increase adjustment by + or -1 degree of caster.
These arms have been CAD designed, FEA tested, they are laser cut from high strength steel, are TIG welded and to finish the arms off they're E-coated (electrophoresis coating) for rust prevention.
The arms feature high misalignment PTFE lined rose/ heim joints, that they use in all their suspension arms, that are a common size bearing that can be found at your local bearing supplier, or if you need they do have them on the shelf. They also include dust boots to keep the bearings protected.
- New feature for V2 design - Now adjustable on car (will save you a load in fitting/adjusting costs!)
- Lightweight design
- High misalignment PTFE lined common size bearings
- CNC Laser cut high strength steel with CNC machined ends.
- CAD designed, FEA tested and TIG welded
- Balljoint/ Inner wheel well clearance
Suits
- Nissan 350Z Z33 (2002–2009), VQ35DE
- Nissan Skyline V35 (2001–2007), VQ35DE
