GKTech 5x100 to 5x114.3 ZN6 86, BRZ bolt on conversion spacer (CNV2-15MM)
Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8, GE, GP
Brand: GKTech
Part Number: CNV2-15MM
Description:
GKTech 5x100 to 5x114.3 ZN6 86, BRZ bolt on conversion spacer, part number CNV2-15MM. Suits Toyota 86 ZN6, Subaru BRZ ZC6, Toyota GR86 ZN8, Subaru BRZ ZD8, Subaru Impreza GE, Subaru Impreza GP. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.

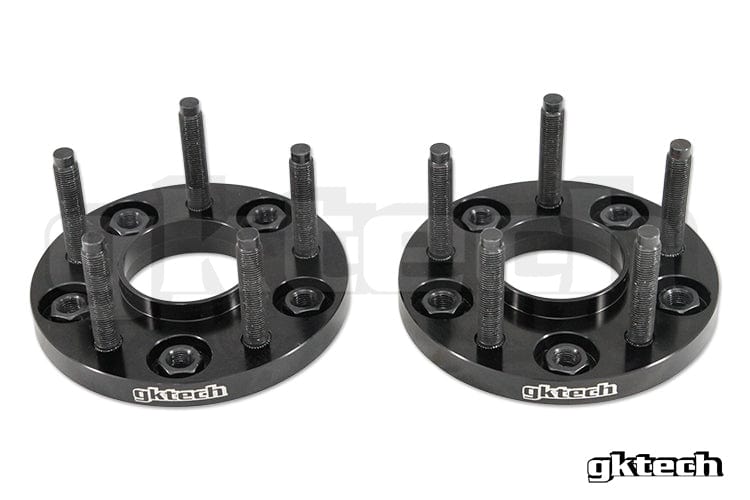

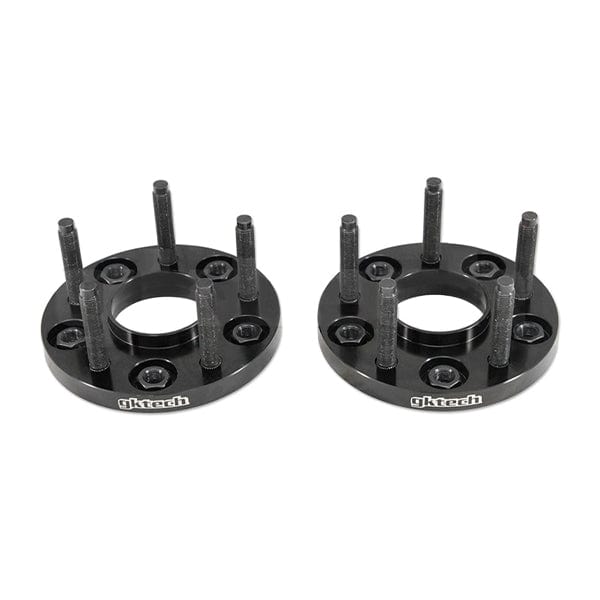

The GKTECH 5x100 to 5x114.3 wheel adapters allow you to fit 5x114.3 wheels on your 86 or BRZ.
Sold as a pair these wheel adapters bolt on to your standard hub just like a normal wheel spacer.

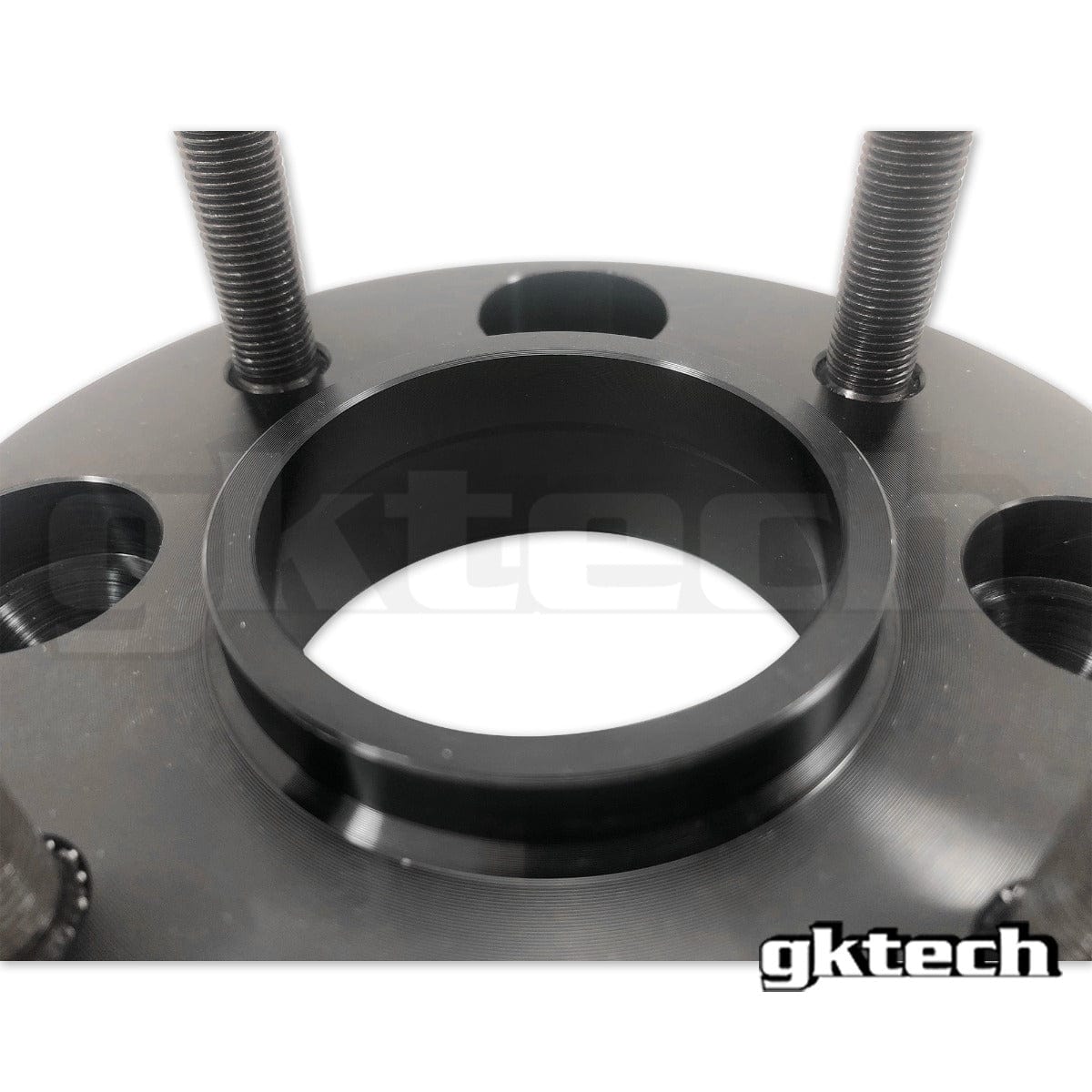

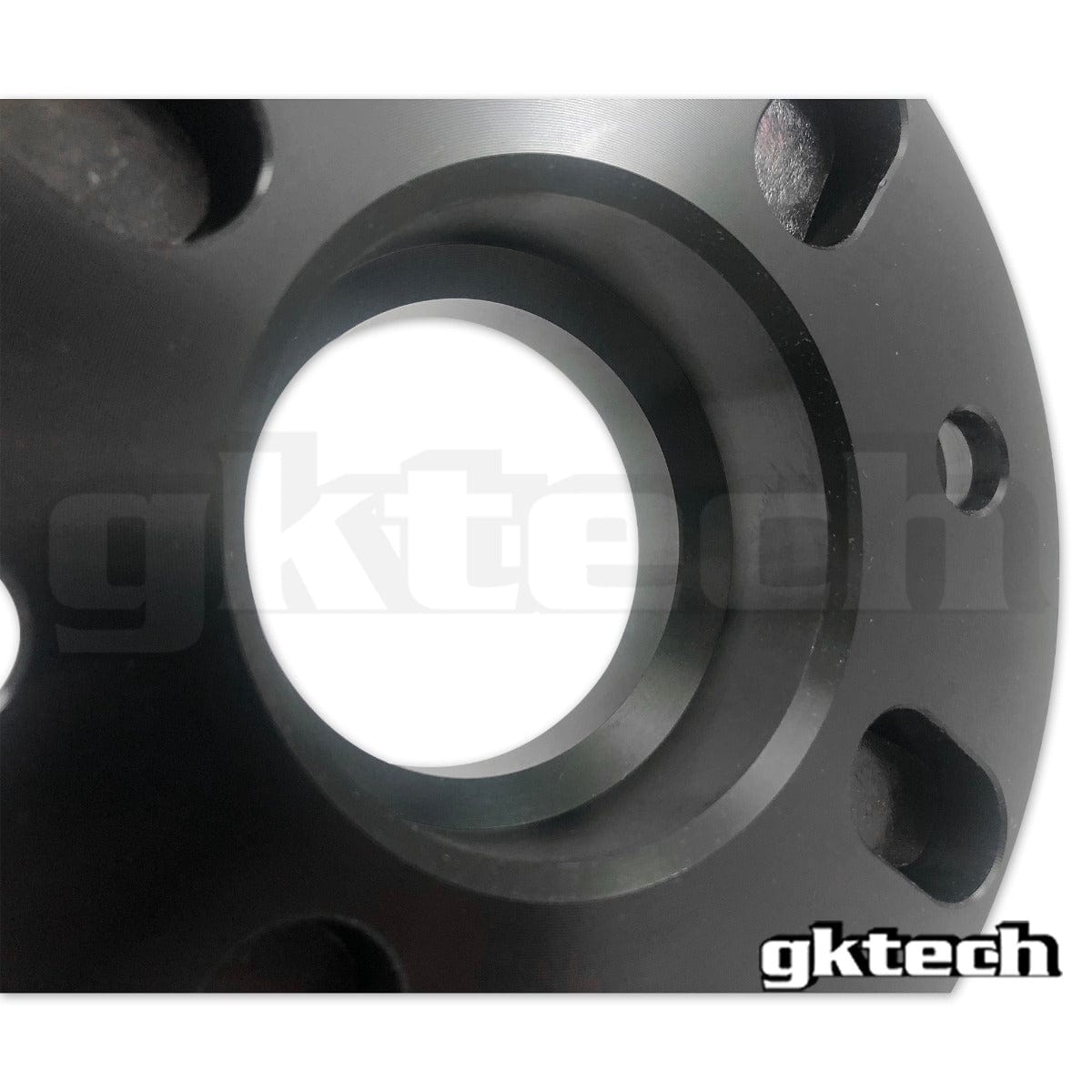

The wheel spacers are hub centric to suit 86/BRZ 56.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 studs, which you have the option of either standard length studs or extended wheel studs.

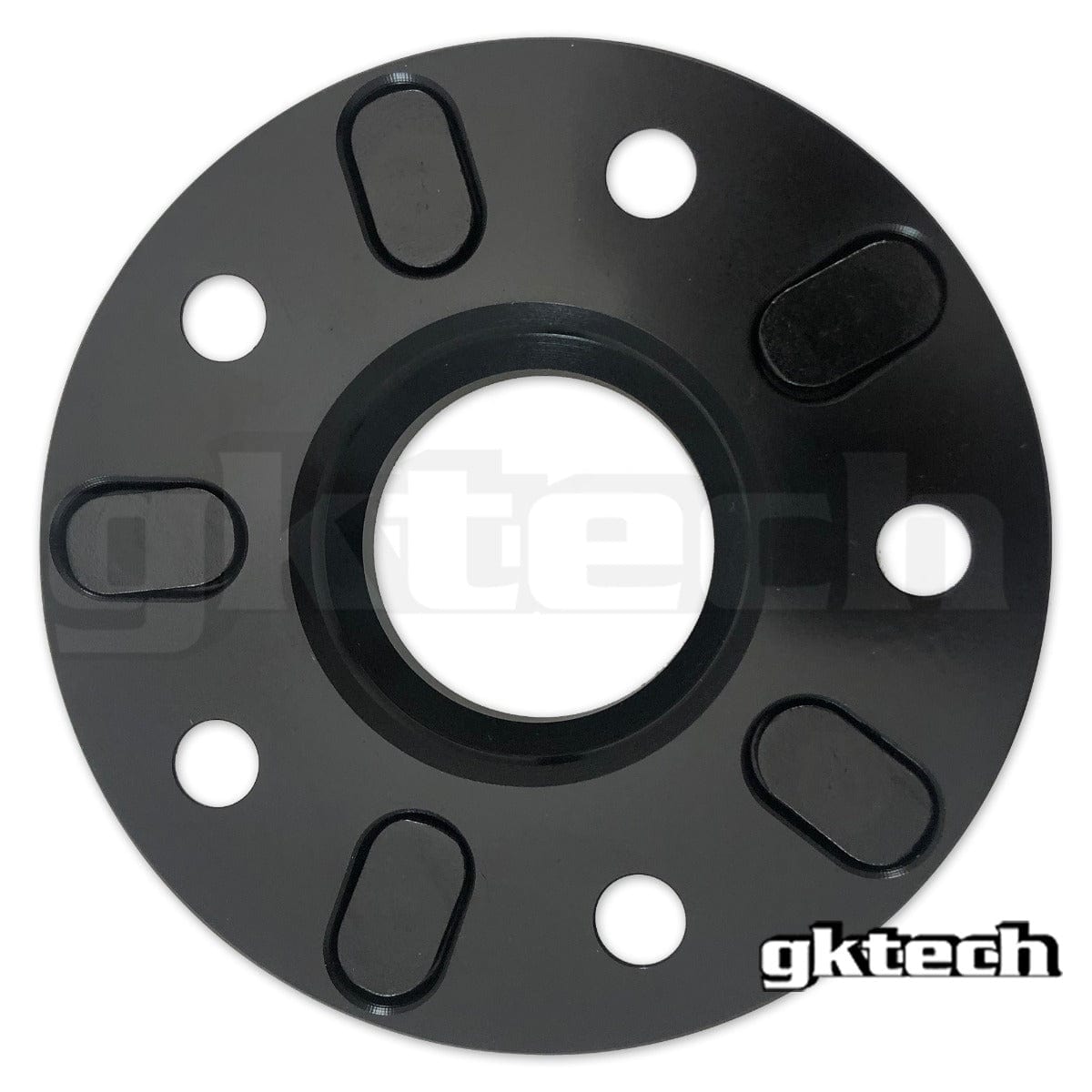

GKTech's unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.
- CNC machined aluminium T6-6061 construction
- Grade 10.9 studs
- Hub centric to the vehicle to suit 56.1mm
- M12 x 1.25 thread thread pitch

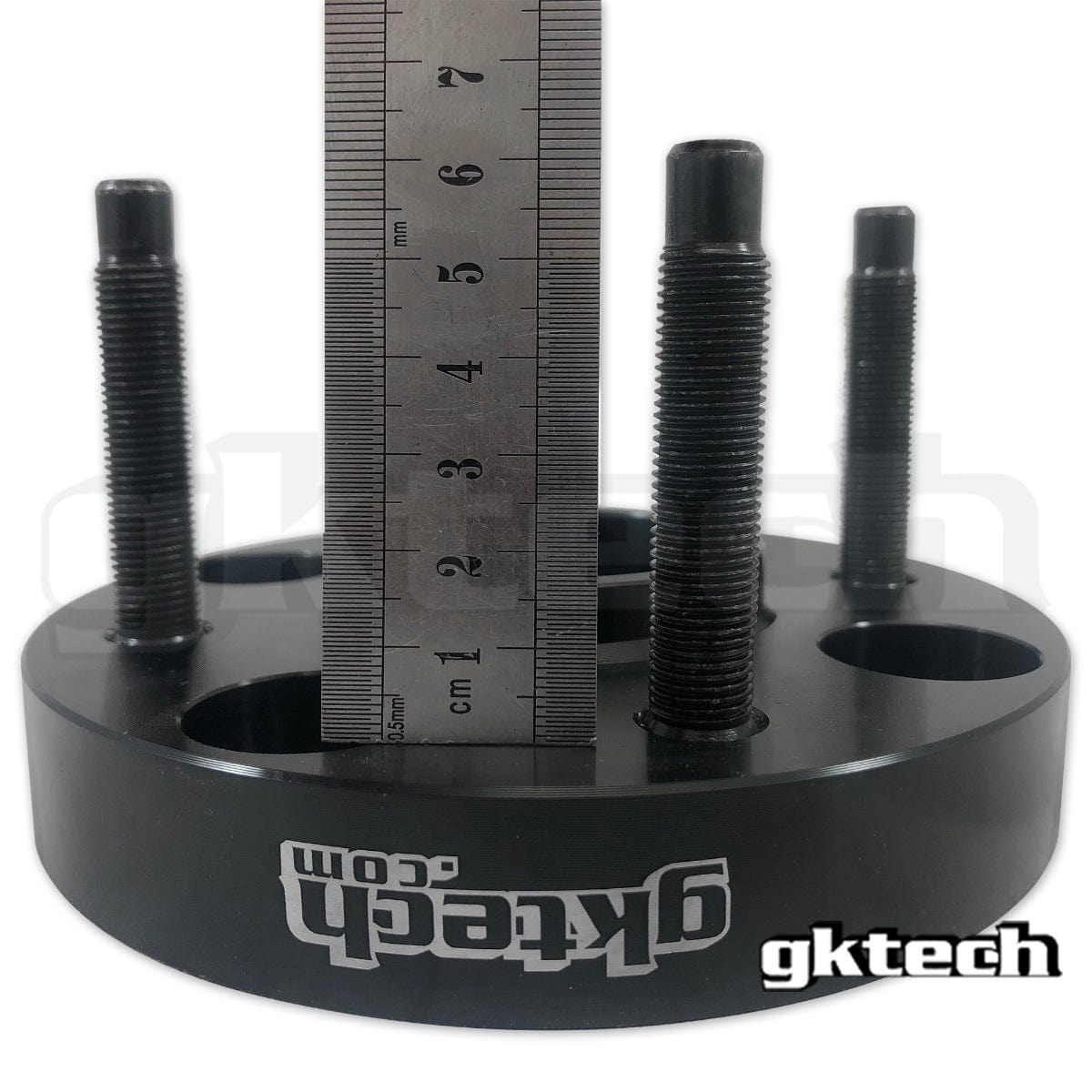

- Either 35mm or 60mm long studs
- Oval shaped studs to prevent stripping of the knurl
- 15mm thick wheel adapters
NOTE: Sold as a PAIR
NOTE: You may need hub centric rings that they have available to suit your aftermarket wheels etc
| Sizes (width) |
PCD |
Centre bore |
Spacer
O.D |
Standard stud length |
Extended stud length |
Stud thread |
| 15mm |
5x100 |
56.1mm |
150mm |
35mm |
60mm |
M12 x 1.25 thread |
Suits
- Toyota 86 ZN6 (2012–2021), FA20
- Subaru BRZ ZC6 (2012–2021), FA20
- Toyota GR86 ZN8 (2021–on), FA24
- Subaru BRZ ZD8 (2021–on), FA24
- Subaru Impreza GE GH (2007–2011)
- Subaru Impreza GP GJ (2011–2016)
