GKTech 86, GR86, BRZ Traction mod + arm combo (GT86-TRTN)
Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8
Brand: GKTech
Part Number: GT86-TRTN
Description:
GKTech 86, GR86, BRZ Traction mod + arm combo, part number GT86-TRTN. Suits Toyota 86 ZN6, Subaru BRZ ZC6, Toyota GR86 ZN8, Subaru BRZ ZD8. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.

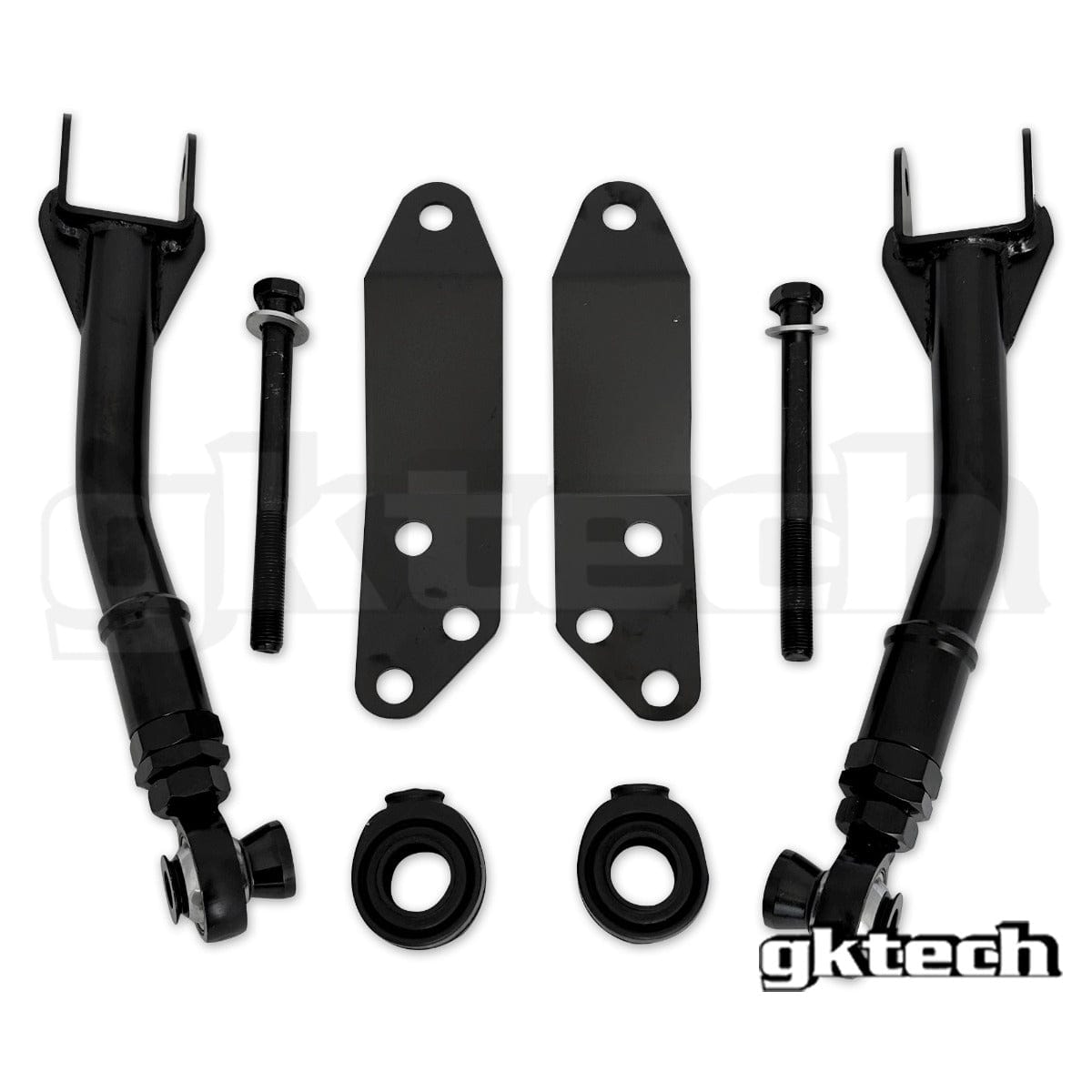

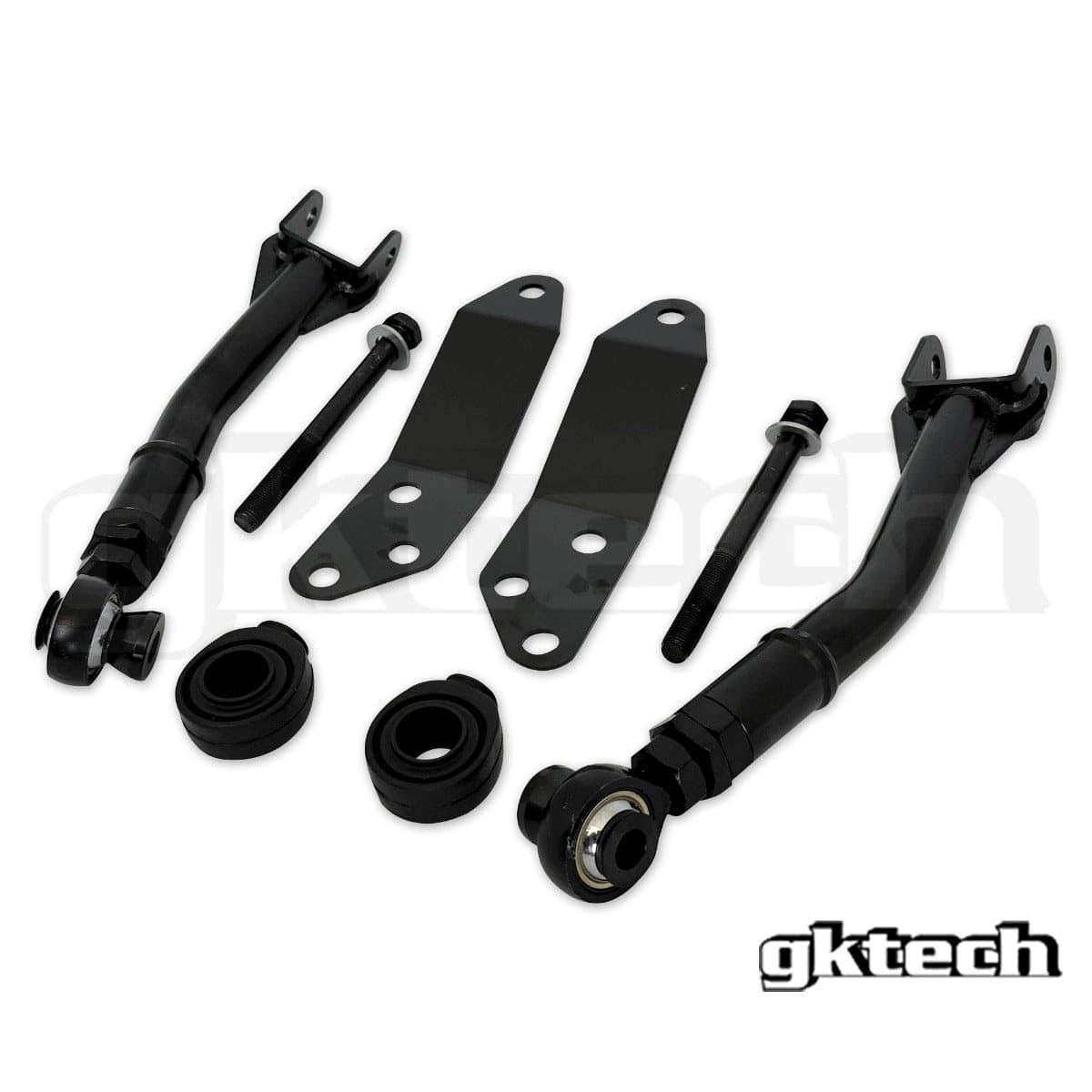

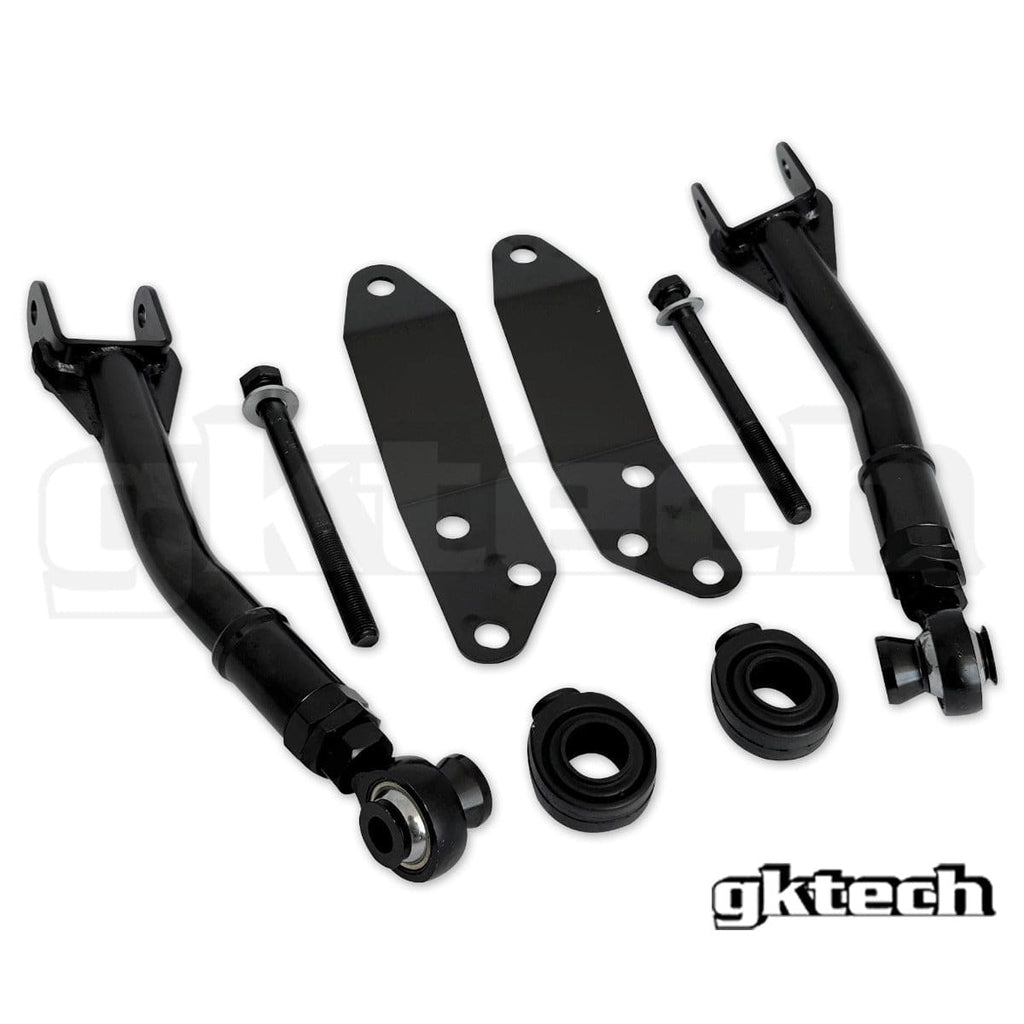

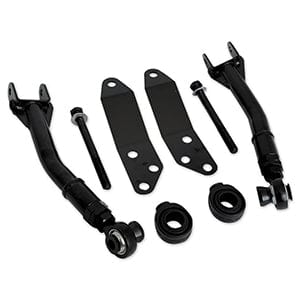

The GKTECH 86/ GR86/ BRZ traction mod + arm combo is a great way to gain more traction under throttle. GKTech's combo includes an easy to bolt on double sheer relocation bracket in addition to an adjustable traction arm to fine tune your alignment.
Rear traction rods allow adjustment of the rear multi-link suspension. They can be adjusted to eliminate bump steer and alter other rear suspension traction settings to improve suspension response.
The lengths on these arms are fully adjustable and with the right adjustments, you can change the position and pitch of which the suspension rotates on, along with the amount of "anti-squat" of the rear.

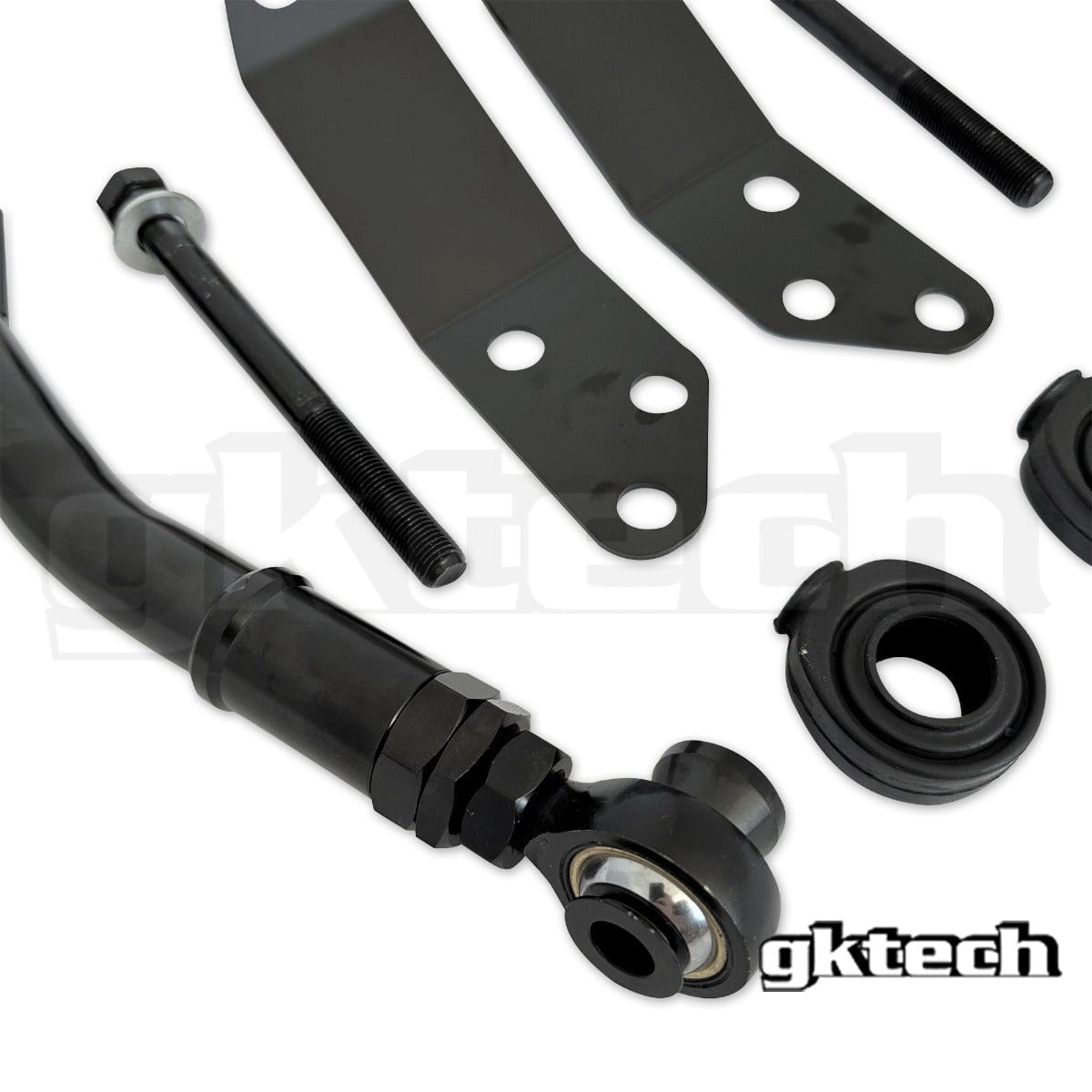

- feature high quality 5/8" Teflon lined pillow ball rod ends which eliminate the flex found in factory rubber bushing offering a more direct and predictable feel.
- manufactured from chromoly 28mm OD (3mm wall) tube
- CAD designed, FEA tested, mandrel bent and TIG welded.
- Relocation bracket is mounted in double shear for increased ridgidity

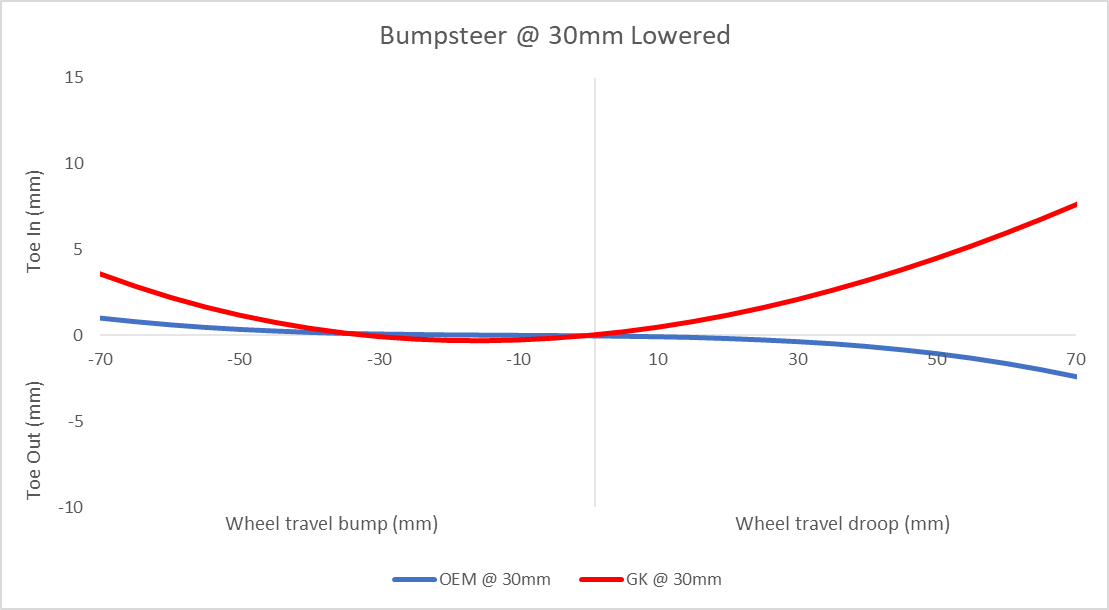

- Improves bump steer characteristics

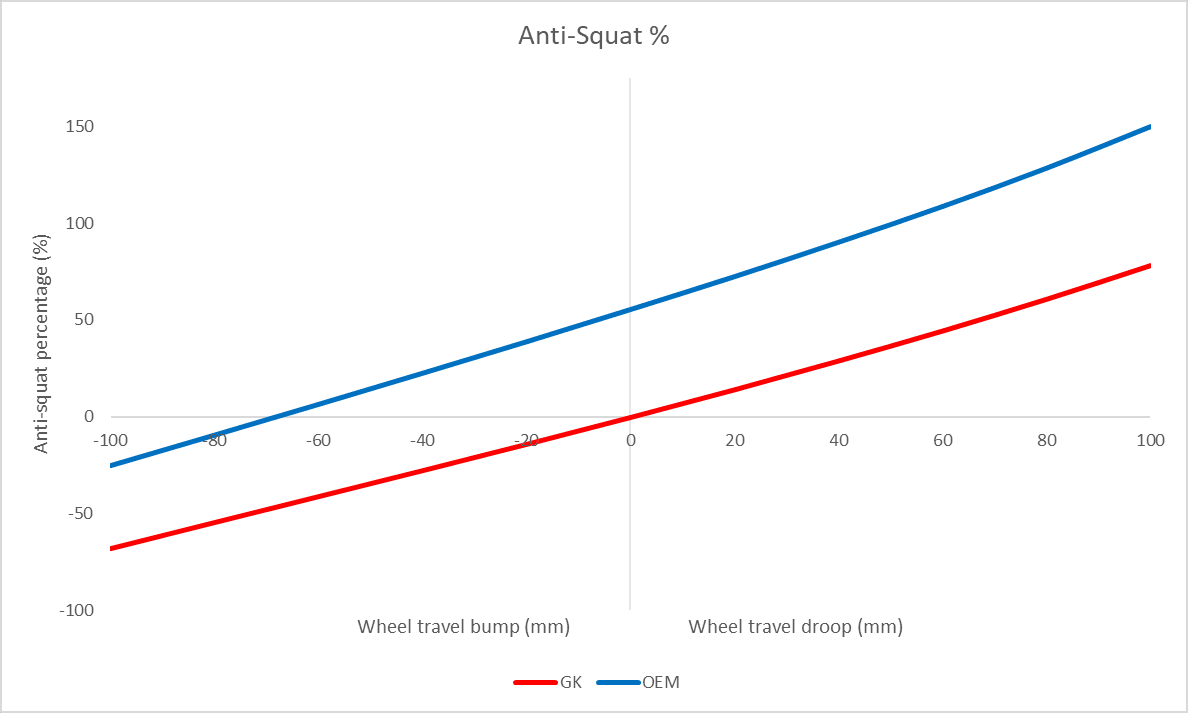

- Reduces anti-squat geometry
Suits
- Toyota 86 ZN6 (2012–2021), FA20
- Subaru BRZ ZC6 (2012–2021), FA20
- Toyota GR86 ZN8 (2021–on), FA24
- Subaru BRZ ZD8 (2021–on), FA24
