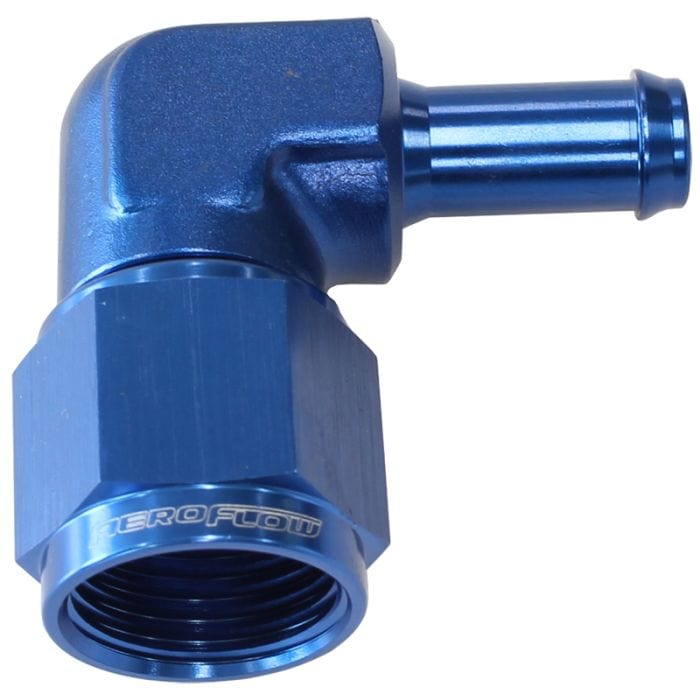

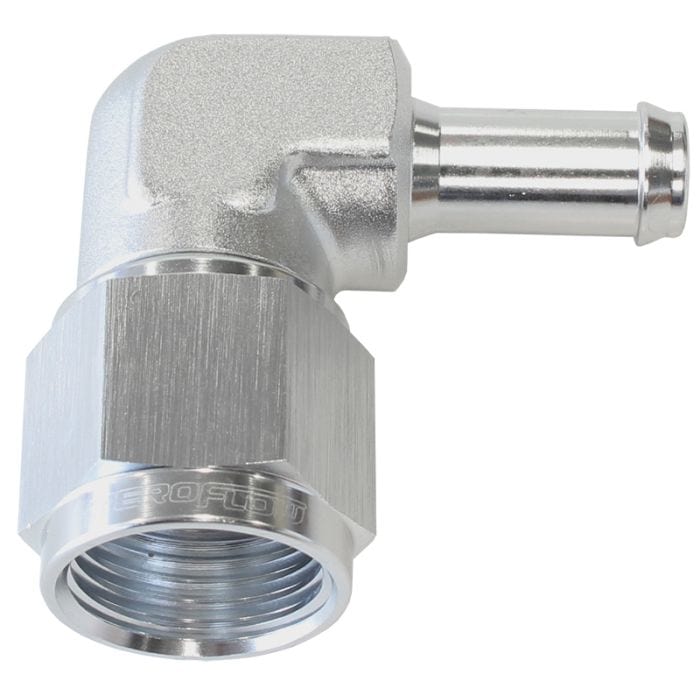

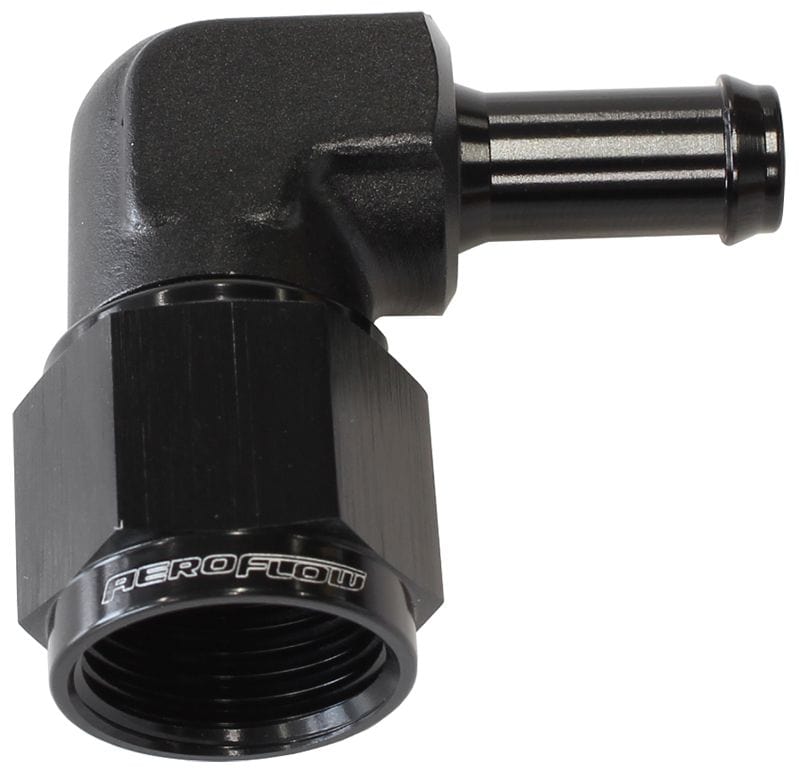

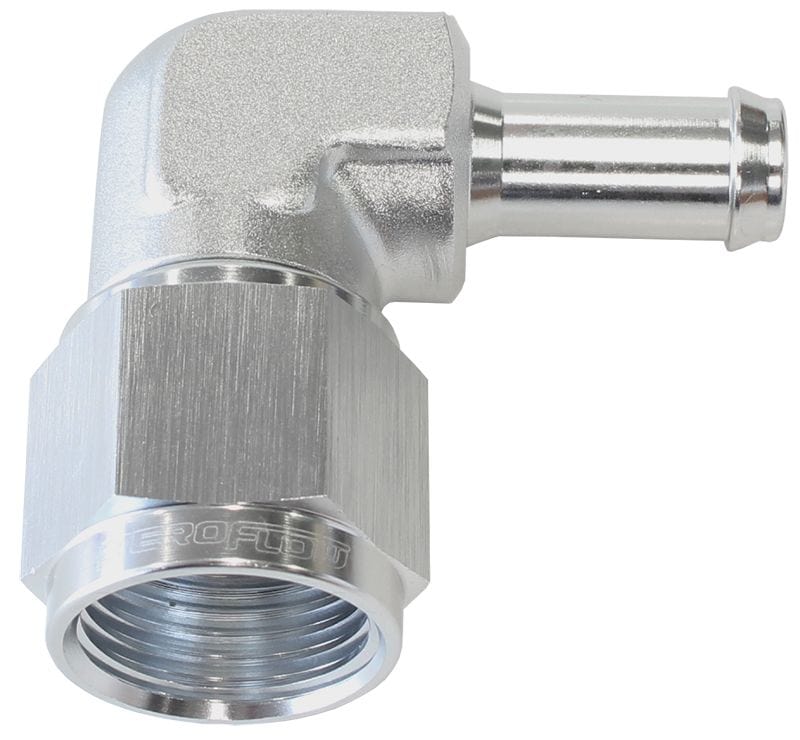

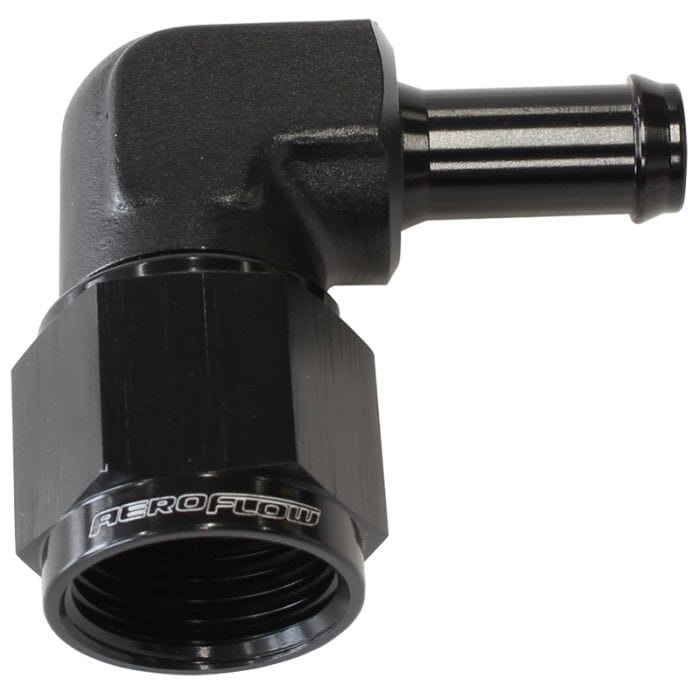

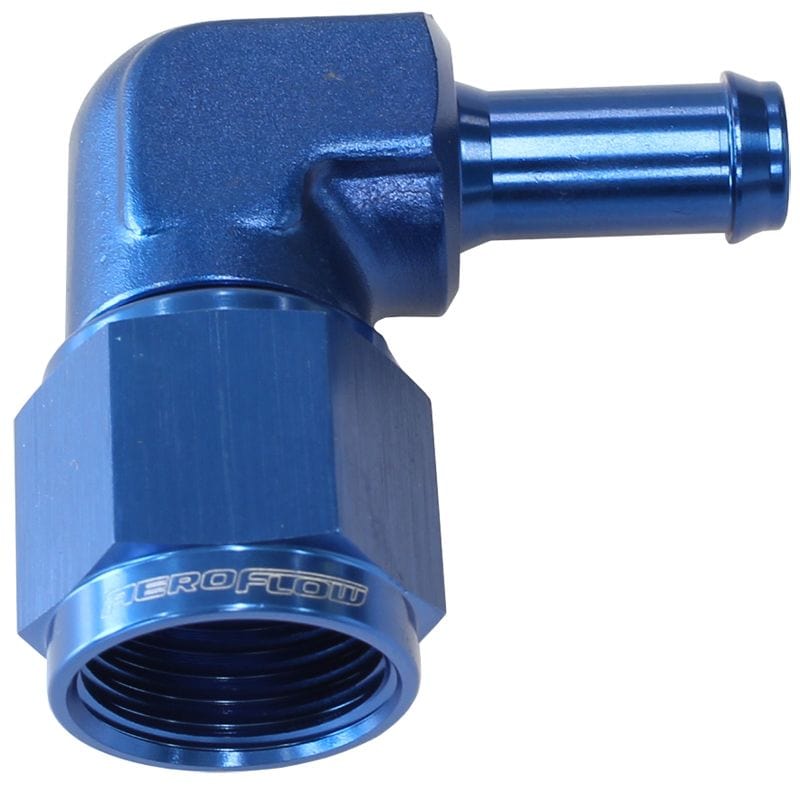

Aeroflow 90° Hose Barb - Multiple Sizes
Available in 4 Sizes, Black, Red/Blue or Silver Finish
Brand: Aeroflow
Part Number: AF413 series
Description:
90° Hose Barb 1/2" to -8AN
Female -8AN tube nut end to 1/2" (12.70mm) 90 Degree Hose Barb
These hose barbs are a simple solution to connect a hose to your vehicle. Applications can include fuel, oil, water, vacuum and air. Machined from quality 6061-T6 aluminium. Manufactured to our exact tolerances and utilise Female AN swivel tube nuts to screw on to male AN adapters with a hose barb to allow a hose to be pushed straight on.
We recommend a hose clamp be used to secure the hose to the barb.
Available Options
| AN Size |
Colour |
Part Number |
| 6AN to 3/8 BARB |
Black |
AF413-06BLK |
| 6AN to 3/8 BARB |
Red/Blue |
AF413-06 |
| 6AN to 3/8 BARB |
Silver |
AF413-06S |
| 6AN to 5/16 BARB |
Red/Blue |
AF413-06-05 |
| 6AN to 5/16 BARB |
Silver |
AF413-06-05S |
| 8AN to 1/2 BARB |
Black |
AF413-08BLK |
| 8AN to 1/2 BARB |
Red/Blue |
AF413-08 |
| 8AN to 1/2 BARB |
Silver |
AF413-08S |
| 8AN to 3/8 BARB |
Black |
AF413-08-06BLK |
| 8AN to 3/8 BARB |
Red/Blue |
AF413-08-06 |
| 8AN to 3/8 BARB |
Silver |
AF413-08-06S |
| 6AN to 5/16 BARB |
Black |
AF413-06-05blk |
