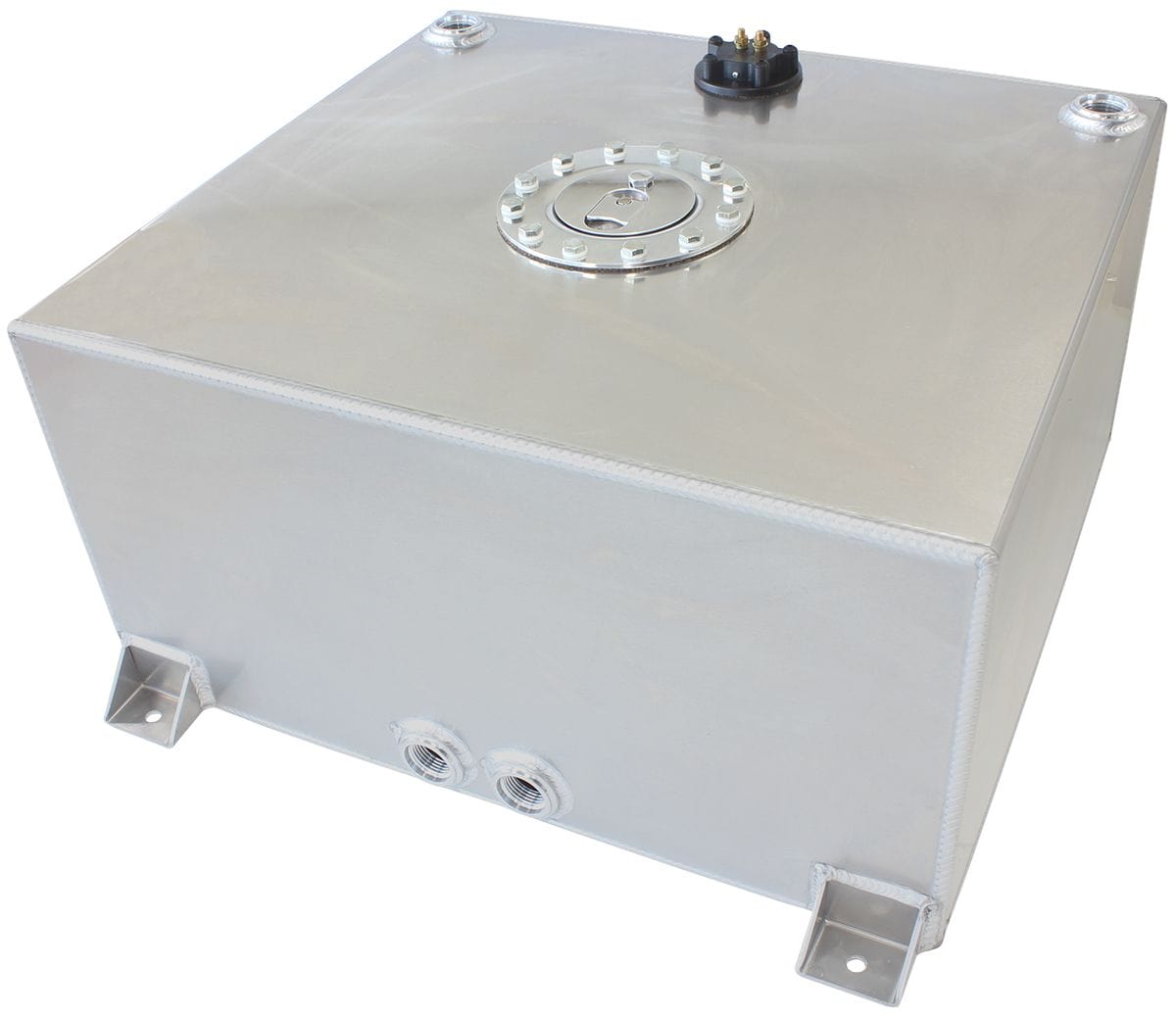

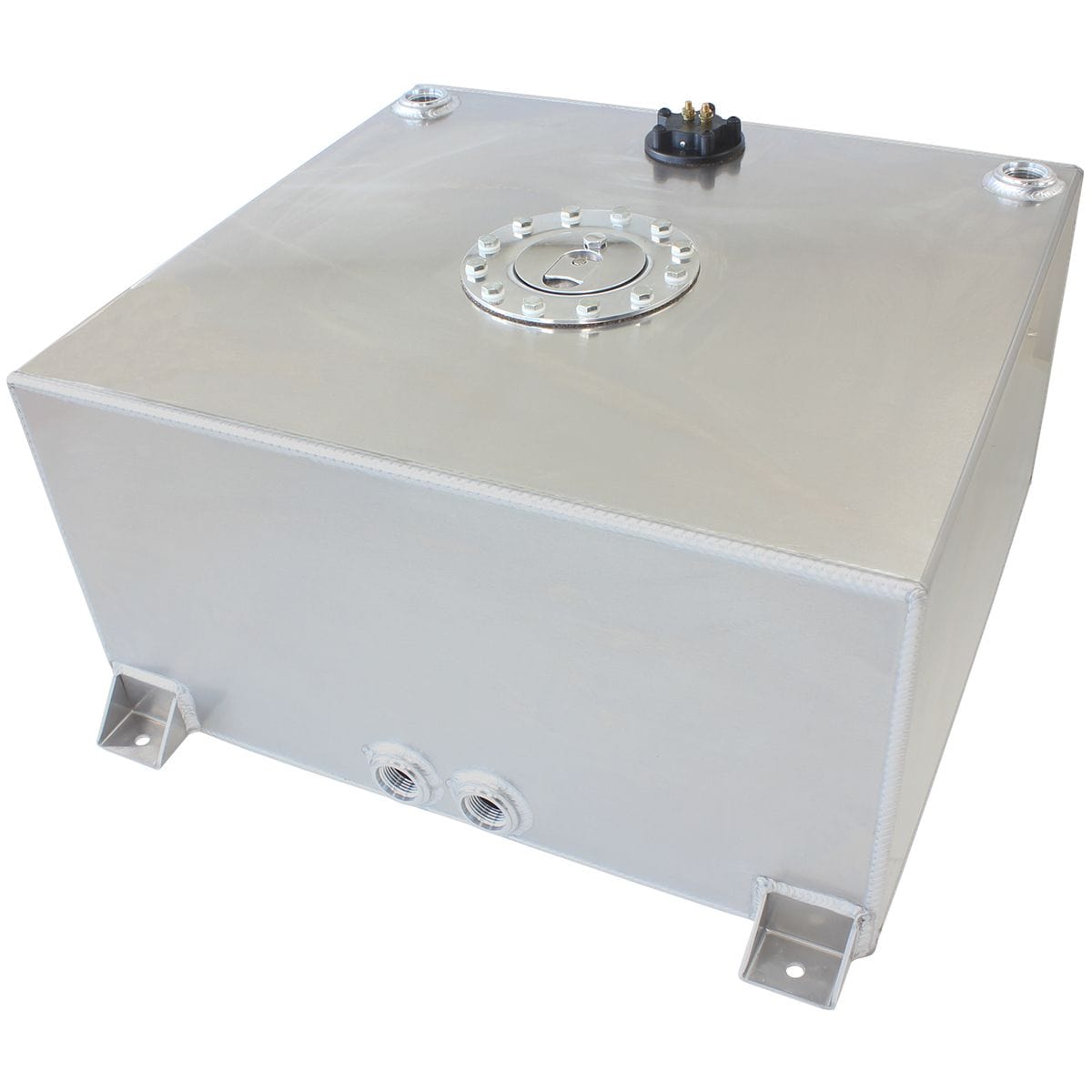

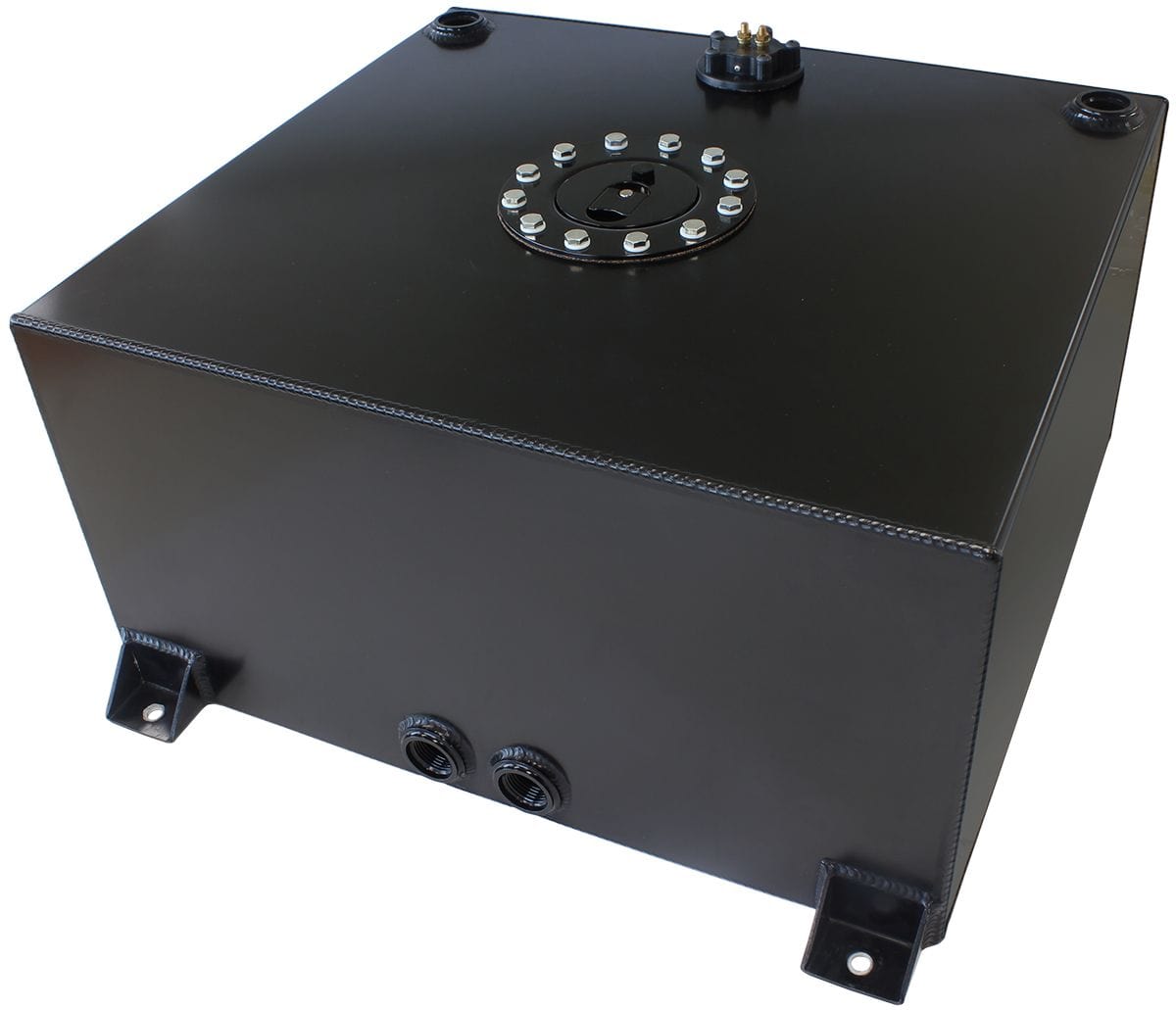

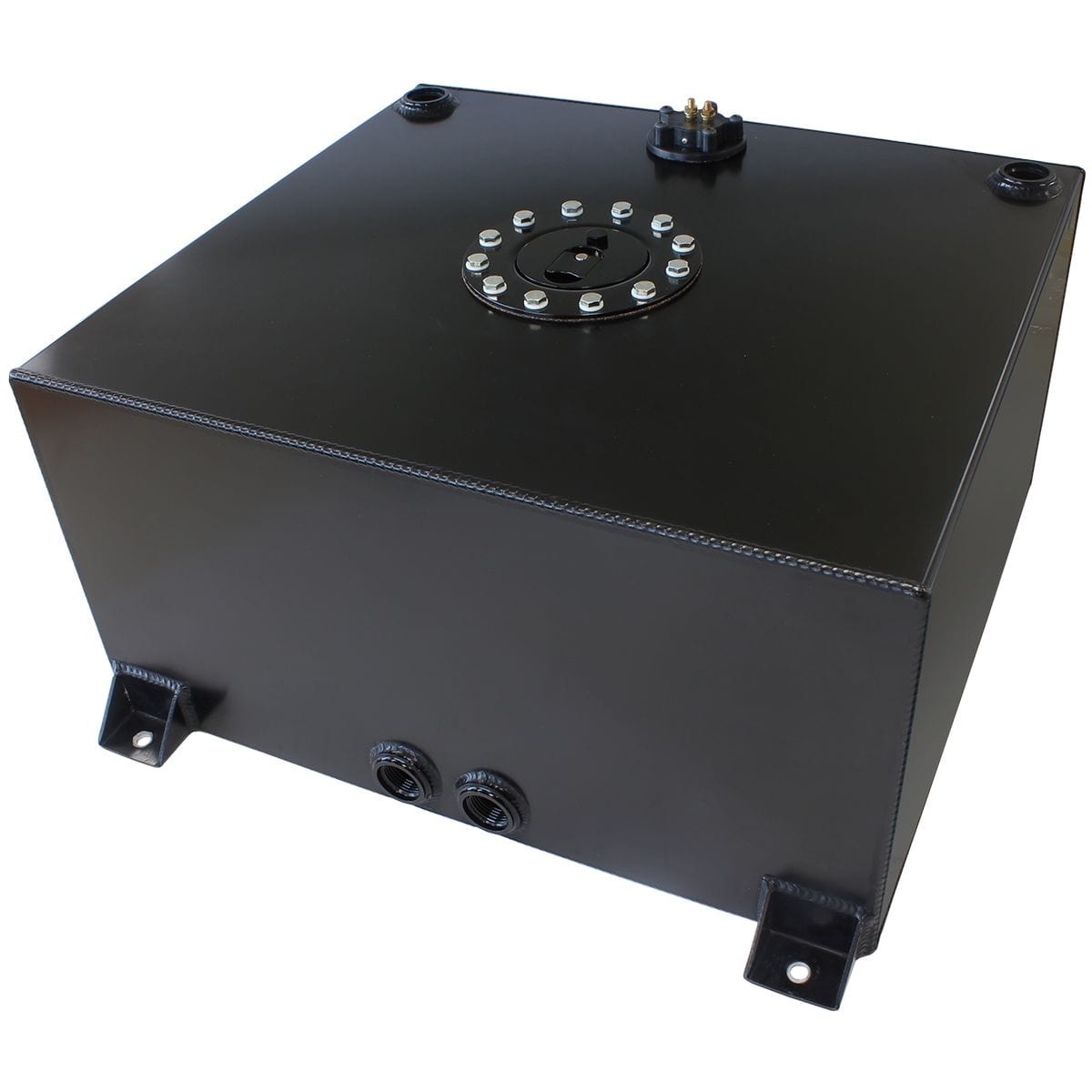

Aluminium 15 Gallon (57L) Fuel Cell with Flat Bottom & Fuel Sender
18-1/8" L x 20-1/16" W x 10-1/4" H (46cm x 51cm x 26cm)
High Grade Aluminium: 3.0mm thickness
Robot Welded: The fuel cell has been welded solely by a high level machine robot the quality of which can be seen by the clean corner welds.
Fuel Pick-Up Point: The fuel OUT fittings are in centre of the tank near the base of the cell.
Fuel Inlet / Outlet Fittings: The fuel cell incorporates all -12 ORB female threads for use in all applications. 2 X pickups and 2 X returns or 1 X return and 1 X rollover. For a bolt in Roll-Over valve use Part AF614-08.
Flush Cap: Designed for fast cap removal with a flip up and twist action CNC billet polished alloy cap with a 1 way air valve in the cap.
Fuel Level Sender Unit: The resistance at empty is 0 ohms and the resistance at full is 90 ohms.
Mounting Brackets: The cell can be secured with the 4 sturdy mounting brackets. (Rubber mounts recommended for high flex chassis applications)
