Aeroflow Performance 110gph @ 14Psi, 3/8" NPT Inlet/Outlet (Regulator Not Included) Aeroflow Electric "Blue" Fuel Pump AF49-1009 SR

Roll over image to zoom in Click on image to zoom

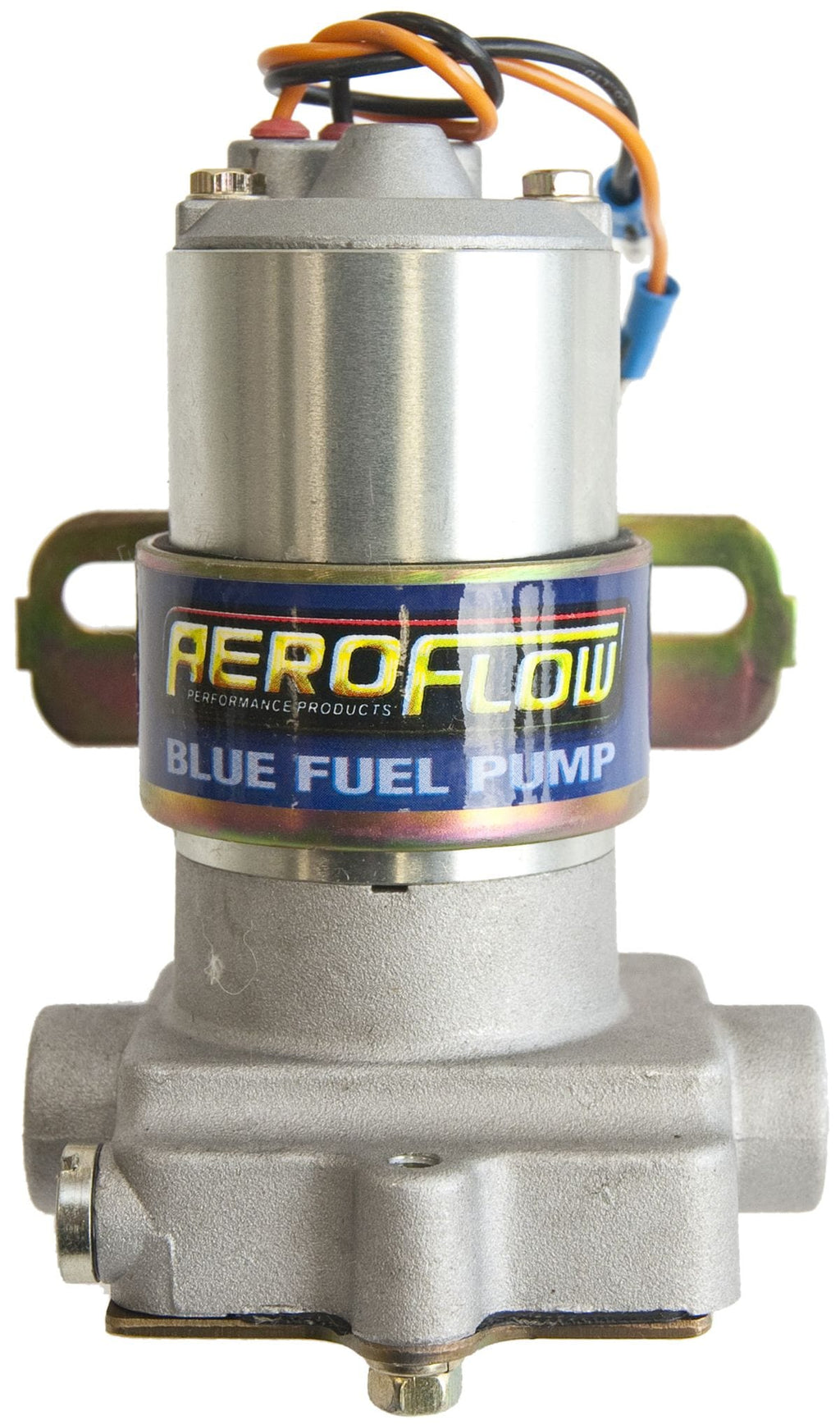

Aeroflow Electric "Blue" Fuel Pump AF49-1009

Name: Aeroflow Electric 'Blue' Fuel Pump AF49-1009
Brand: Aeroflow Performance
SKU: AF49-1009
Price: 177.58 NZD
Availability: InStock
Rating: 5 (34 reviews)

Electric "Blue" Fuel Pump 110gph @ 14Psi, 3/8" NPT Inlet/Outlet (Regulator Not Included)

Aeroflow PerformanceSKU: AF49-1009

In Stock – Ships Same Day from Stealth Ride

YOUR GO-TO SOURCE FOR AEROFLOW PERFORMANCE

With daily restocks, we keep products moving so you spend less time waiting and more time building.

Delivery time

We pride ourselves on fast, reliable shipping, ensuring your order reaches you without unnecessary delays.

Product: 110gph @ 14Psi, 3/8" NPT Inlet/Outlet (Regulator Not Included)

Variant

Price:

$177.58 NZD

GST included Shipping calculated at checkout

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Electric "Blue" Fuel Pump
110gph @ 14Psi, 3/8" NPT Inlet/Outlet (Regulator Not Included)
Brand: AEROFLOW
Part Number: AF49-1009
Description:

Aeroflow Blue 110GPH Fuel Pump.

The Blue fuel pump is a high pressure fuel pump which operates at a free flow of 110GPH at a set pressure of 14psi (0.96BAR). We recommend the use of a carburettor fuel regulator. This meets the flowrequiremetns of high performance carburettor applications. This motor draws2 amps of current and an 8amp fuse is recommended.

Compatible with Unleaded fuel only.

Note: These fuel pumps MUST be located below and as close to the fuel tank as possible. This is necessaryto allow for an adequate fuel supply. It is designed to pushthe fuel and not pull the fuelout of the tank. The pump should be mounted on the chassis, in a vertical position with the pump motor at the top.

Additional Specifications:

Inlet/Outlet Ports: 3/8" NPT

Overall Length: 93mm (3-21/32")

Overall Width: 79mm (3-7/64")

Overall Height: 140mm (5-33/64")

Centre To Centre Mounting Tabs: 60mm (2-23/64")
