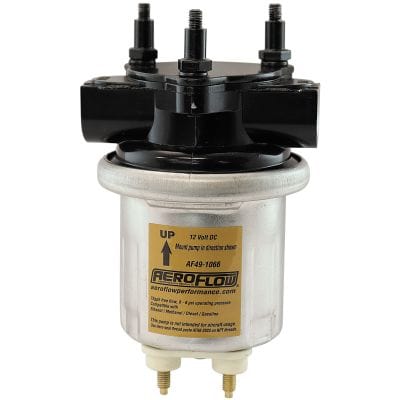

Aeroflow Compact Gold 72 GPH Electric Fuel Pump 6-8 psi AF49-1066

Roll over image to zoom in Click on image to zoom

Aeroflow Compact Gold 72 GPH Electric Fuel Pump 6-8 psi AF49-1066

Female 1/4" NPT threads

Aeroflow PerformanceSKU: AF49-1066

Product: Compact Gold 72 GPH Electric Fuel Pump 6-8 psi

Variant

Price:

$197.08 NZD

Tax included Shipping calculated at checkout

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Compact Gold 72 GPH Electric Fuel Pump 6-8 psiFemale 1/4" NPT threads
Brand: AEROFLOW
Part Number: AF49-1066
Description:

Aeroflow compact gold electric fuel pumps are designed for carburettor engines, meeting most of your fuel system requirements for Street, Stripand Off Road Vehicles. The universal rotary vane design means it is engineered for constant use, long lasting performance and quiet operation. This unique designallows the fuel to cool the internals of the pump and withno points to burn out or shaftseals that are subject to deterioration which can lead to premature failure.

The Gold pump has an internal pressure-regulating valve pre-set to run 6-8 psi, and feature free-flow fuel delivery of up to 72 GPH. Withfemale 1/4" NPT threads. Designed to handle unleaded, alcohol based fuels and diesel. Each fuel pump includes an installation kit which includes mounting hardware, mounting bracket, and wiring.

Additional Specifications:

Dimensions
Height : 115mm
Diameter : 85mm

Thread : Female 3/8" NPT

Amp Draw : 3.5 to 4 amps.

Each fuel pump includes an installation kit which contains the following;
1 x mounting bracket
3 x mounting rubber bushes
3 x 1/4-20 bolts (UHL 16mm)
3 x 1/4-20 nuts & washers
5 x 10-32" nuts & washers
2 x hose clamps
2 x wiring eyelets
2 x 3/8" NPT to 1/2" barb

Important Information:

This universal gold fuel pump should be mounted below the fuel tank and as close to the fuel tank as possible. It is recommended to also mount below the carburettor to avoidvapour lock conditions. Do notmount the fuel pump near exhaust system or extreme heatsources as this can damage thefuel pump. Ensure the fuel pump is mounted away from any sources of water.
