Aeroflow Ford 9" Cut To Fit Axle Kit - 31-Spline AF5079-1006

Name: Aeroflow Ford 9' Cut To Fit Axle Kit - 31-Spline AF5079-1006
Brand: Aeroflow Performance
SKU: AF5079-1006
Price: 496.67 NZD
Availability: InStock
Rating: 5 (34 reviews)

Ford 9" Cut To Fit Axle Kit - 31-Spline 23" Length, 4" Spline Length With 5 x 4.50" & 4.750" Bolt Circle

Save $39.42

Aeroflow PerformanceSKU: AF5079-1006

WE ARE NZ'S BIGGEST RESELLER OF AEROFLOW PERFORMANCE

Unlike other companies, we restock daily so you’re not left waiting weeks for your order.

Delivery time

Usually Delivered in 1–3 working days with NZ Post.

Product: Ford 9" Cut To Fit Axle Kit - 31-Spline

Variant

Price:

$496.67 NZD $536.09 NZD

GST included Shipping calculated at checkout

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Ford 9" Cut To Fit Axle Kit - 31-Spline
23" Length, 4" Spline Length With 5 x 4.50" & 4.750" Bolt Circle
Brand: AEROFLOW
Part Number: AF5079-1006
Description:

The Aeroflow Performance Ford 9” cut to fit axlesare perfect for entry level users and will allow you to build your own custom width rear end easily. They are an induction heat treated forged 4140 steel construction axle with a natural finish and are SOLD AS ONE AXLE only.

Axle length is measured from the flange to the end of the splines. Drilled for 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns using 0.610" (15.49mm) knurl diameter for wheel studs which are included.

These axles use the new style big bearing ends on it which measures 3.150" (80mm) with a 2.5" (63.50mm) offset. The hub pilot (centre of the axle flange) measures 3.055" (77.59mm). The O.D. of the axle flange measures 5.93" (150.62mm).

Axle Core hardness: HRC 24-28 and Axle Surface hardness: Above HRC 52.

The 31 spline is available in lengths of 23"(584.20mm) 26" (660.40mm), 29" (736.90mm), 32" (812.80mm)all with the spline length of 4" (101.60mm).

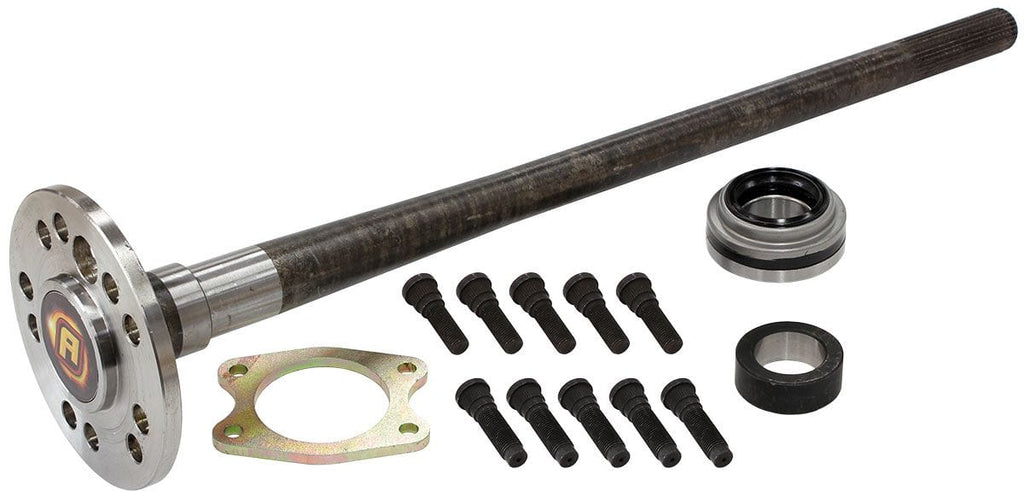

Each axle kit contains the following:

1 x Cut to Fit Axle

5 x 7/16” wheel studs

5 x 1/2” wheel studs

1 x Axle retaining plate

1 x Axle bearing kit

1 x Axle bearing collar.
