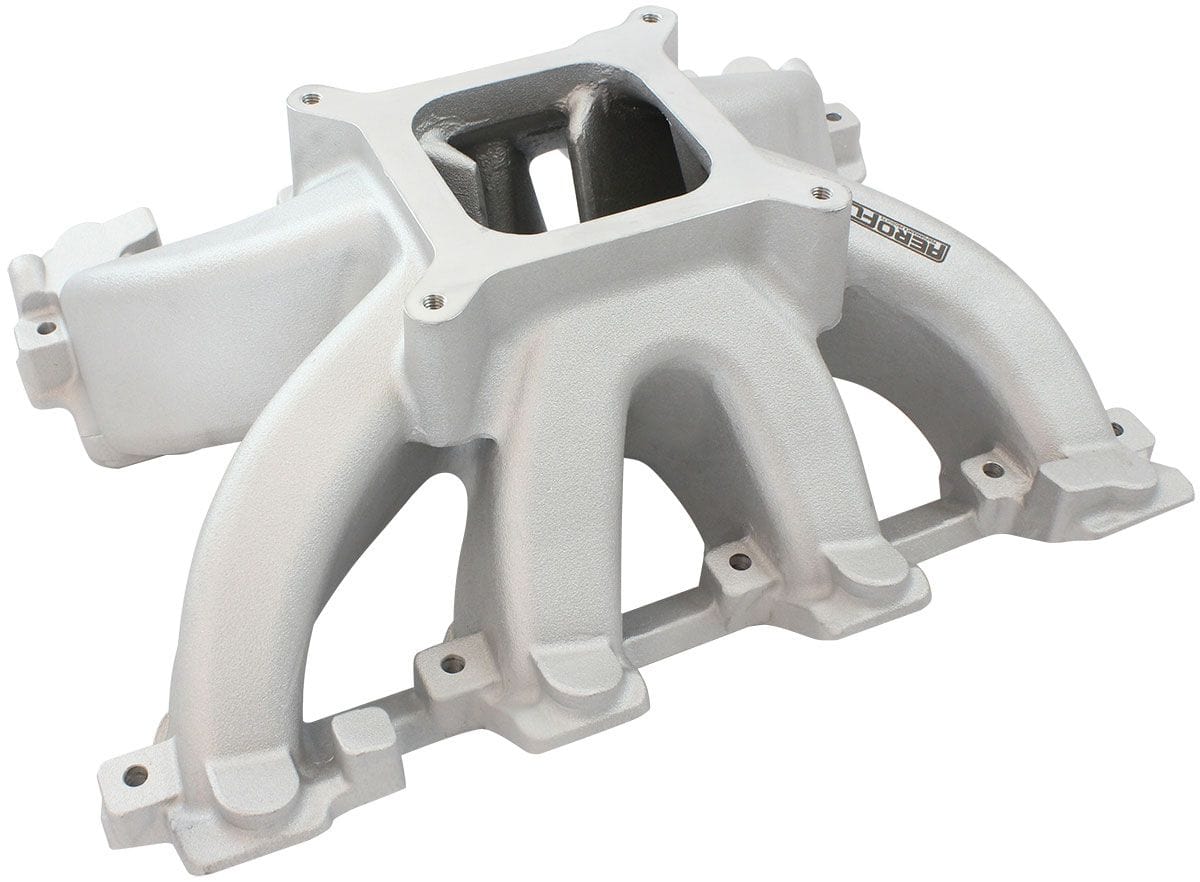

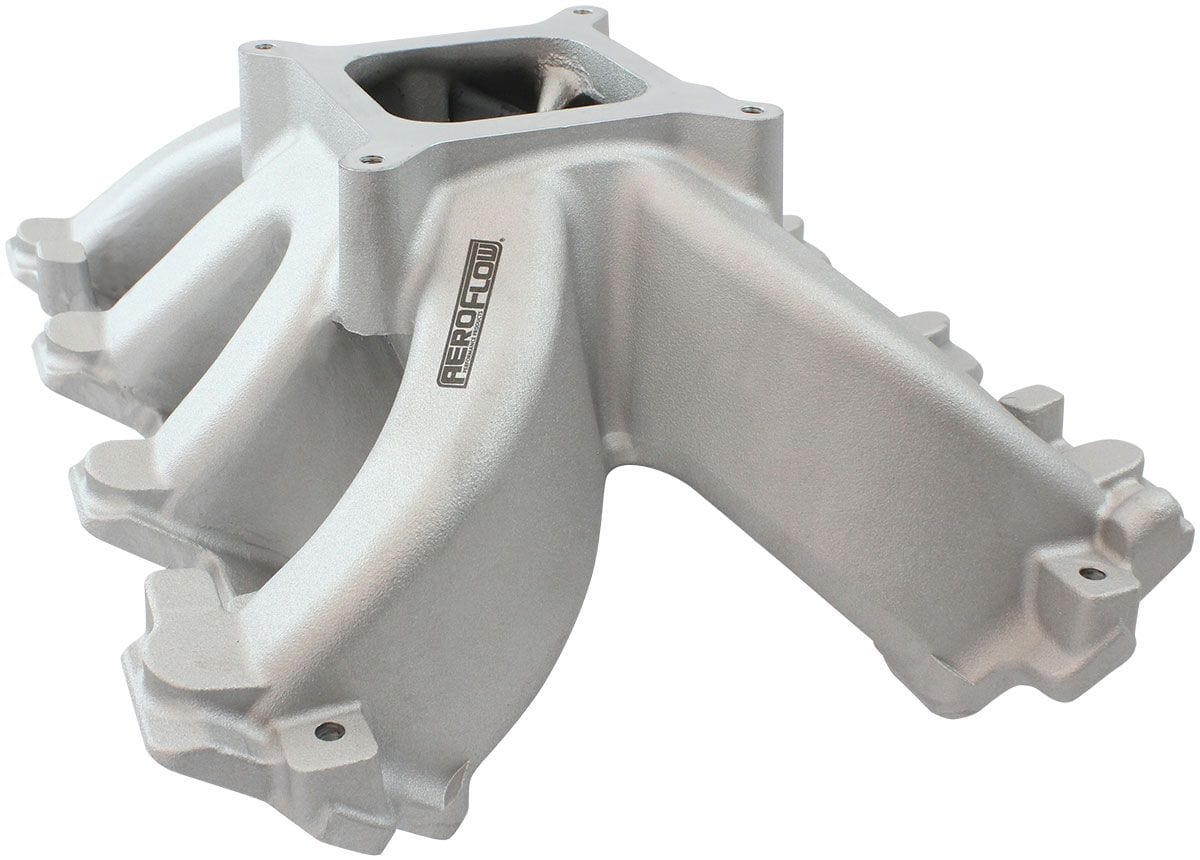

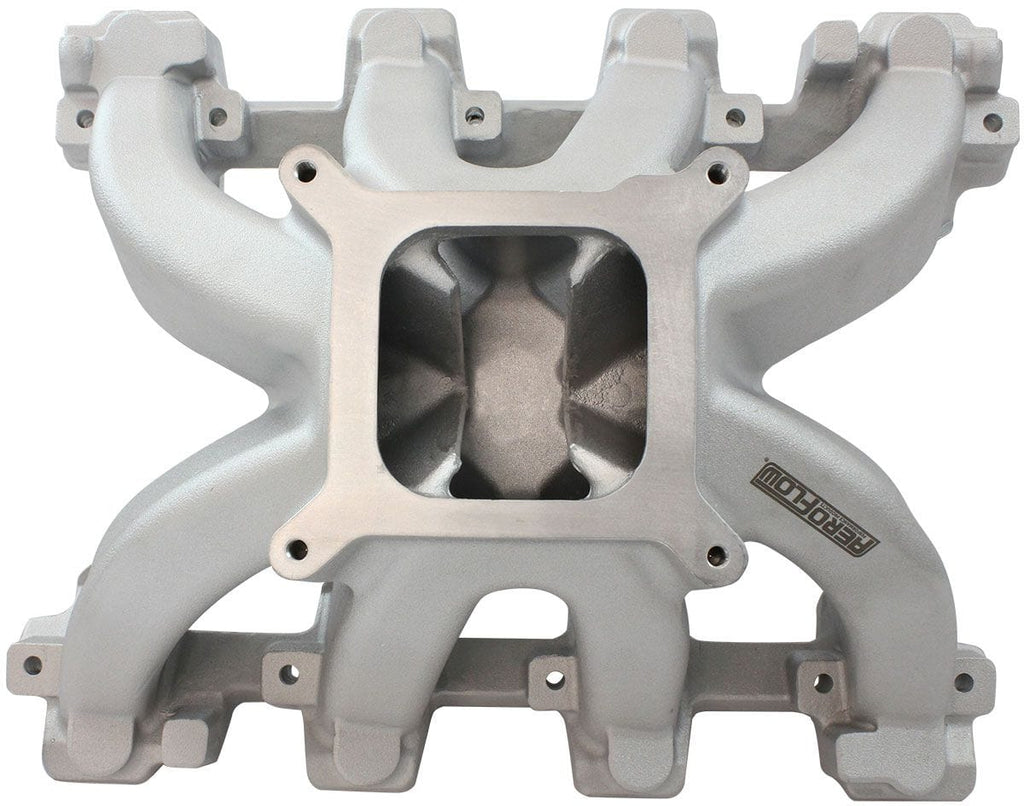

GM LS Cathedral Port Carburettor Hi Rise Single Plane Non-EFI Intake Manifold,Natural Cast Finish4 Barrell 4150 Square Bore Carburettor PadBrand: AEROFLOWPart Number: AF6040-5005Description: Convert your GM LS engine from EFI to Non-EFI carburettor in retro-fit applications with this Aeroflow Performance hi rise (Super Victor Style) cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore carburettors with either manual or electric choke options available on today’smarket. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 cathedral port cylinder heads. This product is intended for carburetted, throttle body EFI, or port EFI applications.
This manifold is a Hi-Rise race style manifold designed for high rpm and large cubic inch engines.
• Fits GM LS1/LS2 Cathedral Port Engines.
• Non-EFI Applications.
• Fits GM LS1/LS2 Engines.
• Single Plane Configuration.
• RPM operating range - 3500 to 8000.
• Natural Cast Finish.
•- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
Additional Specifications: Manifold Specifications
- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 171mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.08" x 2.50"
- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
- 5/16-18" carburettor studs (x4)

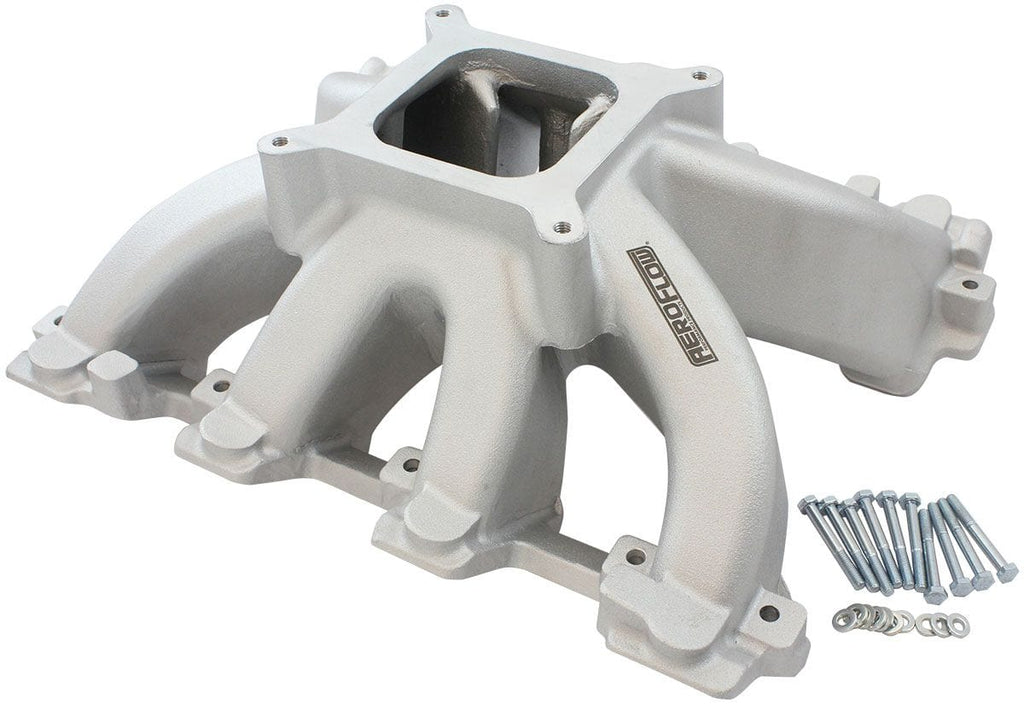

Intake Manifold Includes
- 10 x M6 x 1.00mm Hex Screws (50mm UHL)
- 10 x M6 Flat Washers
Important Information: •- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
