Holden 304 Fuel Rail Kit for Air Gap Intake Manifold

Roll over image to zoom in Click on image to zoom

Holden 304 Fuel Rail Kit for Air Gap Intake Manifold

Suits AF6010-4003 and AF6210-4003 Intake Manifolds ONLY

Stealth RideSKU: AF6999-4003

Product Option: Holden 304 Fuel Rail Kit for Air Gap Intake Manifold

Variant

Price:

$257.46 NZD

Tax included Shipping calculated at checkout

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Holden 304 Fuel Rail Kit for Air Gap Intake ManifoldSuits AF6010-4003 and AF6210-4003 Intake Manifolds ONLY
Brand: AEROFLOW
Part Number: AF6999-4003
Description:

Give your Holden intake manifold the capability to flow some serious flow to feedeven the most fuel hungry applications. These Holden fuel rails from Aeroflow Performance are specifically designed for use with the Holden 304 with EFI bungs air gap intake manifold. It will not suit the factory Holden intake manifold.

Each fuel rail is precision CNC machined from extruded 6063 aluminium with a large internal diameter bore with -8ORB ports on each end and anodized black.

Like theOEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

This kit includes all mounting hardware to mountto the intake manifold.

Additional Specifications:

Requires the use of 14mm short (33.60mm) fuel injectors.

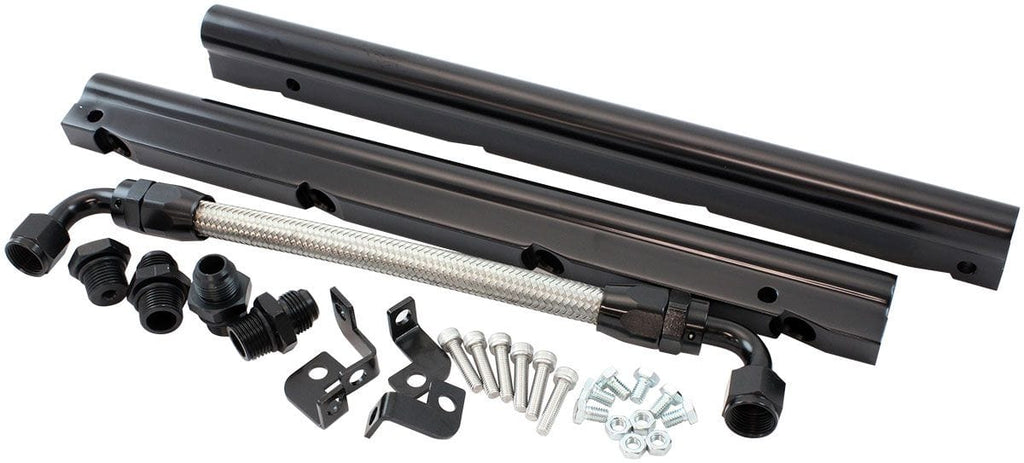

AF6999-4003 Includes
2 xFuel Rails (-8ORB)
-8AN cross over 100 series braided line with two 90 degree non full flow taper fittings
3 x -8an to -8ORB fittings
1 x -8ORB hex port plug
6 x mounting brackets
6 x M6 socket cap screws (25mm UHL)
6 xM6 hex screws ( 10mm UHL)
4 x M6 nuts

Important Information:

This Fuel Rail kit will notsuit Factory Holden Intake Manifolds. This fuel rail kit can only be used with AeroflowPerformance Holden 304 EFI AirGap intake manifold (AF6010-4003 and AF6201-4003)
