GM LS Fuel Rail Kit for Cathedral Port CarburettorStreet Single Plane EFI IntakeManifoldSuits AF6050-5000 and AF6250-5000 Intake Manifolds ONLYBrand: AEROFLOWPart Number: AF6999-5000Description: Give your GM LS intake manifold the capability to flow some serious flow to feedeven the most fuel hungry applications. These GM LS fuelrails from Aeroflow Performance are specifically designed for use with the GM LS carby with EFI bungs intakemanifold with cathedral port LS1/LS2 style cylinder head ports. It will not suit the factory GM LS intake manifold.
Each fuel railis precision CNC machined fromextruded 6063 aluminium with alarge internal diameter bore with -8ORB ports on each end and anodized black.
Likethe OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel typesincluding popular alcohol mixtures such as E85.
This kit includes both length brackets to suit either short or 3/4" length fuel injectors and all mounting hardware to mount to the intake manifold.
Additional Specifications: Requires the use of either 14mm short (33.60mm) fuel injectors or 3/4" length (48.65mm) fuel injectors.

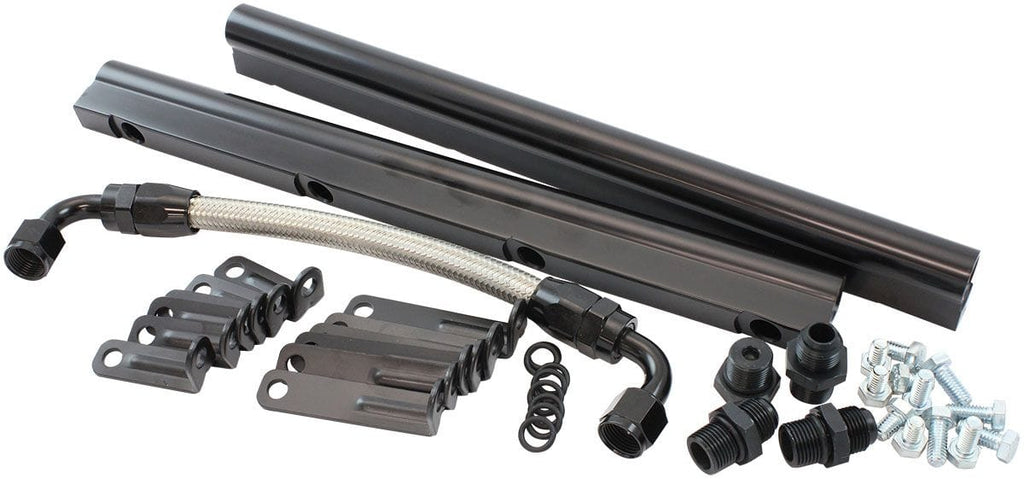

Fuel Rail Kitincludes
2 x Two Fuel Rails (-8ORB),
1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
3 x -8an to -8ORB fittings
1 x -8ORB hex port plug
6 x long mounting brackets
6 x short mounting brackets
6 x 5/16-18" hex screws (18.5mm UHL)
6 x 5/16-18" hex screws (12mmUHL)
4 x M6 nuts
8x 14mm fuel injector o-rings.
Important Information: This Fuel Rail kit will notsuit Factory GM LS Intake Manifolds. This fuel rail kit can only be used with AeroflowPerformance GM LS Cathedral port intake manifold (AF6050-5000 and AF6250-5000)
