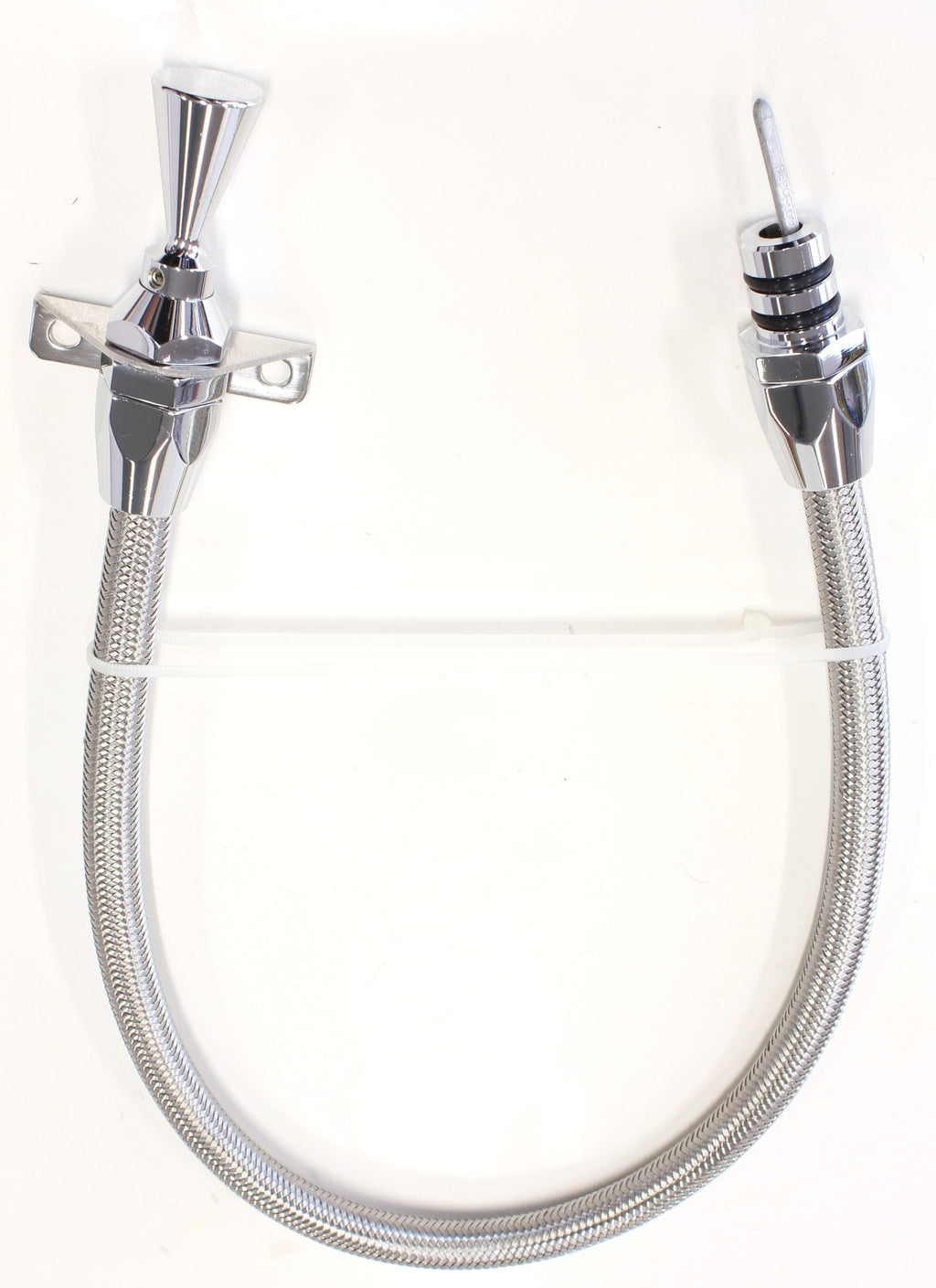

GM Powerglide FirewallMount Flexible Stainless SteelTransmission Dipstick - ChromeFinish24" (600mm) OverallLengthBrand: AEROFLOWPart Number: AF72-2501Description: Aeroflow Flexible Firewall Mount Transmission Dipsticks provide a clean stable universal way to both keep up with your vehicle’s transmission fluid level, but adds a high attention to detail in your engine bay. This style of dipstick requires 2 holes drilled into the firewall to mount which gives you easy access to the dipstick top check or top up fluid.
Featuring 308 stainless steel braided covering over a hard-wearing high quality PTFEliner. The handle and ends aremade from 6061-T6 aluminium then hand polished and chrome plated. They feature double O-rings for a secure seal. These not only look great but the flexible inner dipstick ismarked to give accurate trans fluid level readings. Also Available in Black anodised finish.
Each dipstick includes a dipstick funnel adapter to assist in filling which is also sold separately (AF59-1015).
All firewall mount dipsticks are 24” (610mm) in length.
This transmission dipstick can be modified to suit HoldenTrimatic Transmissions. You must remove the grub screw on the dipstick handle. Pull apart the handle to the inner cable. Carefully shorten and cut the inner cable by exactly15mm. Re insert the handle into the inner cable and tighten the grub screw.
