Aeroflow Universal Radiator Overflow Tank AF77-1029BLK

Roll over image to zoom in Click on image to zoom

Aeroflow Universal Radiator Overflow Tank AF77-1029BLK

AF77-1029BLK - UNIVERSAL OVERFLOW TANK BLACK

Save 9%

Aeroflow PerformanceSKU: AF77-1029BLK

Product: 6-3/4" (171mm) H x 3" (76mm) O.D - Black Finish

Variant

Price:

$163.77 NZD $180.77 NZD

Tax included Shipping calculated at checkout

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

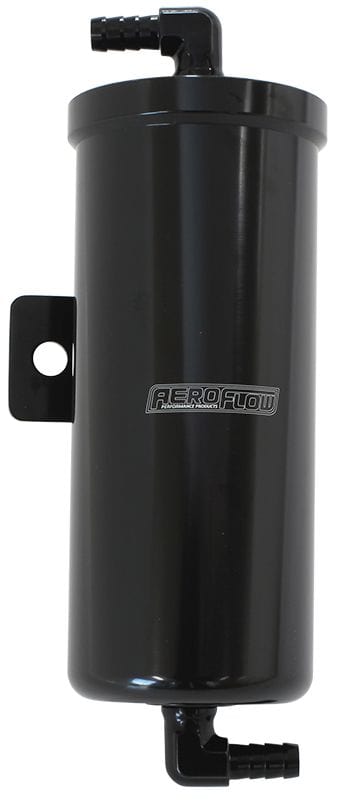

Universal Radiator Overflow Tank6-3/4" (171mm) H x 3" (76mm) O.D - Black Finish
Brand: AEROFLOW
Part Number: AF77-1029BLK
Description:

When your radiator coolant gets too hot, it will blow through your overflow spout and all over your engine bay unless you have an overflow tank. Aeroflow's overflow tanks are available in polished billet aluminium or anodised black with 3/8" barb fittings for a simple installation. They will allow the coolant to expand and thenrecover as the temperature drops.

This tank features a female -6AN O-ring fitting welded on each end of the tank This tank also comes with two -6AN O-ring to 3/8" (9.52mm) barb fittings pre-installed.

To plumb up this tank one fitting on the tank should go to the radiator neck spout. The otherbarb will be attached to long tube that is mounted inside the overflow tank. This is an extra barb that is designed ifthe tank gets too full it needs to empty so pressure is not built up inside. Ensure toplumb this barb away from moving components or extreme heat sources to avoid any damages or accidents.

Additional Specifications:

Dimensions:
Overall Length-221mm
Tank Length - 178mm
Tank Diameter - 74.1mm
Capacity - 475ml
3/8" (9.52mm) barbs on each end of tank or -6ORB female ports on each endof tank
