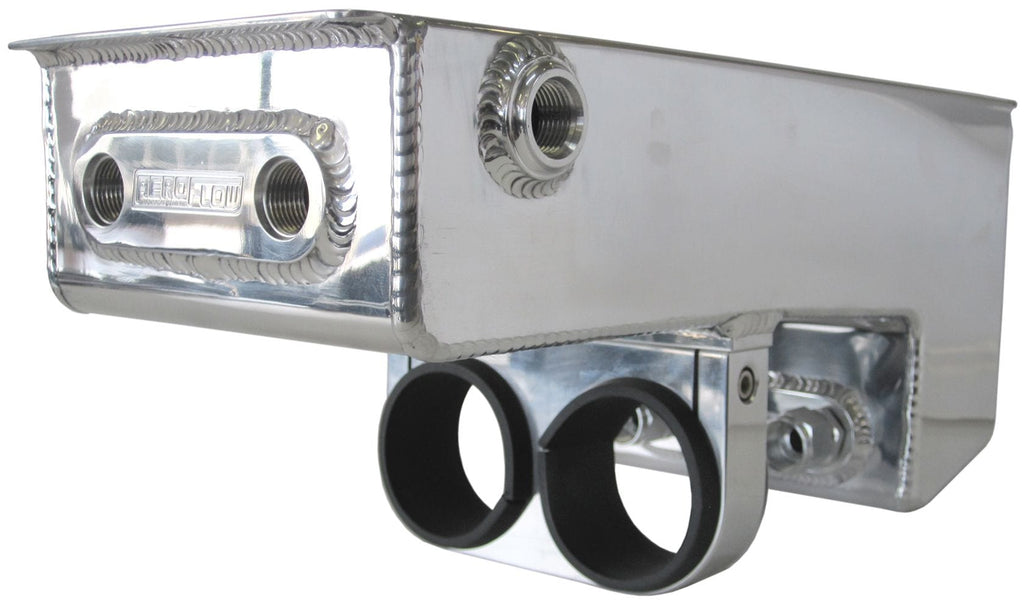

Dual EFI Pump Under-Car Surge TankPolished Finish.Brand: AEROFLOWPart Number: AF77-1044Description: These Aeroflow Performance Under-Car Surge Tanks are designed to prevent starving the fuel pump by increasing the fuelling capability of thefuel system. It is usually installed in vehicles that potentially can experience fuel starvation due to fuel sloshing around in an inadequately baffled fuel tank/cell. While this can occur in any vehicle when the tank is not fully filled, it is more frequent in vehicles subject to violent changes in directions such as autocross, off-road, drag racing and other types of racing that involve high g-force. The primary fuel pump in the vehicle's main fuel tank will no longer directly feed the engine. Instead, the internal fuel pump will now be used to fill and maintain the level offuel in the surge tank itself.Using a surge tank will now require new external fuel pump/s to be installed after the tank to supply fuel to theengine.
This surge tank is specifically designed to bemounted under the vehicle in ahorizontal position. It shouldnot be installed inside the vehicle or in a vertical position.
The tank itself is robotically TIG welded with 2.5mm thick aluminium, featuring six female -8 O-ring ports that allow vast variety of adapter fittings to be placed into various positions around the tank if required. NOTE: if notusing all ports ensure to block them with fittings (soldseparately). The kit includes a billet dual fuel pump holderalong with our -8ORB to -8AN adapters designed for external60mm diameter fuel pumps such as our AF49-1014 or Bosch Motorsport 044 which are Sold Separately.
Each tank isavailable in polished or blackfinishes.
Additional Specifications: Dimensions:
Tank Height: 162mm (6-1/4")
Tank Diameter: 150mm (6")
Tank Length: 390mm (15")
Capacity: 4.75 Litres (160oz)
KitIncludes:
1 x Surge Tank
1 x Dual Fuel Pump Bracket

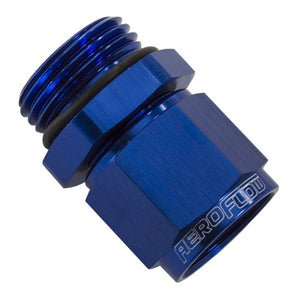

2 -8ORB to Female -8AN Adapters (AF907-08S)
