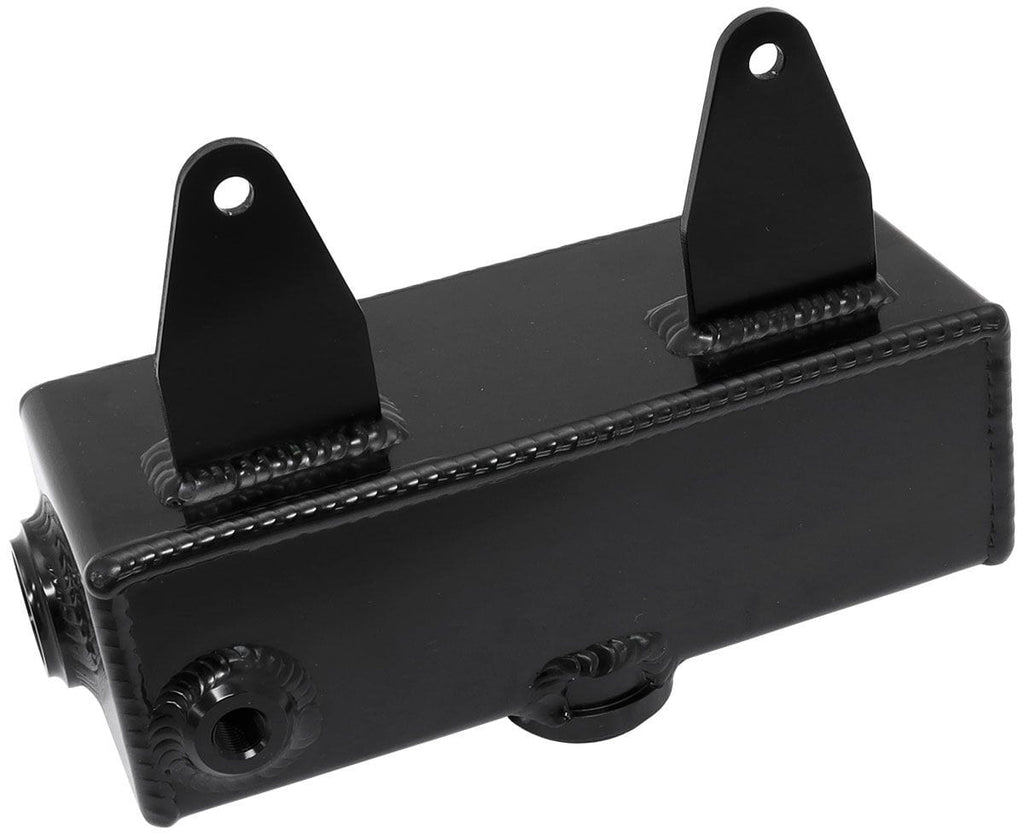

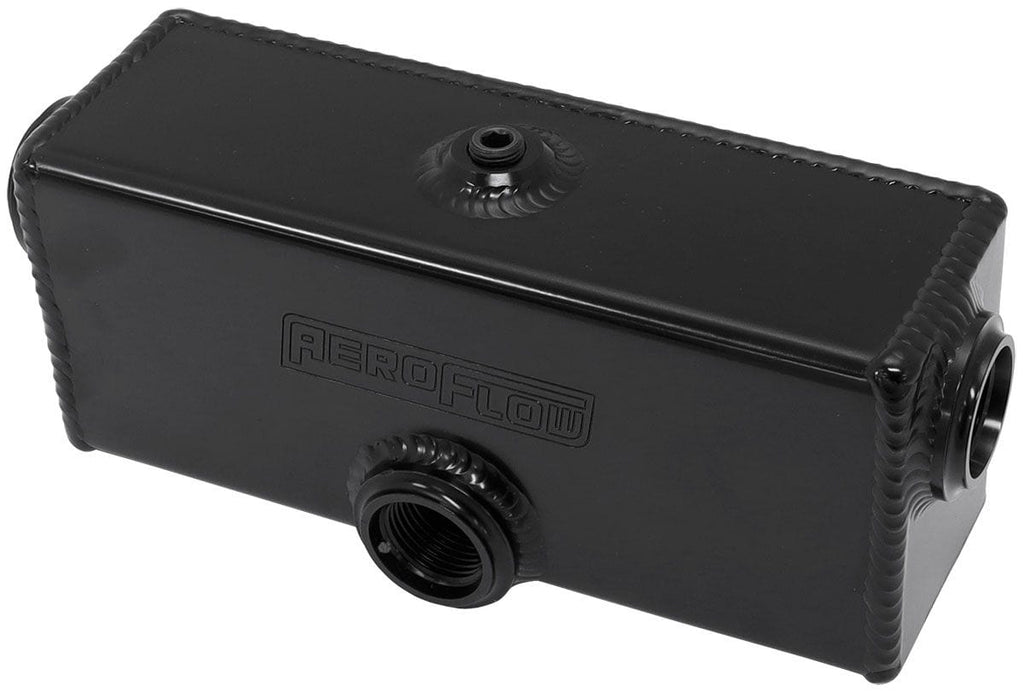

This neat little compact tank is specifically designed as a turbo oil drain scavenge drain tank or collector. This makes it a great tank for low mount turbocharger options or if you have a turbocharger installed in a location where a free flowing drain hose is not possible. This tank will allow oil to collect in this sump and you must have a oil scavenge pump (AF49-1200 sold separately) to draw the oil out of this tank and transfer it back to the engine sump. Each side of the tank has a female -12ORB which can be used as a inlet from the drainon the turbocharger. With a female -10ORB which will be the feed line for the scavengepump. Included on the top of this aluminium tank is a 1/8" NPT that is designedfor a vent line which is important to stop the oil fromaerating. As well as a 1/8" drain on the bottom of the tank if you require it to be emmptied from time to time
Specifications
2 x -12ORB female ports on each end (Drain from Turbo)
1 x -10ORB female port on the front (inlet to scavenge pump)
1 x 1/8" NPT femaleport on top (for breather)
1 x 1/8" NPT femaleport on the bottom with steel port plug included (Drain)
Dimensions
Tank Length - 199mm
Tank Width - 65mm
Tank Height - 86mm
Bracket Length - 65mm
Centre to entre of 6mm Mounting Holes - 100mm
