GM LS 2 Piece Retro Finned Valve Cover Set, Black Finish

Roll over image to zoom in Click on image to zoom

GM LS 2 Piece Retro Finned Valve Cover Set, Black Finish

Suit GM LS Series Engines. Factory Position Coil Mounts with Tall Cove

Stealth RideSKU: AF77-5020BLK

Product Option: GM LS 2 Piece Retro Finned Valve Cover Set, Black Finish

Variant

Price:

$823.93 NZD

Tax included Shipping calculated at checkout

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

GM LS 2 Piece Retro Finned Valve Cover Set, Black FinishSuit GM LS Series Engines. Factory Position Coil Mounts with TallCover
Brand: AEROFLOW
Part Number: AF77-5020BLK
Description:

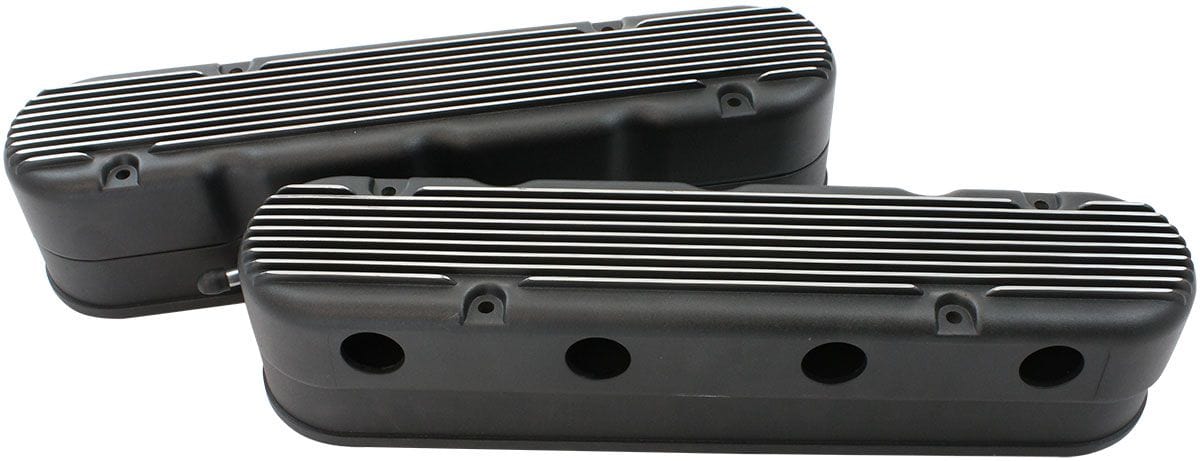

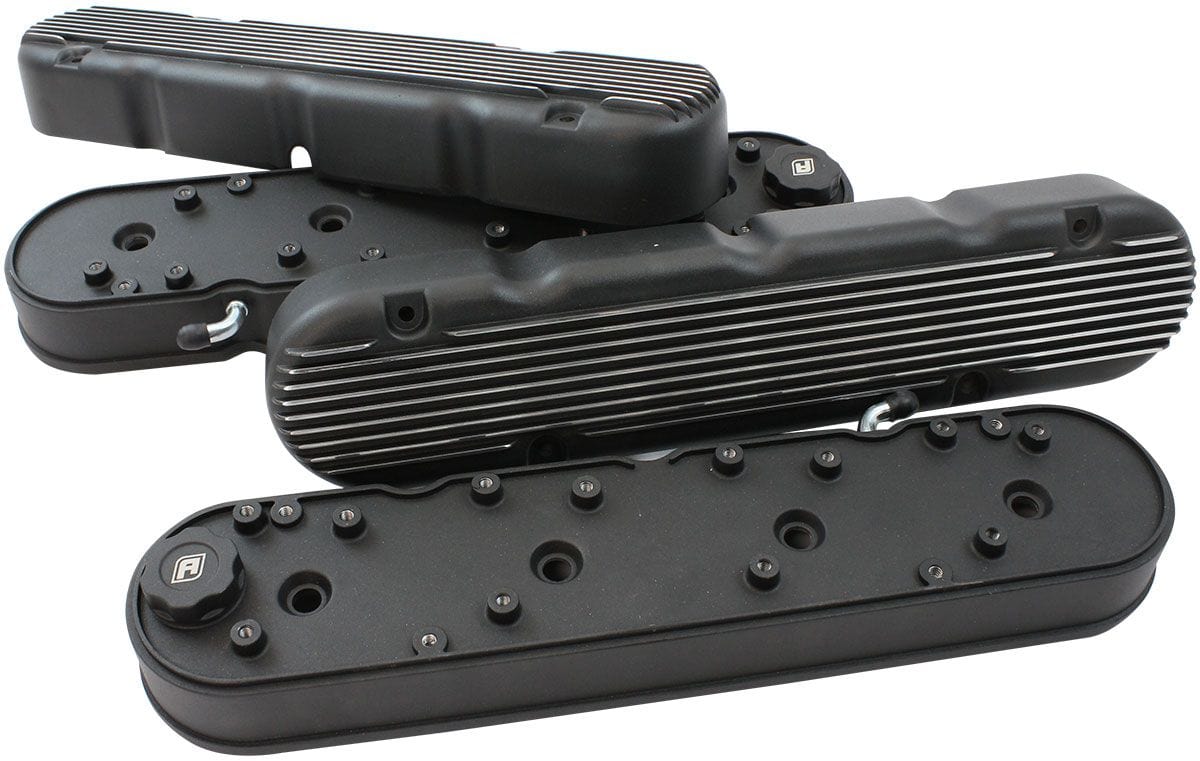

Cast aluminium valve coversare a great way to improve andrefine the look of your LS engine, without any radical changes to its configuration. These Aeroflow Performance valve covers are a 2-piece retro finned design. These feature a low, internally baffled LS valve cover base with integrated coil mounts and a retro style finned overcover that hides the ignition coils and wiring harness. It also features a baffled stock-style ventilation set-up with an oilfill cap while also retaining the factory gaskets and bolts.All hardware and spacers for mounting ignition coils and 12-point dress up hardware andrubber grommets for the coil covers are included. Fits all LS engines using both LS1 and LS2 or similar coils.

Additional Specifications:

Coil mounts on base plate suits both LS1 style coil packs sold separatley (AF4020-8262) and LS2 style coil packs sold separatley (AF4020-8265).

Total Height is 96mm.

Valvetrain Clearance is .750" lift cam with stock style rocker arms.

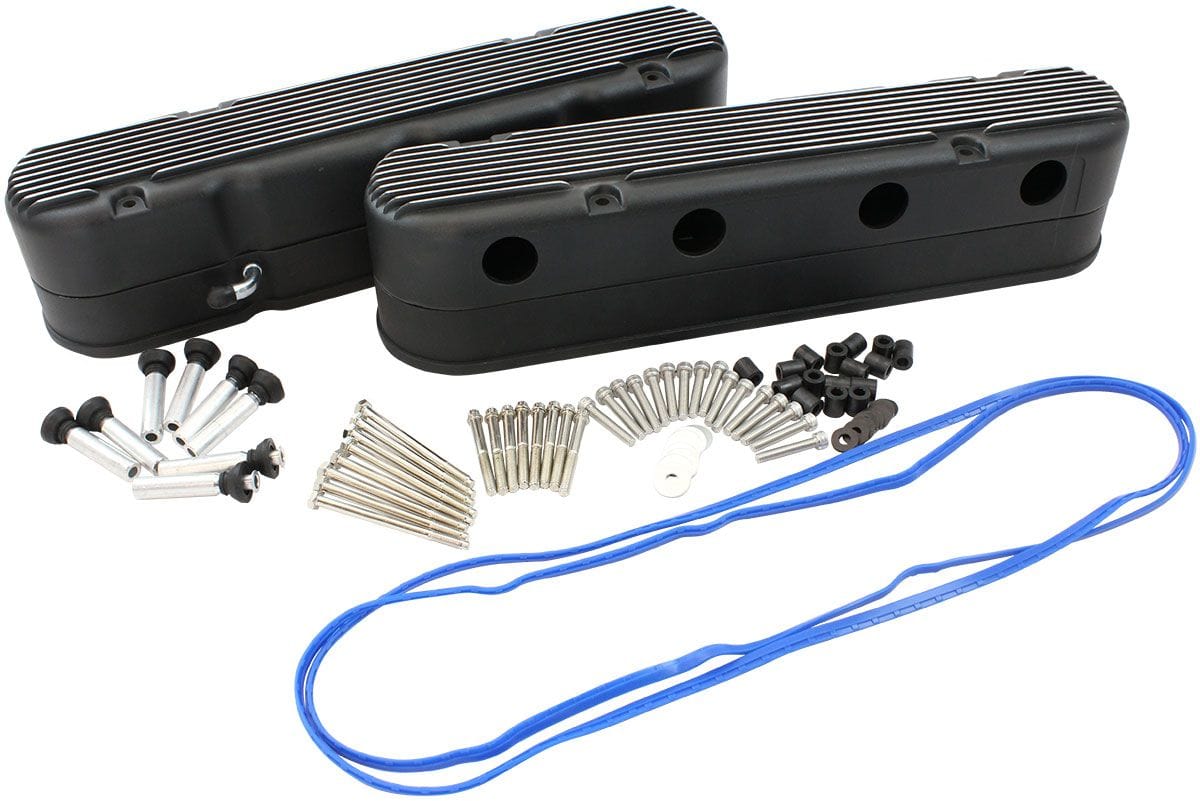

Valve Cover includes:
2 x Gm LS valvecover base with oil fill oil and 3/8" Barb
2 x GMLS valve cover over cover
2 x Cast oil fill cap with o-ring
8 x 12 point over cover dress up bolts (1/4-20" thread 55mm UHL)
8 x rubber grommets for over coverdress up bolts
16 x coil mounting socket cap screws M6 x 1.00 thread (1-35mm UHL)
16 x plastic coil spacers (12.4mm O.D, 6.5mm I.D, 14.7mmHeight)
8 x Valve cover base mounting hex head screws (M6 x 1.00mm, 85mm UHL)
8x Valve cover base stands and grommets
8 x Flat Washers
2 x rubber valve cover gaskets (AF1850-1013)
