AF8005-3029BLK - BOOSTED 6762 1.06 T3 XR6 FG


Product: AF8005-3029BLK - BOOSTED 6762 1.06 T3 XR6 FG
Sale price$1,629.98

GST included Shipping calculated at checkout

In stock

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

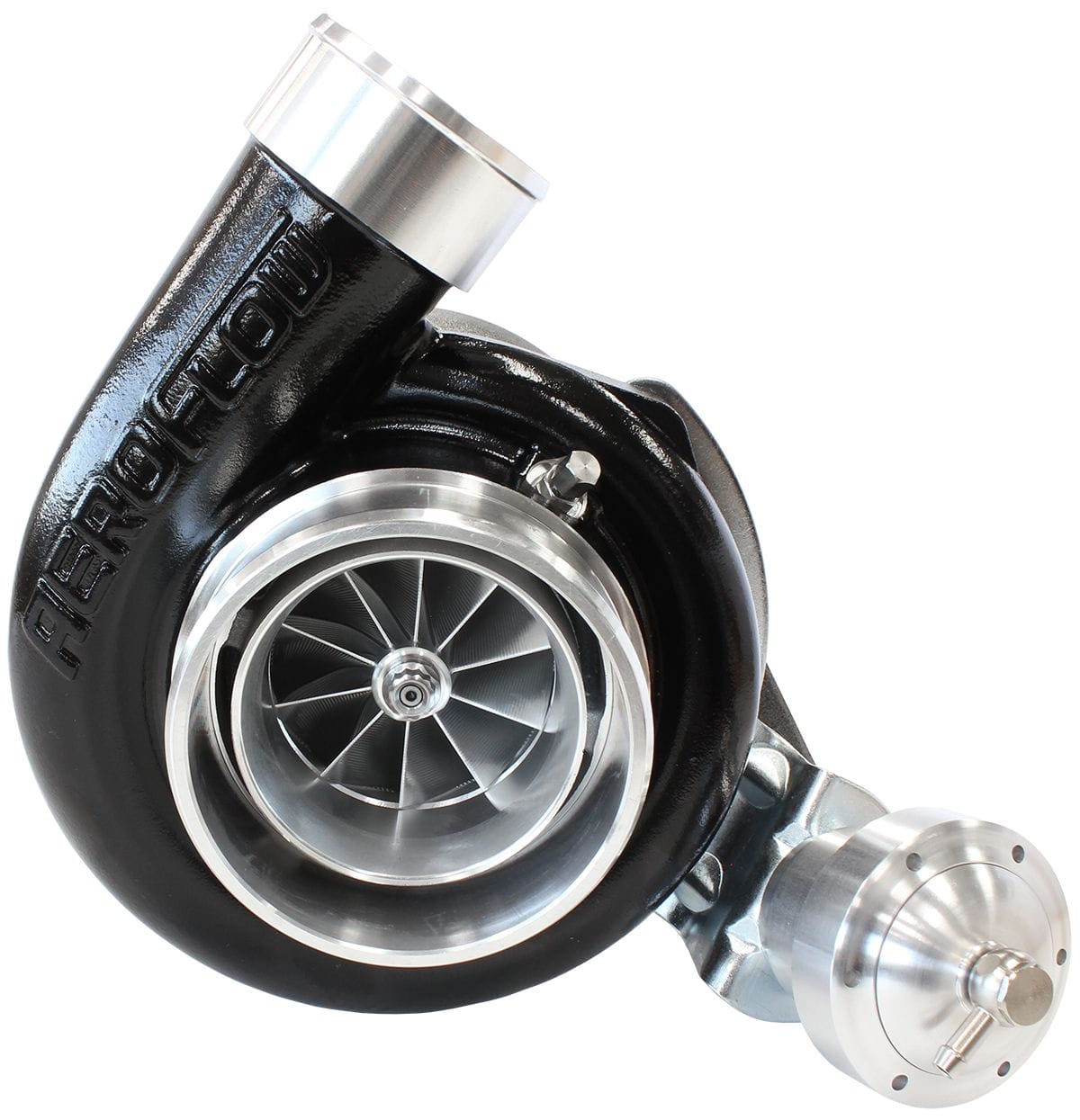

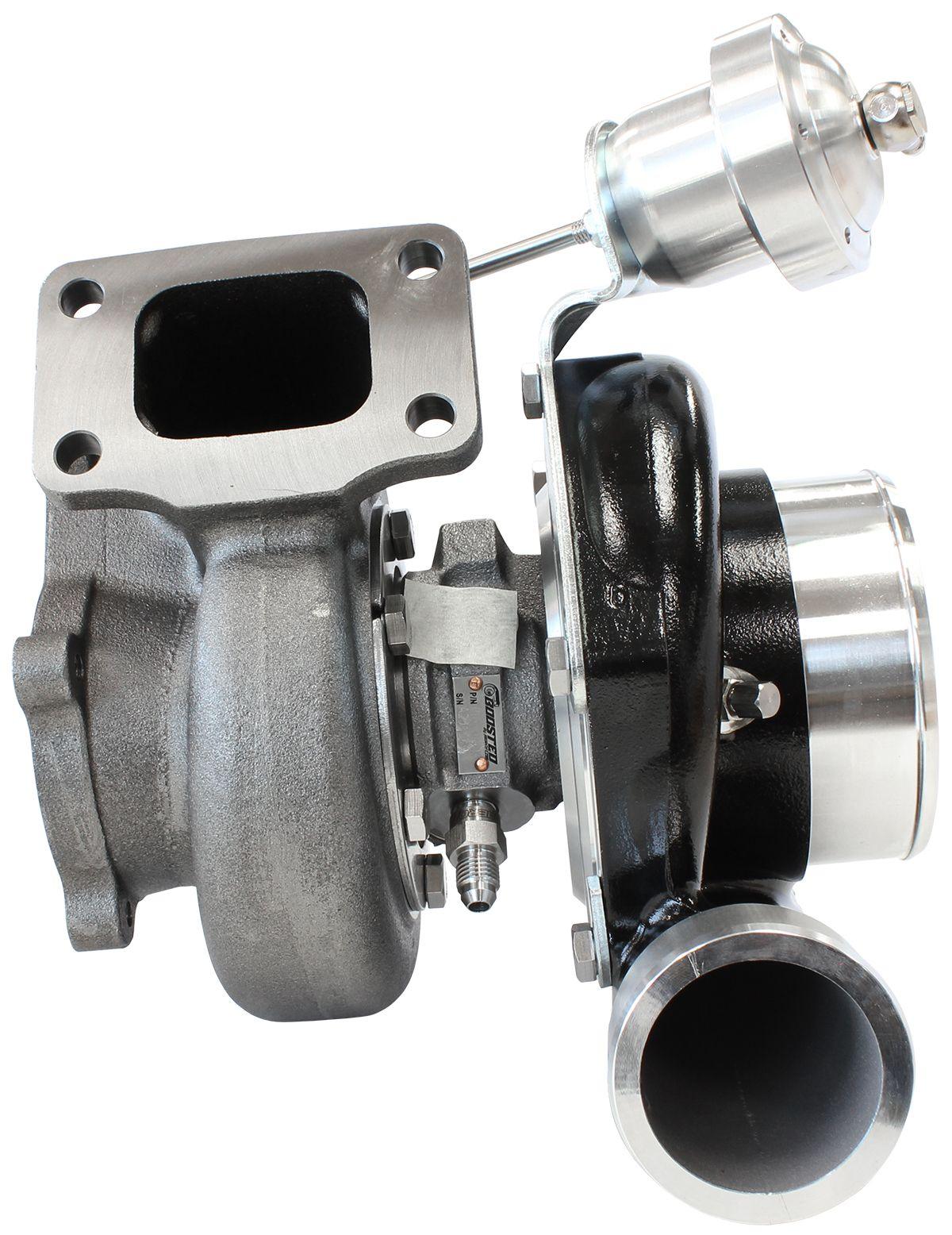

BOOSTED 6762 XR6 Turbocharger Specifications

Recommended horsepower rating: 550-1000HP
Recommended engine displacement: 2.0L to 5.5L

- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- SiMo-nodular cast iron rear housing
- Standard 5-Bolt XR6 turbine outlet flange
- T3 single entry turbine inlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor (Warranty VOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- Suits both Ford XR6 BA/BF and FG. Turbo housing will be supplied in FG configuration
- Billet Internal wastegate actuator with 9psi spring (different rate springs sold separately)
- Internal wastegate hole size is 32mm
- New boost reference port is required for this turbocharger. Install boost reference port into front compressor cover or intercooler piping to suit the OEM boost controller

Compressor Specifications
Inducer: 67mm
Exducer: 84mm
Extended Tip: 87.5mm
A/R: 0.72
Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit

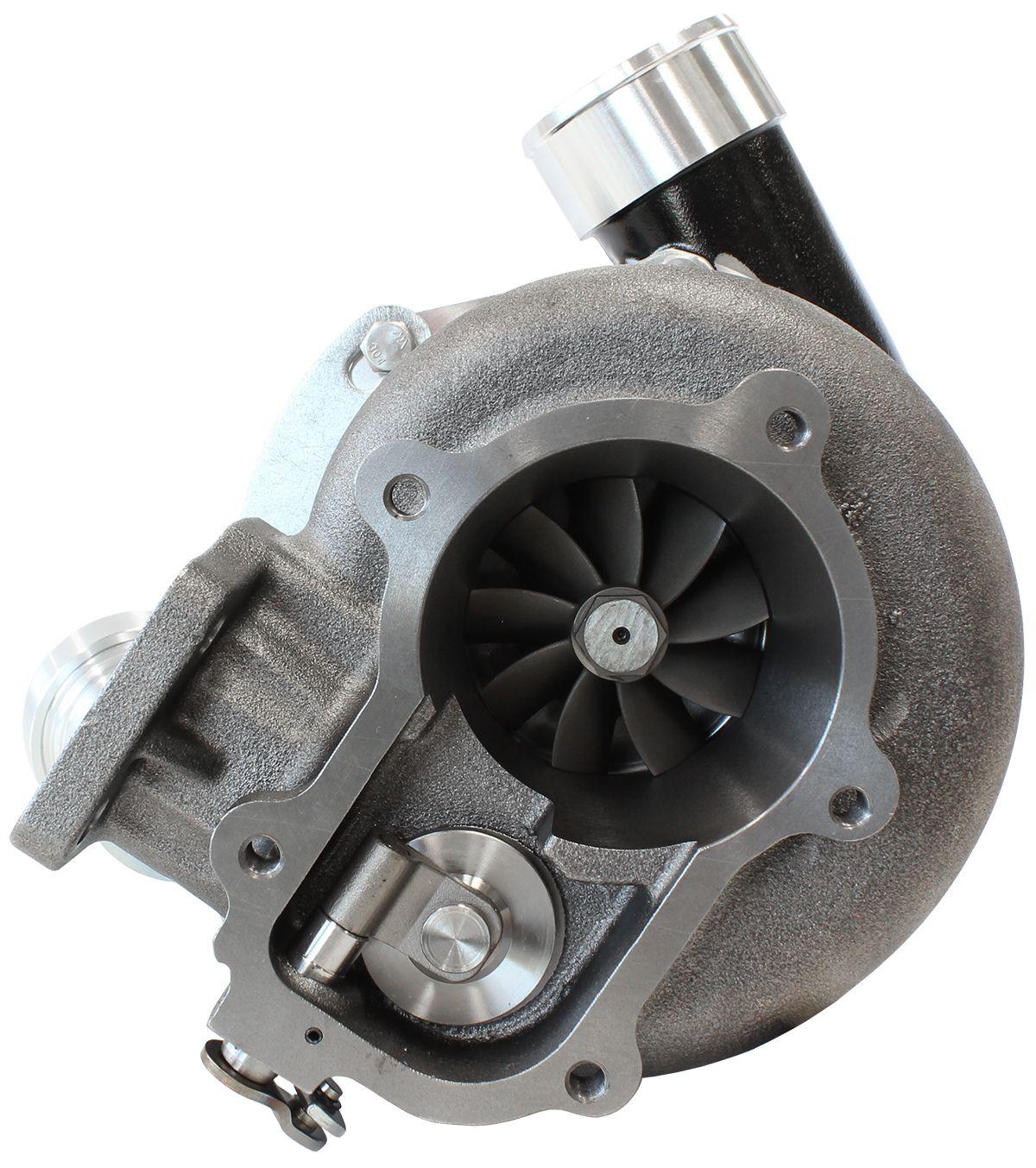

Turbine Specifications
Inducer: 68mm
Exducer: 62.3mm
A/R: 1.06
Turbine Inlet Flange: T3
Turbine Outlet Flange: BA-BF XR6 5-Bolt

32mm internal wastegate with 9psi actuator

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.

Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.
