Recommended horsepower rating: 1100-1500HP
Recommended engine displacement: 3.0L to 7.0L
- Dualceramic ball bearing
- 7075 billet 7 + 7 compressor wheel

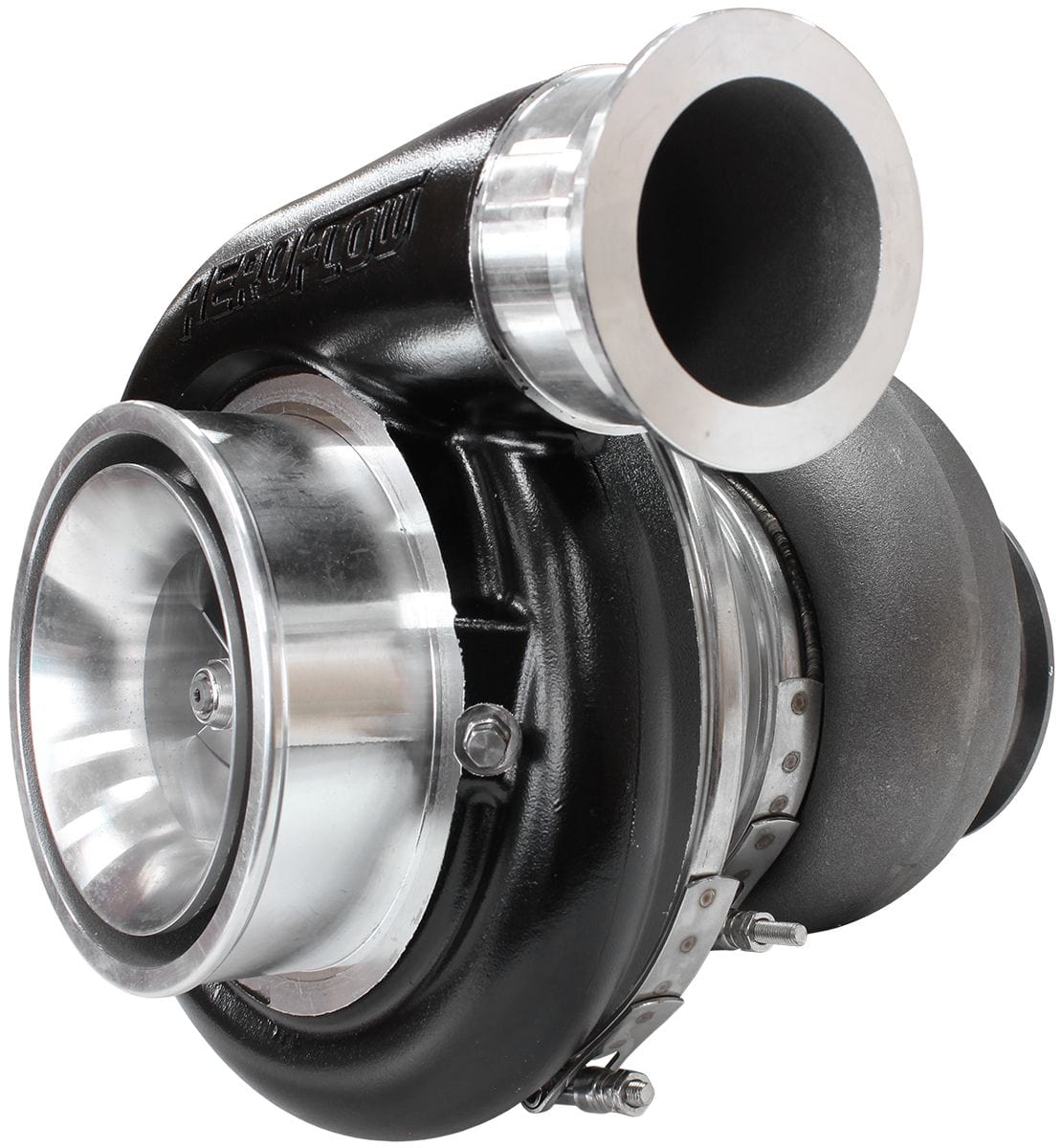

- Ported shroud compressor cover
- BilletCNC core
- This is an oil cooled turbocharger
-Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)

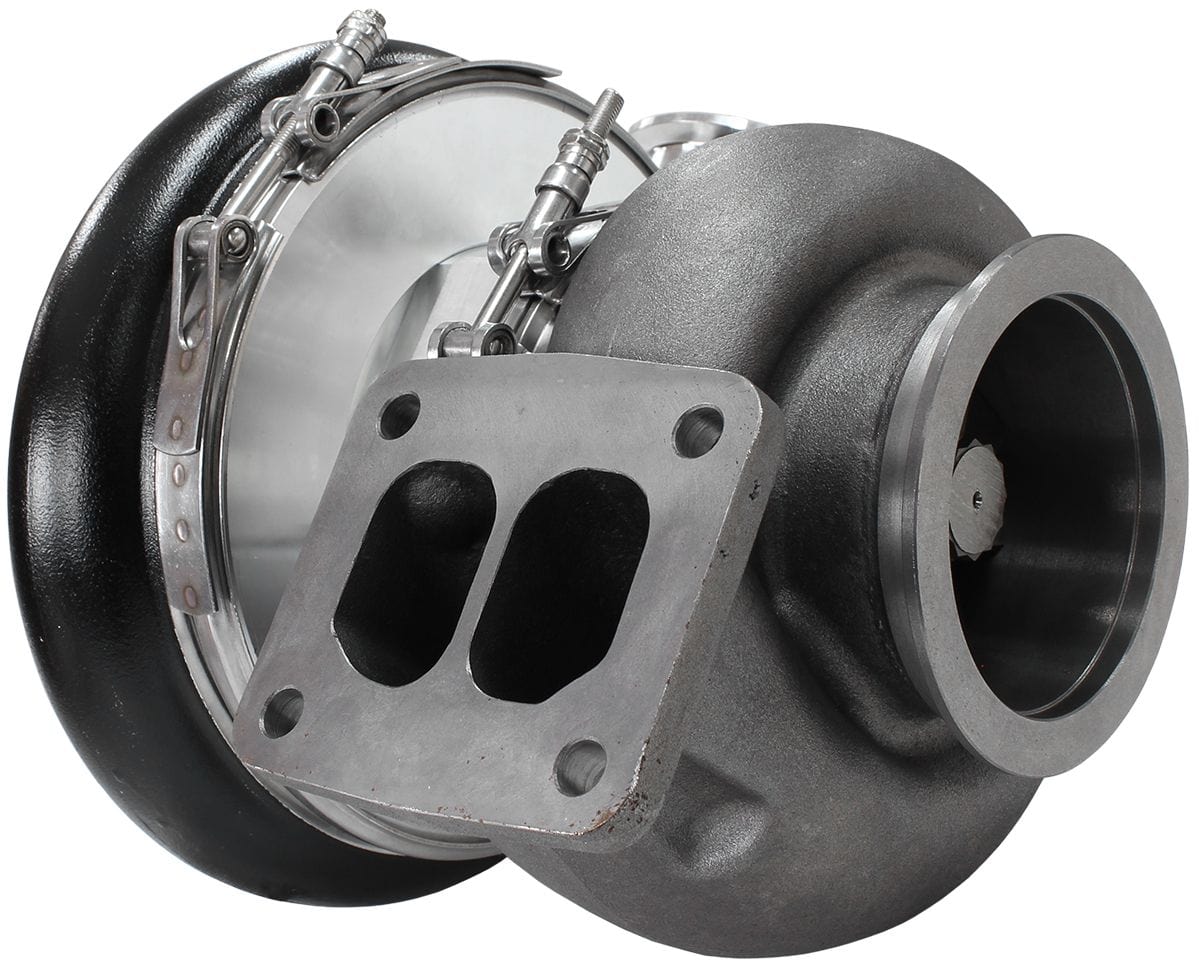

- T4 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange or cut off v-band to allow a 3" slip on fit
- 1/4" NPT oil feed fittingwith in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flangewith M8 x 1.25mm thread size
CompressorSpecifications
Inducer: 75mm
Exducer: 100.32mm
Extended Tip: 105.90mm
Compressor Inlet: 5.5" slip fit
Compressor Outlet: V-Band (AF8080-1025) or 3" slip fit
Turbine Specifications
Inducer: 95.71mm
Exducer: 88mm
A/R: 1.25
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1001)
Wastegate
External wastegate
Important Information:
Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.
This Boosted ball bearing turbocharger from Aeroflow Performance does not feature an internal oil flow restrictor. A -4AN fitting is provided with a built in external oil feed restrictor and must be used to ensure oildoes not push past the seals and shorten the life span of the turbocharger. Should you choose not to use the provided-4AN fitting then an external oil feed restrictor (AF399-04 or AF399-03, available for purchase separately) must be installed in the turbo oil feed line at the engine side and turbo side of the line. Failure to use a suitable restrictor will void the warranty. Boosted turbochargers that feature water cooling ports must have these ports connected to the water cooling system in order to cool the turbocharger core.Failure to connect any and allof these ports will void all warranties.
