AF8005-4106 - BOOSTED 7375 1.0 VBAND REVERSE

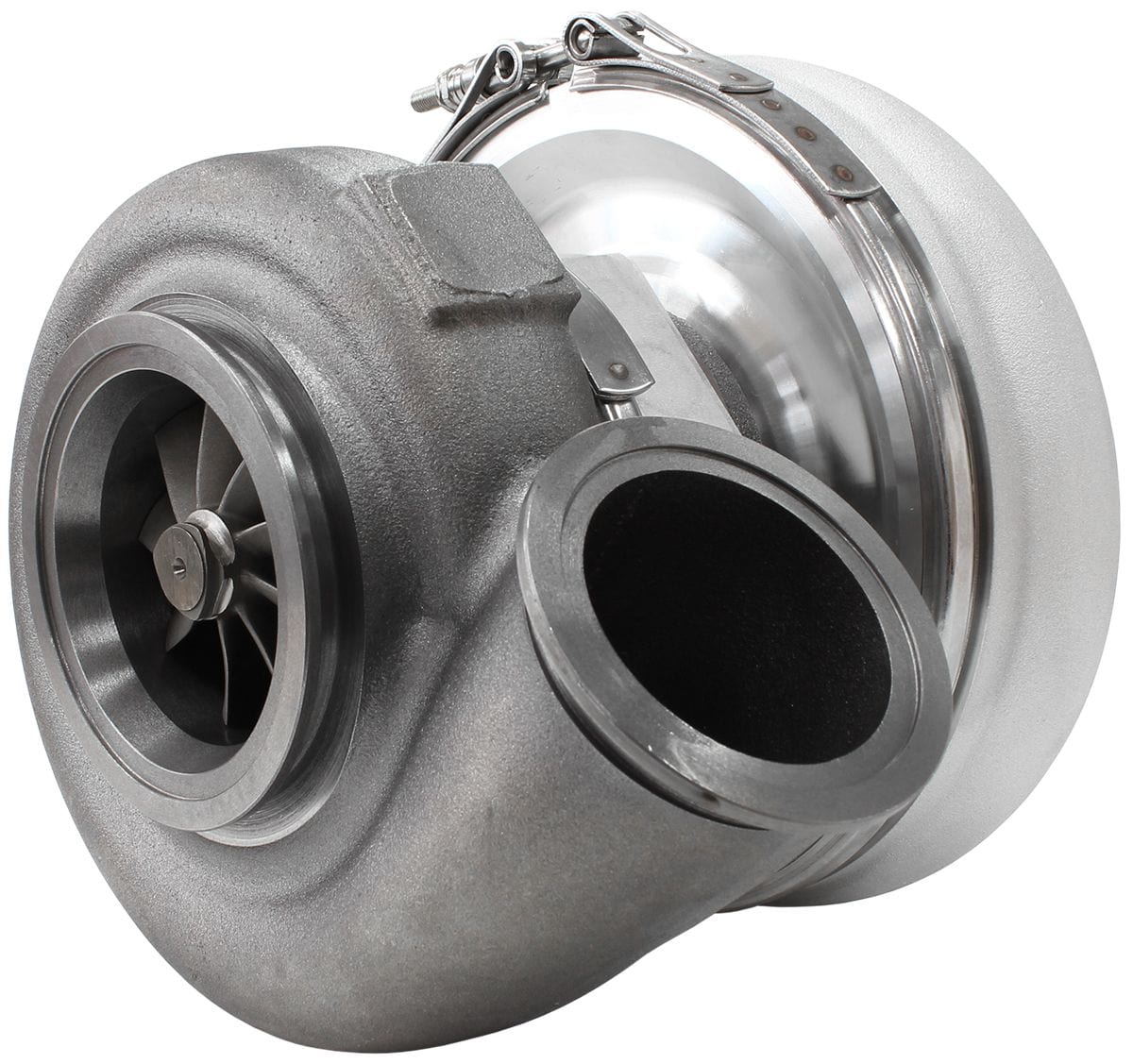

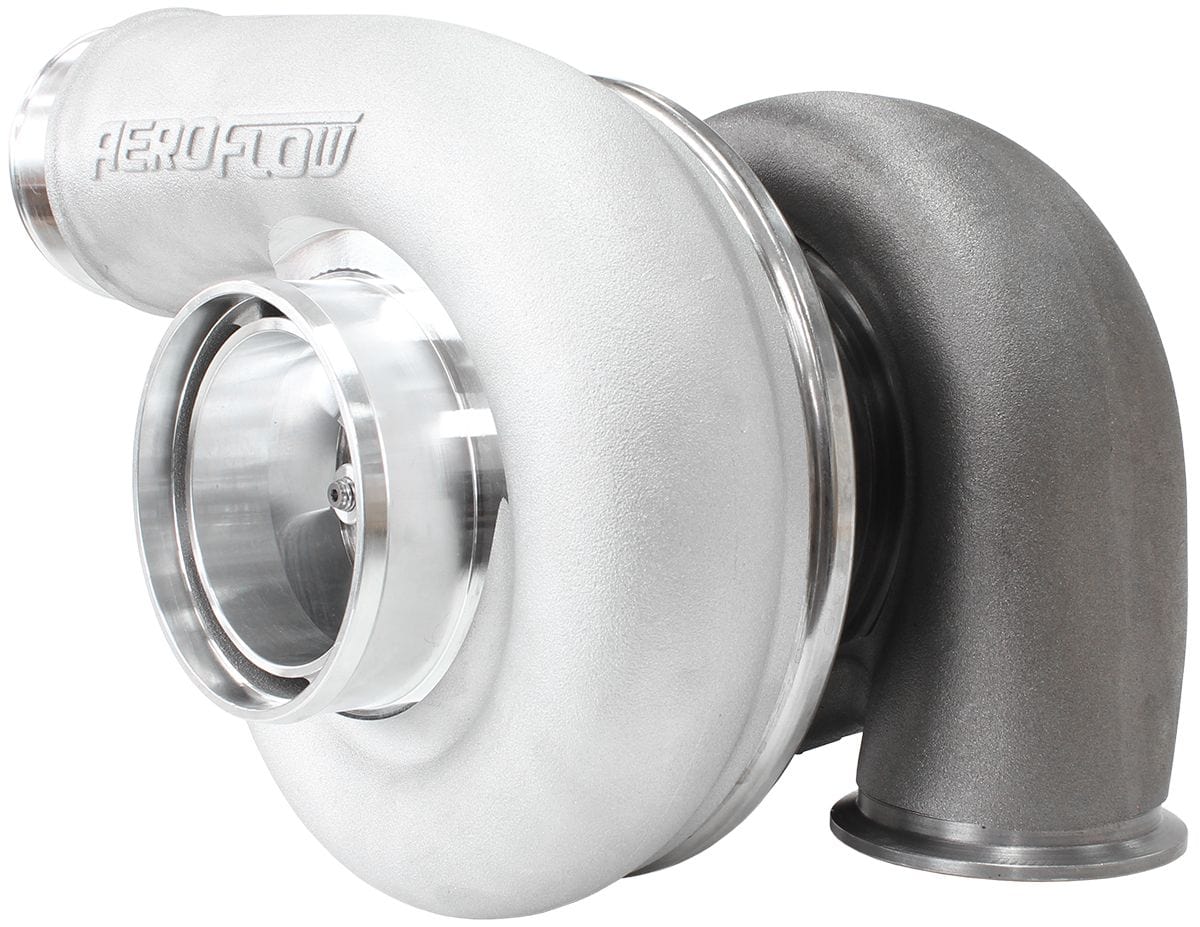

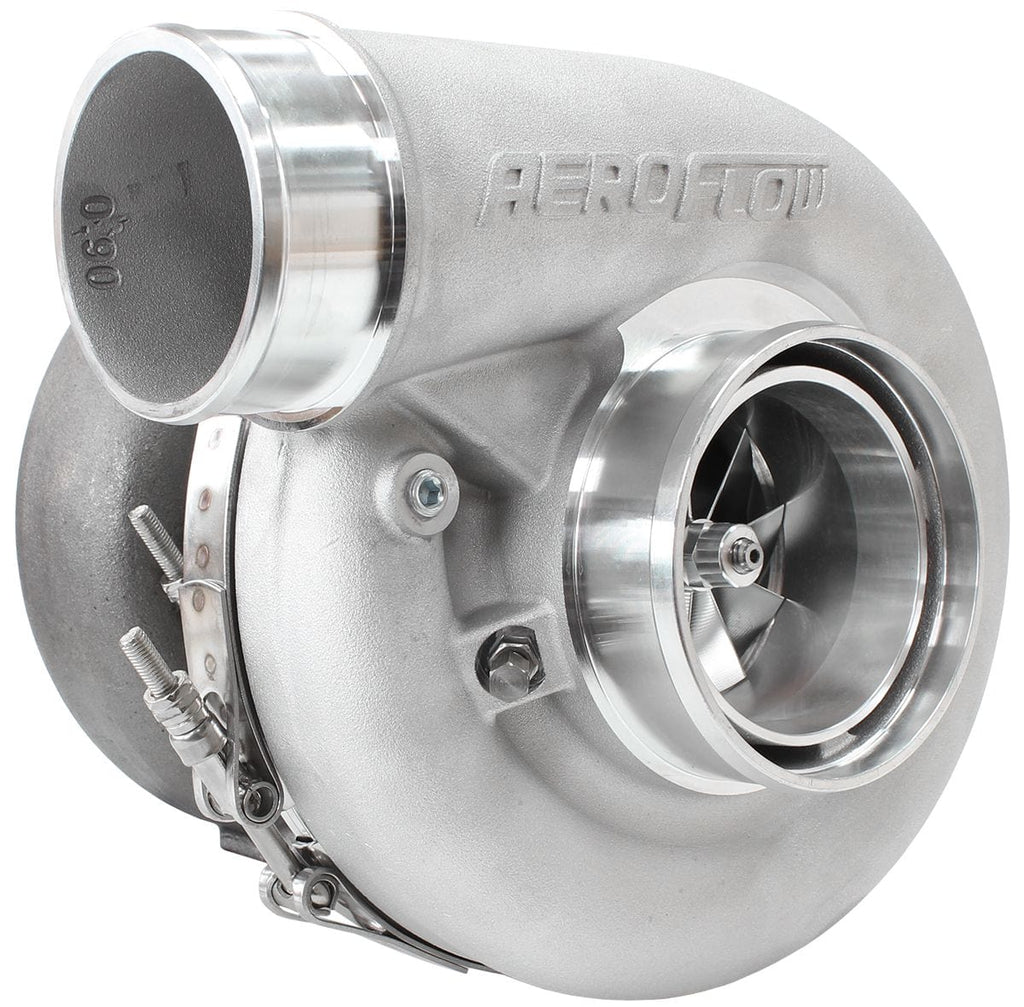

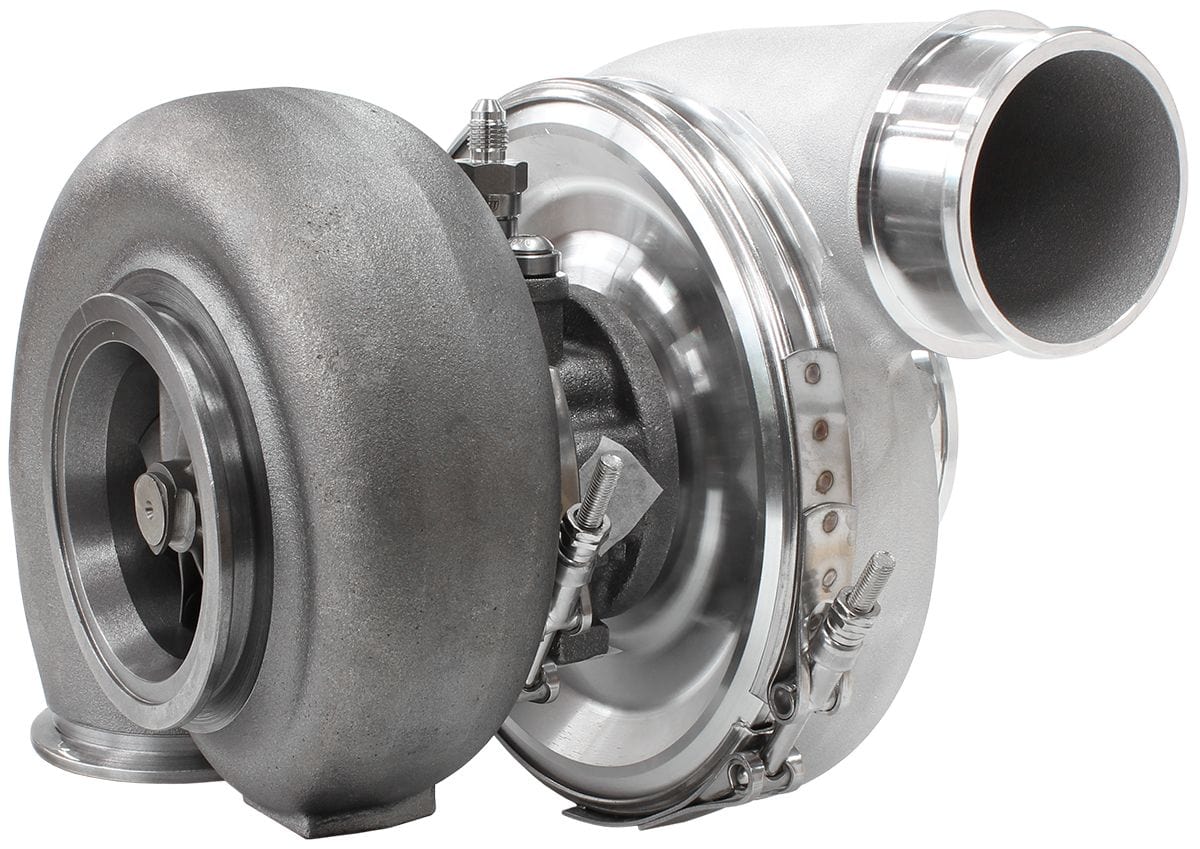

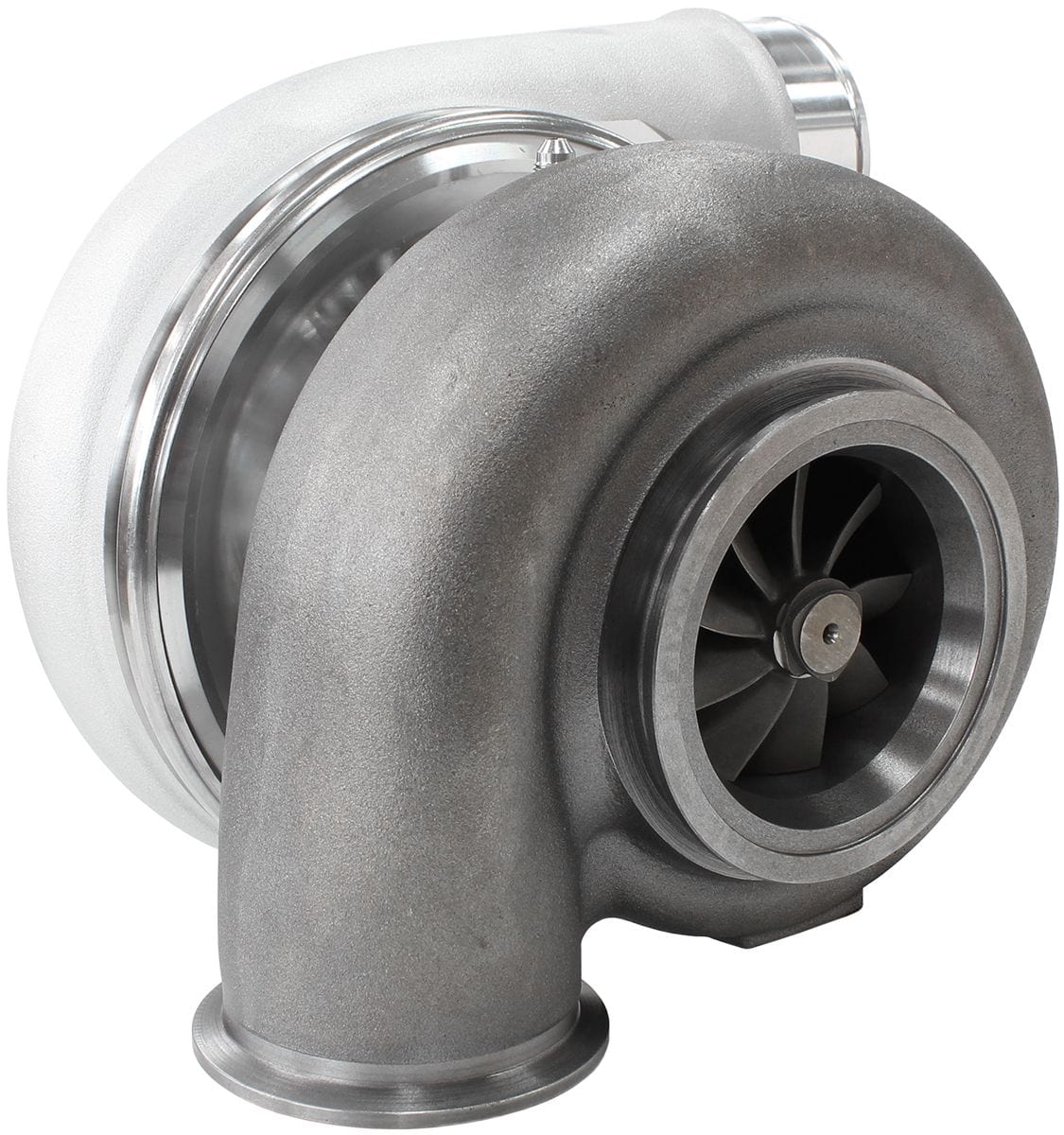

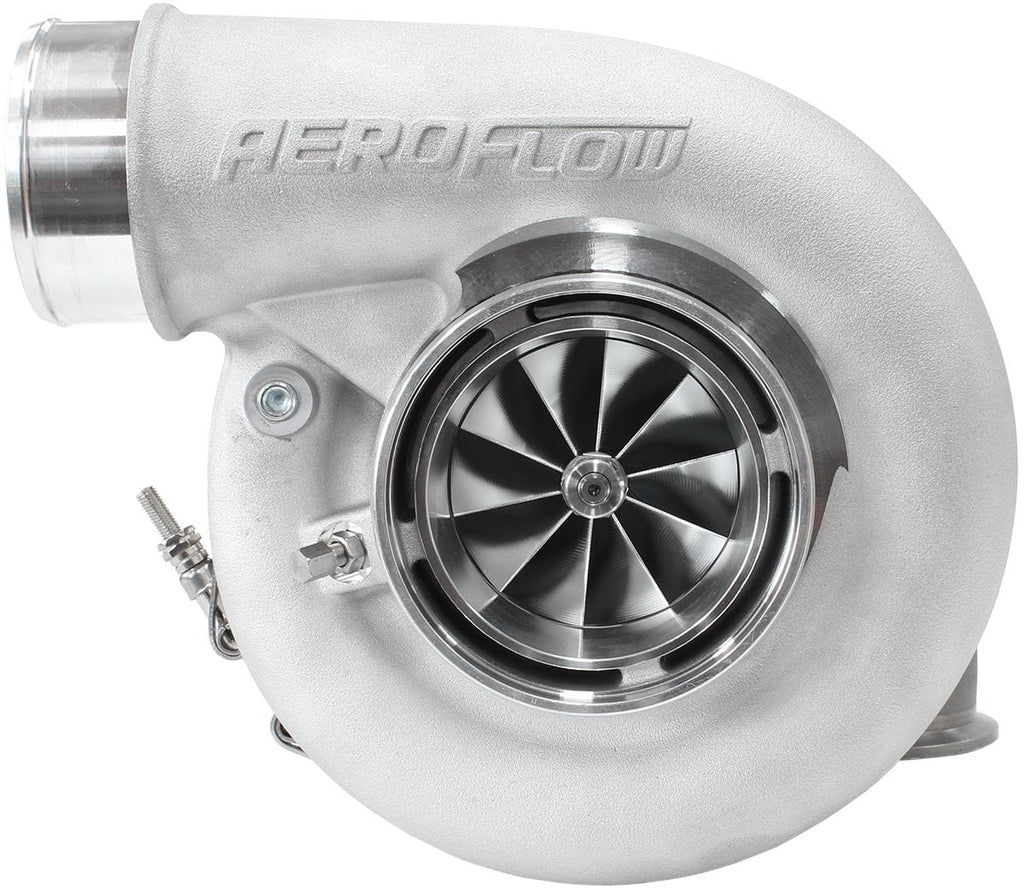

BOOSTED 7375 1.01 Reverse Rotation Turbocharger 1200HP, Natural Cast Finish External Wastegate, V-Band Inlet & Exhaust Flanges

Save 10%

Aeroflow PerformanceSKU: AF8005-4106

Product: AF8005-4106 - BOOSTED 7375 1.0 VBAND REVERSE

Variant

Price:

$2,479.28 NZD $2,750.24 NZD

Tax included Shipping calculated at checkout

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

BOOSTED 7375 1.01 Reverse Rotation Turbocharger 1200HP, Natural Cast FinishExternal Wastegate, V-Band Inlet & Exhaust Flanges
Brand: AEROFLOW
Part Number: AF8005-4106
Description:

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.

Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.

Additional Specifications:

BOOSTED 7375 V-Band Reverse Rotation Turbocharger Specifications

This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 7375 (AF8005-4006) standard rotation turbocharger.

Recommended horsepower rating: 475-1200HP
Recommended engine displacement: 2.0L to 7.0L

- Dualceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Portedshroud compressor cover
-Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular castiron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flangewith M8 x 1.25mm thread size

CompressorSpecifications
Inducer: 73mm
Exducer: 91mm
Extended Tip: 96mm
A/R: 0.90
Compressor Inlet: 4" Slip fit
Compressor Outlet: 3" Slip fit

Turbine Specifications
Inducer: 82mm
Exducer: 75mm
A/R: 1.01
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: V-Band (AF8080-1020)

Wastegate
External wastegate

Important Information:

Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.

This Boosted ball bearing turbocharger from Aeroflow Performance does not feature an internal oil flow restrictor. A -4AN fitting is provided with a built in external oil feed restrictor and must be used to ensure oildoes not push past the seals and shorten the life span of the turbocharger. Should you choose not to use the provided-4AN fitting then an external oil feed restrictor (AF399-04 or AF399-03, available for purchase separately) must be installed in the turbo oil feed line at the engine side and turbo side of the line. Failure to use a suitable restrictor will void the warranty. Boosted turbochargers that feature water cooling ports must have these ports connected to the water cooling system in order to cool the turbocharger core.Failure to connect any and allof these ports will void all warranties.
