AF8006-4025BLK - BOOSTED B7875 1.28 VBAND INLET
Roll over image to zoom in Click on image to zoom
AF8006-4025BLK - BOOSTED B7875 1.28 VBAND INLETAF8006-4025BLK - BOOSTED B7875 1.28 VBAND INLETAF8006-4025BLK - BOOSTED B7875 1.28 VBAND INLETAF8006-4025BLK - BOOSTED B7875 1.28 VBAND INLET

AF8006-4025BLK - BOOSTED B7875 1.28 VBAND INLET

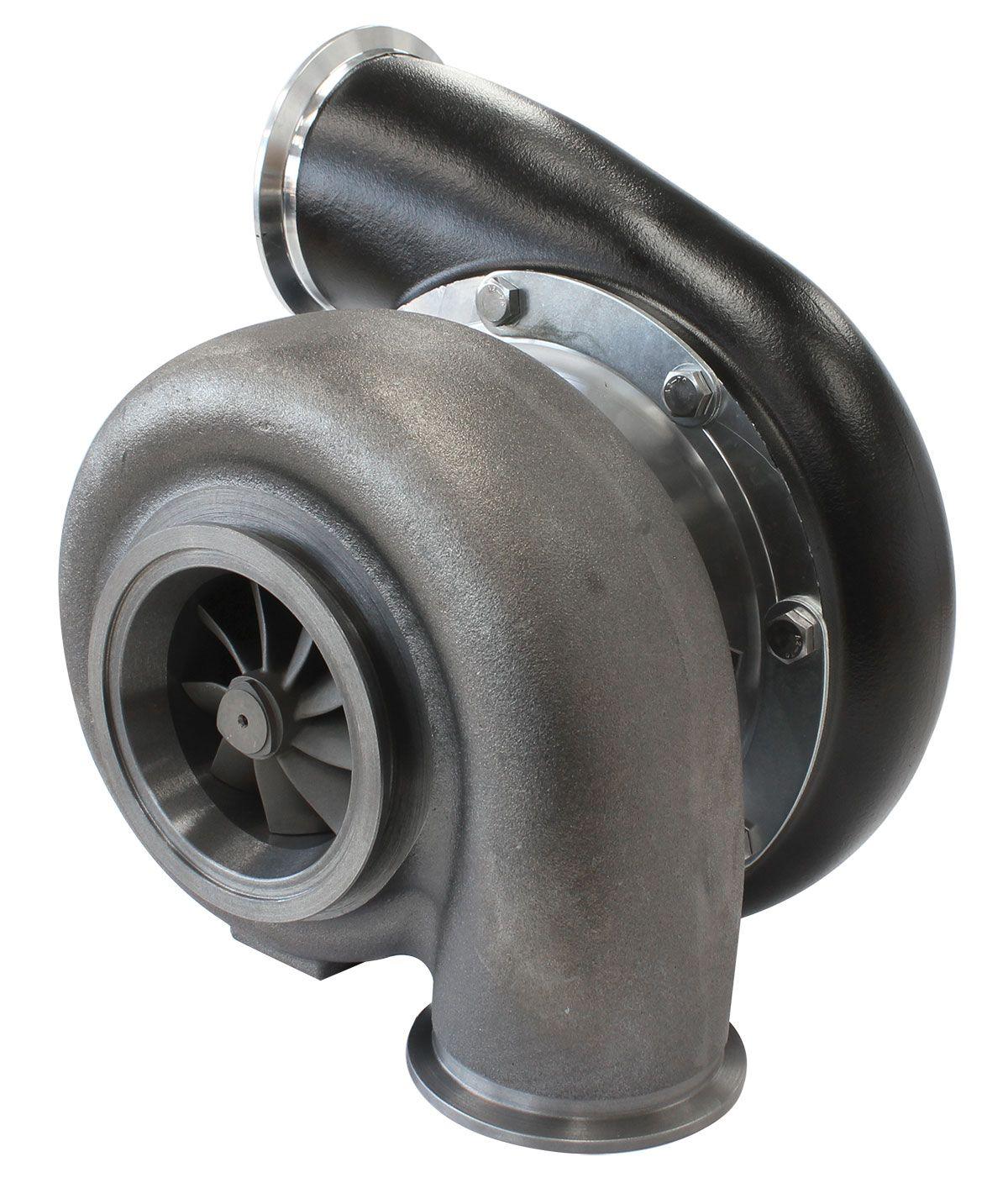

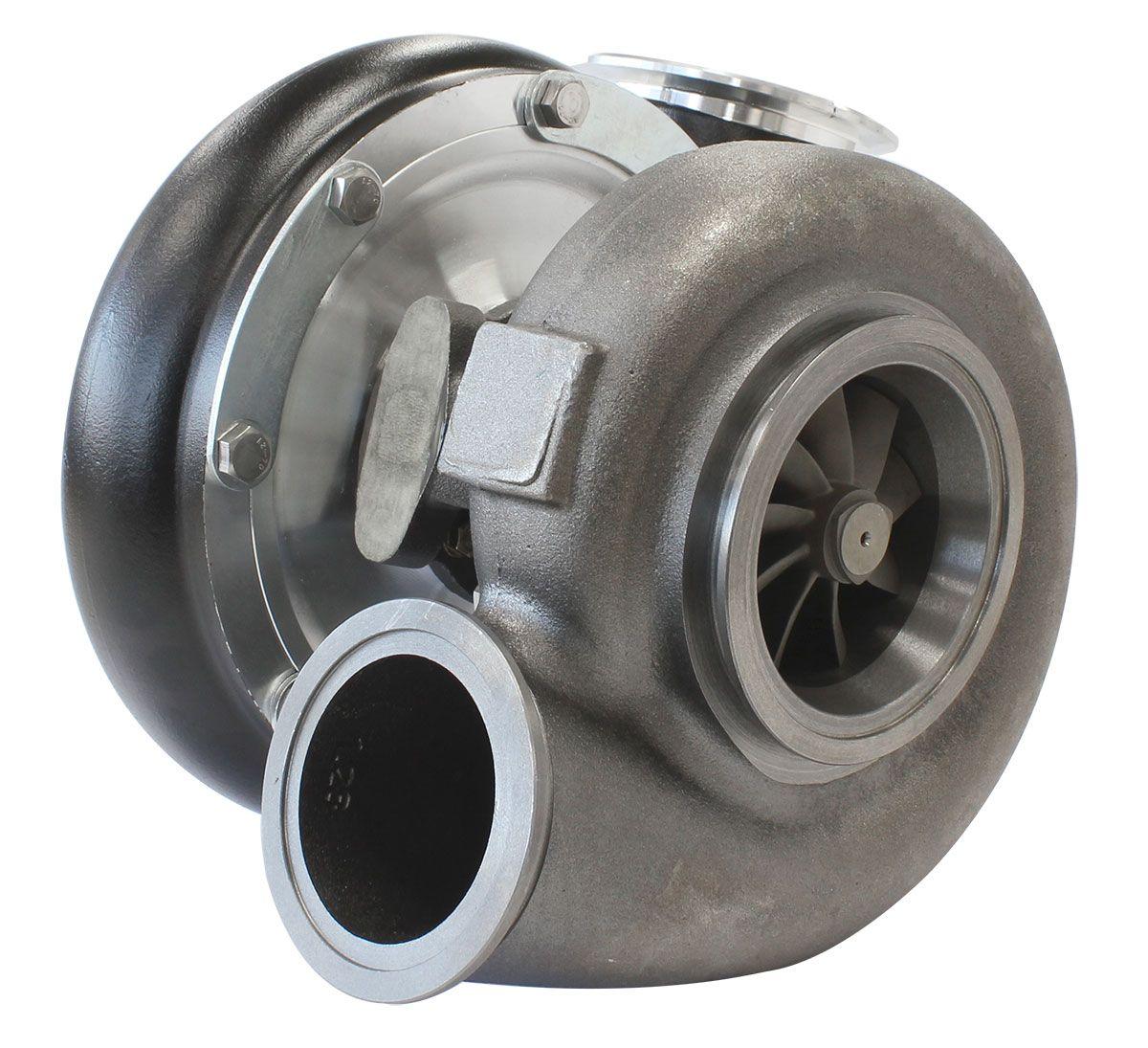

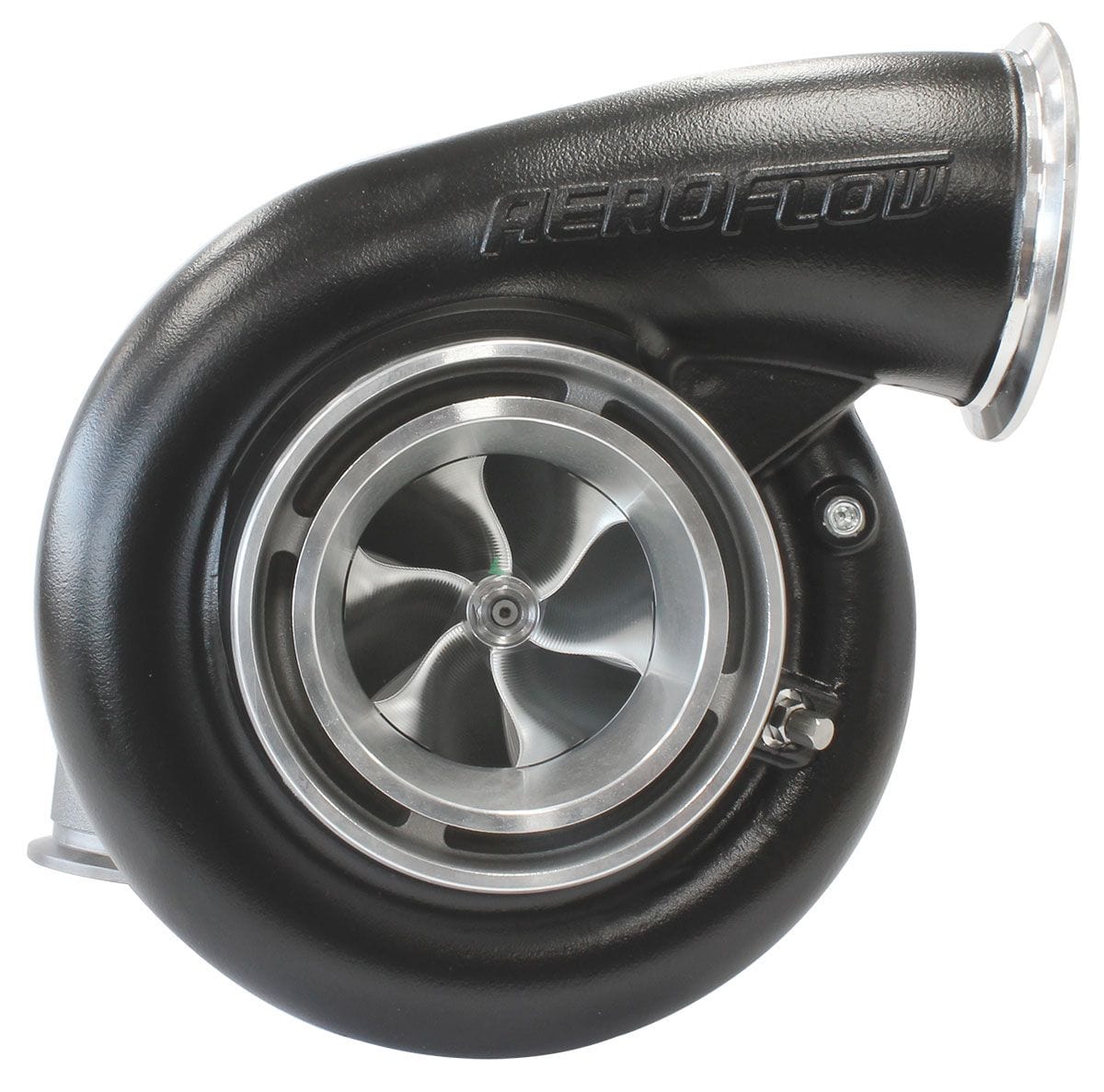

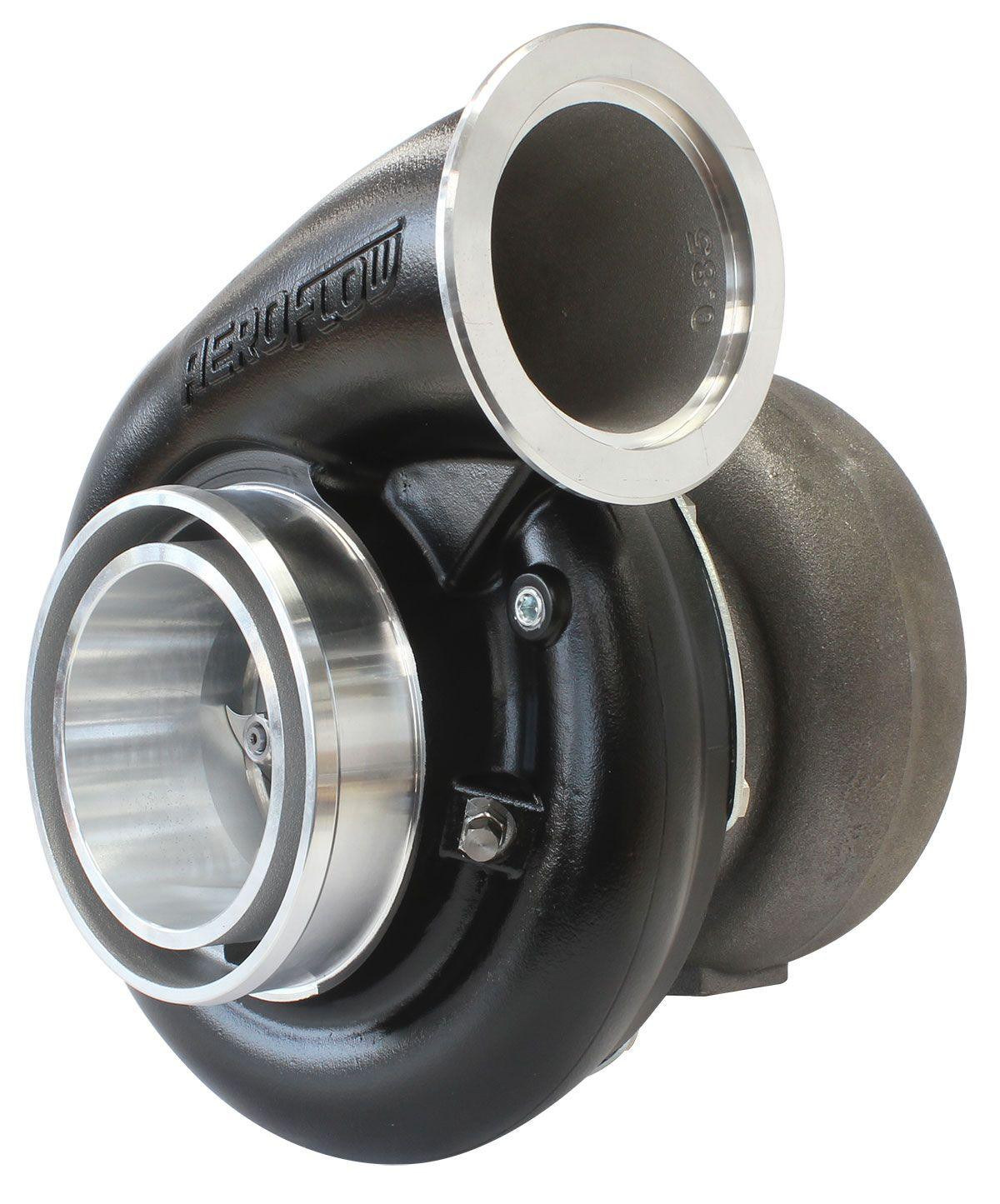

BOOSTED B7875 V-Band 1.28 Turbocharger 1150HP, Hi Temp Black Finish External Wastegate, V-Band Inlet & Exhaust Flanges

Aeroflow PerformanceSKU: AF8006-4025BLK
Product: AF8006-4025BLK - BOOSTED B7875 1.28 VBAND INLET
Price:
$1,552.10 NZD

Tax included Shipping calculated at checkout

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Description

BOOSTED B7875 V-Band 1.28 Turbocharger 1150HP, Hi Temp Black FinishExternal Wastegate, V-Band Inlet & Exhaust Flanges
Brand: AEROFLOW
Part Number: AF8006-4025BLK
Description:

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.

Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.


Additional Specifications:
BOOSTED B7875 (Generation 3) V-Band Turbocharger Specifications

Recommended horsepower rating: 500-1050HP
Recommended engine displacement: 2.0L to 6.0L

- 360° journal bearing
- Point Milled 7075 billet 6 + 6 compressor wheel
- Boosted 7975 ported shroud compressor cover
- Speed sensor portincluded in compressor cover (Speed sensor sold separately,AF8050-1010)
- 1/8" NPT boost reference port
- This is an oil cooled turbocharger
- External wastegate sold separately
- Turbo drain gasket included in turbo kit
- Must use a -6AN oil feel line to maintain core temperature (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- SiMo-nodular cast ironrear housing
- 9 blade turbine wheel
- V-Band turbine outlet flange
- 1/8" NPT oil feed fitting(sold separately) or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer: 78.13mm
Exducer: 102.40mm
Extended Tip: 106.30mm
Compressor Inlet: 5" slip fit
Compressor Outlet: V-Band (AF8080-1009)

Turbine Specifications
Inducer: 82mm
Exducer: 75mm
A/R: 1.28
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: V-Band (AF8080-1020)

Wastegate
External wastegate
Important Information:

Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.

Boosted360° journal bearing turbochargers must use a -6AN oil feel line to maintain coretemperature.
