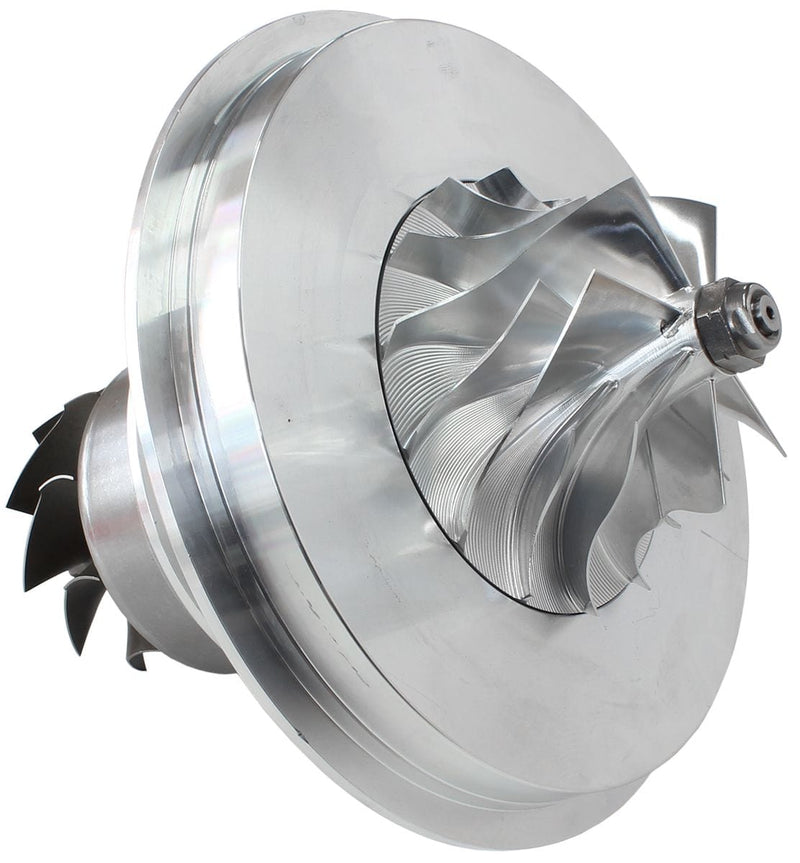

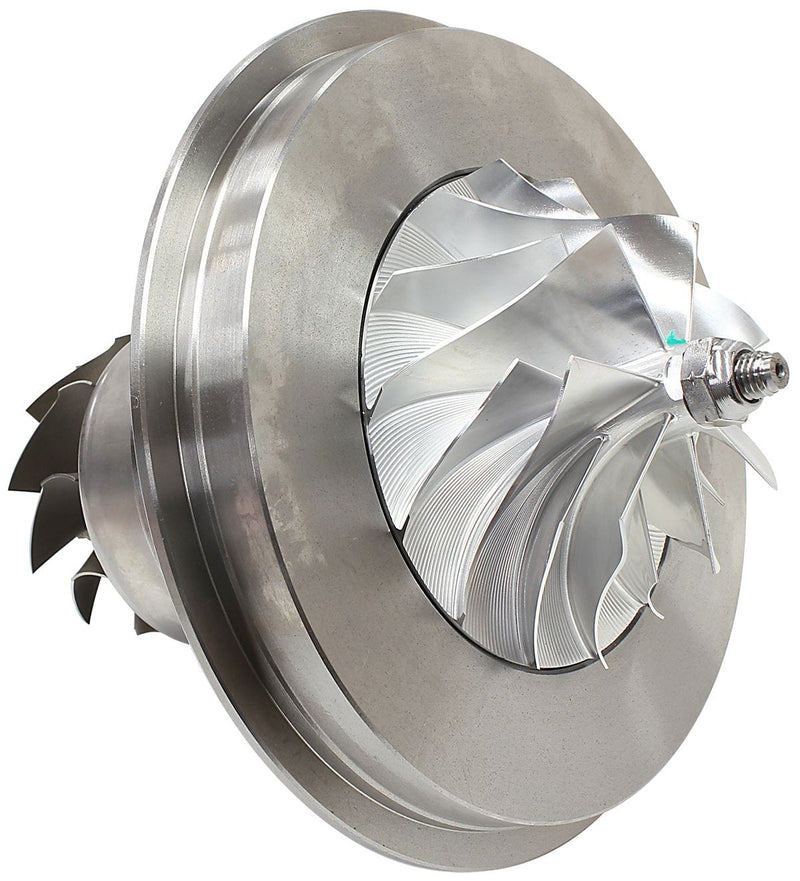

BOOSTED 8075 Core Specifications
Recommended horsepowerrating: 750-1250HP
Recommended engine displacement: 2.5L to 7.0L
- 360° journal bearing
- 7075 billet 7 + 7 compressor wheel
- This is an oil cooled turbocharger
- External wastegate sold separately
- Inlet flange gasket and turbo drain gasket included in turbo kit
- Must use a -6AN oilfeel line to maintain core temperature (Warranty VOID if not used)
- 1/4" NPT oil feedfitting (sold separately) or a38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange withM8 x 1.25mm thread size
Compressor Specifications
Inducer: 80.30mm
Exducer: 113mm
Extended Tip: 117.36mm
Turbine Specifications
Inducer: 83.65mm
Exducer: 75mm
Wastegate
External wastegate
Important Information:
Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.
Boosted360° journal bearing turbochargers must use a -6AN oil feel line to maintain coretemperature.
