Aeroflow BOOSTED 94102 Turbocharger Core Only AF8059-6010

Roll over image to zoom in Click on image to zoom

Aeroflow BOOSTED 94102 Turbocharger Core Only AF8059-6010

Name: Aeroflow BOOSTED 94102 Turbocharger Core Only AF8059-6010
Brand: Aeroflow Performance
SKU: AF8059-6010
Price: 1323.57 NZD
Availability: InStock

Journal Bearing, No Housing

Aeroflow PerformanceSKU: AF8059-6010

Price:

$1,323.57 NZD

Tax included Shipping calculated at checkout

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

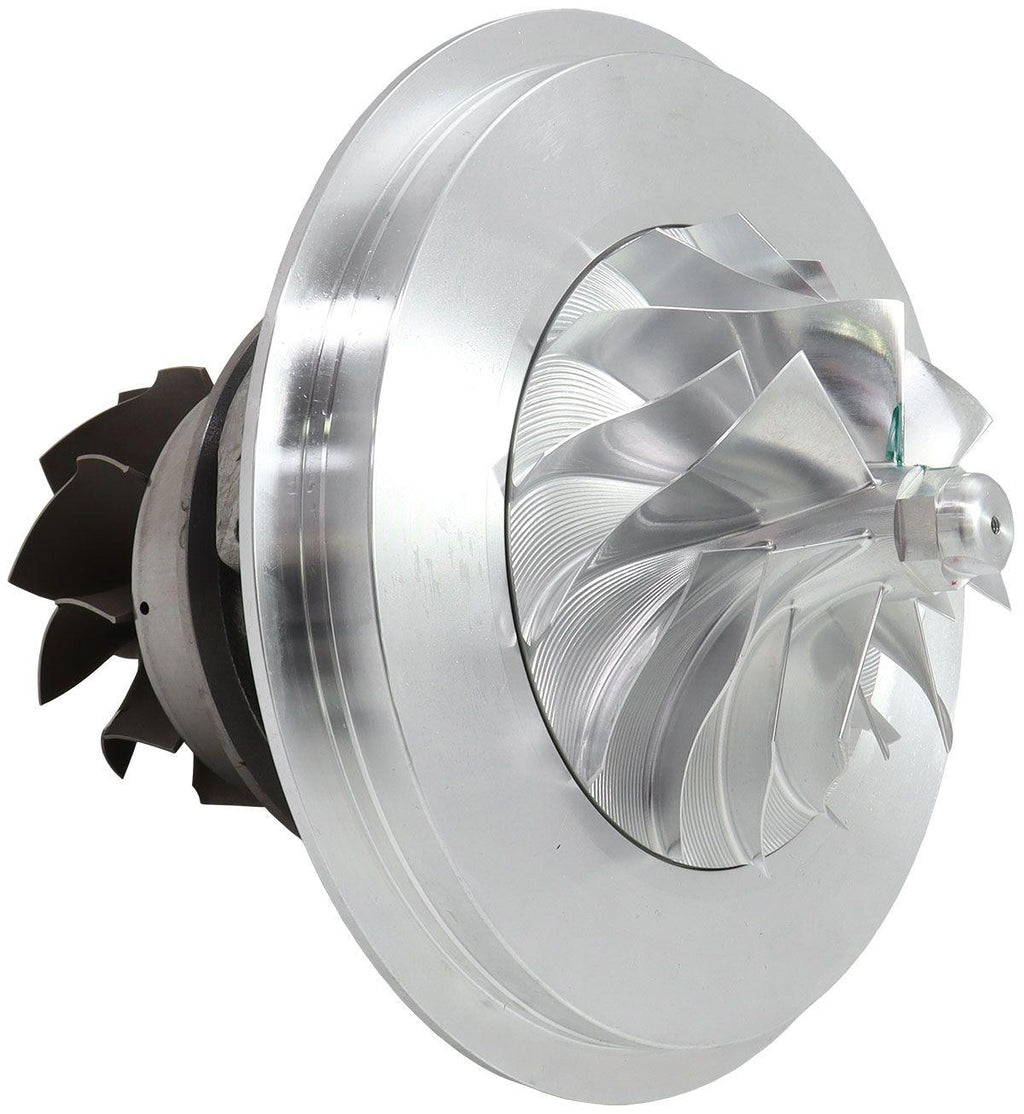

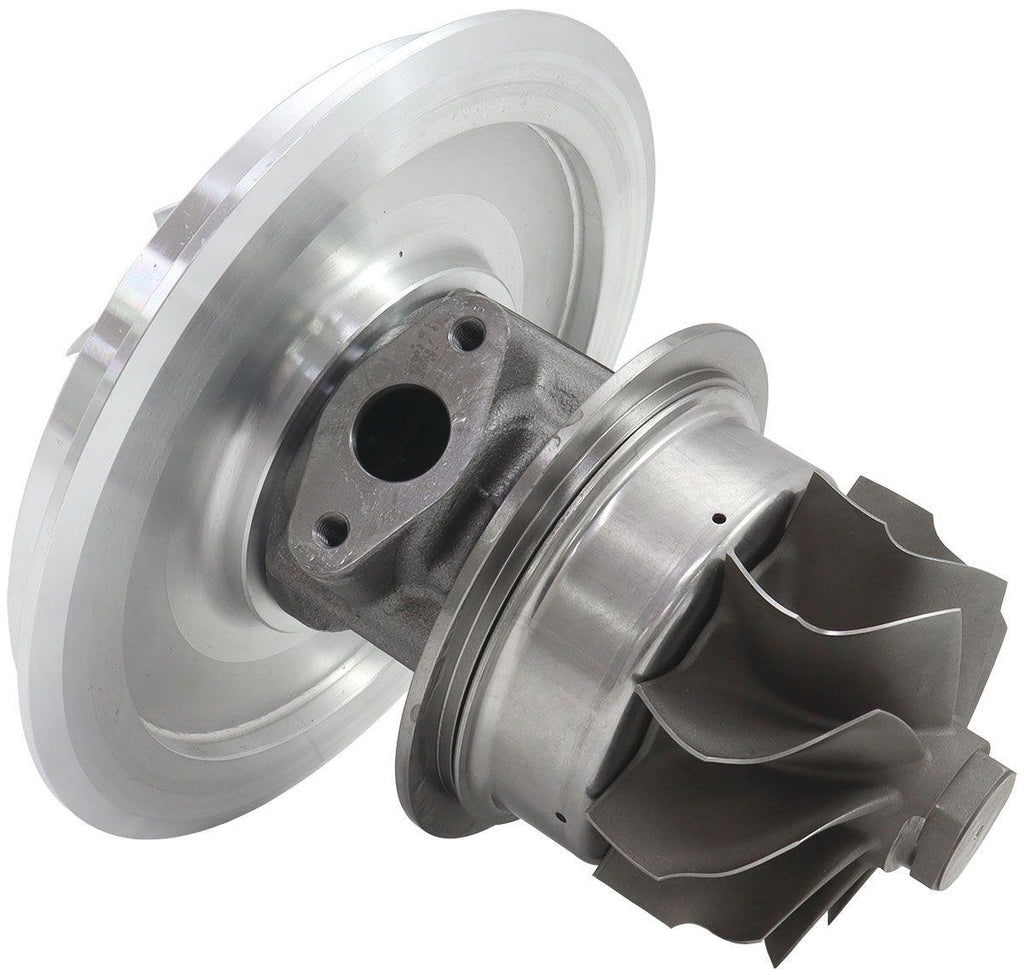

BOOSTED 94102 Turbocharger Core OnlyJournal Bearing, No Housing
Brand: AEROFLOW
Part Number: AF8059-6010
Description:

Boosted Turbocharger Replacement Core.

As another way of backing up our excellent Boosted Turbocharger range, we stock replacement core's for all popular Boosted Turbo models. This way if you have a mis-hapthat has damaged either of thewheels or even the internals of the turbocharger you can easily purchase the core and swap it out. These cores are designed to suit Boosted Turbochargers specifically however you may find some crossover on other brands thathave a similar core design.

Additional Specifications:

BOOSTED 94102 Core Specifications

Recommended horsepower rating: 1000-2500HP
Recommended engine displacement: 3.0L to 7.0L

- 360° journal bearing
- 7075 billet 7 + 7 compressor wheel
- This is an oil cooled turbocharger
- Must use a-6AN oil feel line to maintaincore temperature (Warranty VOID if not used)
- 1/4" NPT oilfeed fitting (sold separately)or a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange withM8 x 1.25mm thread size

CompressorSpecifications
Inducer: 94mm
Exducer: 133mm
Extended Tip: 138mm

Turbine Specifications
Inducer: 112mm
Exducer: 102mm

Important Information:

Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.

Boosted360° journal bearing turbochargers must use a -6AN oil feel line to maintain coretemperature.
