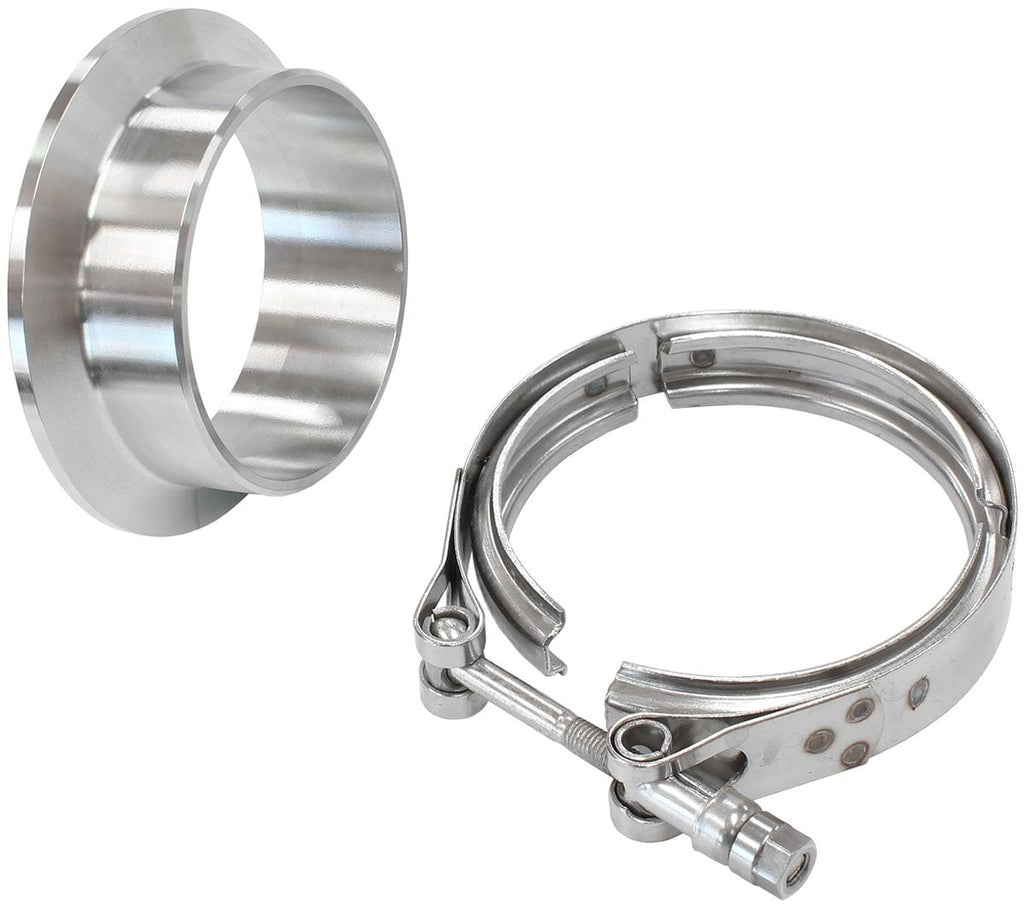

Boosted Turbine Outlet3.54" O.D Stainless SteelV-Band KitSuit Boosted 6662 Dual V-Band S/S TurbochargersBrand: AEROFLOWPart Number: AF8080-1022Description: These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.
Note: Molygrease all threads before installation and removal.
Material is 304 Stainless Steel.
Suits Boosted Turbocharger Turbine Inlet Flange.
Replacement V-band clamp isAF8080-3003.

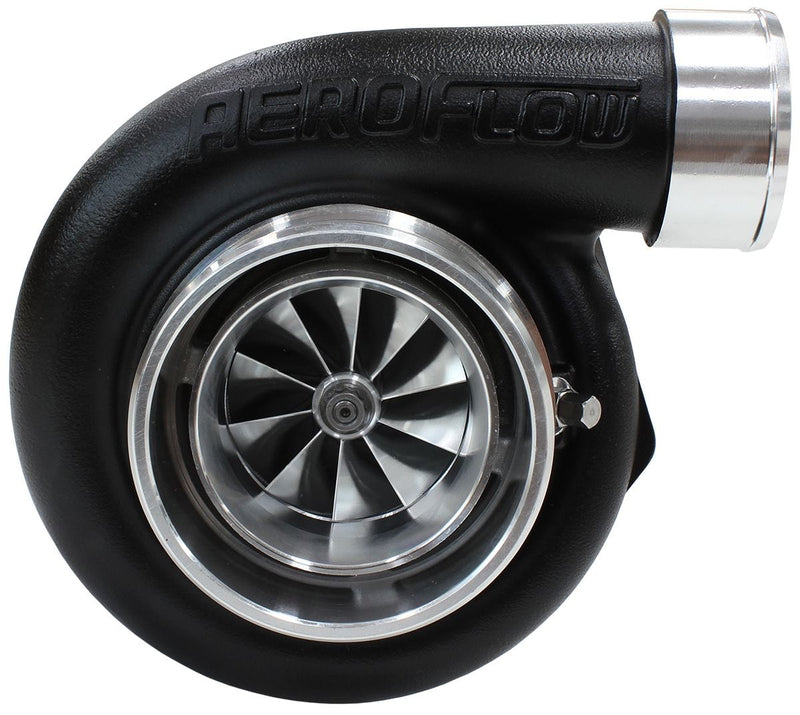

AF8080-1022 Aeroflow Performance V-Band Suits Boosted Turbos below:
- AF8005-3020 / AF8005-3020BLK
Additional Specifications: Measurements of V-Band flanges
I.D.= 72mm (2.83")
O.D. = 90mm (3.54")
LipO.D. = 77.65mm (3.05")
Tube O.D = 82.65mm (3.25")

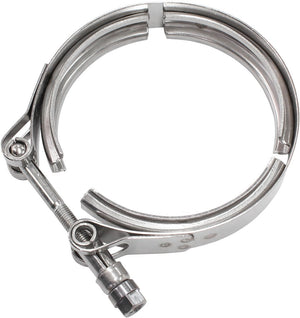

REPLACEMENT V-BAND CLAMP AF8080-3003
304 StainlessSteel.
Turbine Outlet Flange.
Suits Boosted Turbos below:
AF8005-3020 / AF8005-3020BLK
Suits Boosted Rear Housingsbelow:
AF8050-1000
