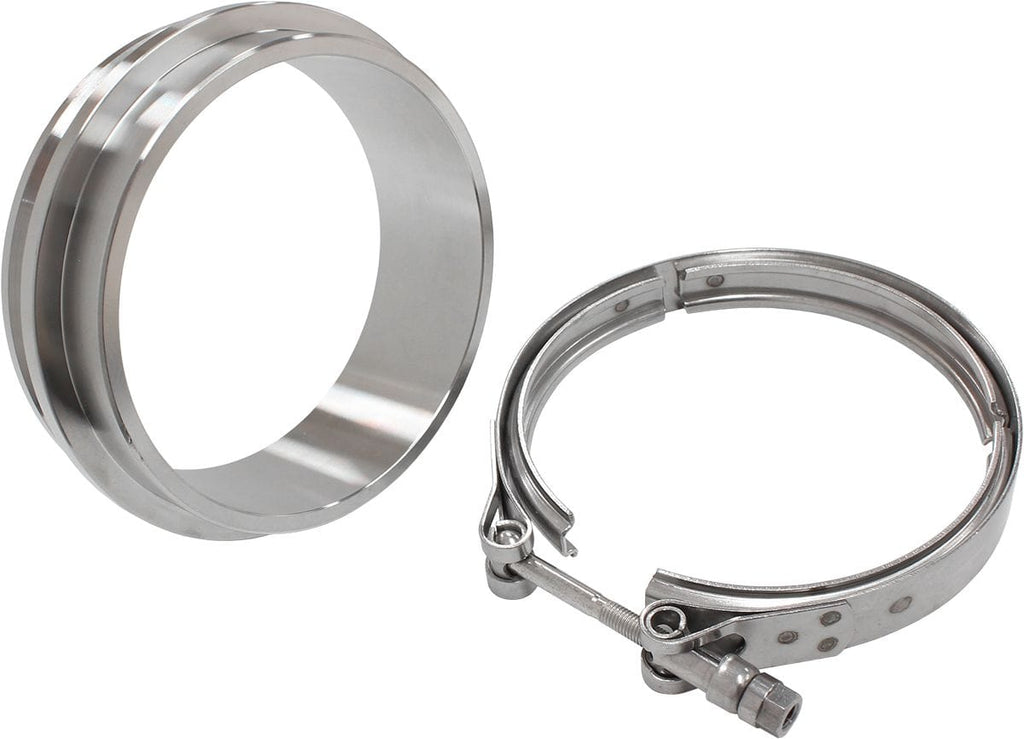

Boosted Turbine Outlet4.75" O.D Stainless SteelV-Band KitSuit Boosted 94102, 98102, 102102 & 106102 Dual V-Band TurbochargersBrand: AEROFLOWPart Number: AF8080-1029Description: These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.
Note: Molygrease all threads before installation and removal.
Material is 304 Stainless Steel.
Suits Boosted Turbocharger Turbine Outlet Flange.
Replacement V-band clamp isAF8080-3009.
AF8080-1029 Aeroflow Performance V-Band Suits Boosted Turbos below:
- AF8005-6015 / AF8005-6015BLK
- AF8005-6016 / AF8005-6016BLK
- AF8005-6017 / AF8005-6017BLK
- AF8005-6018 / AF8005-6018BLK
- AF8006-6020 / AF8006-6020BLK
- AF8006-6021 / AF8006-6021BLK
- AF8006-6022 / AF8006-6022BLK
- AF8006-6023 / AF8006-6023BLK
Suits Boosted Rear Housings below :
Additional Specifications: Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 103.8mm (4-5/64").
- V-Band Weld on Ferrule Outside Diameter - 120.5mm (4-3/4").
- Suits Exhaust Tube InsideDiameter - 108.8mm (4-9/32")
- Suits Exhaust Tube Outside Diameter - 114.3mm (4-1/2").
