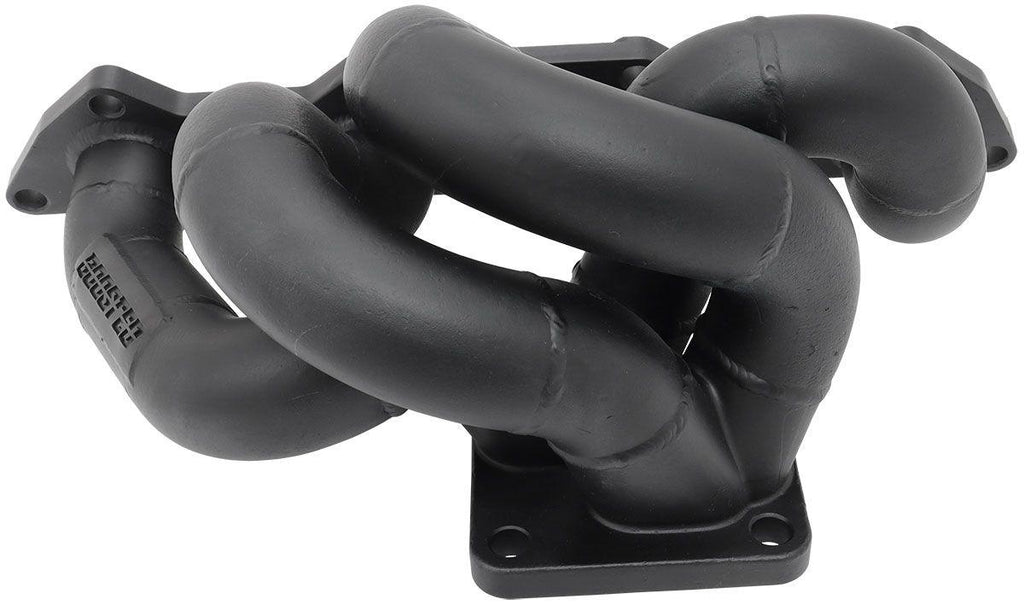

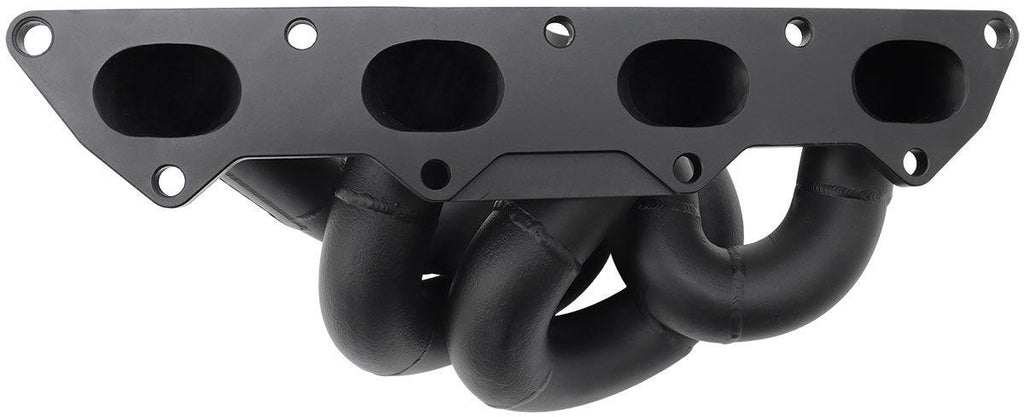

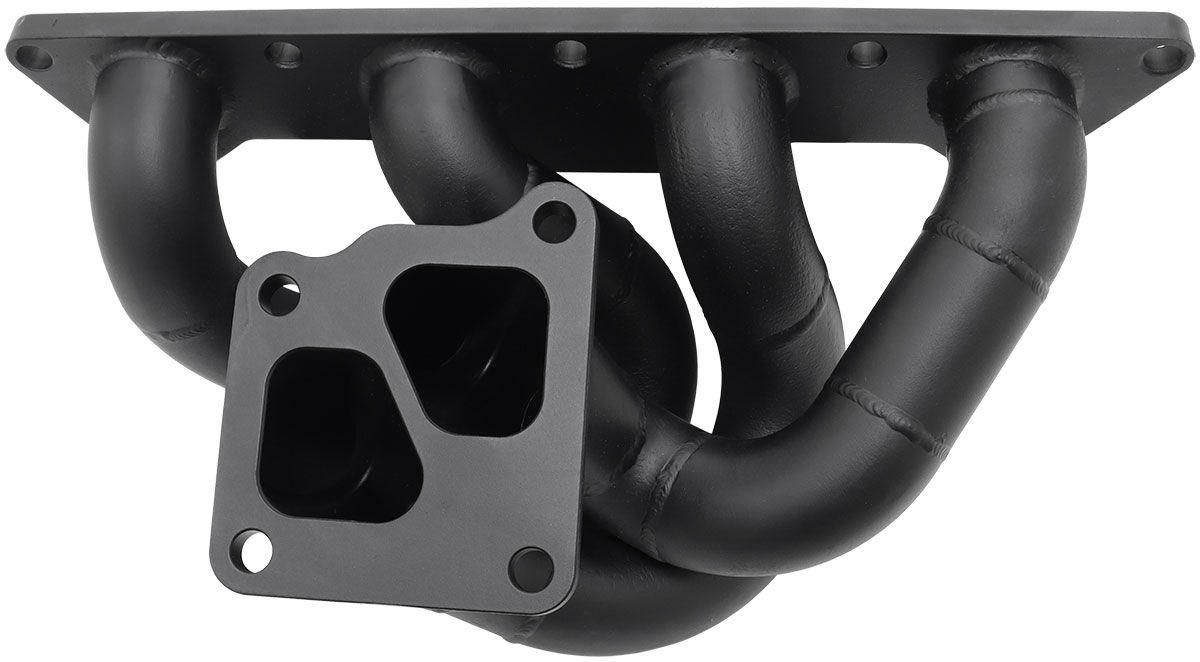

Mitsubishi Evolution 4-9 OEM Steampipe Turbo ManifoldSuits Factory Position Low Mount DSM 1g/2g Turbo, with Internal Wastegate FlangeBrand: AEROFLOWPart Number: AF8207-1102Description: Model - Mitsubishi Evolution 4-9 stainless steel turbo manifold.
Turbo Collector Flange - Factory TD05Twin Scroll.
Mounting Location - Factory Position, Low Mount.
Turbocharger Style - OEM DSM 1g/2g.
Wastegate Flange - Internal wastegate.
Aeroflow Performance steampipe turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channelled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge togetherat a point in the middle, pointing straight into the turbine. No pipes enter acrosseach other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.
Aeroflowturbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent stanless steel steam pipe with CNC Machined header and turbo flanges. Each flange is milledafter welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, andthe position the wastegate sits in.
Each manifold is finished with a soft polishto ensure a quailty great looking finish to the manifold.
The Aeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegatesizes available.
