Aluminium 3 Gallon (11.35L) Fuel Cell with Cavity/Sump 85-2030A AF85-2030A 8-1/16" L x 8-1/16" W x 15-15/16" H (20.5cm x 20.5cm x 40.5cm) ALLOY FUEL CELL 11.35 LITRE High Grade Aluminium:
3.0mm thickness
Robot Welded:
The fuel cell has been welded solely by a high level machine robot the quality of which can be seen by the clean corner welds.
Internally baffled:
The fuel cell incorporates internal baffling to be Ethanol & Methanol safe.
Fuel Pick-Up Point:

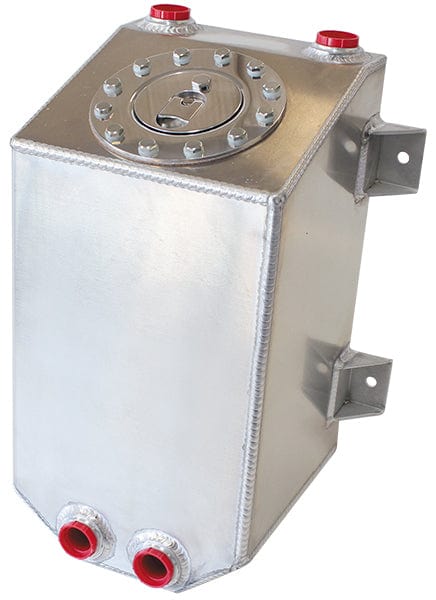

As can be seen in the photo, The fuel OUT fittings are in a cavity at the base of the cell, which helps prevent fuel starvation at low fuel levels even under high G-force levels.
Fuel Inlet / Outlet Fittings:
The fuel cell incorporates all -12 ORB female threads for use in all applications. 2 X pickups and 2 X returns or 1 X return and 1 X rollover. For a bolt in Roll-Over valve use Part AF613-12.
Flush Cap:
Designed for fast cap removal with a flip up and twist action CNC billet polished alloy cap with a 1 way air valve in the cap.
Mounting Brackets:
The cell can be secured with the 4 sturdy mounting brackets. (Rubber mounts recommended for high flex chassis applications)
