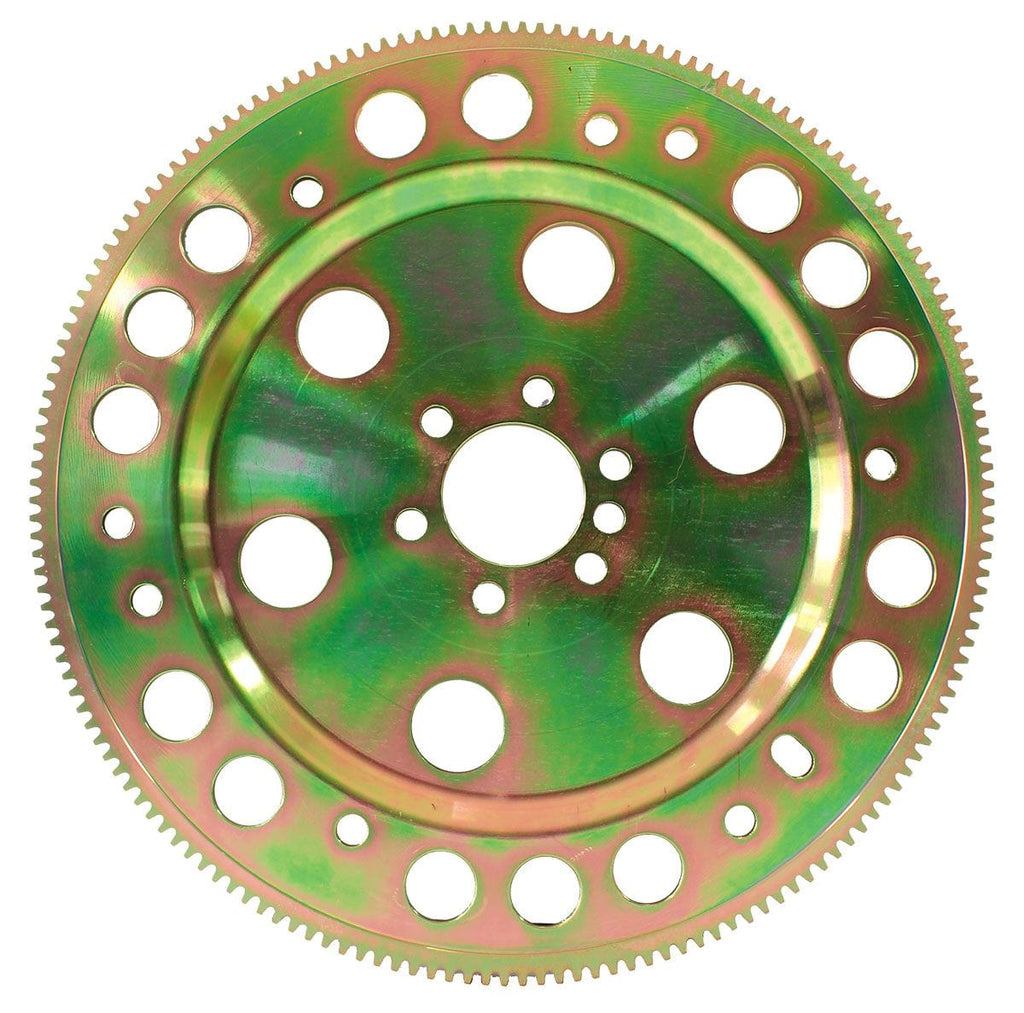

Ford 289-351 Windsor & 351 Cleveland 164 Tooth Internal Balance Billet Flexplate - SFI ApprovedSuits 10.5", 10.75" 11.38" & 11.40" Converter Bolt CirclesBrand: AEROFLOWPart Number: AF88-302NSFIDescription: The Aeroflow Performance billet flexplates are the superior choice for quality and precision. The lightweight1-piece design is stronger andmore durable than any 2-piece style of flexplate. Machined from 4340 round bar with precise tolerances. Each flexplate features chamfered gear teeth for better engagement with the least amount of runout to provide the best longevity on the market. All of our billet flexplates are certified to SFI 29.2 and available for many different models. CNC machined from 4340 round bar and heat treated to HRC45-55.
Additional Specifications: Converter Pattern included on flexplate:
3 ON 10.75"
3 ON 11.40"
4 ON 10.50"
4 ON 11.38"
This flexplate has a 16mm total offset from face to ring gear.
Important Information: Converter Pattern included on flexplate:
3 ON 10.75"
3 ON 11.40"
4 ON 10.50"
4 ON 11.38"
This flexplate has a 16mm total offset from face to ring gear.
When using on a Ford 351 Cleveland check the converter has enough converter pullout. If the pullout is incorrect it will require extra sandwich plates to be stacked together or machine down the converter pads. The offset diference is 4mm from Ford Windsor 302/351 (16mm) to Ford Cleveland 351 (20mm)
