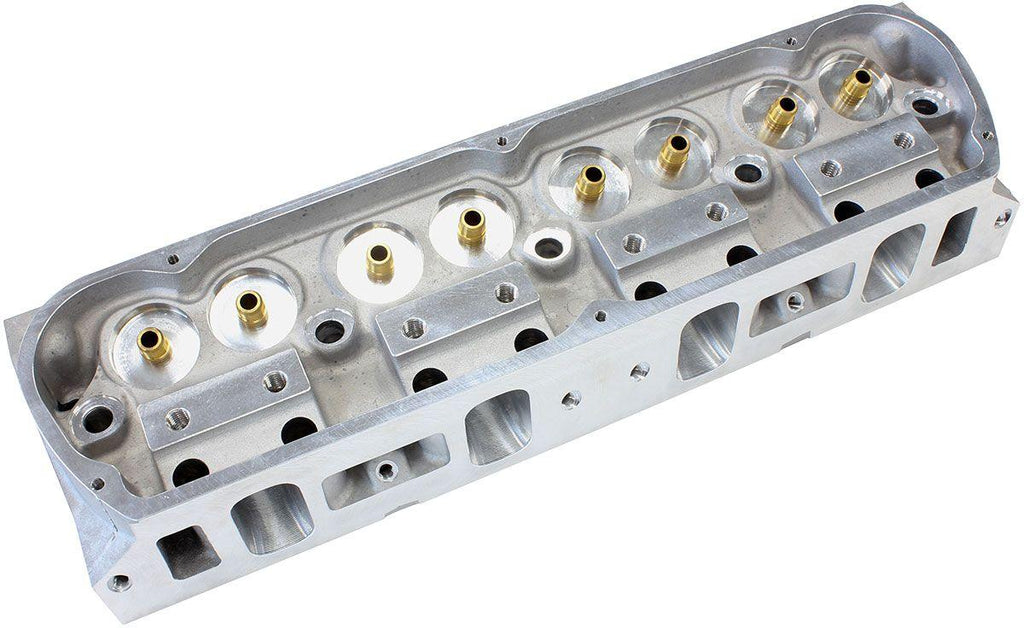

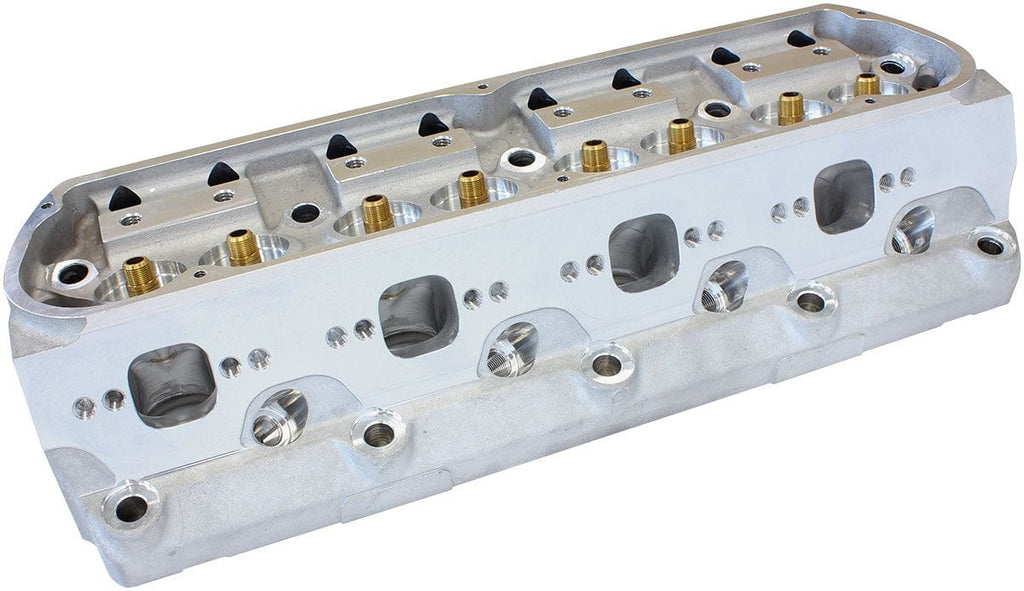

Aeroflow Bare Small Block Ford Windsor 289-351 185cc CNC Ported Aluminium Cylinder Heads

Roll over image to zoom in Click on image to zoom

Aeroflow Bare Small Block Ford Windsor 289-351 185cc CNC Ported Aluminium Cylinder Heads

AF95-0348 - SBF 185cc CNC ALLOY HEADS BARE

Aeroflow PerformanceSKU: AF95-0348

Product: 2.10" x 1.25" Intake Port, 1.35" x 1.35" Exhaust Port

Variant

Price:

$2,319.90 NZD

Tax included Shipping calculated at checkout

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Bare Small Block Ford Windsor 289-351 185cc CNC Ported Aluminium Cylinder Heads with 58cc Chamber (Pair)2.10" x 1.25" Intake Port, 1.35" x 1.35" Exhaust Port
Brand: AEROFLOW
Part Number: AF95-0348
Description:

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. Theseheads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamberdesigns produce excellent flownumbers. This combined with a 5-angle competition valve job,diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.

The Aeroflow Performance small block Ford Windsor cylinder heads are designed for street / race performance engines to give the ultimate in flow at a budget price. Made from A356 aluminium castings with fully CNC’d ports and combustion chambers. The 185cc cylinder heads are ideal for operating in the idle to 6500 rpm range.

Note: These heads are drilled for 1/2" head bolts. If using a 7/16" bolt, you must use a head boltbushing kit or step down head bolts.

Additional Specifications:

Head Specifications

Material: A356 Aluminium
Chamber Chamber: 58cc
Intake Port Volume: 185cc
Intake Port Dimension: 2.10" x 1.25"
Exhaust Port Volume: 63cc
Exhaust Port Dimension: 1.35" H x 1.35" W
Spark Plug Location: OEM
Intake Valve Diameter: 2.02"
Exhaust Valve Diameter: 1.60"
Valve Stem Diameter: 8mm
Valve Spring Pocket I.D.: 1.55"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .500" (.560" at base)
Rocker Stud Thread Size: 7/16" x 14
Valve Angle: 20°
Deck Thickness: .750"

Important Information:

IMPORTANT NOTICE:

We recommend to check installed spring seat pressure & open pressure before installing your cylinder headsto make sure the spring pressure is correct for your application.
