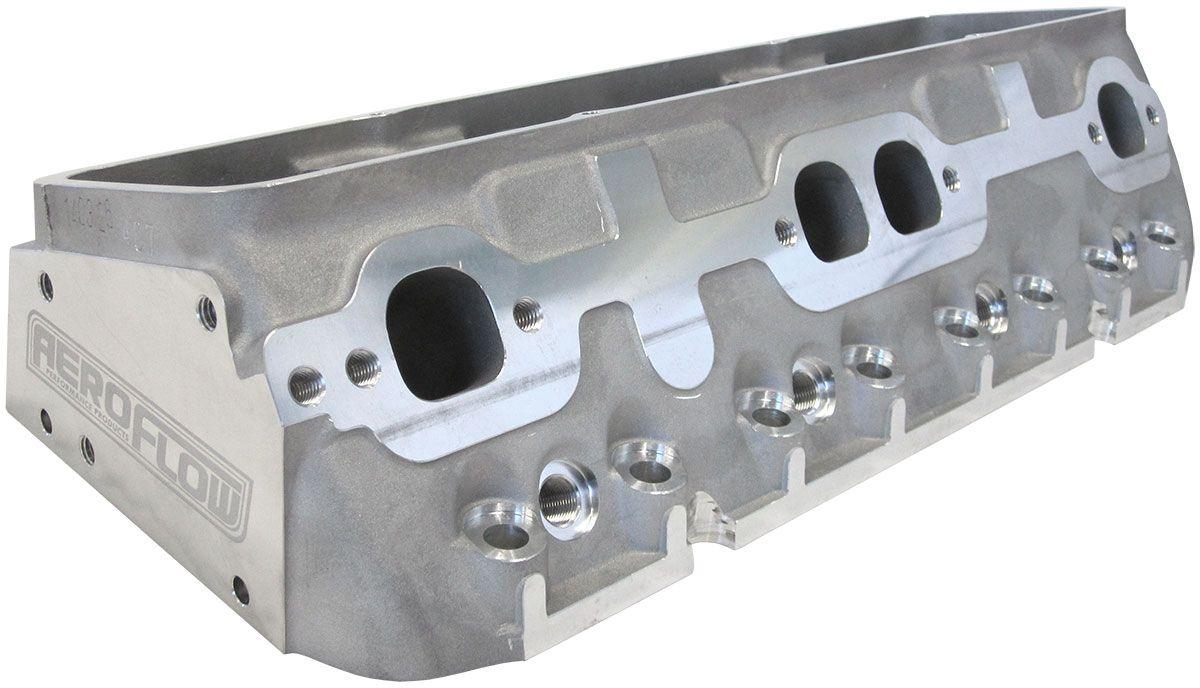

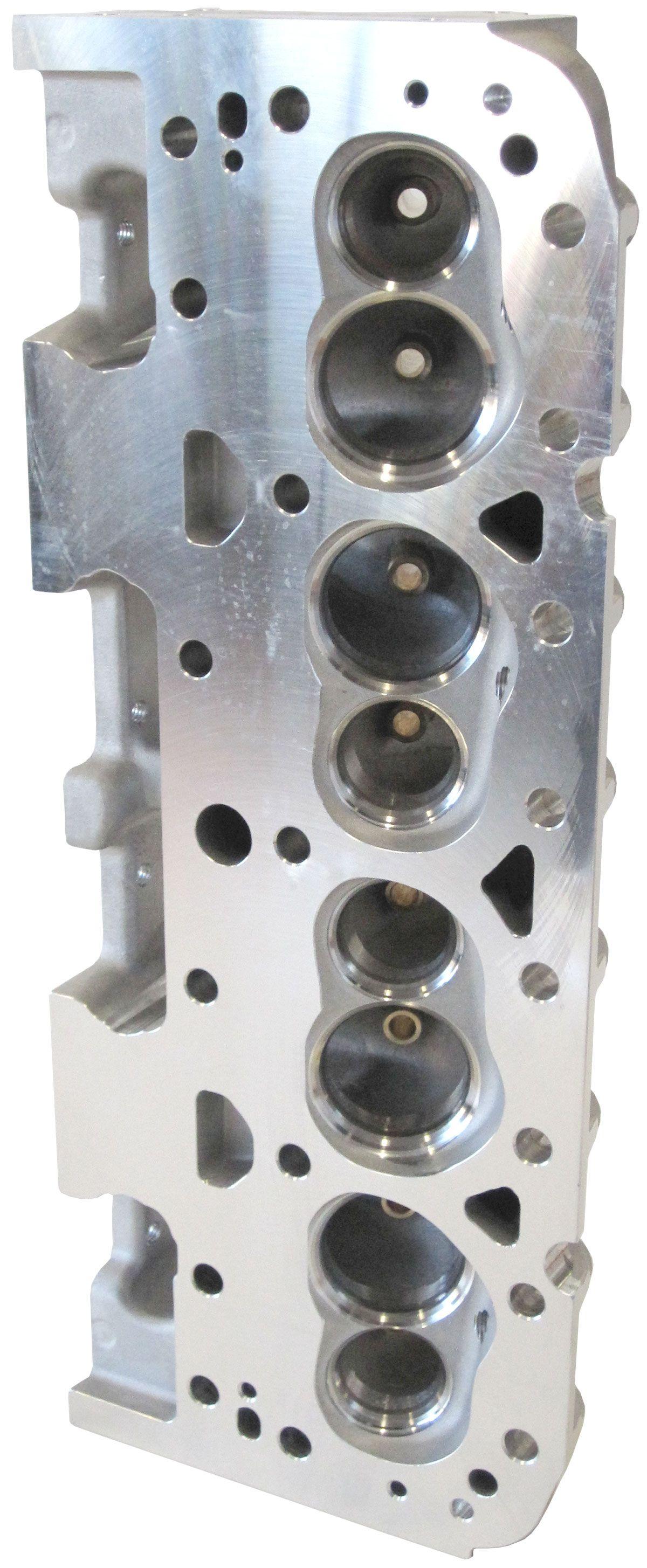

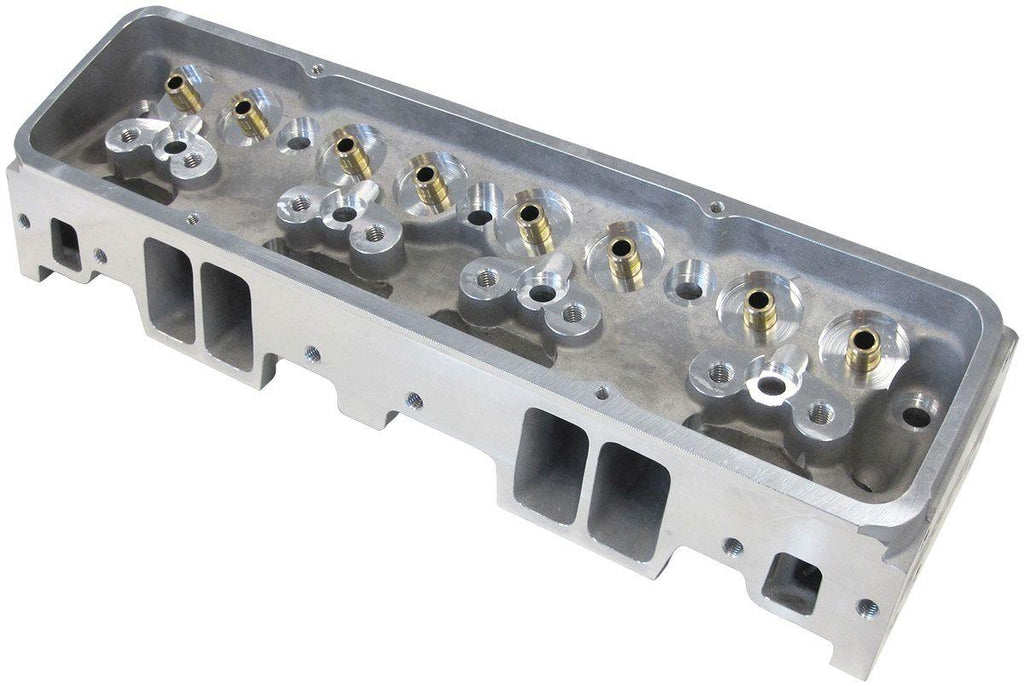

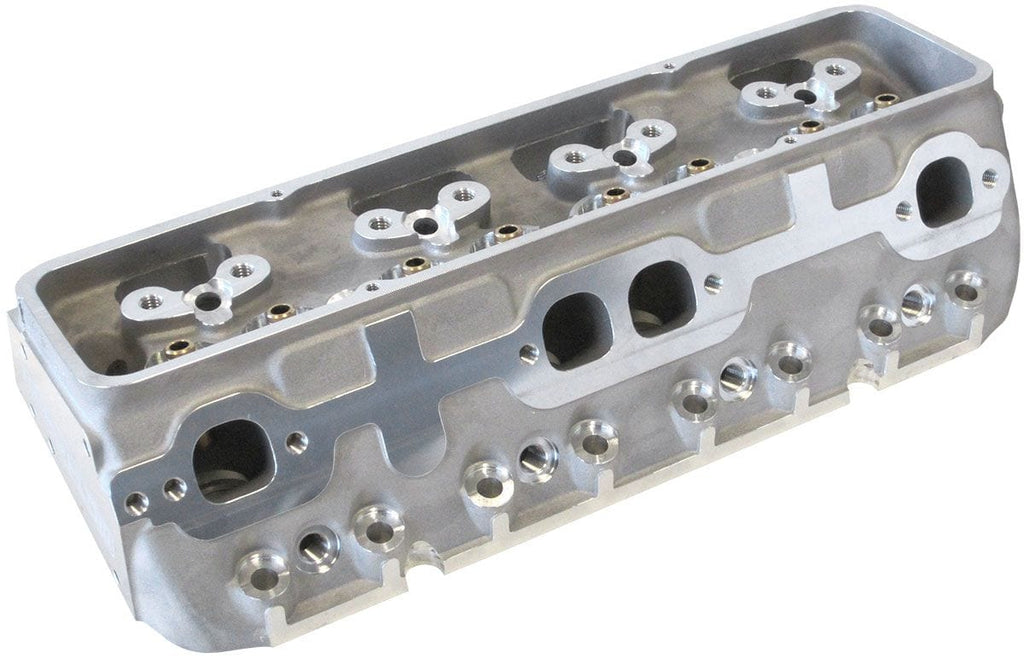

Bare Small Block Chev 327-350-400 204cc Aluminium Cylinder Heads with 67cc Chamber (Pair)2.22" x 1.31" Intake Port, 1.34" x 1.39" Exhaust PortBrand: AEROFLOWPart Number: AF95-0350Description: The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. Theseheads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamberdesigns produce excellent flownumbers. This combined with a 5-angle competition valve job,diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
The Aeroflow Performance small block Chevy cylinder heads are designed for entry level street performance engines to give the ultimate in flow at a budget price. Made from A356 aluminium castings, the 204cc cylinder heads are ideal for operating in the idle to 6500 rpm range. These cylinder heads will fit a 4.00" bore and larger.
Additional Specifications: Head Specifications
Material: A356 Aluminium

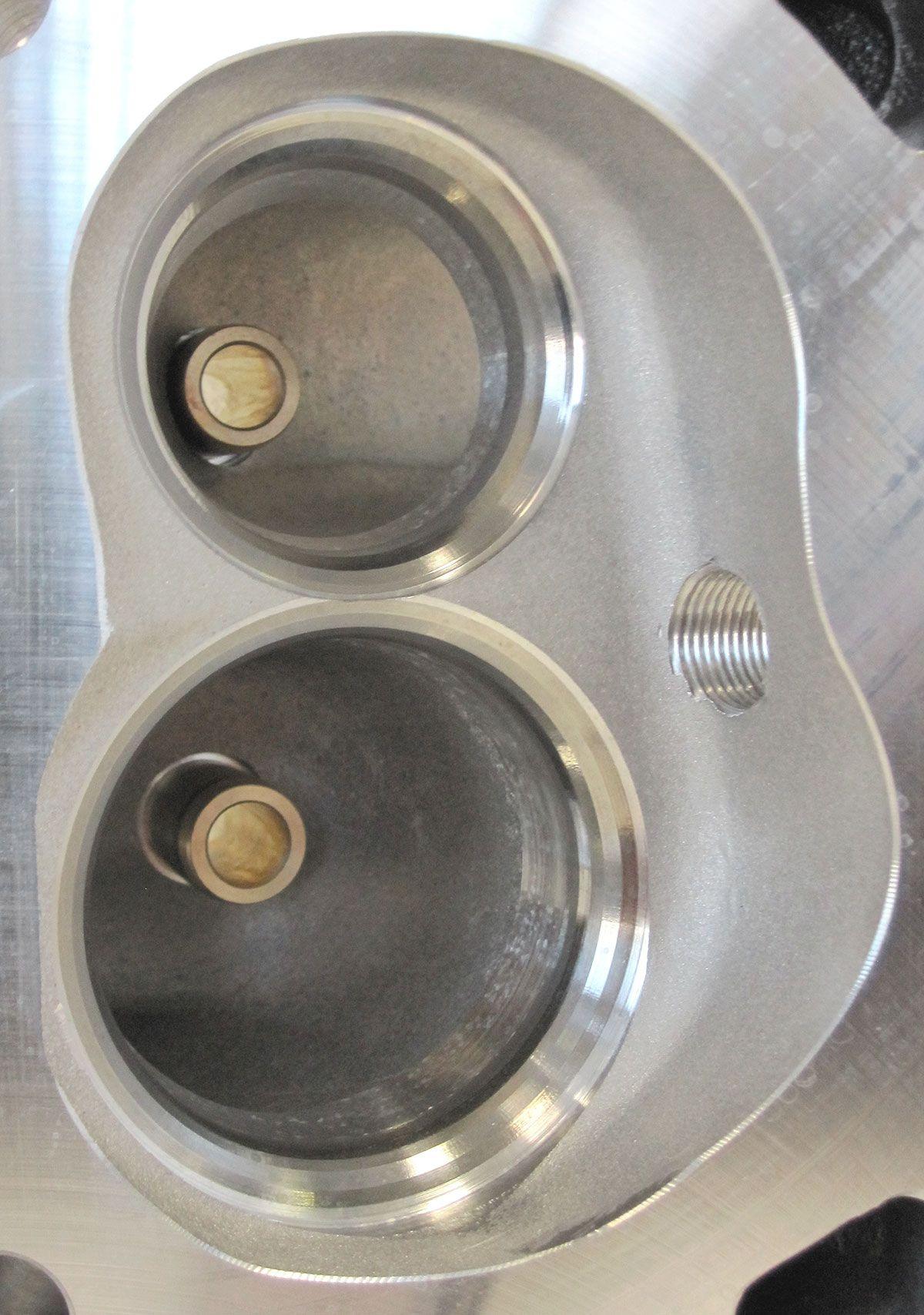

Chamber Chamber: 67cc
Intake Port Volume: 204cc
Intake Port Dimension: 2.22" x 1.31"
Exhaust Port Volume: 70cc
Exhaust Port Dimension: 1.34" H x 1.39" W
Spark Plug Location: Straight

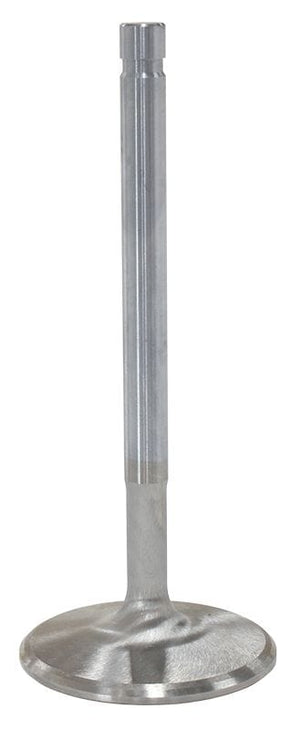

Intake Valve Diameter: 2.02"
Exhaust Valve Diameter: 1.60"
Valve Stem Diameter: 11/32"
Valve Spring Pocket I.D.: 1.49"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .530" (.570" at base)
Rocker Stud Thread Size: 7/16" x 14
Valve Angle: 23°
Deck Thickness: .625"
Important Information: IMPORTANT NOTICE:
We recommend to check installed spring seat pressure & open pressure before installing your cylinder headsto make sure the spring pressure is correct for your application.
