Aeroflow Bare Small Block Chev 327-350-400 213cc CNC Ported Aluminium Cylinder Heads with

Roll over image to zoom in Click on image to zoom

Aeroflow Bare Small Block Chev 327-350-400 213cc CNC Ported Aluminium Cylinder Heads with

AF95-0401 - SBC 213cc CNC ALLOY HEADS BARE

Save 5%

Aeroflow PerformanceSKU: AF95-0401

Product: 2.15" x 1.30" Intake Port, 1.45" x 1.50" Exhaust Port

Variant

Price:

$2,036.64 NZD $2,155.17 NZD

Tax included Shipping calculated at checkout

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

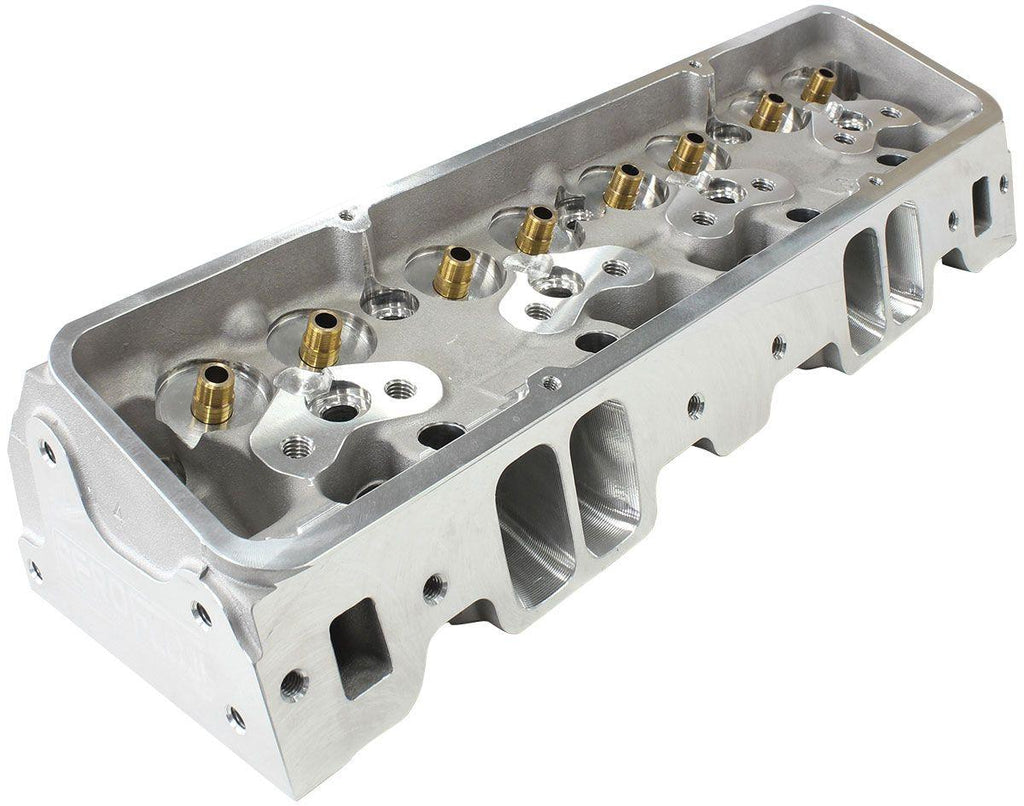

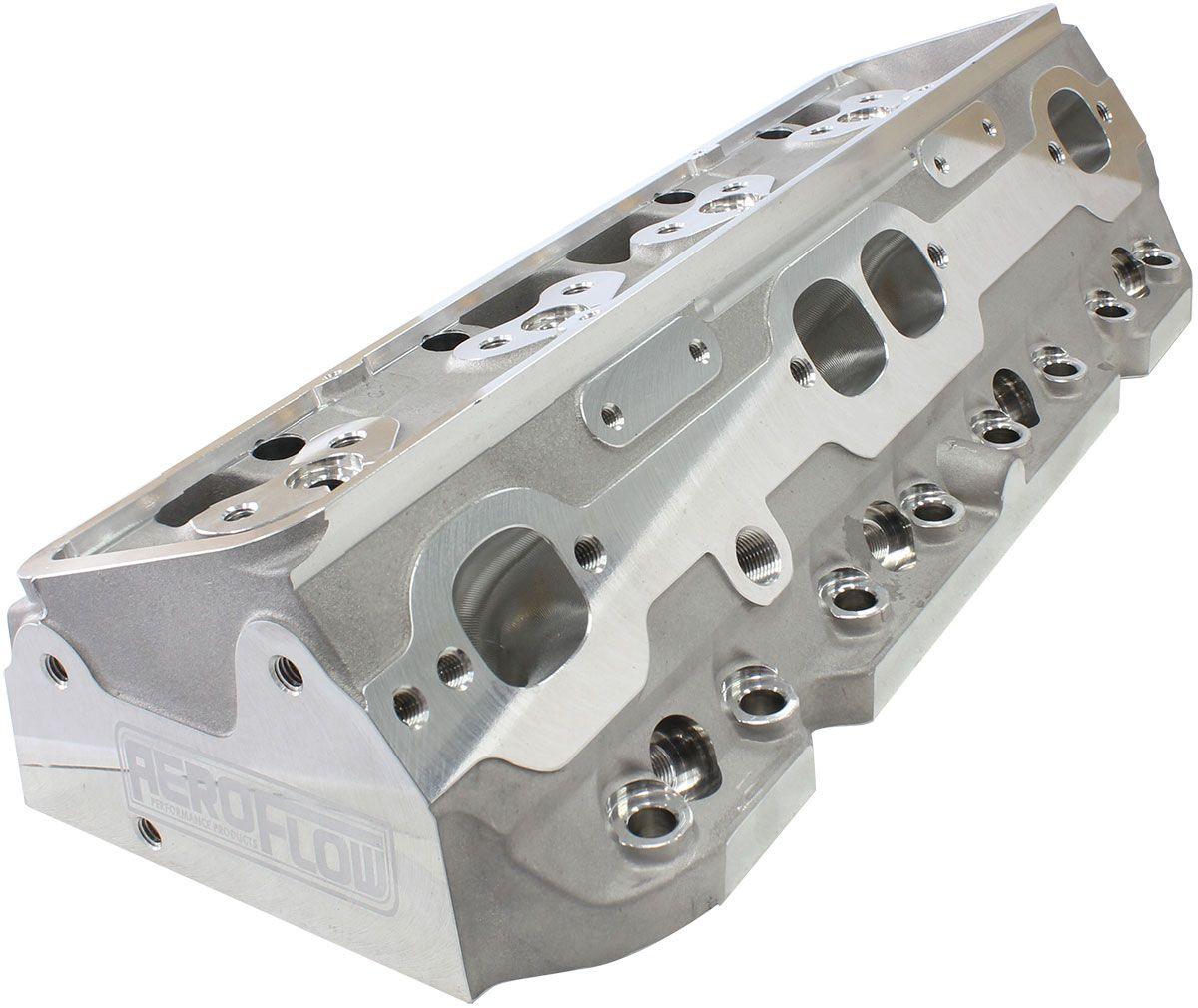

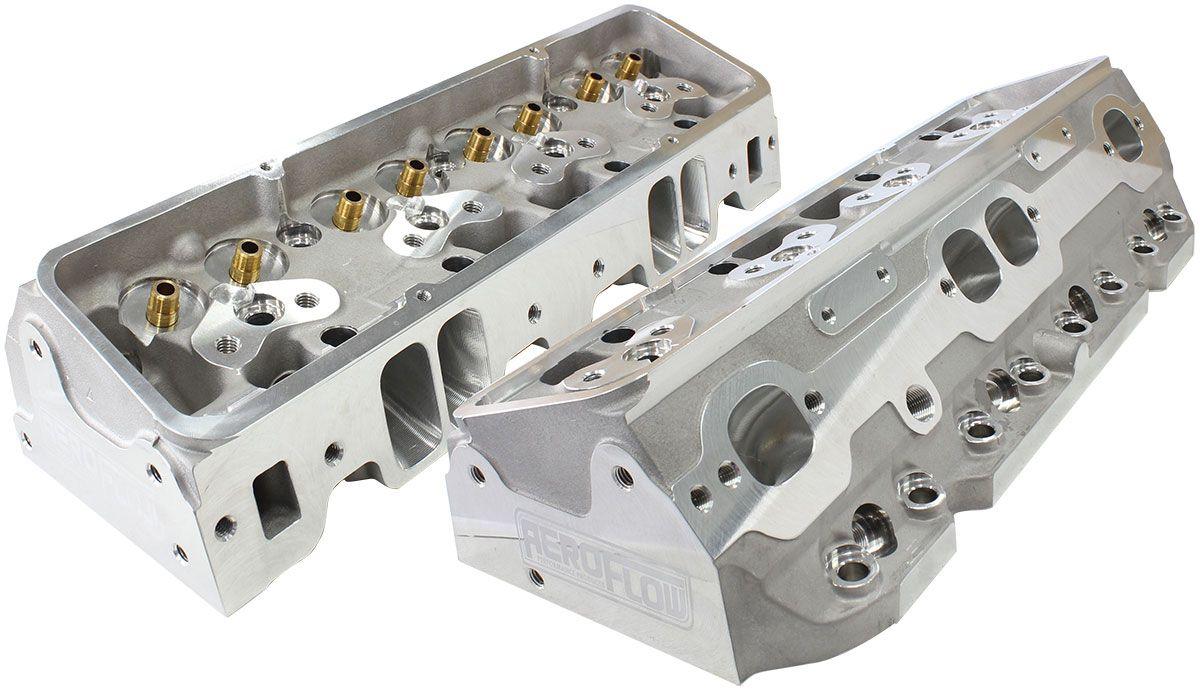

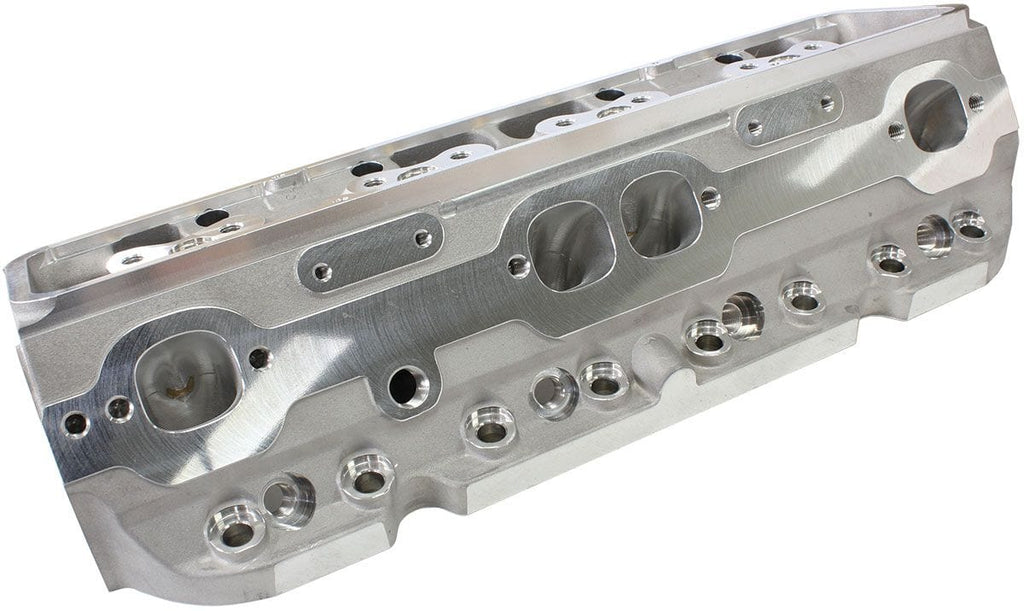

Bare Small Block Chev 327-350-400 213cc CNC Ported Aluminium Cylinder Heads with 68cc Chamber (Pair)2.15" x 1.30" Intake Port, 1.45" x 1.50" Exhaust Port
Brand: AEROFLOW
Part Number: AF95-0401
Description:

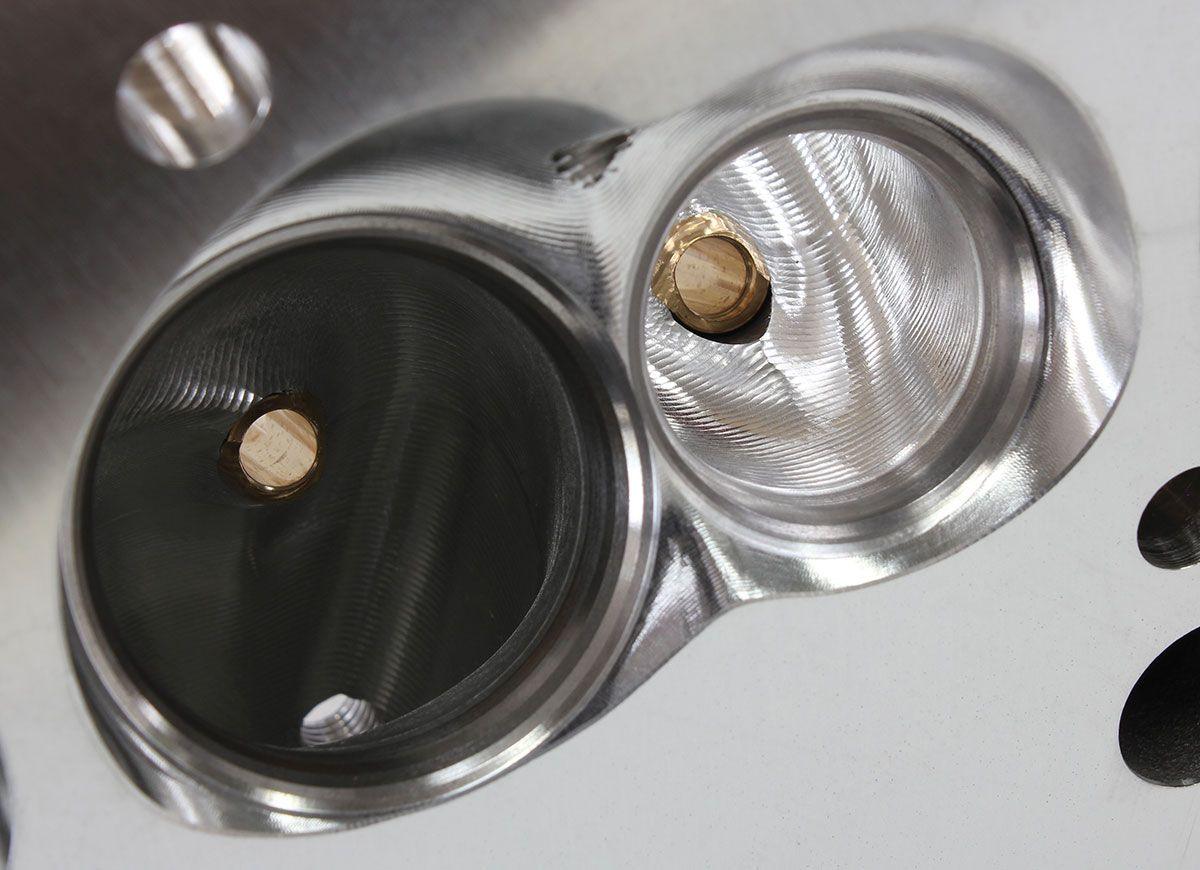

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. Theseheads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamberdesigns produce excellent flownumbers. This combined with a 5-angle competition valve job,diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.

The Aeroflow Performance small block Chevy cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Made from A356-T6 aluminium castings, these 213cc cylinder heads feature full CNC ports and are ideal for operating in the idle to 7500 rpm range. These completecylinder heads will fit a 4.00" bore and larger.

Additional Specifications:

Head Specifications

Material: A356 Aluminium
Chamber Chamber: 68cc
Intake Port Volume: 213cc
Intake Port Dimension: 2.15" x 1.30"
Exhaust Port Volume: 82cc
Exhaust Port Dimension: 1.45" H x 1.50" W
Spark Plug Location: Angled
Intake Valve Diameter: 2.08"
Exhaust Valve Diameter: 1.60"
Valve Stem Diameter: 8mm
Valve Spring Pocket I.D.: 1.57"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .502" (.560" at base)
Rocker Stud Thread Size: 7/16" x 14
Valve Angle: 23°
Deck Thickness: .625"

Important Information:

IMPORTANT NOTICE:

We recommend to check installed spring seat pressure & open pressure before installing your cylinder headsto make sure the spring pressure is correct for your application.
