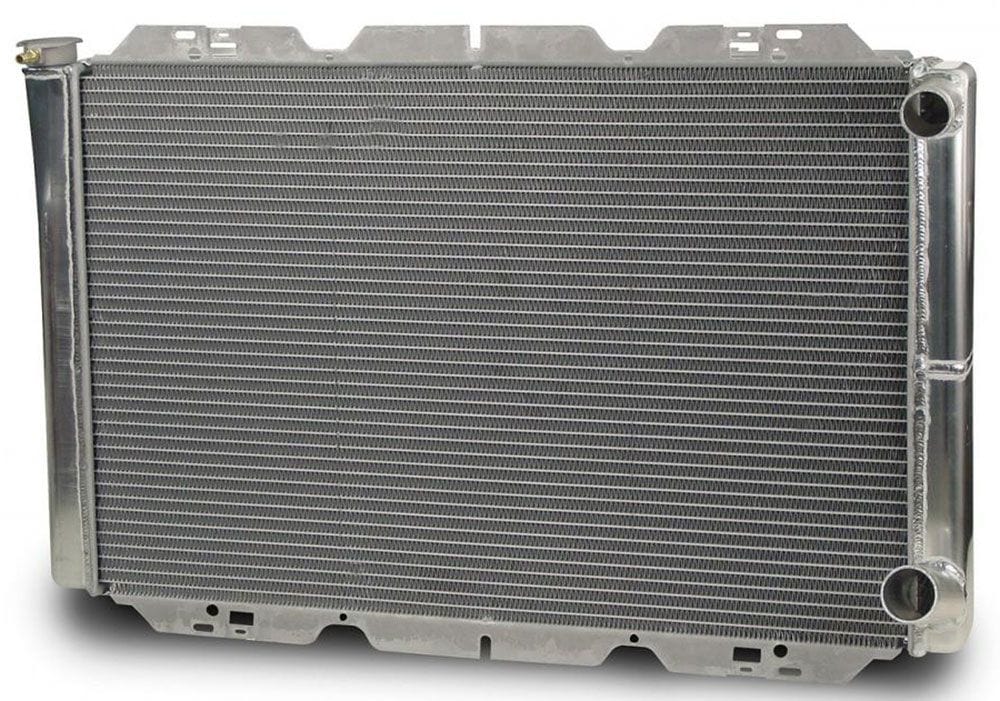

Universal Fit Double Pass Aluminium RadiatorNatural Satin Finish, 31" x 19", LH Filler, RH Inlet, RH outletBrand: AFCOPart Number: AFC80126NDescription:
- 100% aluminium construction (no epoxy)
- 100% TIG welded
- 100% pressure-tested
- Filler necks feature screw-in bleed - won't crack or leak with age
- Suits Manual Trans or Automatic with External Cooler
- Typically installed in race-style chassis using fabricated mounts.
- Universal Radiators are built with two 1" rows for a total core thickness of 2-1/4" and feature 3" tanks.
- The U-channels on top and bottom of the AFCO universal radiators provide numerous mounting options for fans and fan shrouds.
AFCO radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. Using years of experience, advanced design, and thorough testing, AFCO radiators are designed to promote optimal air flow and cooling by utilizing appropriate fin count, tube size, core thickness, and fin ticular application.
Every AFCO radiator is built from detailed, computer-designed specifications. By having every step in the process quality-checked to actual CAD-supplied specs, AFCO radiators offer consistent, reliable fit and function. Other brands often use cardboard templates or cruder methods of controlling production standards. AFCO radiators use precision CNC laser-cut parts for exact tolerances. We never stamp tanks. Our tanks are either laser-cut and precision-welded or formed using a "drawn" technique that keeps a uniform thickness and eliminates weak spots.
