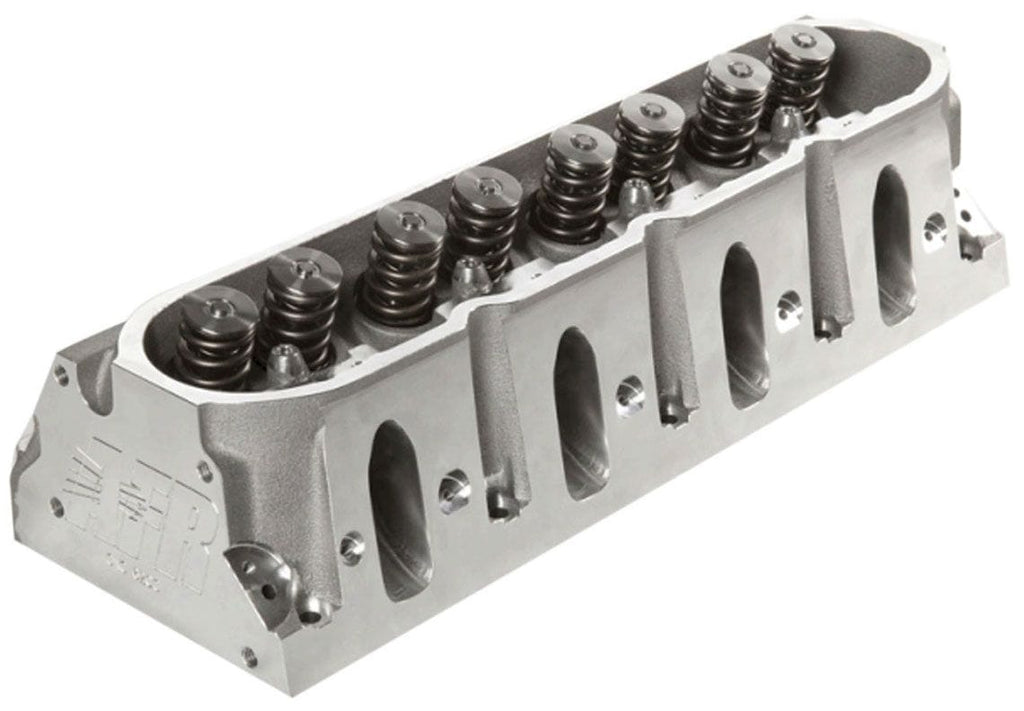

210cc LSX Mongoose Aluminium Cylinder Heads66cc Combustion Chamber. Suit Chev LS1/LS2/LS6Brand: AFRPart Number: AFR1510Description: For the ultimate high performance street LS1/LS2/LS6 aluminum cylinder head AFR's all new 210cc are your only choice. Specifically designed for 1997 to present Gen-3 Chevy Corvettes, Camaros, and trucks using a 3.900 Bore. AFR's LSX cylinder head offers unmatched flow performance (302 CFM at .600lift) and features 2.020 intake and 1.600 exhaust valves with AFR's iron ductile interlocking valve seats. With only 210cc port volume (same as stock LS1 head) this is an incredible 70 CFM increase over stock casting, creating unbelievable port velocity and performance. Our 210cc cylinder head is ideal for normally aspirated 346C.I. to 396C.I. It is available with 66cc combustion chambers. AFR's LSX is a direct bolt on, no special parts required. Structural features like Air Flow Research's trademark 3/4" thick head deck, a must for blown and nitrous applications, reinforced rocker stud bosses, and thick wall runners provide unparalleled durability. An exclusive new modern combustion chamber design with double quench pad area helps the LSX generate huge low and mid lift airflow numbers. If you need a snake charmer for that pesky neighborhood "Cobra Mustang" look no further.
Basic Package Components:
- 100% CNC Ported Combustion Chambers
- 100% CNC Ported Exhaust Ports
- 100% CNC Ported Intake Ports
- 3-angle Radiused Valve Job
- Bead Lock Intake Valve, 2.020" standard length
- Bead Lock Exhaust Valve, 1.600" standard length
- 1.290" OD Hydraulic Valve Spring with dampener, 135 lbs. on seat, .600: maximum lift
- 7° 1.250 Titanium Retainers
- 7° Bead Lock Valve Keepers
- Viton Valve Seals
- Hardened Spring Cup
- Intake Valve Seats
- Exhaust Valve Seats
- Bronze Valve Guides
