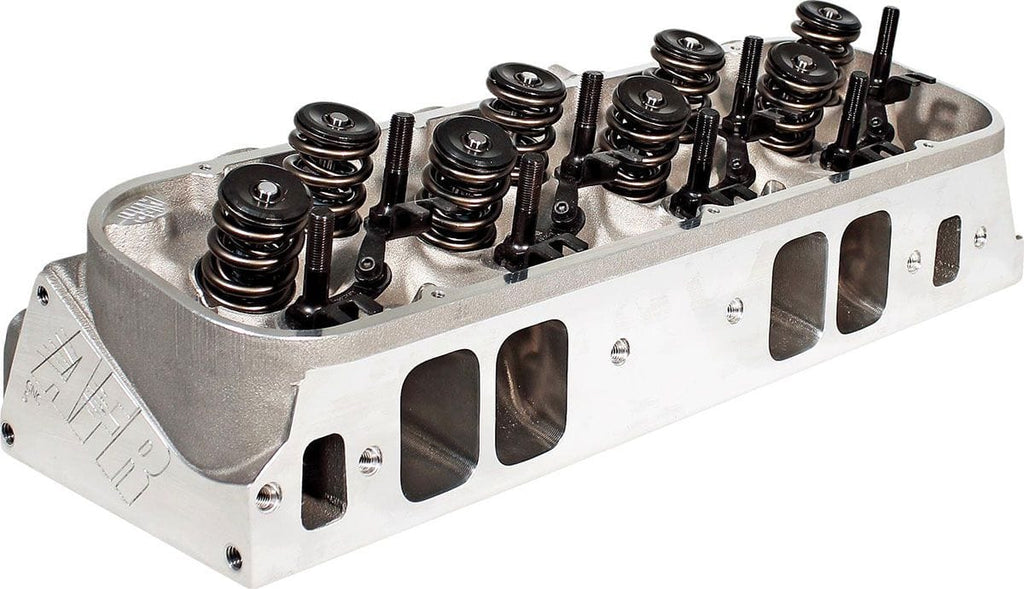

325cc Magnum Aluminium Cylinder HeadsCompetition Package 115cc Combustion Chamber. Suit B/B ChevBrand: AFRPart Number: AFR2101Description: Are you looking for big torque and big horsepower numbers? AFR BB Chevy line of medium volume intake runners will provide you with exactly that. The phrase "having your cake and eating it to" would certainly be appropriate with their moderately sized intake runners producing tremendous flow figures across the entire lift range. These high flow/high velocity ports provide extreme versatility and fill the needs of many applications. From a max-effort high compression 454 to a 605 CID low rpm marine application, either one of these aluminum cylinder heads would be a great choice. These heads would also be ideal in a larger cubic inch "Pro-Street" application with their broad torque range, as well as significant rpm and horsepower capability. These cylinder heads will work best with a primary operating range of 3000-7000 rpm's (This range is an average and will vary with engine displacement as well as component selection). The 325cc come standard with AFR's trademark .750" thick head deck, reinforced rocker stud bosses, and are equipped with premium one piece stainless steel 2.300" intake valves and 1.880" exhaust valves. Standard combustion chamber volume is 115cc's on our 325 "As Cast" pieces, while the CNC Chamber 325 version comes with a 121cc chamber. Properly selecting the correct cylinder head for an application depends on a large number of variables.
Basic Package Components:
-
- 5-angle valve job
- Intake Valve, 2.300" stainless steel
- Exhaust Valve, 1.880" stainless steel
- 1.625 O.D. Roller Dual Valve Spring with dampener 255 lbs. on seat, .750" maximum lift
- 10° Chrome Moly Retainer
- 10° Valve Locks
- Guide Plates
- Viton Valve Seals
- Hardened Spring Cup
- Intake Valve Seats
- Exhaust Valve Seats
- Bronze Valve Guides Intake
- Bronze Valve Guides Exhaust
- AFR BB Chevy 7/16 Exhaust Studs
- AFR BB Chevy 7/16 Intake Studs
