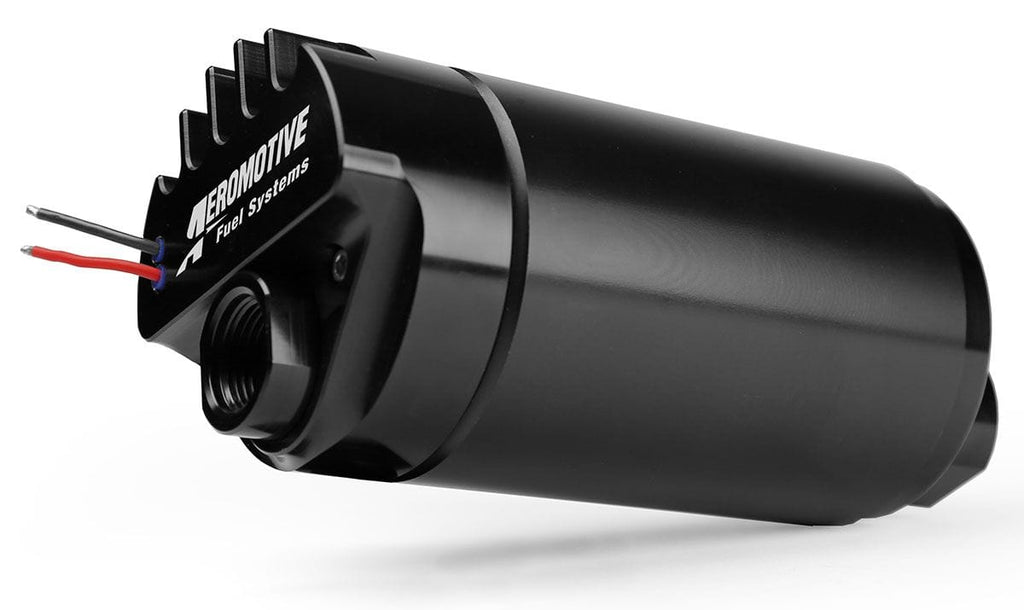

Brushless In-Line Gearpump - 3.5 GPM (13 LPM) - Round Body-12ORB Inlet/-10ORB Outlet With Variable Speed ControllerBrand: Part Number: ARO11191Description: Aeromotive's line of brushless pumps are available with two different built-in controllers: the Standard Configuration of Aeromotive's Brushless Controllers, which provides continuous full-speedoperation, and the New True Variable Speed Controller (TVS), which offers the advantages of pump speed control vial a 0-5V analog DC input signal. The TVS Controller capitalizes on our existing brushless technology by reducing fuel flow during low-demand and decreasing an already low current draw, therefore minimizing the introduction of heat even further.
The real highlight of this new series is the Brushless Gear Pumps. Aeromotive took what they learned from their mechanical spur gear pumps, and engineered it to work in a compact flow thru design. Thiscreates a fuel pump that is able to move more fuel at pressures up to 150psi, without a significant drop in flow resulting in the highest flowing electric fuel pump in the aftermarket. The real highlight of this new series is the Brushless Gear Pumps. Aeromotive took what they learned from their mechanical spur gear pumps, and engineered it to work in a compact flow thru design. Thiscreates a fuel pump that is able to move more fuel at pressures up to 150psi, without a significant drop in flow result
PumpFeatures:
- 3.5 GPM (13.0 LPM)
- Exnternal Mount
- ORB-12 inlet andORB-10 outlet ports
- Extended servicelife in methanol and ethanol
- New integral spur-gear pumping mechanism
- 90 psi continuous operating pressure and up to 150 psi peak pressure, base plus boost
- Integral, external brushless controller for clean installation, coolerfuel and enhanced reliability
3.5 GPM Fuel Flow Figures
Gas
Fuel Injection
N/A 2400HP - F/I 1800HP
Carburetted
N/A 2600HP - F/I 2000HP
E85
Fuel Injection
N/A 1680HP - F/I 1260HP
Carburetted
N/A 1820HP - F/I 1400HP
