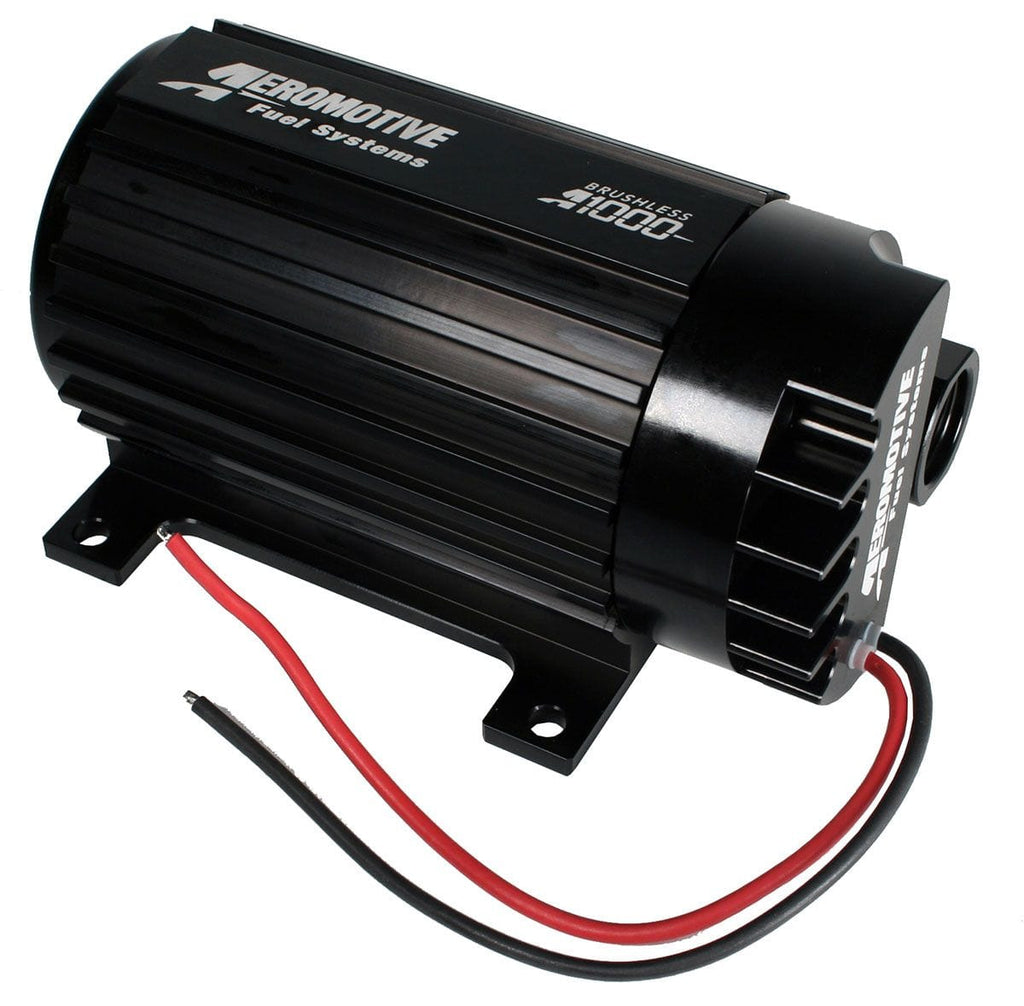

Brushless In-Line A1000 Fuel Pump - Signature Body-12ORB Inlet/-10ORB Outlet With Variable Speed ControllerBrand: Part Number: ARO11193Description: Aeromotive's line of brushless pumps are available with two different built-in controllers: the Standard Configuration of Aeromotive's Brushless Controllers, which provides continuous full-speedoperation, and the New True Variable Speed Controller (TVS), which offers the advantages of pump speed control vial a 0-5V analog DC input signal. The TVS Controller capitalizes on our existing brushless technology by reducing fuel flow during low-demand and decreasing an already low current draw, therefore minimizing the introduction of heat even further.
The Brushless A1000 and Eliminator feature the same legendary roller vanepumping mechanisms that have been trusted for decades, now simply offered with the latestin electric motor technology.
PumpFeatures:
- ORB-12 inlet port and ORB-10 outlet port
- EFI applications use regulator #13134 or #13305
- Carburetted applications use regulator #13212 or #13202
- Fullysubmersible for custom, in-tank placement
- Perfect for "blow-through" carburetted engines up to 1,700hp
- Speed Pump Controller (#16306) required for street applications
A1000 Fuel Flow Figures
Gas
Fuel Injection
N/A 1300HP - F/I 1000HP
Carburetted
N/A 1500HP - F/I 1200HP
E85
Fuel Injection
N/A 910HP - F/I 700HP
Carburetted
N/A 1050HP - F/I 840HP
