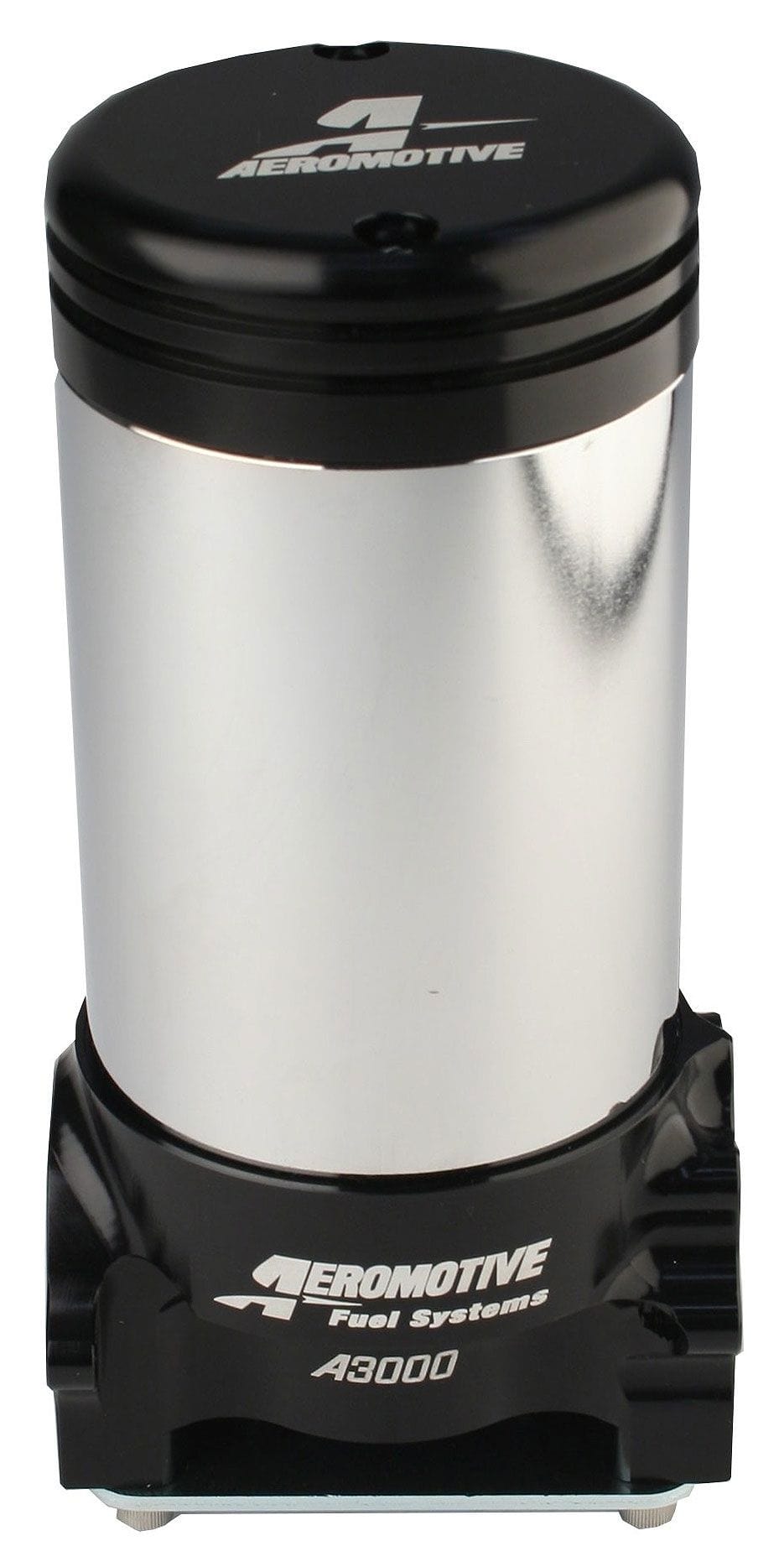

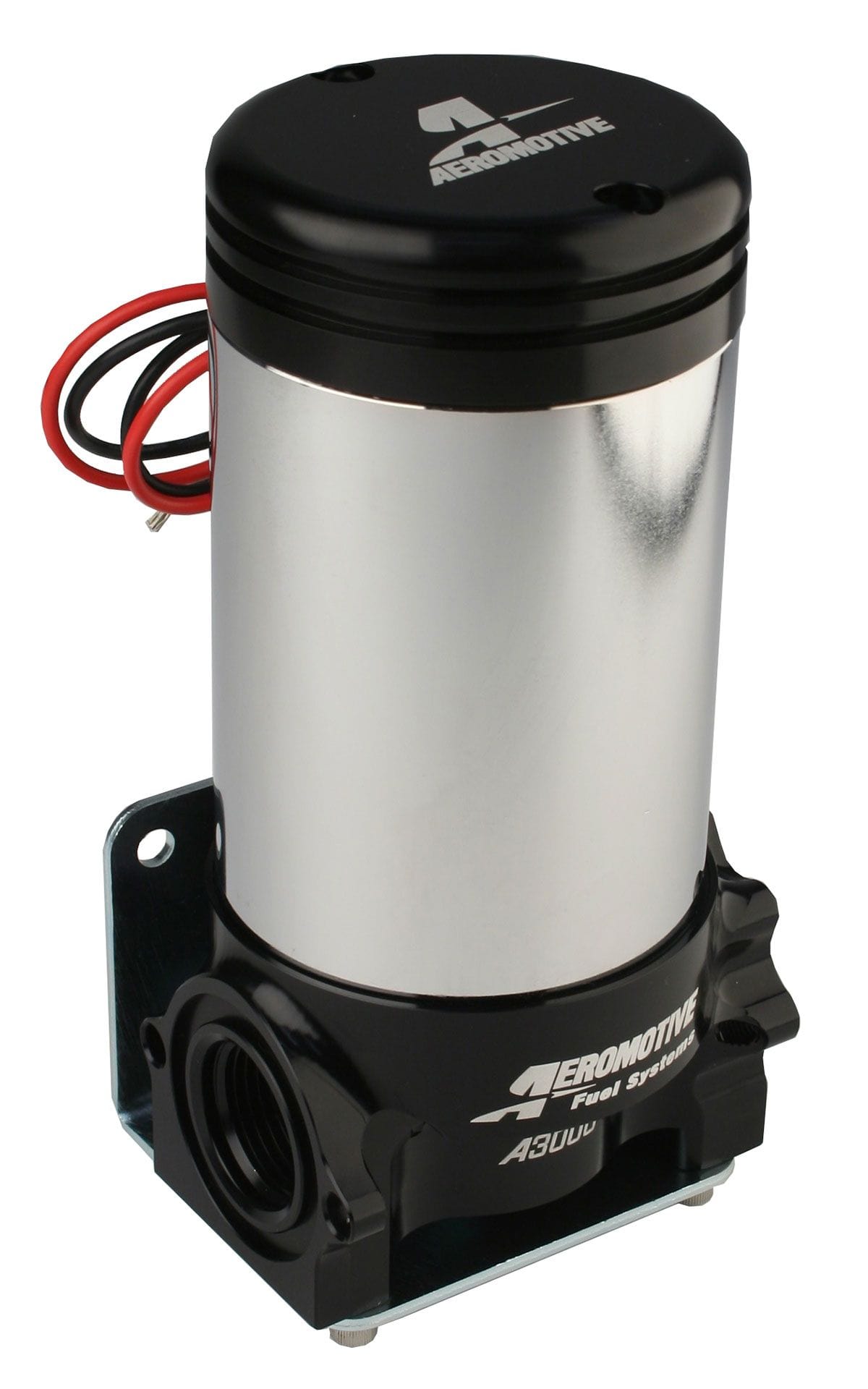

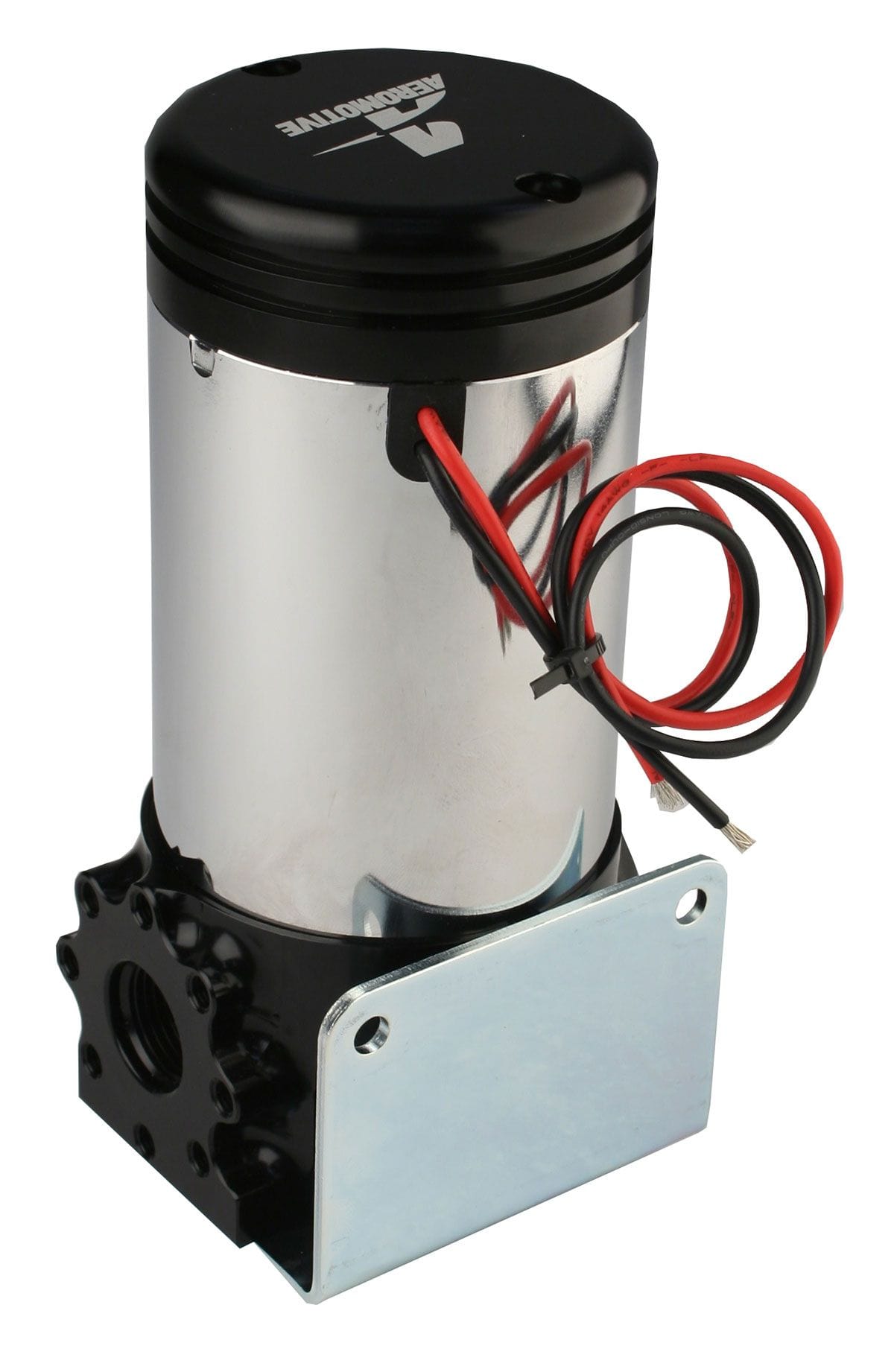

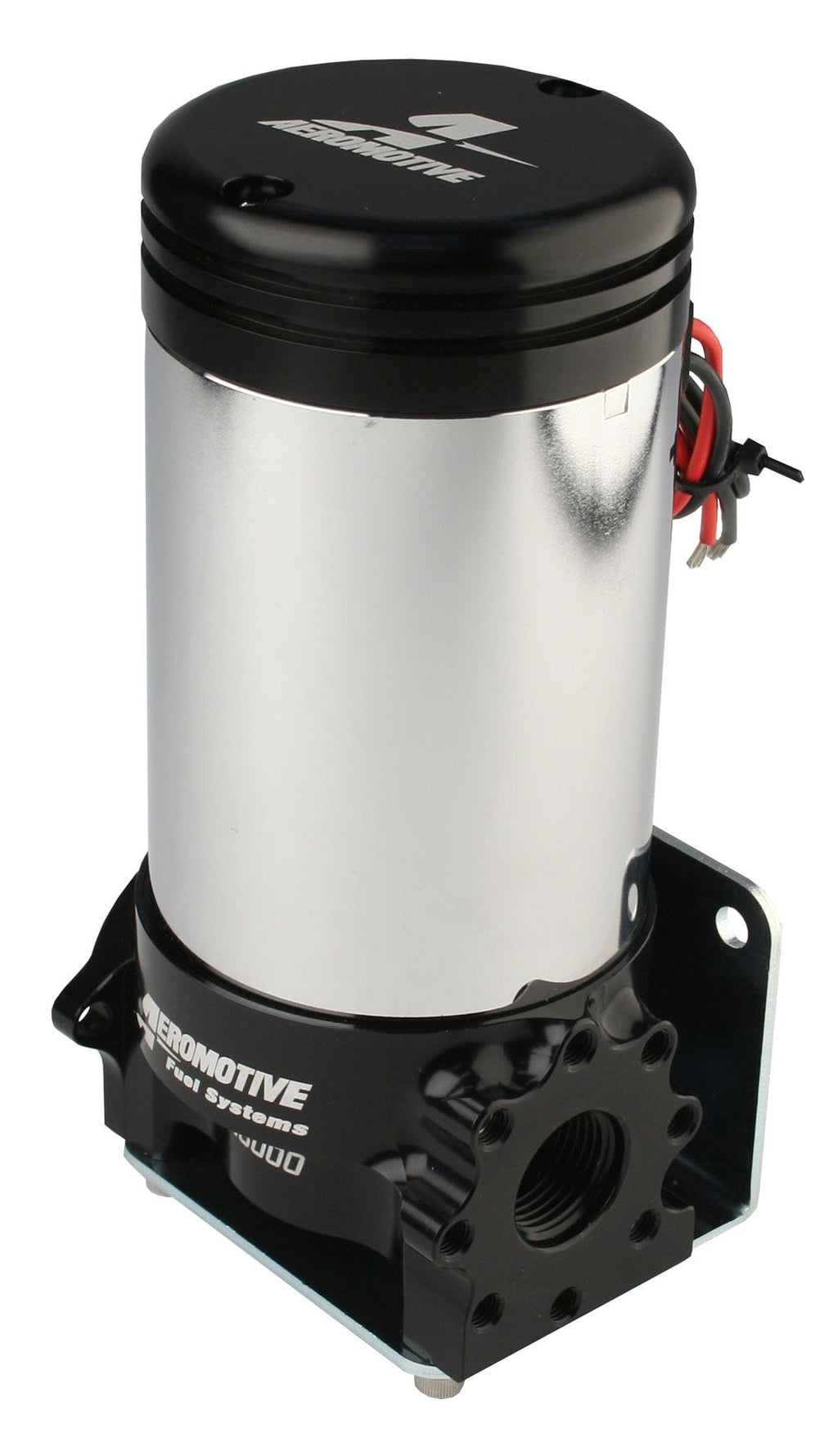

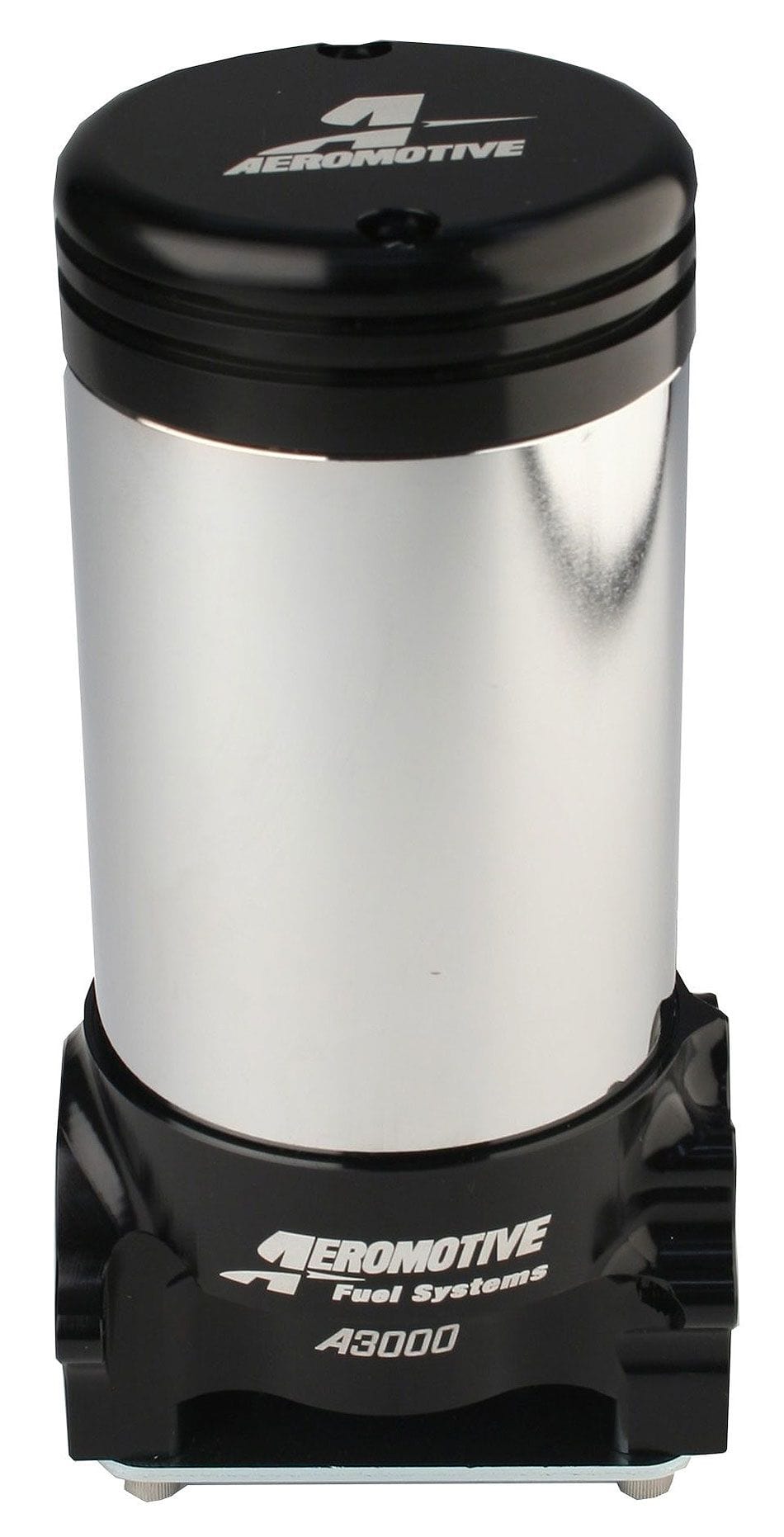

A3000 Electric Fuel PumpSuit Carburettor ApplicationBrand: AEROMOTIVEPart Number: ARO11216Description: The new A3000 Fuel Pump is an upgrade and redesign to oneof the winningest fuel pumps in drag racing, the popular A2000 Fuel Pump. The A3000 features the same basic designand function as its predecessor but boasts less weight, over 1 GPM more flow at pressure and never-before-seen modular features and mounting options,like a removable and indexiblefuel filter and true diaphragm-controlled bypass regulator.
The A3000 Fuel Pump provides more mounting provisions, enhanced performance and better pressure control than any fuelpump in its class. This craftyModular design affords the racer a variety of options formounting and pressure control.When mated with the P/N 11218 100-Micron Filter and / or theP/N 11217 Pressure Regulator, (both parts sold separately) you have the ability to independently index those components for a custom installation on your race car.If you already have a compatible Pre-Filter* or don’t want to utilize a return on the pump, the pump can operate as a “stand alone” featuring a -12 ORB inlet port and -10 ORB outlet port.
Features:- 15% more flow across the entire pressure range (vs. the A2000)
- Light weight (5.1 lbs)
- 6.8 gpm @ 5 psi / 13.5V (Over 400 gph)
- New ORB-12 Inlet,ORB-10 Outlet
- Alcohol / Methanol Compatible
- Multiple bolt patterns on the bottom ofthe pump fit almost any chassis mounting options, including competitor's pumps.
- Integrated Pre-Pump Fuel Filter
- True Diaphragm Controlled Bypass Regulator Integrated into the pump
