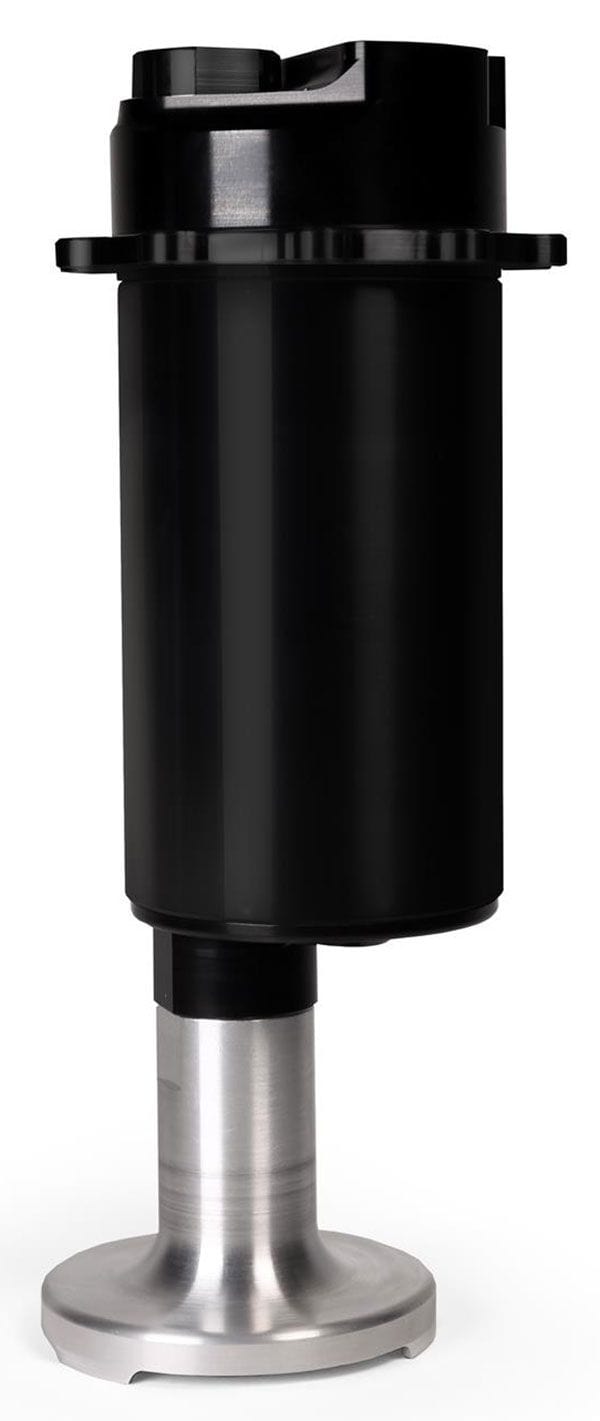

Brushless Drop-In In-Tank A1000 Fuel Pump-10ORB Outlet With Variable Speed Controller Suit 10" Deep Fuel CellBrand: Part Number: ARO18050Description: Aeromotive's line of brushless pumps are available with two different built-in controllers: the Standard Configuration of Aeromotive's Brushless Controllers, which provides continuous full-speedoperation, and the New True Variable Speed Controller (TVS), which offers the advantages of pump speed control vial a 0-5V analog DC input signal. The TVS Controller capitalizes on our existing brushless technology by reducing fuel flow during low-demand and decreasing an already low current draw, therefore minimizing the introduction of heat even further.
Pump Features:
- 700 lbs./hr. @ 45 psi
- Fuel Cell Drop-in,10" Deep
- ORB-10 outletport
- Extended service life in methanol and ethanol
- roller vane design that reduces friction and improves efficiency
- Integral, external brushless controller for clean installation, coolerfuel and enhanced reliability
A1000 Fuel Flow Figures
Gas
Fuel Injection
N/A 1300HP - F/I 1000HP
Carburetted
N/A 1500HP - F/I 1200HP
E85
Fuel Injection
N/A 910HP - F/I 700HP
Carburetted
N/A 1050HP - F/I 840HP
