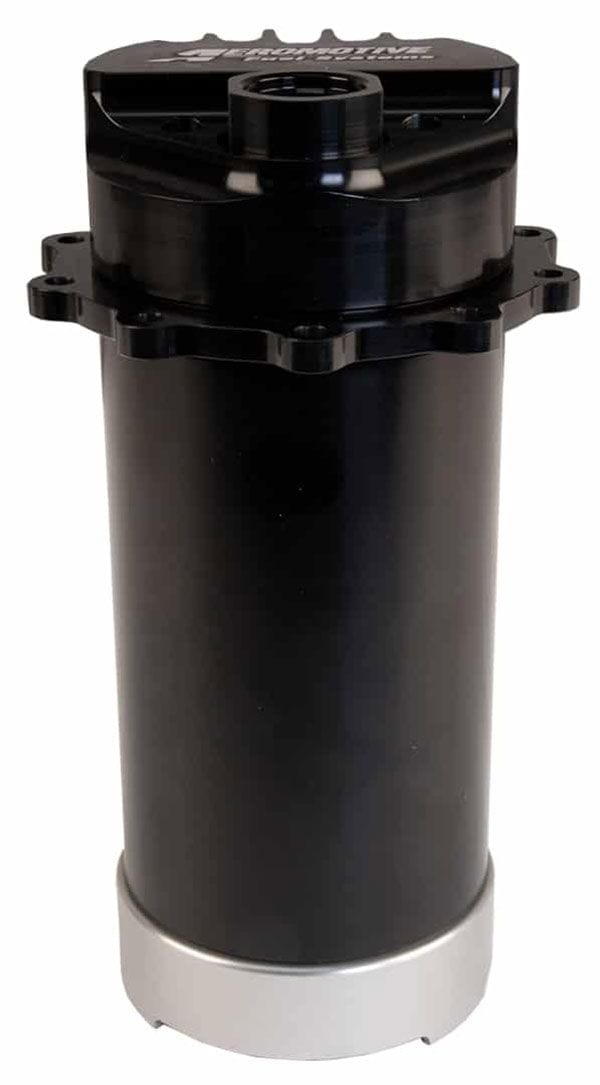

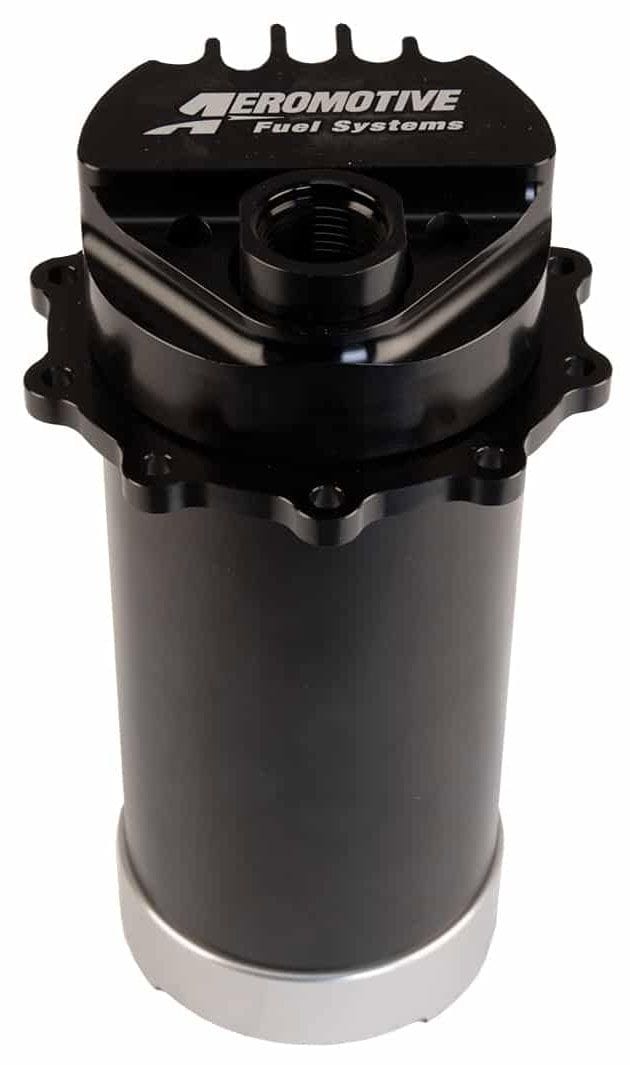

Brushless Drop-In In-Tank Eliminator Fuel Pump-10ORB Outlet With Variable Speed Controller Suit 10" Deep Fuel CellBrand: Part Number: ARO18051Description: Aeromotive's line of brushless pumps are available with two different built-in controllers: the Standard Configuration of Aeromotive's Brushless Controllers, which provides continuous full-speedoperation, and the New True Variable Speed Controller (TVS), which offers the advantages of pump speed control vial a 0-5V analog DC input signal. The TVS Controller capitalizes on our existing brushless technology by reducing fuel flow during low-demand and decreasing an already low current draw, therefore minimizing the introduction of heat even further.
Pump Features:
- 1,000 lbs./hr. @45psi
- Fuel Cell Drop-in, 10" Deep
- ORB-10 outlet port
- Extended service life in methanol and ethanol
- roller vane design that reduces friction and improves efficiency
- Integral, external brushless controller for clean installation, coolerfuel and enhanced reliability
Eliminator Fuel FlowFigures
Gas
Fuel Injection
N/A 1900HP - F/I 1400HP
Carburetted
N/A 2300HP - F/I 1700HP
E85
Fuel Injection
N/A 1330HP - F/I 980HP
Carburetted
N/A 1610HP - F/I 1190HP
