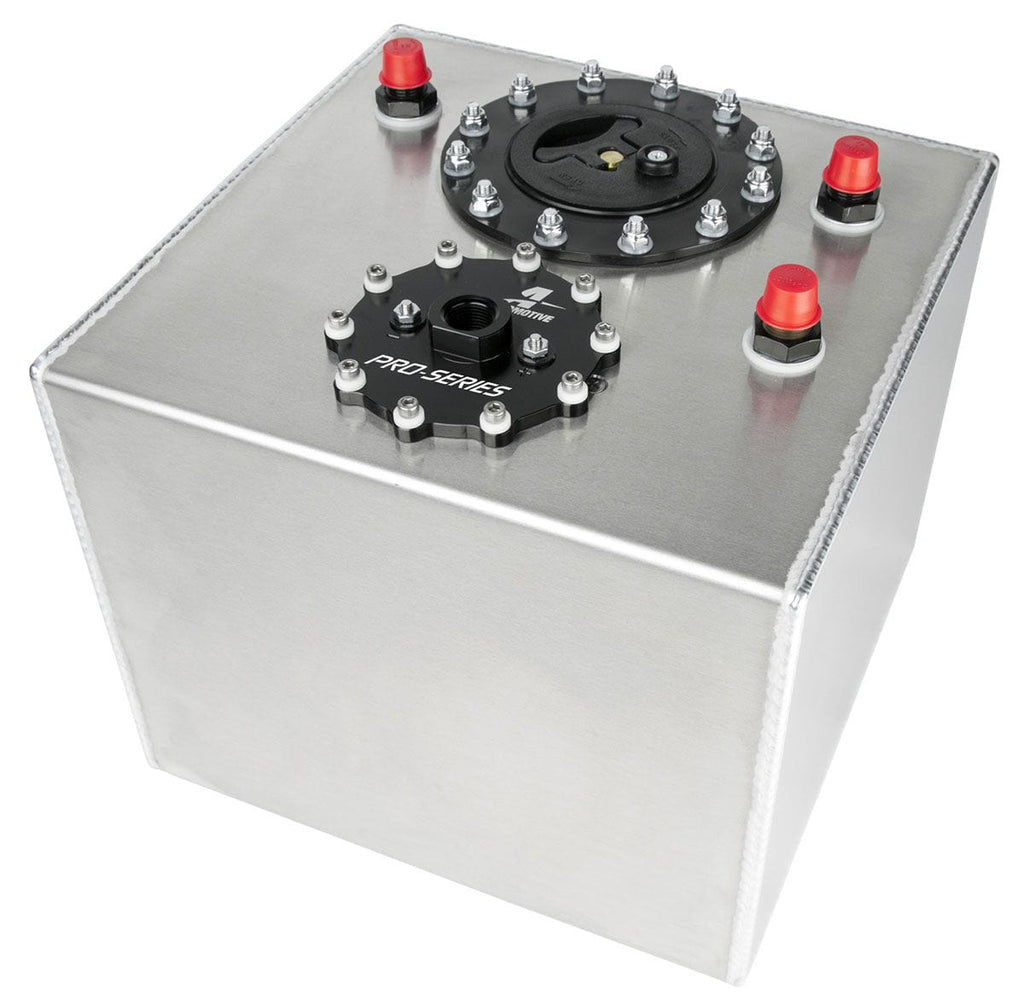

Pro-Series Fuel Tank6 Gal (23 Litres) With -8AN Outlet, Return & Roll-Over ValveBrand: Part Number: ARO18645Description: Originally developed for the 2010 Ford Cobra Jet Mustangs, these 6 gallon aluminum fuel cells feature the same advantages of the 15 and 20 gallon versions, but without the street-style sending unit. Plus, the compact 6 gallon size, makes it perfect for drag racing andother like applications where large fuel capacity is not an issue. This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column offuel at the pickup point, eliminating fuel slosh issues making these cells perfect forany application from autocross, to road racing to drifting and off-road. Simply strap the cell in, hook up your feed and return lines andyour done. Now you have a complete “in-tank”fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes. With either theA1000, Eliminator or Pro-Series Fuel Pump, the Stealth Fuel Cells are truly universal, preforming perfectly in any application. By matching the right regulator to your application,this system will be the last fuel system you will ever needto buy.
Fuel Injected Engines:
- up to 2600 HP – naturally aspirated
- upto 1700 HP – forced air induction
Carbureted Engines:
- up to 2600 HP – naturally aspirated
- upto 2000 HP – forced air induction
Part Number 18645 Features:
- Pro-Series Fuel Pump (internal) – P/N 18005
- 100 Micron Stainless Steel Pre-Filter
- 6.2 Gallon Capacity
- AN-08 Return Line Provision
- ORB-10 Outlet Port
- (2) AN-08 Vents with Rollover Valves
- Standard 12-Bolt Flush Mount Lid Assembly
- Natural Aluminum Finish Dimensions: 12" L x 12" W x 10" H
