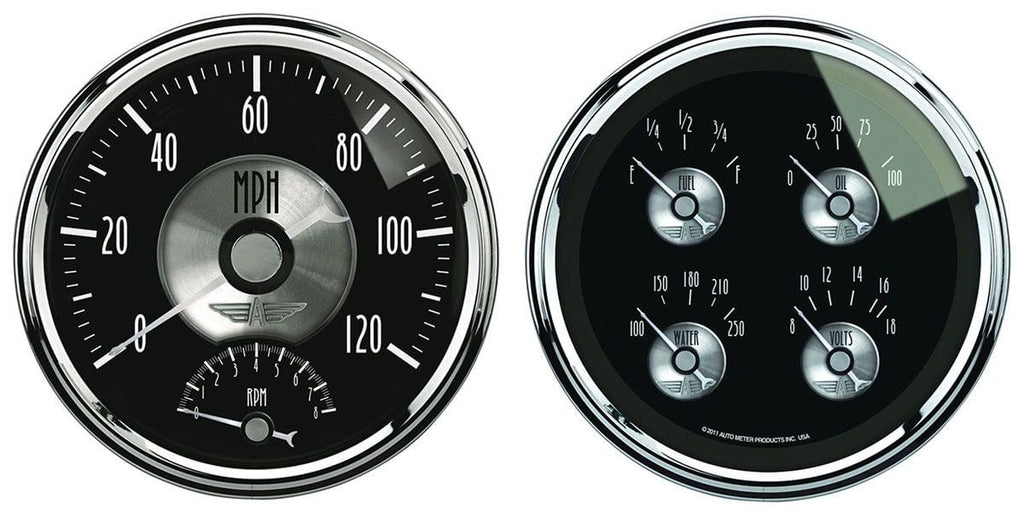

Prestige Series - Black Diamond Quad Gauge/Speedometer Kit5", Speedometer With Tacho, Fuel Level, Water Temperature, Oil Pressure, VoltmeterBrand: AUTOMETERPart Number: AU2005Description: Sometimes space is limited.The AutoMeter Quad Gauge provides a solution to limiteddashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s3262 fuel level sender).
FeaturePoints
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chryslerapplications (7/8" - 18THD), sending unit adapters (1/4", 3/8", and 1/2" NPT adapters), mounting hardware, and detailed instructions for installation.
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer hasa simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Tachometer is compatible with 0.5 - 6 pulse ignition signals(1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
- Speedometeris compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- 4 in 1 gaugedesign saves valuable real estate on your dash while allowing you to monitor critical parameters
Kit Accessories Included:
Sending Units
Fuel Sender 3262 - Oil Sender 2242 - WaterSender 2258 - VSS Sensor
Adapter/Fitting
3/8" NPT and 1/2" NPT adapter fittings
Mounting Hardware
Brackets Included
