Link ECU B Loom Medium - 2.5m 2LB (101-0006)

Link ECU B Loom Medium - 2.5m 2LB
Brand: Link ECU
Part Number: 101-0006
Description:

2.5m 'B' Loom for Link G4, G4+, G4X and G5 Wire-in ECUs

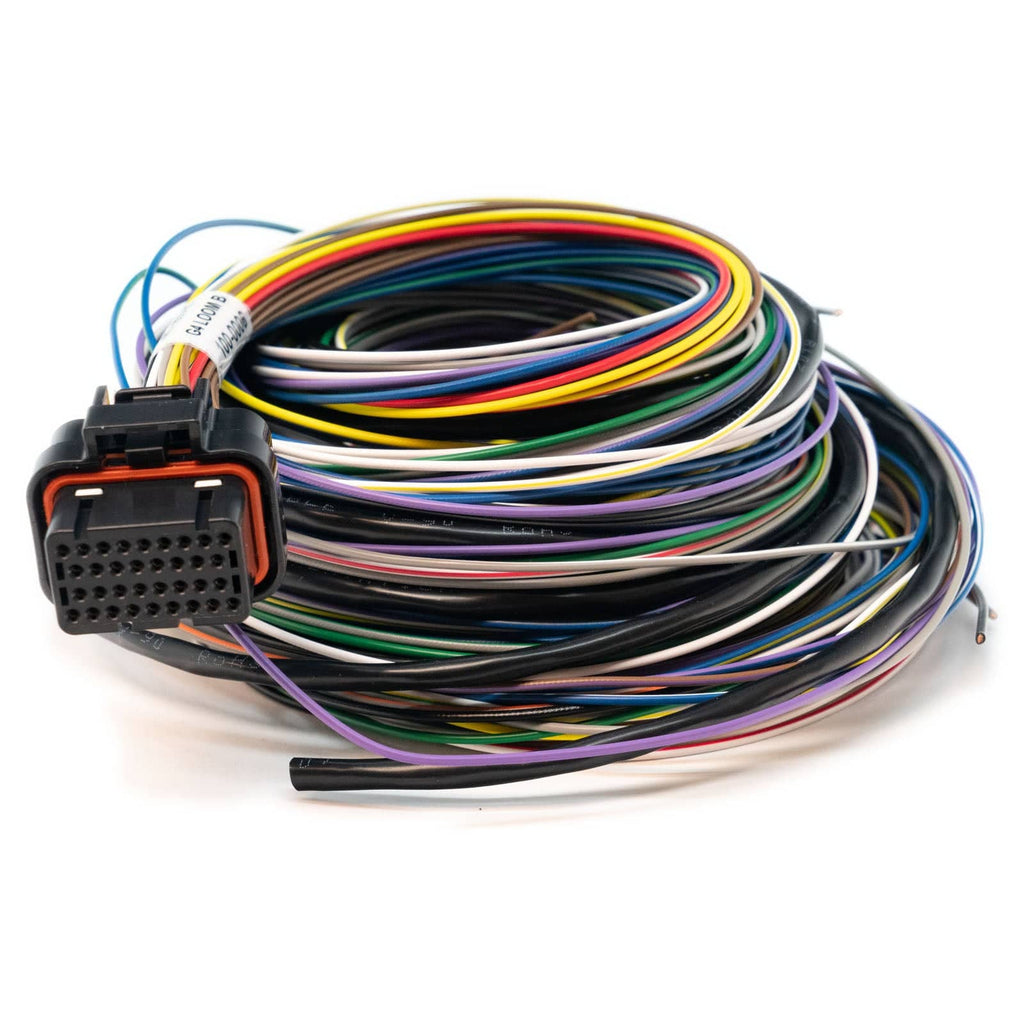

A high-quality, pre-assembled wiring loom for custom installations using compatible Link wire-in ECUs. Also commonly referred to as a wiring harness or flying lead, it is terminated with a SUPERSEAL 1.0 connector at one end, and is unterminated at the other. The 2.5m Link B Loom provides a convenient and cost-effective starting point for a professional ECU installation without the time, tooling and expense required to terminate the ECU connector yourself.

While designed for compatible Link wire-in ECUs, this loom is not limited to Link ECU applications. It can also be used for custom wiring projects requiring the same TE Connectivity SUPERSEAL 1.0 connector and compatible pin configuration.

Please note: Link wire-in ECUs that use two ECU connectors require

both an A Loom and B Loom. The 2.5m A Loom is sold separately (PN 101-0005).

Features

All wires are colour coded to match the Link Wire-in manuals. All positions populated.

• This loom is also available in 2.5m and 5m lengths.

Suits

• All Link G5 Wire-In ECUs
• Link G4X Storm
• Link G4X Fury
• Link G4X Xtreme
• Link G4+ Storm Black
• Link G4+ Fury
• Link G4+ Xtreme
• Link G4+ Thunder
• Link G4 Xtreme
• Vipec V88
• Vipec i88

What's in the Box

• Loom B (2.5m)

Specifications

• Product Dimensions: 2500mm(L)x35mm(W)x40mm(H); 98.43in(L)x1.38in(W)x1.57in(H)
• Product Weight: 850 grams (29.99 ounces)
• Material: 2.5 meters
• Electrical: Operating Voltage Range: 0-24V; Maximum Input Voltage: 60V; Maximum Continuous Current Draw: 5A & 14A; Gauges of wire: 20AWG/0.5mm2 & 19AWG/0.75mm2

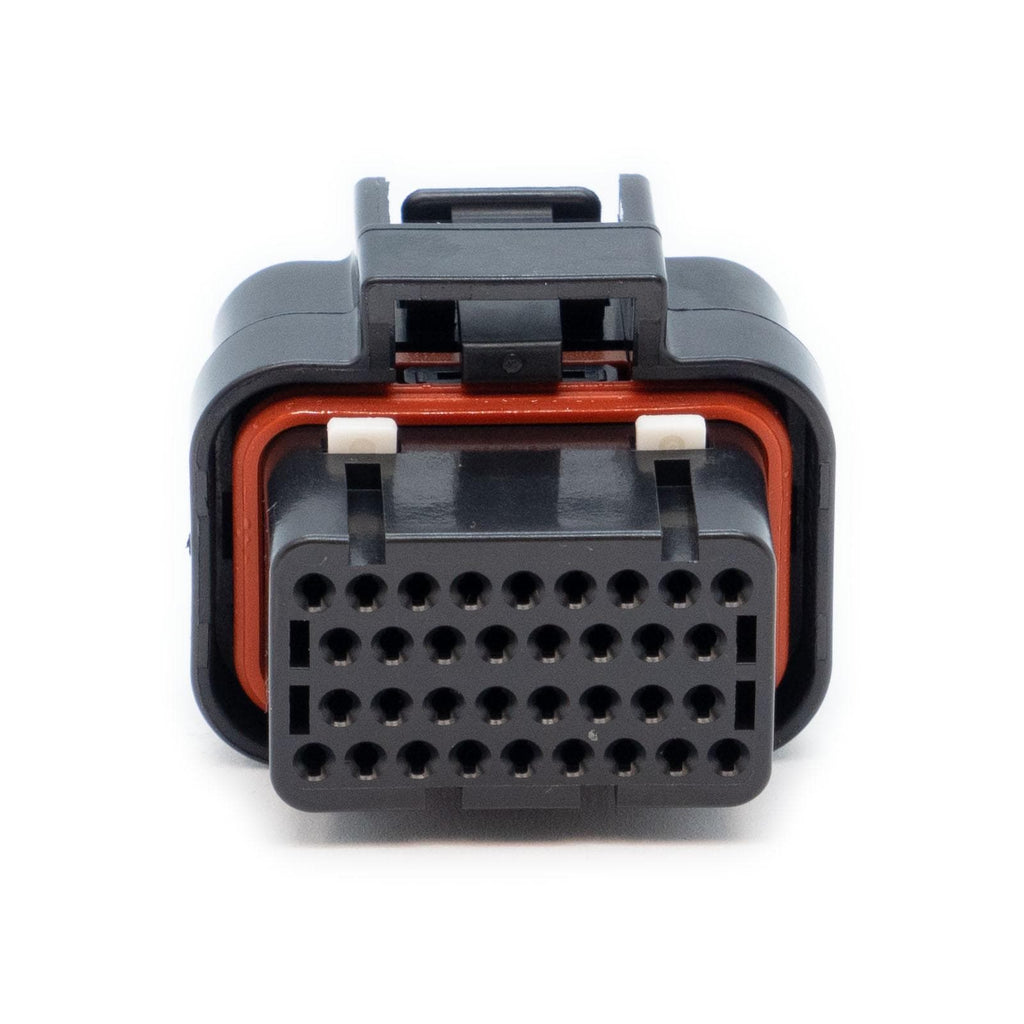

• Connector: Link B SUPERSEAL 1.0

Notes

• Please note: Link wire-in ECUs that use two ECU connectors require both an A Loom and B Loom. The 2.5m A Loom is sold separately (PN 101-0005).
