6V-71 Blower Drive KitSuit SB Chev327-350, 2V accessory, PolishedBrand: TBSPart Number: B2601Description: SB Chev Drive Kit -6V-71 (Front Discharge)
To increase performance through even distribution of air and fuel to each cylinder, The Blower Shop has developed its own intake manifolds for smalland big block chevy applications. TBS manifolds include the following
- Use with B2005 6V-71 blower
- Provisions for thermostat
- Raised floor with large radius ports for better air flow, increasedperformance and even fuel distribution
- Tall deckuses standard deck distributorheight
Our Small Block Chevy Street/Marine Manifold is machined from an aluminum casting utilizing integral solid sides. This allows us to increase the level of strength and overall rigidity of the manifold. We use a slight radius on the floor for increased runner length and optimal airflow.
Machined for water this manifold will accept any standard thermostatand Chevy housing, and is designed to work with a 6-71, 8-71, 10-71 or 14-71 supercharger.

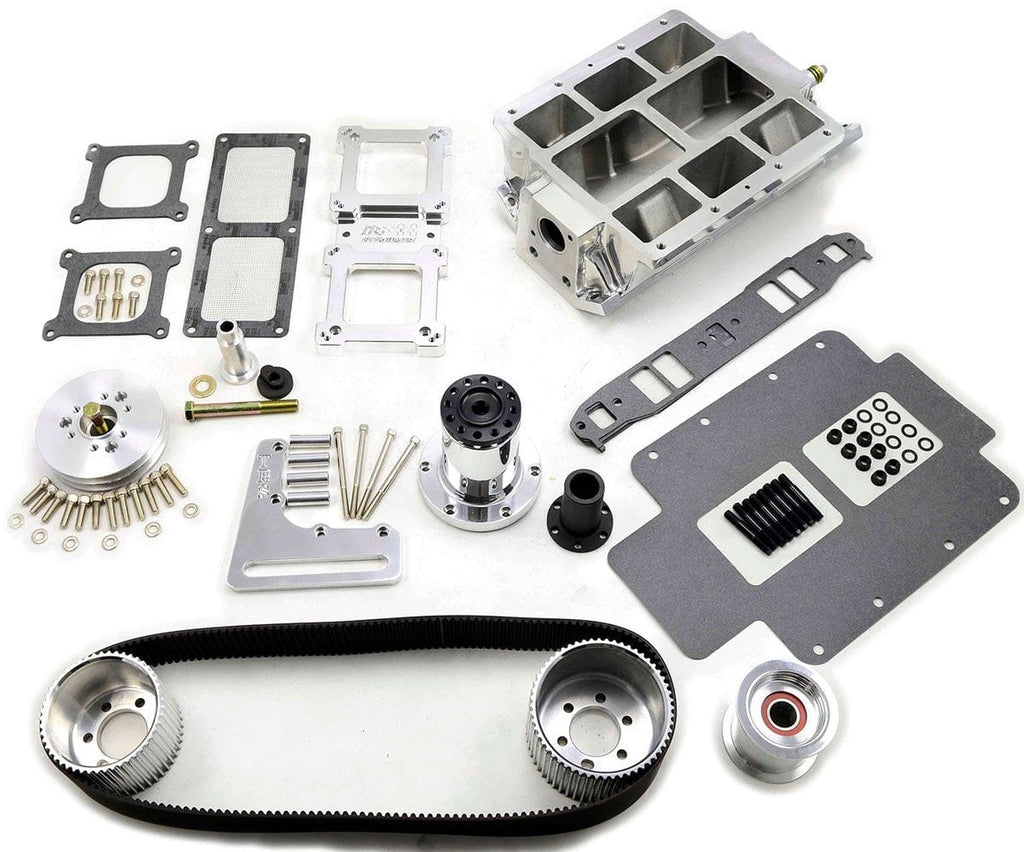

What Is included:
- Cast Intake Manifold (5.475" tall, machined for water and Polished)
- Billet Carb Adapter (4150 or 4500)
- Billet Blower Snout (Complete with Shaft andCoupler)
- Supercharger Pulleys
- Belt (8mm HTD Tooth Profile)
- Idler Assembly
- Accessory Pulley (2V)
- All Necessary Gaskets and Grade 8 Hardware
What is Not included:
- Balancer
- 6V-71 (Front Discharge) Supercharger
- Carburettors
- Linkage Kit
- Fuel Lines
- Manifold to HeadHardware
