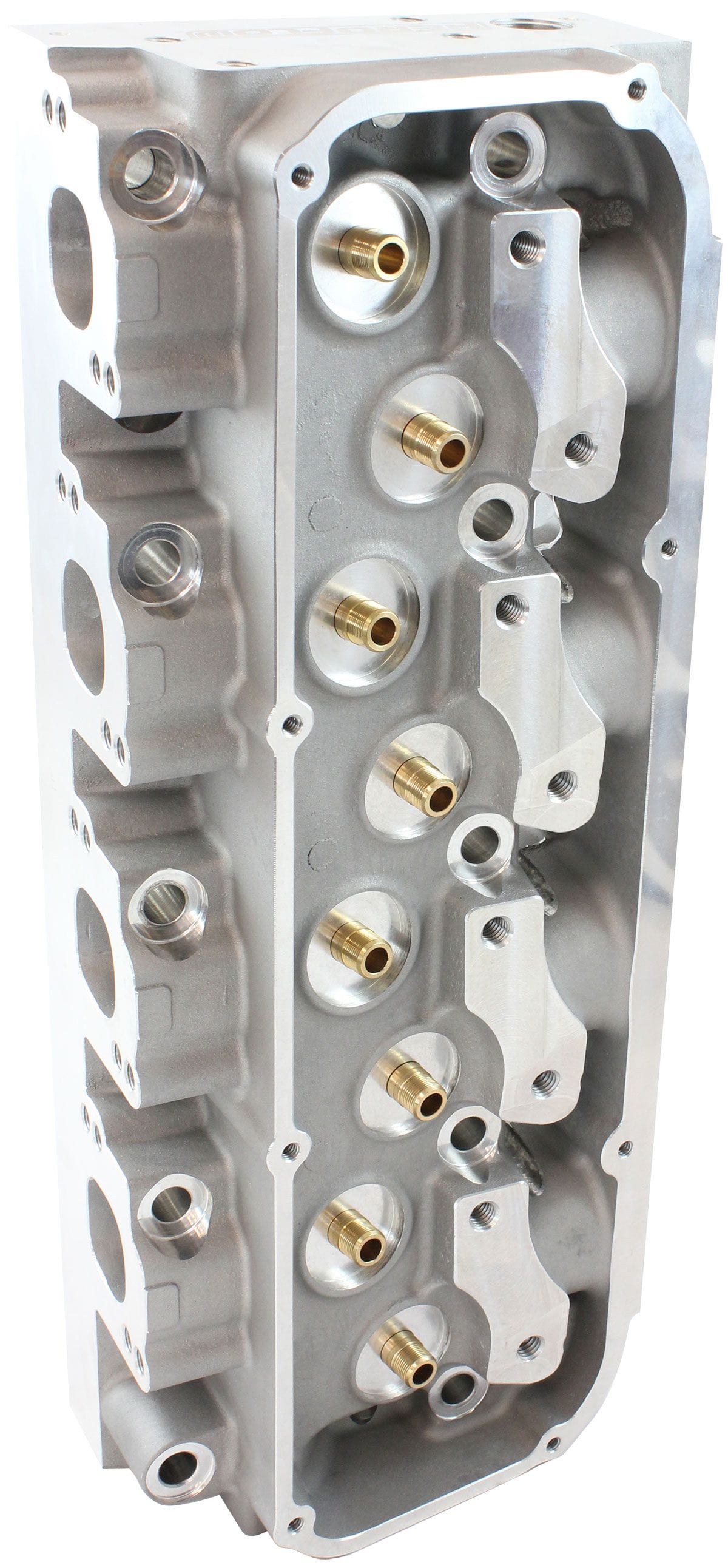

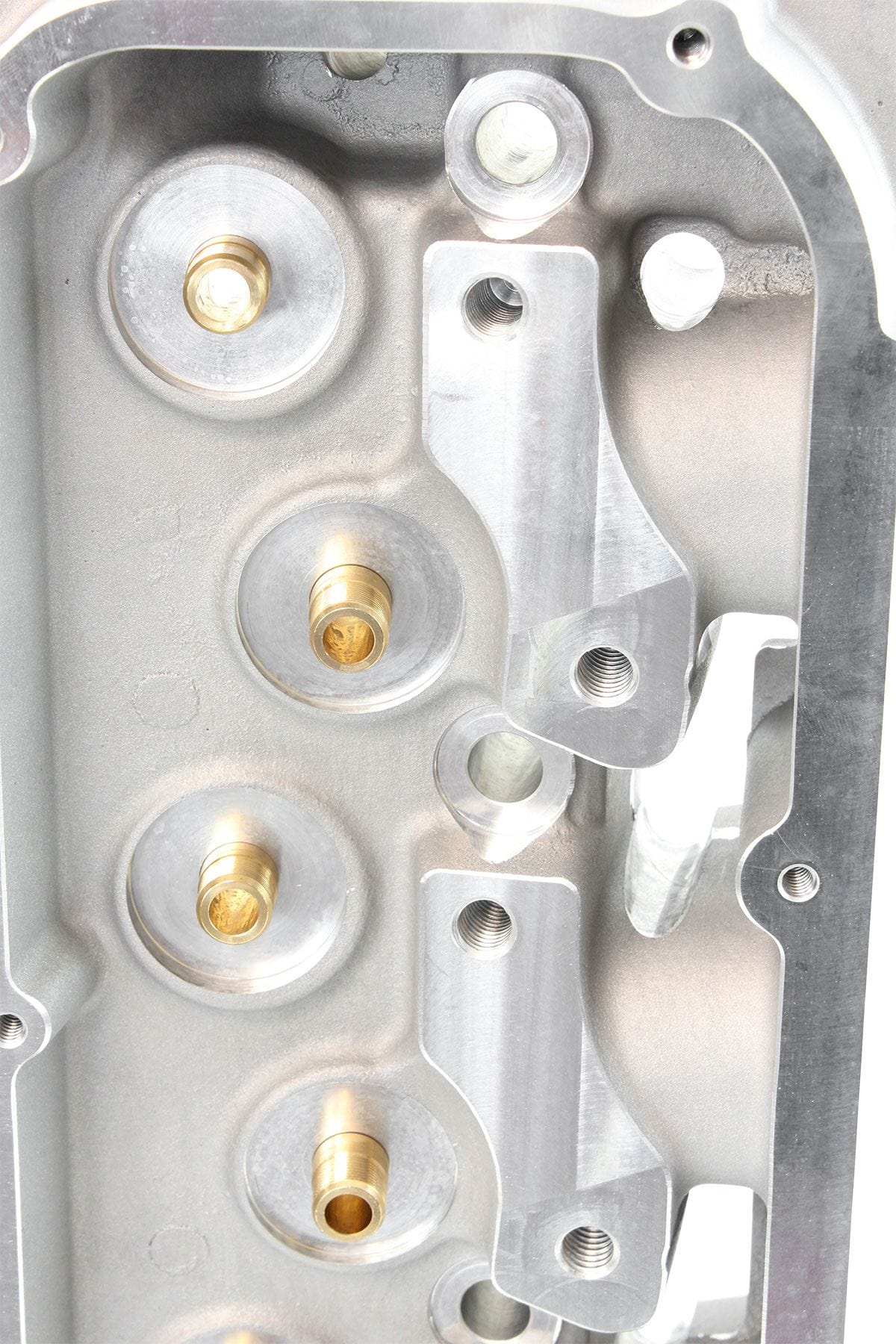

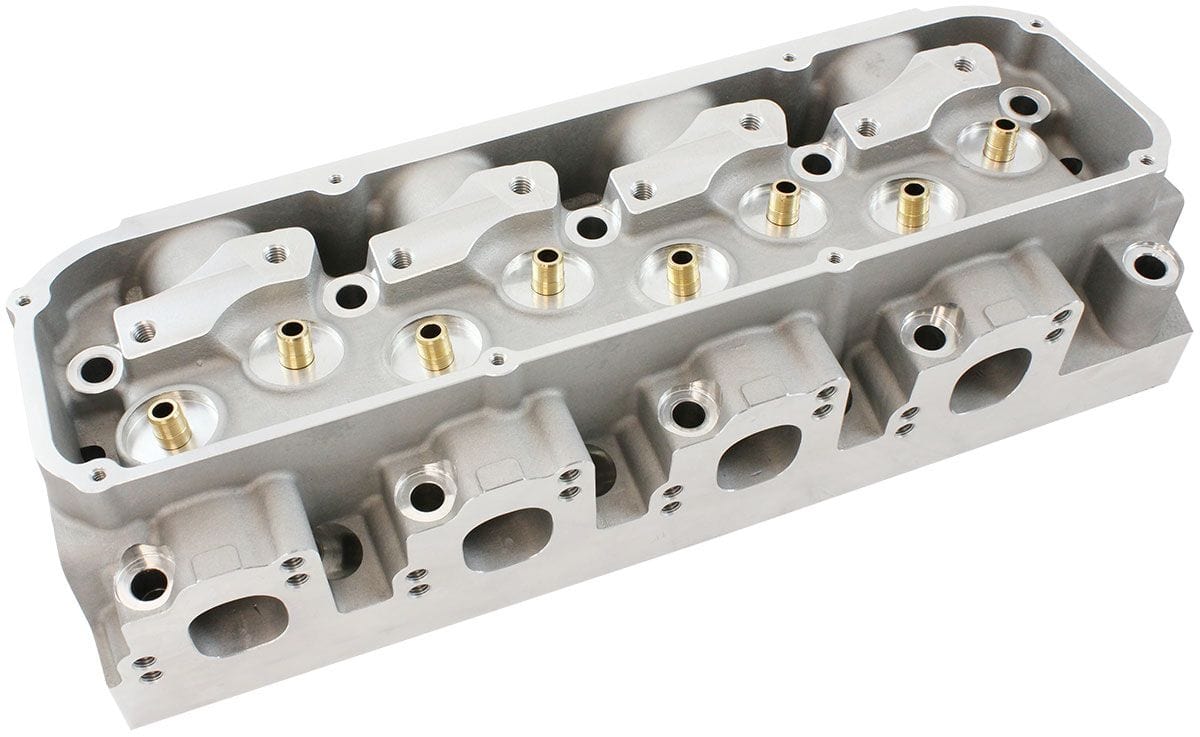

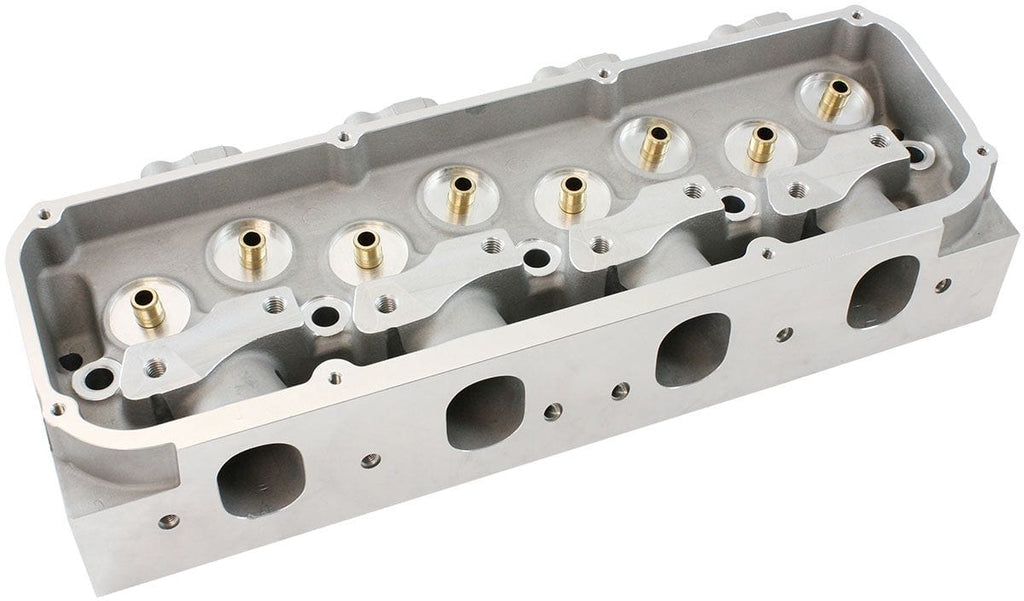

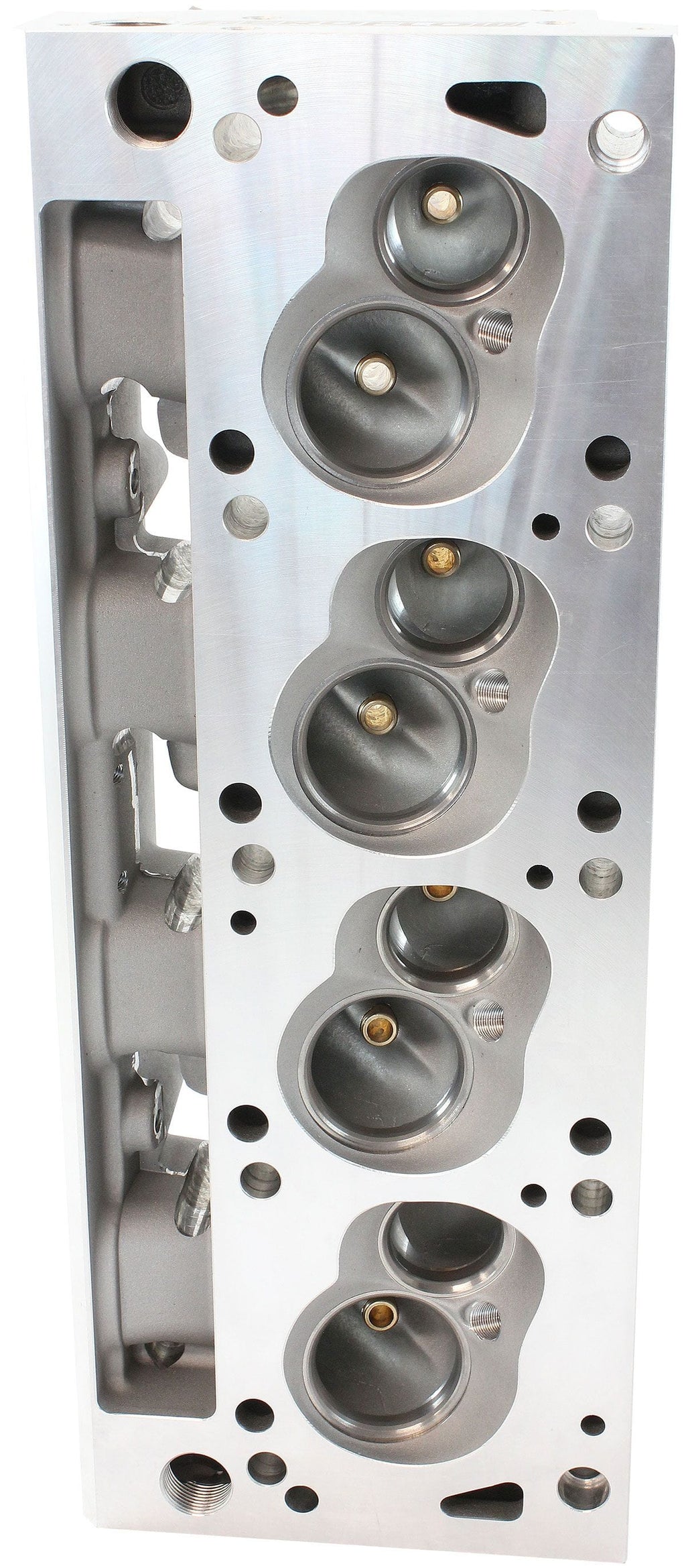

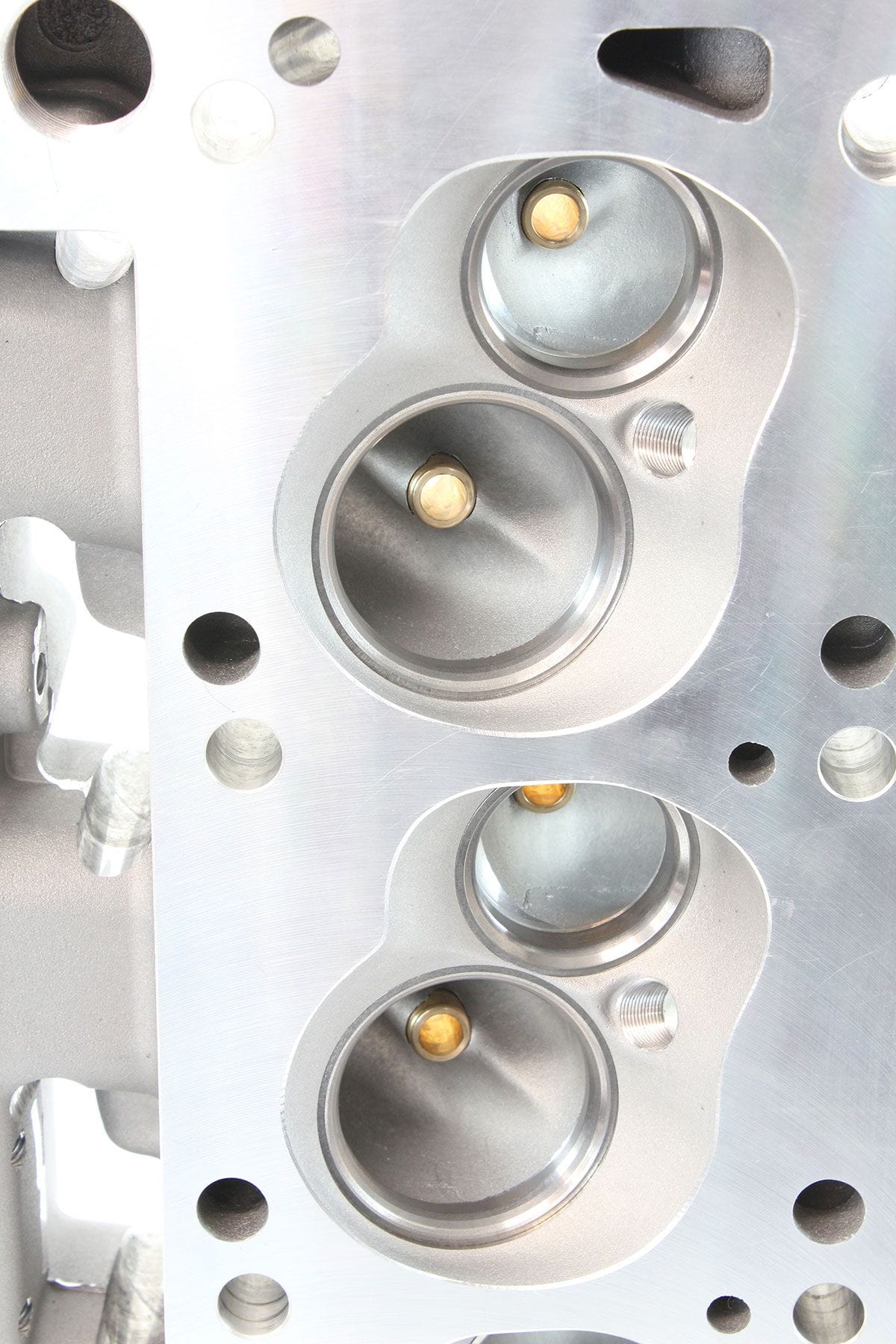

Bare 3V 235cc Aluminium Cylinder Heads with 72cc Chamber (Pair)Suit Ford302-351 ClevelandBrand: AEROFLOWPart Number: AF95-0393Description: The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. TheseFord Cleveland cylinder heads are designed for street / raceperformance engines to give the ultimate in flow at a competitive price.
Theseheads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamberdesigns produce excellent flownumbers. Diamond-honed bronze guides and hand bowl blending to help outperform some of thebest brands in the business.
Additional Specifications: Head Specifications
Material: A356 Aluminium
Chamber: 72cc
Intake Port Volume: 235cc
Intake Port Dimension: 2.05" x 1.60"
Exhaust Port Volume: 125cc
Exhaust Port Dimension: 1.61" H x 1.50" W
Exhaust PortLocation: Raised .080"
Spark Plug Location: OEM
Intake Valve Diameter: 2.10"
Exhaust Valve Diameter: 1.65"
Valve Stem Diameter: 11/32"
Valve Spring Pocket I.D.: 1.570"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .530 Valve Stem Seal
Rocker Stud Thread Size:7/16" x 14
Valve Angle: 10°
Deck Thickness: .750"
Important Information: IMPORTANT NOTICE:
We recommend to check installed spring seat pressure & open pressure before installing your cylinder headsto make sure the spring pressure is correct for your application.
