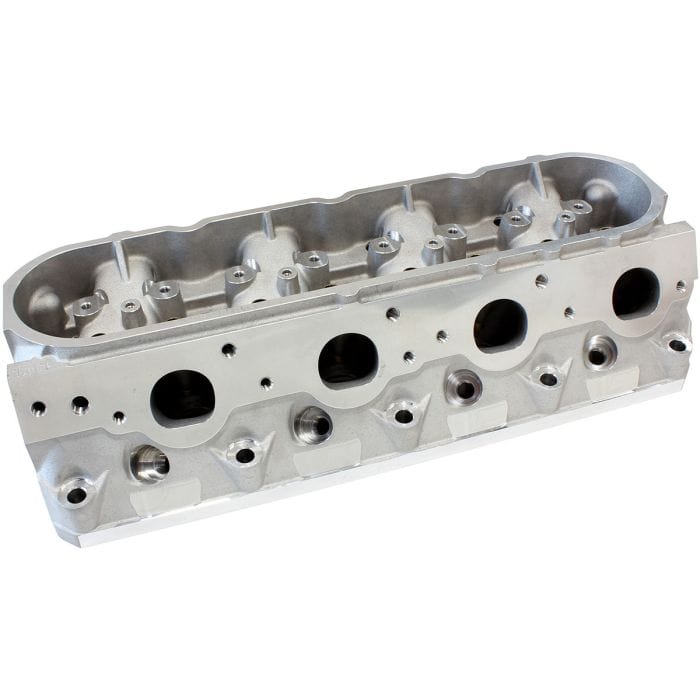

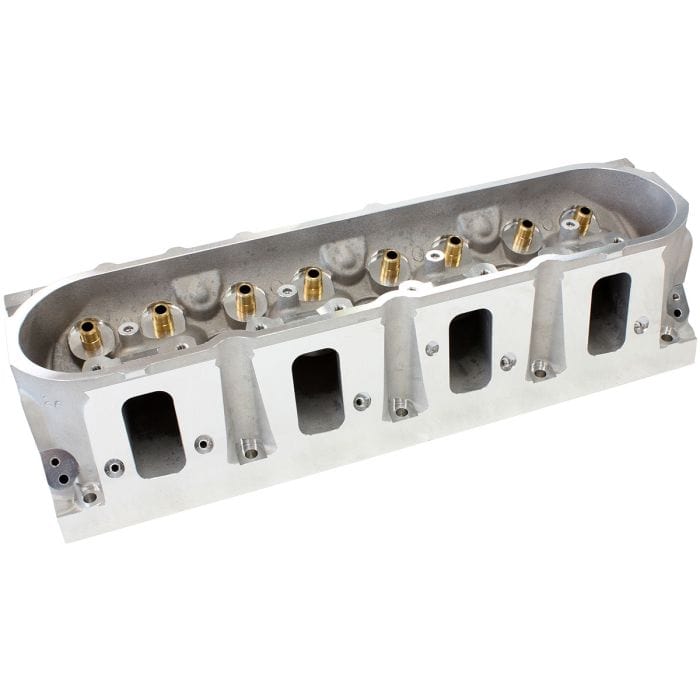

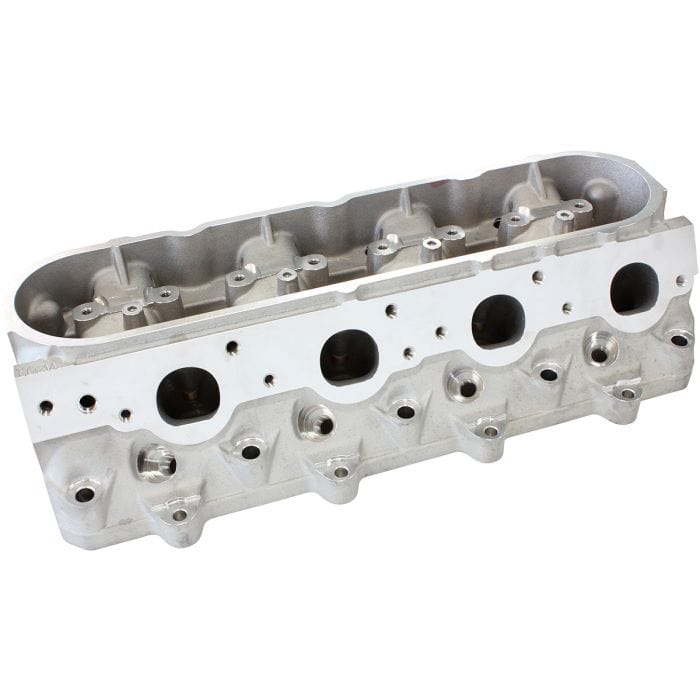

Bare GM LS3 4 Bolt 276cc Aluminium Cylinder Heads with 70cc Chamber (Pair) 2.60" x 1.28" Intake Port, 1.47" x 1.64" Exhaust Port

filler

Part Number: AF95-0407
Price:
Sale price$1,513.75

GST included Shipping calculated at checkout

Stock:
In stock

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Description

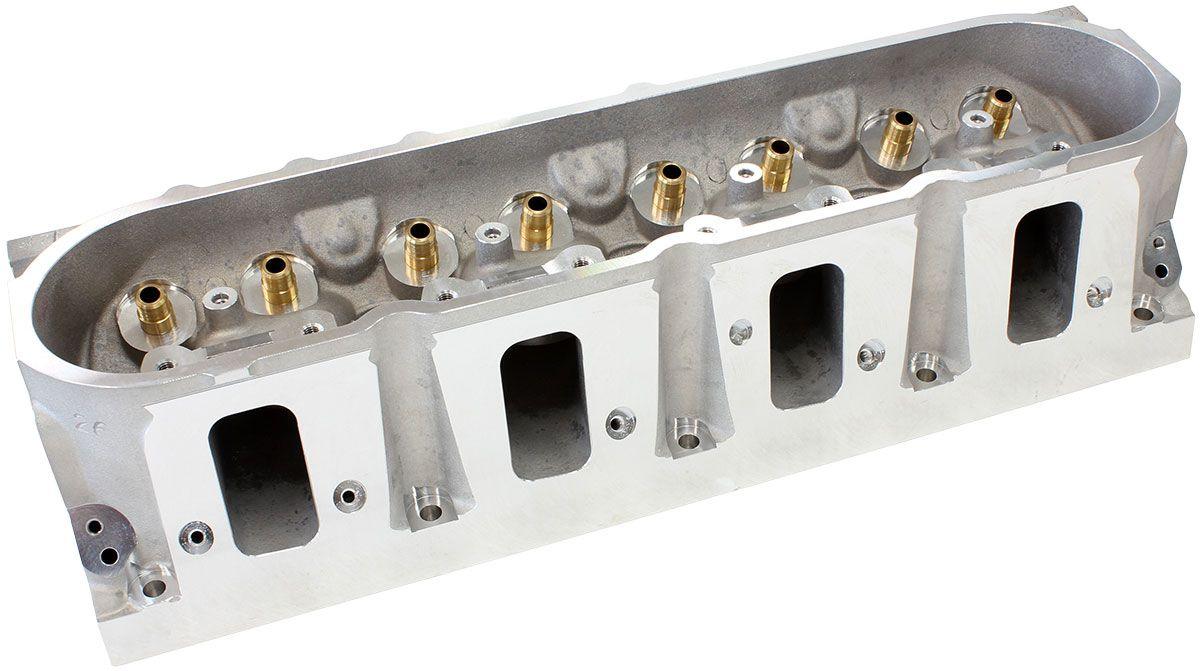

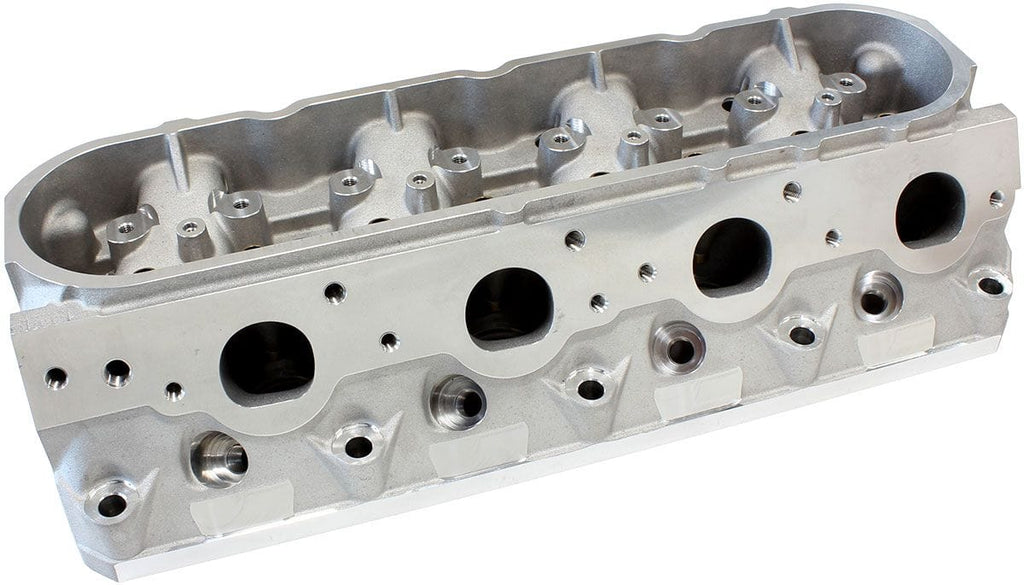

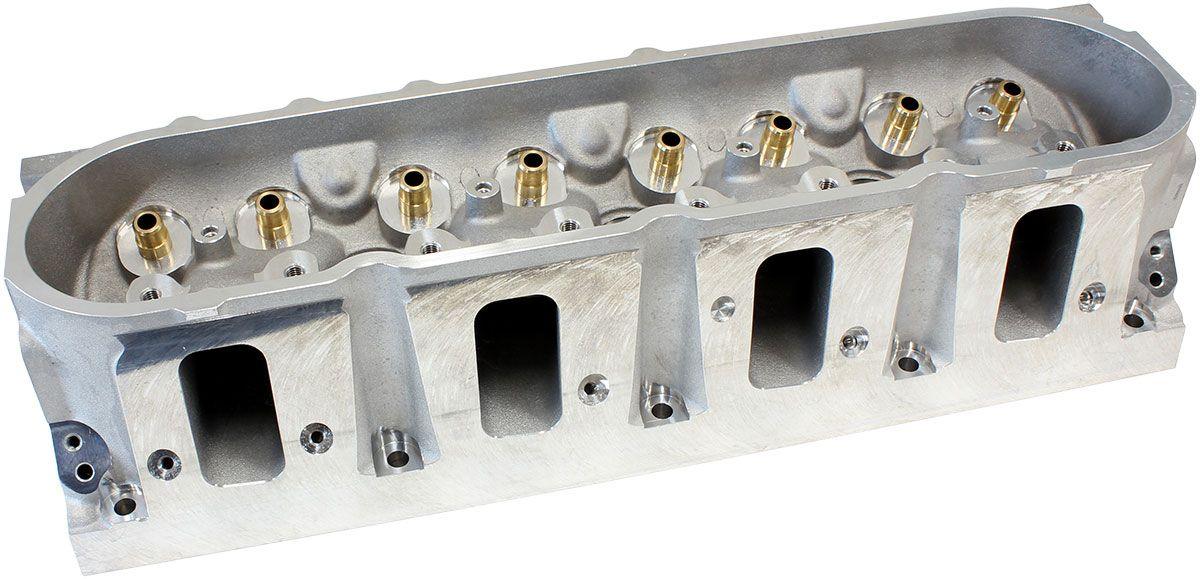

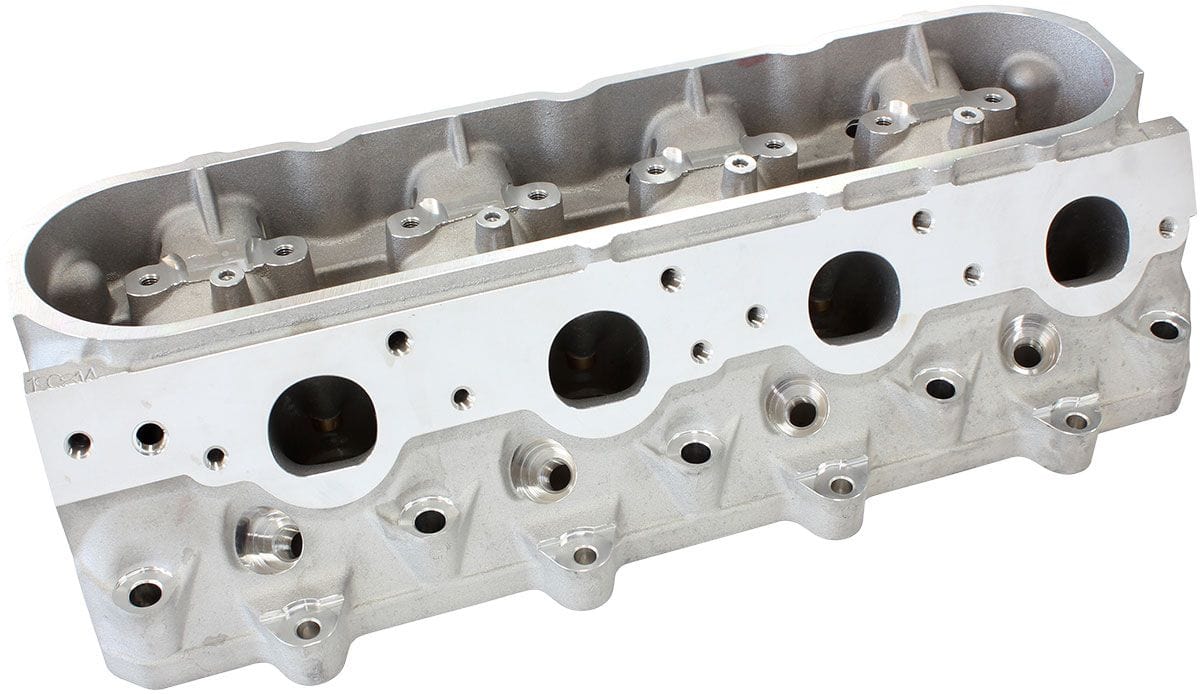

Bare GM LS3 4 Bolt 276cc Aluminium Cylinder Heads with 70cc Chamber (Pair)
2.60" x 1.28" Intake Port, 1.47" x 1.64" Exhaust Port
Head Specifications

Material: A356 Aluminium

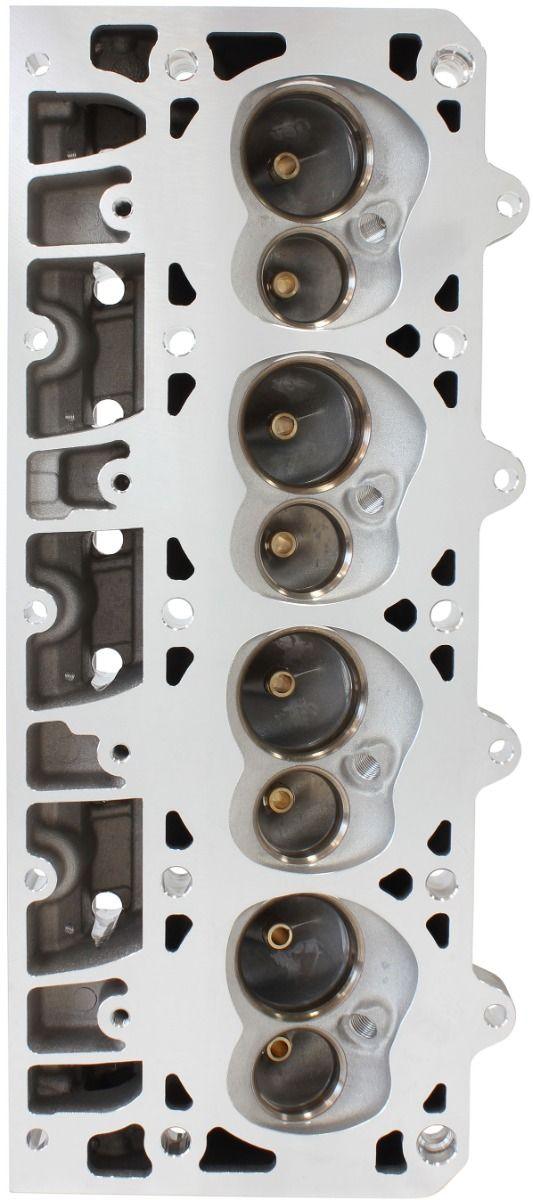

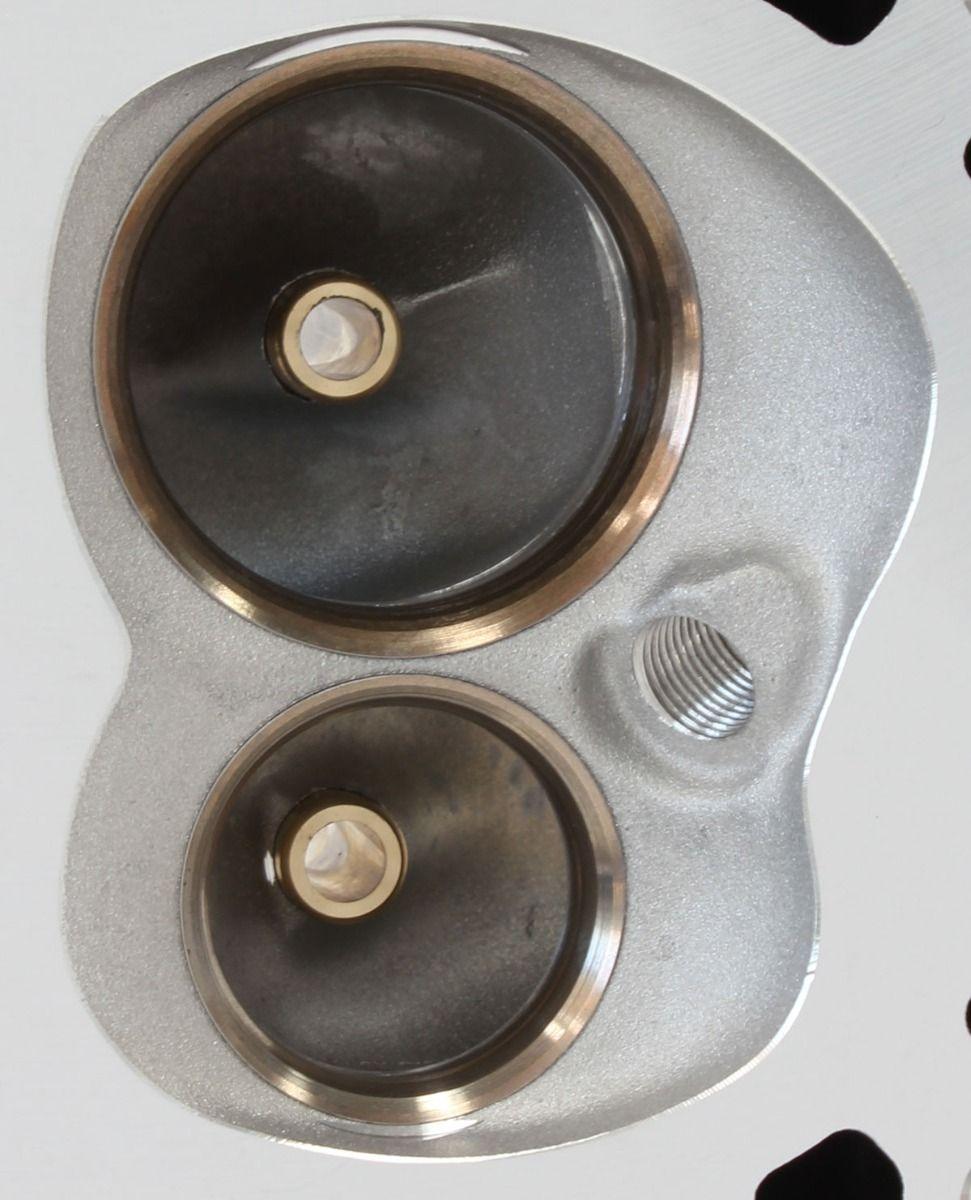

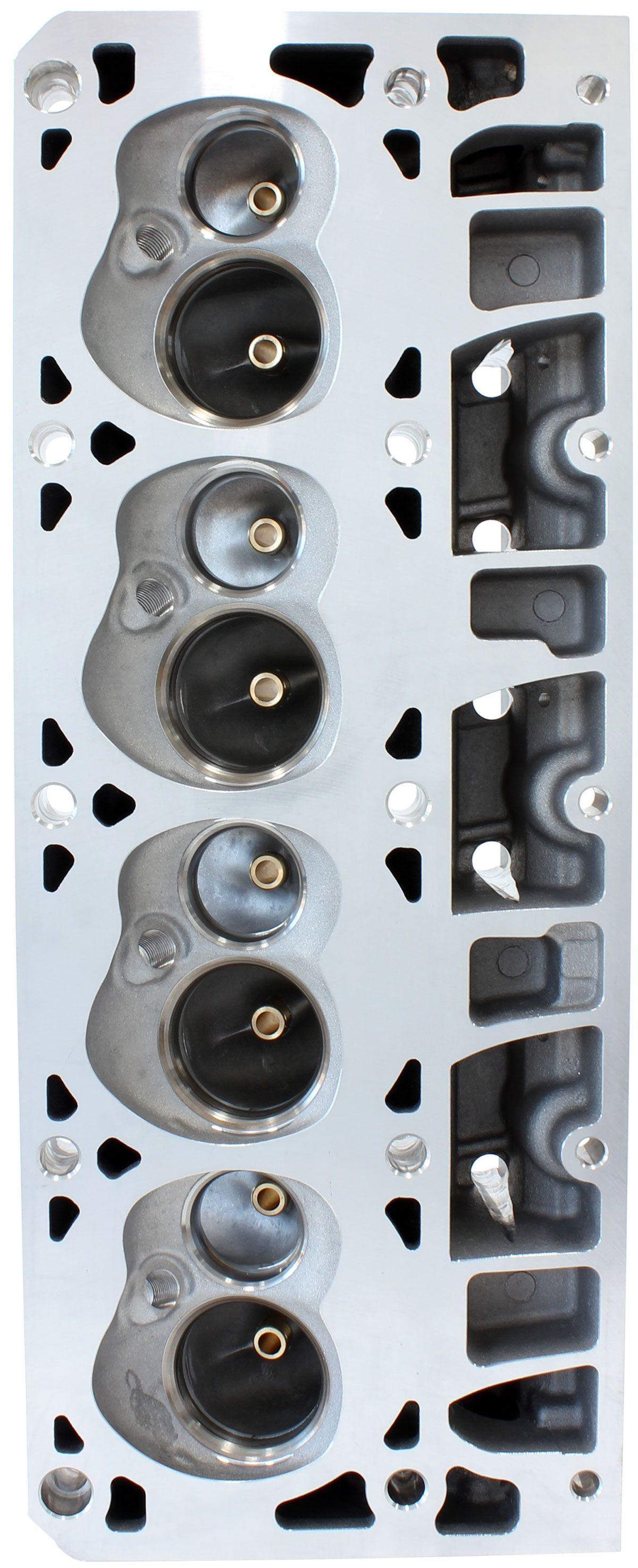

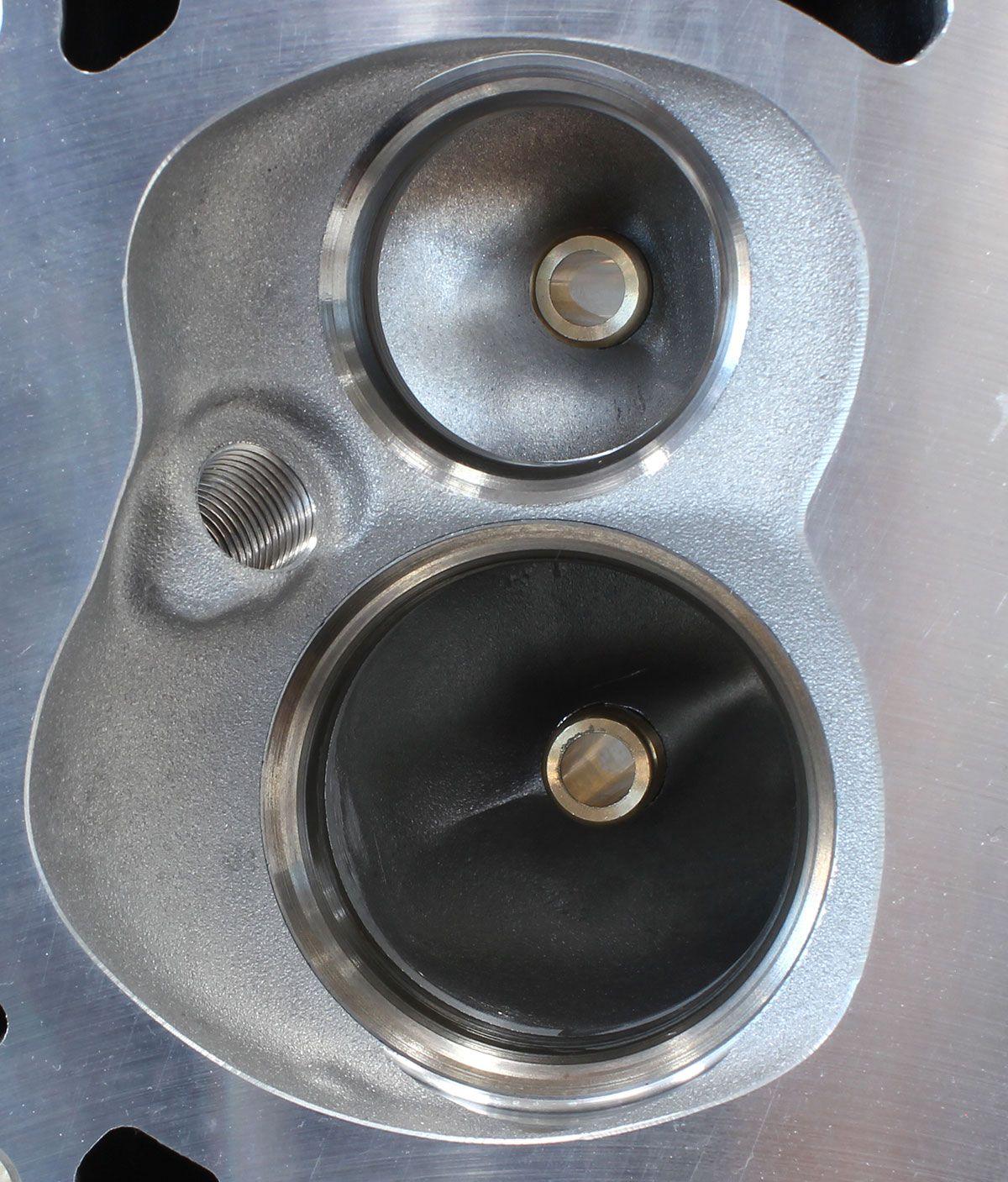

Chamber Chamber: 70cc
Intake Port Volume: 276cc
Intake Port Dimension: 1.285" x 2.60"
Exhaust Port Volume: 90cc
Exhaust Port Dimension: 1.47" H x 1.64" W
Spark Plug Location: OE Stock
Intake Valve Diameter: 2.165" x 4.89"
Exhaust Valve Diameter: 1.59" x 4.89"
Valve Stem Diameter: 8mm
Valve Spring Pocket I.D.: 1.30"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .502" (.560" at base)
Rocker Design: LS3 Rails required
Valve Angle: 15°
Deck Thickness: .625"
